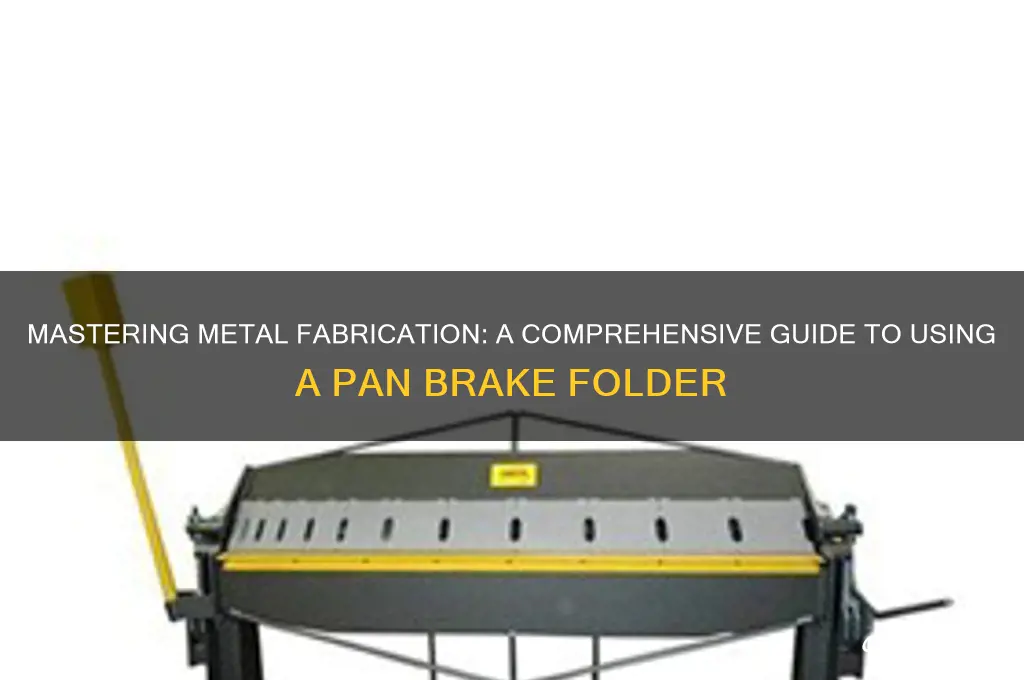

A pan brake folder is an essential tool in sheet metal fabrication, designed to make precise bends in metal sheets with ease and accuracy. Understanding how to use a pan brake folder involves familiarizing yourself with its components, such as the clamping bar, bending leaf, and back gauge, which work together to create clean, uniform bends. Before starting, ensure the machine is properly set up, with the correct blade and finger sizes selected for the material thickness and desired bend angle. Begin by securely clamping the sheet metal in place, aligning it with the back gauge for consistent results. Gradually apply pressure to the bending leaf, allowing the metal to fold along the designated line. Always prioritize safety by wearing appropriate protective gear and following the manufacturer’s guidelines to avoid accidents and ensure efficient operation. With practice and attention to detail, mastering the pan brake folder can significantly enhance your metalworking capabilities.
| Characteristics | Values |
|---|---|
| Machine Setup | Ensure the pan brake folder is securely mounted on a stable surface. |
| Material Preparation | Measure and mark the sheet metal to the desired dimensions. |
| Blade Adjustment | Adjust the blade depth to match the material thickness and bend angle. |
| Clamping Pressure | Set the clamping pressure according to the material gauge to avoid damage. |
| Backgauge Positioning | Position the backgauge to the required length for accurate bending. |
| Bending Process | Insert the material, align it with the backgauge, and lower the blade. |
| Angle Precision | Use a protractor or angle finder to verify the bend angle. |
| Safety Measures | Wear safety gloves and eye protection; ensure hands are clear of the blade. |
| Material Compatibility | Suitable for sheet metals like aluminum, steel, and stainless steel. |
| Maintenance | Regularly lubricate moving parts and clean debris from the machine. |
| Power Requirements | Check the machine's power source and ensure it matches the supply. |
| Capacity | Verify the machine's maximum material thickness and length capacity. |
| Speed Control | Adjust the bending speed for precision, especially with thinner materials. |
| Repeatability | Use the backgauge and stops for consistent, repeatable bends. |
| Training | Ensure operators are trained in proper usage and safety protocols. |
Explore related products
What You'll Learn
- Machine Setup: Prepare the pan brake folder by adjusting backgauge, clamping pressure, and finger spacing for material thickness
- Material Preparation: Clean, mark, and measure the sheet metal to ensure accurate bends and smooth edges
- Bending Techniques: Use proper clamping and bending methods to avoid material distortion or breakage during folding
- Angle Adjustment: Set the leaf stop and apron to achieve precise bend angles for consistent results
- Safety Practices: Follow safety guidelines, wear protective gear, and avoid loose clothing to prevent accidents
Machine Setup: Prepare the pan brake folder by adjusting backgauge, clamping pressure, and finger spacing for material thickness
Before beginning any bending operation with a pan brake folder, proper machine setup is crucial for achieving accurate and consistent results. The first step in preparing the machine is to adjust the backgauge, which determines the depth of the bend. Start by measuring the material thickness and referring to the bending chart or manual for the appropriate backgauge setting. Loosen the locking mechanism on the backgauge, position it to the required distance from the bending blade, and securely tighten it in place. Ensure the backgauge is perpendicular to the machine bed to guarantee precise bend angles. Double-check the measurement using a ruler or caliper to avoid errors.
Next, adjust the clamping pressure to suit the material thickness and type. Thicker or harder materials require higher clamping pressure to hold them securely during bending, while thinner or softer materials need less pressure to prevent deformation. Locate the pressure adjustment knob or lever, typically found near the clamping mechanism. Gradually increase or decrease the pressure, testing it on a scrap piece of material to ensure it holds firmly without causing damage. Proper clamping pressure ensures the material remains stationary during the bending process, reducing the risk of inaccuracies or material slippage.
Finger spacing is another critical adjustment, especially when working with varying material thicknesses. The fingers of the pan brake folder must be spaced correctly to support the material along the bend line without interfering with the bending process. Remove the existing fingers and select the appropriate finger width from the available set, ensuring they match the material thickness. Insert the fingers into the machine, making sure they are evenly spaced and aligned with the bending blade. Incorrect finger spacing can lead to uneven bends or material damage, so take the time to verify their positioning before proceeding.
Once the backgauge, clamping pressure, and finger spacing are adjusted, perform a test bend on a scrap piece of material. This allows you to fine-tune the settings if necessary and ensures the machine is properly calibrated for the specific material and bend requirements. Inspect the test bend for accuracy, checking the angle, length, and overall quality. If adjustments are needed, make small changes to the backgauge position, clamping pressure, or finger spacing and repeat the test until satisfactory results are achieved. Proper machine setup not only improves the quality of the bends but also extends the life of the pan brake folder by reducing unnecessary wear and tear.
Finally, ensure all adjustments are securely locked in place before starting the actual bending work. Loose components can lead to inconsistencies or safety hazards during operation. Take a moment to clean the machine bed and remove any debris or remnants from previous jobs, as these can interfere with material placement and bending accuracy. By meticulously adjusting the backgauge, clamping pressure, and finger spacing, and verifying the setup with a test bend, you can confidently proceed with your bending tasks, knowing the pan brake folder is optimized for the material and desired outcomes.
Best Metal for Non-Stick Baking Pans: A Definitive Guide
You may want to see also
Explore related products
Material Preparation: Clean, mark, and measure the sheet metal to ensure accurate bends and smooth edges
Before beginning the bending process with a pan brake folder, proper material preparation is crucial to ensure accurate results and a professional finish. The first step in preparing your sheet metal is cleaning. Sheet metal often comes with oils, residues, or protective coatings that can interfere with the bending process or leave marks on the final product. Use a clean cloth or solvent to wipe down the surface, ensuring it is free from any contaminants. For more stubborn residues, a mild detergent or specialized metal cleaner can be applied, followed by a thorough rinse and drying to prevent rust or water stains.
Once the sheet metal is clean, the next step is marking. Accurate marking ensures that your bends are precise and aligned correctly. Use a straightedge and a permanent marker or scribe to indicate where the bends will occur. Measure twice to ensure accuracy, as even a small error at this stage can lead to significant misalignment later. For complex projects, consider using a ruler or square to maintain straight lines and consistent angles. If the project requires multiple bends, mark all lines clearly and label them if necessary to avoid confusion during the folding process.
Measuring is another critical aspect of material preparation. Use a tape measure, caliper, or ruler to determine the exact dimensions of the sheet metal and the locations of the bends. Double-check your measurements against the project plans to ensure they align with the desired specifications. For projects requiring specific angles, a protractor can be used to verify the marked lines. Precision in measuring not only ensures the final product meets the required dimensions but also minimizes material waste and reduces the need for rework.
To achieve smooth edges and professional results, consider deburring the sheet metal before bending. Sharp edges can be dangerous to handle and may cause issues during the bending process. Use a deburring tool or file to remove any burrs or sharp edges along the cut lines. Additionally, sanding the edges lightly can further smooth the surface, reducing the risk of scratches or damage during folding. This step is particularly important for projects where the edges will be visible or handled frequently.
Finally, ensure the sheet metal is flat and free from warping before proceeding to the pan brake folder. Even slight warping can affect the accuracy of the bends. If the metal is not perfectly flat, use a flat surface and apply gentle pressure to straighten it. For more stubborn warping, a rubber mallet or a weighted object can be used to flatten the sheet. Properly prepared material not only ensures accurate bends but also extends the life of your pan brake folder by reducing unnecessary stress on the machine. With clean, marked, measured, and smooth sheet metal, you’re ready to proceed with confidence to the bending process.
Cooking Rice-A-Roni: Crock-Pot Style
You may want to see also
Explore related products
Bending Techniques: Use proper clamping and bending methods to avoid material distortion or breakage during folding
When using a pan brake folder, proper clamping and bending techniques are crucial to ensure the material is folded accurately without distortion or breakage. Begin by selecting the appropriate clamp pressure for the thickness and type of material being worked with. Insufficient clamping can lead to slippage during bending, while excessive pressure may cause deformation or even damage the material. Most pan brake folders have adjustable clamps, so start with a moderate setting and adjust as needed. Ensure the material is securely held in place along the entire clamping surface to distribute the force evenly.
Before initiating the bend, align the material precisely with the bending edge of the pan brake. Misalignment can result in uneven folds or material stress, increasing the risk of breakage. Use the machine’s back gauge to position the material accurately, ensuring the bend line is directly over the bending edge. Double-check the alignment by measuring from the edge of the material to the bend line to guarantee consistency across multiple folds. Proper alignment is especially critical when working with thin or brittle materials that are more prone to distortion.
During the bending process, apply force gradually and smoothly to avoid sudden stress on the material. Rapid or jerky movements can cause the material to crack or warp, particularly in metals like aluminum or stainless steel. For thicker materials, consider pre-scoring the bend line to reduce the force required and minimize the risk of breakage. When bending, ensure the folder’s apron is correctly positioned to support the material as it folds, preventing it from twisting or buckling. This support is vital for maintaining the integrity of the bend.
Another essential technique is to use the correct bending angle and radius for the material. Over-bending or attempting to create too sharp of an angle can lead to material failure. Refer to the material’s bending specifications to determine the minimum bend radius and adjust the pan brake accordingly. For complex or multiple bends, plan the sequence carefully to avoid compounding stress on the material. If necessary, anneal the material before bending to increase its flexibility and reduce the likelihood of cracking.
Finally, inspect the material after each bend to ensure it meets the desired specifications and shows no signs of distortion or damage. If minor adjustments are needed, make them incrementally to avoid overcorrecting. Regularly maintain the pan brake folder, ensuring all components, such as clamps and bending edges, are in good condition and properly aligned. Proper maintenance, combined with precise clamping and bending techniques, will significantly reduce the risk of material distortion or breakage during folding.
Cooking Without a Crock Pot Lid: Safe or Risky?
You may want to see also
Explore related products
Angle Adjustment: Set the leaf stop and apron to achieve precise bend angles for consistent results
When adjusting angles on a pan brake folder, the leaf stop and apron are critical components for achieving precise and consistent bend angles. The leaf stop acts as a back gauge, determining the depth of the bend by controlling how far the material is inserted into the machine. To begin, position the leaf stop at the desired distance from the bending edge of the apron. This distance should correspond to the material thickness and the angle you intend to create. For example, a shorter distance will result in a sharper bend, while a longer distance will produce a more gradual angle. Ensure the leaf stop is securely locked in place to maintain accuracy throughout the bending process.
Next, focus on the apron, which is the movable part of the brake that forms the bend. The apron must be set at the correct angle to achieve the desired bend in the material. Most pan brake folders have a scale or indicator to help you set the apron angle precisely. Align the apron to the marked angle on the scale, ensuring it is firmly secured to prevent any movement during bending. If your machine allows for fine adjustments, use the micrometer or adjustment knob to fine-tune the apron angle for even greater precision. This step is crucial for achieving consistent results, especially when working with multiple pieces that require identical bends.
Once both the leaf stop and apron are set, perform a test bend on a scrap piece of material to verify the angle. Measure the bend with a protractor or angle gauge to ensure it matches the desired specification. If the angle is not correct, make small adjustments to either the leaf stop or apron and repeat the test until the desired angle is achieved. This trial-and-error process is essential for calibrating the machine to the specific requirements of your project.
For repetitive bending tasks, consistency is key. Ensure that the material is consistently fed into the machine with the same alignment each time. Even slight variations in how the material is positioned can affect the bend angle. Use clamps or guides to hold the material securely in place against the leaf stop, minimizing any potential for shifting during the bending process. This attention to detail will help maintain uniformity across all bent pieces.
Finally, regular maintenance of the leaf stop and apron mechanisms is vital for long-term accuracy. Keep these components clean and free of debris, as buildup can interfere with their movement and precision. Lubricate moving parts as recommended by the manufacturer to ensure smooth operation. Periodically check the calibration of the angle scale and indicators to confirm they remain accurate. By maintaining the machine and carefully setting the leaf stop and apron, you can consistently achieve precise bend angles with your pan brake folder.
Hotel Pan Quart Capacity: How Much Does It Hold?
You may want to see also
Explore related products
Safety Practices: Follow safety guidelines, wear protective gear, and avoid loose clothing to prevent accidents
When operating a pan brake folder, adhering to safety practices is paramount to prevent accidents and ensure a secure working environment. Always follow the manufacturer’s safety guidelines provided in the machine’s manual. These guidelines include proper setup, operation, and maintenance procedures tailored to your specific model. Familiarize yourself with the machine’s controls, emergency stop mechanisms, and any warning labels. Ignoring these instructions can lead to malfunctions or injuries, so treat them as essential steps before and during use.
Wearing appropriate protective gear is non-negotiable when using a pan brake folder. Safety glasses or goggles are mandatory to protect your eyes from flying debris or metal shards that may occur during bending operations. Additionally, wear sturdy, non-slip work gloves to improve grip and protect your hands, but ensure they are tight-fitting to avoid getting caught in the machine. Steel-toed boots are also recommended to safeguard your feet from heavy materials or accidental drops. This gear acts as a critical barrier against potential hazards.
Avoiding loose clothing, jewelry, and long hair is another crucial safety measure. Loose items can easily get entangled in the machine’s moving parts, leading to severe injuries. Tie back long hair, remove necklaces, bracelets, or rings, and opt for close-fitting clothing. If necessary, use hairnets or wristbands to secure any loose items. This simple precaution minimizes the risk of entanglement and ensures your focus remains on the task at hand.
Maintaining a clean and organized workspace is equally important for safety. Keep the area around the pan brake folder free of clutter to prevent tripping hazards and ensure easy access to emergency controls. Regularly inspect the machine for worn or damaged parts, and address any issues before operation. Never attempt to adjust or repair the machine while it is running. By staying vigilant and proactive, you reduce the likelihood of accidents and create a safer working environment.
Finally, never operate the pan brake folder without proper training or supervision. If you are new to the machine, seek guidance from an experienced operator or undergo formal training. Avoid distractions and never rush the process, as haste can lead to mistakes. Always use both hands when feeding material into the machine and keep them clear of the bending area. By prioritizing safety practices, you protect yourself and those around you while ensuring efficient and accident-free operation.
Melting Cheese in a Pan: Tips and Tricks
You may want to see also
Frequently asked questions
A pan brake folder is a sheet metal bending machine used to create precise bends in metal sheets. It is commonly used in fabrication, HVAC, and construction to form boxes, pans, and other rectangular or angular shapes.
To set the bending angle, adjust the back gauge to the desired depth, and position the clamping beam to the required angle. Ensure the sheet is securely clamped and aligned before bending. Refer to the machine's manual for specific angle markings and adjustments.
Always wear safety gloves and eye protection. Ensure the machine is properly secured and the area is clear of obstructions. Never place hands near the bending area while the machine is in operation, and always use the provided safety guards and controls.
