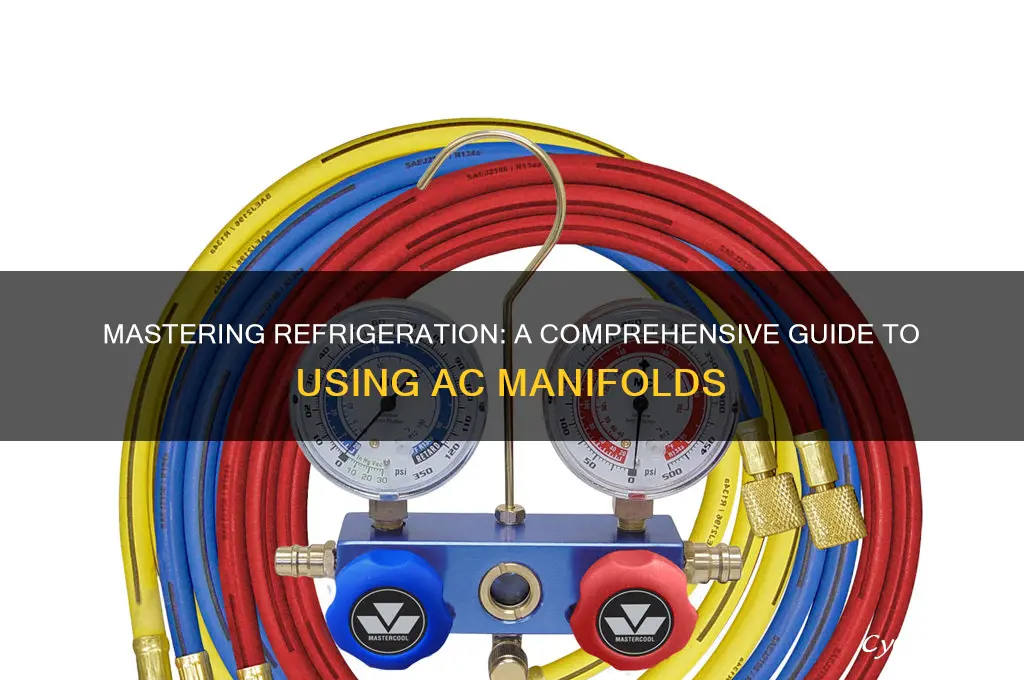

Using an AC manifold gauge set is essential for diagnosing, servicing, and maintaining refrigeration systems. This tool allows technicians to measure pressure, evacuate air and moisture, and charge refrigerant accurately. To use an AC manifold, first, connect the gauges to the system’s low and high-pressure ports using the appropriate hoses. Ensure all valves are closed before connecting to prevent refrigerant loss. Open the valves slowly to read system pressures and compare them to manufacturer specifications. For evacuation, attach a vacuum pump to the manifold and open the necessary valves to remove contaminants. When charging refrigerant, use the manifold to control the flow and monitor pressure levels, ensuring the system operates within optimal parameters. Proper use of the manifold gauge set ensures efficient and safe refrigeration system maintenance.
| Characteristics | Values |
|---|---|
| Purpose | Diagnose and service refrigeration systems by measuring pressure and temperature |
| Components | Manifold gauge set, hoses, refrigerant cylinders, valves (high-side, low-side, center) |
| Refrigerants | R-22, R-410A, R-134a (ensure compatibility with manifold and hoses) |
| Pressure Scales | PSI, Bar, kPa (dual scales on gauges for different refrigerants) |
| Temperature Measurement | Thermocouple or digital temperature probe connected to manifold |
| Valve Functions | High-side: Connects to high-pressure side of system; Low-side: Connects to low-pressure side; Center: Controls refrigerant flow |
| Safety Precautions | Wear safety goggles, gloves, and ensure proper ventilation; avoid overcharging or undercharging |
| Steps | 1. Evacuate system; 2. Connect hoses to gauges and system; 3. Open valves to read pressures; 4. Adjust refrigerant as needed; 5. Close valves and disconnect |
| Common Issues | Leaks, incorrect refrigerant type, clogged filters, faulty valves |
| Maintenance | Regularly inspect hoses for wear, clean valves, and store in a dry place |
| Tools Required | Wrenches, vacuum pump, refrigerant scale, leak detector |
| Environmental Considerations | Recover and recycle refrigerant to comply with regulations (e.g., EPA Section 608) |
| Training | Proper training in HVAC/R systems and refrigerant handling is essential |
Explore related products
What You'll Learn
Connecting Gauges to Manifold
Connecting gauges to a manifold is a critical step in diagnosing and servicing refrigeration systems, ensuring accurate pressure readings and safe refrigerant handling. Begin by identifying the correct ports on your manifold: the yellow hose connects to the high-pressure side, the blue hose to the low-pressure side, and the red hose to the refrigerant cylinder. Always ensure the manifold valves are closed before attaching hoses to prevent refrigerant escape or system contamination. Use Teflon tape or thread sealant on the gauge connections to create a tight seal, but avoid over-tightening to prevent damage to the threads. Properly secured gauges not only provide reliable readings but also safeguard the system from leaks and inefficiencies.
The process of connecting gauges to a manifold requires attention to detail and adherence to safety protocols. Start by evacuating the manifold hoses to remove any air or moisture, which can compromise system performance. Attach the hoses to the corresponding service ports on the refrigeration unit, ensuring the high and low-pressure sides are correctly matched. Once connected, slowly open the manifold valves to allow refrigerant flow and stabilize the gauge readings. Always wear protective gear, such as gloves and safety goggles, to guard against refrigerant exposure or accidental spills. This methodical approach minimizes risks and ensures accurate diagnostics.
Comparing the connection process across different refrigeration systems highlights the importance of compatibility and precision. For instance, residential AC units often have smaller service ports than commercial refrigeration systems, requiring adapters or specific hose fittings. Additionally, R-410A systems operate at higher pressures than R-22 systems, necessitating gauges and manifolds rated for such conditions. Understanding these differences ensures the right tools are used, preventing equipment damage or inaccurate readings. Always consult the system’s specifications or manufacturer guidelines to confirm compatibility before proceeding.
A practical tip for technicians is to perform a pre-connection inspection of both the manifold and gauges. Check for cracks, corrosion, or worn O-rings that could lead to leaks. Test the manifold for proper valve operation by opening and closing each valve to ensure they seal tightly. For gauges, verify calibration by comparing readings with a known reference or using a calibration tool. This proactive approach not only extends the life of your equipment but also enhances the reliability of your diagnostics. Regular maintenance of these tools is as crucial as their proper use in the field.
In conclusion, connecting gauges to a manifold is a foundational skill in refrigeration service, blending technical precision with safety awareness. By following a structured process, understanding system-specific requirements, and maintaining equipment, technicians can ensure accurate diagnostics and efficient repairs. Mastery of this step not only improves service quality but also reinforces a commitment to safety and professionalism in the field. Whether working on a small residential unit or a large commercial system, the principles remain consistent: precision, compatibility, and preparedness.
Refrigerating Avocado Smoothie: Tips for Freshness and Storage
You may want to see also
Explore related products
Evacuating Refrigeration Systems Safely
Evacuating a refrigeration system is a critical step in ensuring its efficiency and longevity, but it’s not without risks if done improperly. The process involves removing air, moisture, and non-condensable gases from the system using an AC manifold gauge set, vacuum pump, and proper techniques. Failure to evacuate thoroughly can lead to compressor damage, reduced cooling capacity, or system inefficiency. Moisture, for instance, reacts with refrigerant to form acids that corrode internal components, while air pockets reduce heat transfer efficiency. Understanding these risks underscores the importance of following precise procedures.
To begin, connect the AC manifold gauge set to the refrigeration system, ensuring all hoses are securely attached to the high and low-side ports. Open the valves on the manifold to equalize pressure, then close them before starting the evacuation. Attach the vacuum pump to the manifold’s center port and start it to create a deep vacuum. Monitor the micron gauge to ensure the system reaches a vacuum level of 500 microns or lower, as recommended by most manufacturers. This level ensures the removal of moisture and contaminants. Maintain the vacuum for at least 30 minutes to allow the pump to draw out any remaining gases or moisture effectively.
While evacuating, be mindful of potential hazards. Never operate the vacuum pump without oil, as this can cause overheating and damage. Ensure the system is free of leaks before starting, as even small leaks can compromise the evacuation process. Additionally, avoid exposing the system to ambient temperatures above 85°F (29°C), as this can affect the vacuum’s effectiveness. Always wear safety gear, including gloves and goggles, to protect against refrigerant leaks or accidental exposure to system components under pressure.
Comparing manual and automated evacuation methods highlights the advantages of precision and control. Manual evacuation allows technicians to monitor the process closely, adjusting as needed, while automated systems offer consistency and reduce human error. However, both methods require adherence to safety protocols. For example, using a core removal tool to access the system minimizes the risk of debris entering during evacuation. Regardless of the method, the goal remains the same: achieving a clean, dry, and contaminant-free system.
In conclusion, evacuating a refrigeration system safely requires a combination of technical knowledge, proper tools, and adherence to safety guidelines. By maintaining a deep vacuum, monitoring for leaks, and using the right equipment, technicians can ensure the system operates at peak efficiency. Neglecting these steps can lead to costly repairs and reduced system lifespan. Treat evacuation as a critical maintenance task, not just a preliminary step, to safeguard the integrity of the refrigeration system.
Mastering Your Electrolux Fridge: Easy Steps to Set Temperature
You may want to see also
Explore related products
Charging Refrigerant with Precision
Precision in charging refrigerant is critical to ensuring optimal performance and efficiency of refrigeration systems. Overcharging or undercharging can lead to inefficiencies, increased energy consumption, and potential damage to components. An AC manifold gauge set is an indispensable tool for this task, allowing technicians to monitor pressure, evacuate systems, and add refrigerant with accuracy. The process begins with understanding the system’s requirements, typically found in the manufacturer’s specifications, which include the correct refrigerant type and charge amount. For example, a residential split system might require 4 to 6 pounds of R-410A, while a commercial unit could need significantly more. Always verify the refrigerant type using the manifold’s color-coded hoses to avoid costly mistakes.
The first step in precise charging is to evacuate the system to remove moisture and non-condensables, which can cause acid formation and damage. Use the manifold’s vacuum pump to achieve a deep vacuum, ideally below 500 microns, and hold it for at least 15 minutes to ensure thorough drying. Once evacuation is complete, close the vacuum pump valve and isolate the system by closing the manifold’s core valves. This preparation ensures that the refrigerant charge is not contaminated and that the system is ready to accept the exact amount required.
Charging should be done in liquid form through the low-pressure side of the system, as this allows for better control and accuracy. Attach the refrigerant cylinder to the manifold’s yellow hose and open the cylinder valve slowly to prevent sudden pressure spikes. Monitor the system’s superheat or subcooling using the manifold gauges, aiming for values specified by the manufacturer—typically 10°F to 15°F of superheat for air conditioning systems. Adjust the charge incrementally, adding no more than 0.5 pounds at a time, and allow the system to stabilize for 5 to 10 minutes between additions. Overcharging by just 10% can reduce efficiency by up to 15%, so patience and precision are key.
Caution must be exercised to avoid common pitfalls. Never charge a system while it’s off, as this prevents accurate measurement of superheat or subcooling. Avoid charging in extreme temperatures, as ambient conditions can skew pressure readings. Always wear protective gear, including gloves and safety goggles, when handling refrigerants, as exposure can cause frostbite or chemical burns. Additionally, ensure all connections are tight and leak-free to prevent refrigerant loss and system inefficiency.
In conclusion, charging refrigerant with precision is a meticulous process that demands attention to detail and the right tools. By following manufacturer guidelines, using an AC manifold gauge set effectively, and adhering to safety precautions, technicians can ensure systems operate at peak efficiency. This not only extends the lifespan of the equipment but also reduces energy consumption and environmental impact, making precision charging a cornerstone of responsible refrigeration practices.
Refrigerating or Freezing Fondant-Decorated Cookies: Best Practices Explained
You may want to see also
Explore related products
Reading Pressure Gauges Accurately
Pressure gauges on an AC manifold are your window into the refrigerant system, revealing crucial insights about its health. But like any tool, their accuracy depends on proper interpretation. Understanding the relationship between gauge readings, temperature, and refrigerant type is paramount. For instance, R-410A operates at significantly higher pressures than R-22, so a reading of 200 psi on the low side could indicate normal operation for R-410A but a severe undercharge for R-22. Always consult the refrigerant's pressure-temperature chart for accurate diagnosis.
Pressure gauge accuracy hinges on several factors. Firstly, ensure the gauges are calibrated and in good condition. Even a slight offset can lead to misdiagnosis. Secondly, consider ambient temperature. Gauge readings reflect the pressure at the manifold, not directly at the evaporator or condenser. Adjustments based on temperature differentials are often necessary. For example, a 10°F difference between the manifold and the evaporator coil can translate to a 5-10 psi discrepancy in pressure readings.
Mastering pressure gauge reading involves a systematic approach. Start by identifying the refrigerant type and its corresponding pressure-temperature chart. Then, note the ambient temperature and the temperature at the point of measurement (evaporator or condenser). Finally, compare the gauge readings to the chart, factoring in any temperature differentials. This process allows you to accurately assess system performance, identify potential issues like undercharging, overcharging, or restrictions, and make informed decisions regarding refrigerant adjustments.
Remember, pressure gauges are just one piece of the diagnostic puzzle. Combine gauge readings with other observations like superheat, subcooling, and visual inspections for a comprehensive understanding of the system's condition. By honing your gauge reading skills and integrating them with other diagnostic techniques, you'll become a more effective troubleshooter, ensuring optimal performance and longevity of your refrigeration systems.
Should You Warm Refrigerated Cat Food? Pros, Cons, and Tips
You may want to see also
Explore related products
Preventing Manifold Leaks & Damage
Manifold leaks can compromise the efficiency and safety of your refrigeration system, leading to costly repairs and downtime. One of the primary causes of leaks is improper installation or handling of the manifold gauges and hoses. To prevent this, always ensure that all connections are tightened securely but not over-tightened, as excessive force can damage threads and seals. Use thread sealant or Teflon tape on threaded connections, but apply it sparingly to avoid buildup that could interfere with sealing. Regularly inspect hoses for cracks, abrasions, or signs of wear, replacing them immediately if any defects are found.
Another critical aspect of leak prevention is maintaining proper pressure levels during operation. Overpressurization can strain the manifold and its components, increasing the risk of leaks or ruptures. Always adhere to the manufacturer’s recommended pressure limits for your refrigeration system. Use a reliable pressure regulator and monitor gauges closely during charging or recovery processes. If you notice erratic readings or suspect a leak, halt operations immediately and conduct a thorough inspection. Investing in high-quality gauges with accurate calibration can also reduce the likelihood of pressure-related issues.
Environmental factors play a significant role in manifold durability. Exposure to extreme temperatures, moisture, or corrosive substances can accelerate wear and increase the risk of leaks. Store your manifold and hoses in a dry, temperature-controlled environment when not in use. If working in harsh conditions, consider using protective covers or shields to minimize exposure. Additionally, avoid bending or kinking hoses, as this can weaken their structure and create stress points prone to failure. Proper storage and handling practices can significantly extend the lifespan of your equipment.
Routine maintenance is key to identifying potential issues before they escalate. Inspect all manifold components, including valves, gauges, and fittings, at least monthly for signs of corrosion, loose connections, or damage. Perform a soap bubble test on connections to detect leaks that may not be visible to the naked eye. Keep detailed records of maintenance activities and any issues encountered to track patterns and address recurring problems proactively. By adopting a preventive maintenance mindset, you can minimize the risk of leaks and ensure your manifold operates reliably over its intended lifespan.
Reversing Haier Fridge Doors: A Simple DIY Guide for Homeowners
You may want to see also
Frequently asked questions
An AC manifold gauge set is a diagnostic tool used to measure pressure levels in refrigeration systems. It consists of two gauges (high-side and low-side) and hoses connected to the system’s service ports. It helps monitor refrigerant pressure, evacuate the system, and charge refrigerant accurately.
First, turn off the refrigeration system. Connect the blue hose (low-side) to the suction line service port and the red hose (high-side) to the liquid line service port. Ensure all connections are tight to prevent leaks.
Always wear safety goggles and gloves to protect against refrigerant leaks. Ensure the system is off before connecting the gauges. Avoid over-tightening connections to prevent damage. Never expose the gauges to extreme temperatures or direct sunlight.
Connect the manifold gauge set to the system and attach the vacuum pump to the yellow hose. Open the valve on the vacuum pump and monitor the gauges to ensure the system reaches the desired vacuum level (typically below 500 microns). Once complete, close the valves and turn off the pump.
