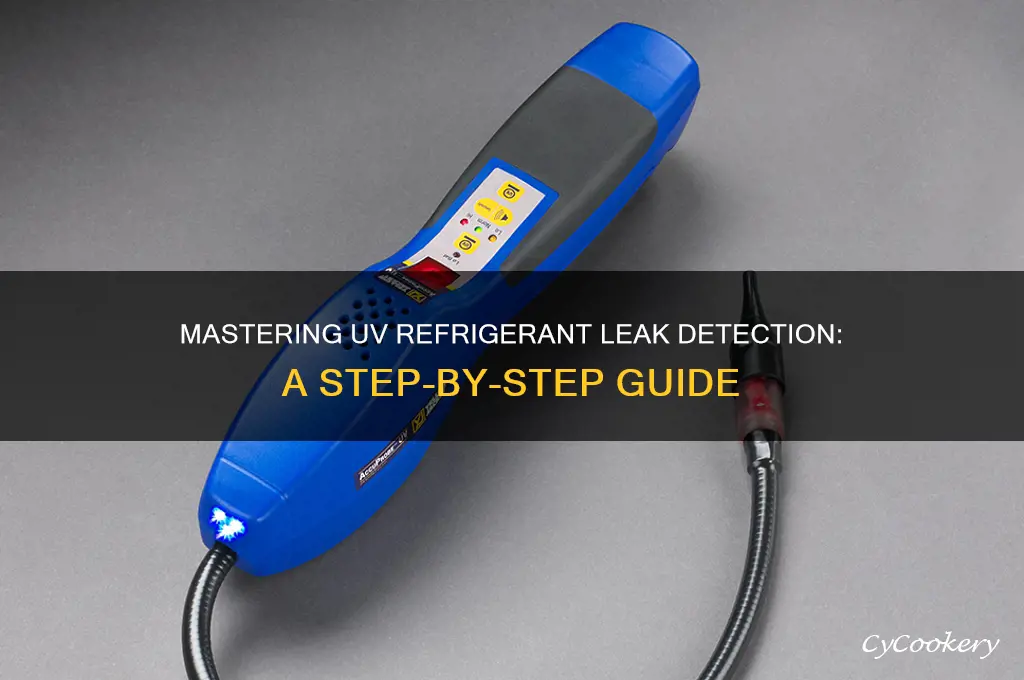

Using a UV refrigerant leak detector is an efficient and reliable method for identifying leaks in air conditioning and refrigeration systems. This tool utilizes ultraviolet (UV) light to detect fluorescent dyes that have been added to the refrigerant, making even the smallest leaks visible under the UV lamp. To use the detector, first ensure the system is running and the dye has circulated throughout. Turn off the lights in the area to maximize visibility, then direct the UV lamp onto the suspected leak points, such as connections, valves, and coils. If a leak is present, the dye will fluoresce brightly, pinpointing the exact location. This non-invasive technique is highly effective, minimizes system downtime, and helps prevent costly refrigerant loss and environmental damage. Always follow safety guidelines, such as wearing UV-protective glasses, to ensure safe operation.
Explore related products
What You'll Learn
- Pre-Inspection Preparation: Ensure detector is charged, calibrated, and equipped with necessary accessories for accurate leak detection
- Safety Precautions: Wear protective gear, ensure proper ventilation, and avoid contact with refrigerants during detection
- Detector Operation: Turn on, allow warm-up, and follow manufacturer instructions for optimal sensitivity settings
- Scanning Techniques: Move detector slowly near suspected areas, listen for alarms, and pinpoint leak sources
- Post-Detection Actions: Record findings, repair leaks, and retest to confirm no residual refrigerant escapes
Pre-Inspection Preparation: Ensure detector is charged, calibrated, and equipped with necessary accessories for accurate leak detection
Before embarking on any refrigerant leak detection task, it's crucial to verify that your UV detector is in optimal working condition. A depleted battery or faulty calibration can lead to inaccurate readings, potentially resulting in missed leaks or false positives. To avoid these pitfalls, start by checking the detector's battery level and ensuring it's fully charged. Most UV detectors feature a battery indicator light or display, making it easy to monitor the charge status. As a general rule, aim to maintain a battery charge of at least 80% to guarantee reliable performance throughout the inspection.
Calibrating your UV refrigerant leak detector is another critical aspect of pre-inspection preparation. Over time, the sensor's sensitivity may drift, causing it to produce inconsistent readings. To recalibrate the device, follow the manufacturer's instructions, which typically involve exposing the detector to a known concentration of refrigerant or using a calibration gas. For instance, some models require a 10-second exposure to a 1% refrigerant leak, while others may necessitate a more precise calibration procedure. Regular calibration, ideally before each use or at least monthly, ensures the detector's accuracy and minimizes the risk of erroneous results.
Equipping your UV detector with the necessary accessories is equally vital for successful leak detection. This includes attaching the correct type of probe or sensor, depending on the application and refrigerant being tested. For example, a flexible probe is ideal for accessing hard-to-reach areas, such as tight spaces around pipes or fittings. Additionally, consider using a UV-enhancing solution or dye to improve the visibility of leaks, especially in well-lit environments. Some detectors also offer interchangeable lenses or filters, allowing you to optimize the device for specific refrigerants or detection scenarios.
A comparative analysis of UV refrigerant leak detectors reveals that models with advanced features, such as adjustable sensitivity or multiple detection modes, often require more meticulous preparation. These devices may demand a more rigorous calibration process or specific accessory configurations to unlock their full potential. For instance, a high-end detector with a wide detection range (e.g., 0.05 to 10 oz/yr) might necessitate a more precise calibration procedure to ensure accurate readings across the entire scale. In contrast, entry-level models may prioritize simplicity and ease of use, requiring minimal preparation but potentially sacrificing some accuracy or versatility.
To illustrate the importance of pre-inspection preparation, consider a real-world scenario where a technician fails to calibrate their UV detector before inspecting a large commercial refrigeration system. As a result, the device produces false readings, indicating leaks in areas where none exist. This not only wastes time and resources but also delays the identification of actual leaks, potentially leading to system damage or downtime. By contrast, a technician who diligently prepares their detector – charging the battery, calibrating the sensor, and attaching the appropriate accessories – can efficiently pinpoint leaks, minimizing system disruption and reducing the risk of costly repairs. Ultimately, investing time in pre-inspection preparation is a small price to pay for the accuracy, reliability, and efficiency it brings to the refrigerant leak detection process.
Refrigerating Orange Zest: Tips for Freshness and Extended Storage
You may want to see also
Explore related products
$16.56 $21.23
Safety Precautions: Wear protective gear, ensure proper ventilation, and avoid contact with refrigerants during detection
Refrigerant leak detection using UV methods is a precise task, but it’s not without risks. Direct exposure to refrigerants, even in small amounts, can cause skin irritation, respiratory issues, or frostbite. For instance, R-410A, a common refrigerant, can lead to severe chemical burns upon contact with skin. Wearing protective gear—nitrile gloves, safety goggles, and long-sleeved clothing—creates a barrier against accidental spills or splashes. These precautions are non-negotiable, especially when working with high-pressure systems or in confined spaces.
Ventilation is another critical factor often overlooked. Refrigerants displace oxygen, creating a suffocation hazard in poorly ventilated areas. For indoor systems, ensure the workspace has adequate airflow by opening windows or using exhaust fans. If working on vehicles or enclosed units, position the equipment outdoors or in a well-ventilated garage. The Occupational Safety and Health Administration (OSHA) recommends maintaining oxygen levels above 19.5% in any workspace to prevent asphyxiation. A portable gas monitor can provide real-time readings to ensure compliance.
Avoiding direct contact with refrigerants is paramount, even when using UV leak detectors. These devices rely on dyes that mix with refrigerants, but accidental exposure can still occur during the detection process. For example, if a leak is near a fitting or valve, the refrigerant may escape under pressure, increasing the risk of contact. Use extension wands or remote cameras to inspect hard-to-reach areas, and always stand clear of potential discharge points. If a leak is detected, shut off the system immediately and allow the refrigerant to dissipate before proceeding with repairs.
Practical tips can further enhance safety. For instance, pre-cooling the system before detection reduces the risk of high-pressure refrigerant release. Always follow manufacturer guidelines for both the UV detector and the refrigerant being tested. Keep a spill kit nearby, including absorbent materials and neutralizing agents, to address accidental leaks promptly. Finally, undergo training in refrigerant handling and leak detection to recognize early warning signs, such as hissing sounds or oil residue, which indicate potential hazards before they escalate. Safety in this process isn’t just about following rules—it’s about anticipating risks and mitigating them proactively.
Refrigerating Plants for Dormancy: A Guide to Preserving Growth
You may want to see also
Explore related products
Detector Operation: Turn on, allow warm-up, and follow manufacturer instructions for optimal sensitivity settings
Proper operation of a UV refrigerant leak detector begins with powering on the device. Unlike some tools that are ready for immediate use, UV leak detectors require a warm-up period to ensure accurate readings. This warm-up time allows the UV lamp to reach its optimal intensity, typically taking 1-2 minutes depending on the model. Rushing this step can lead to false negatives, as the lamp may not emit sufficient UV light to fluoresce refrigerant dyes effectively. Always consult the manufacturer’s instructions for the exact warm-up duration, as this can vary significantly between brands and models.
Once the detector is warmed up, the next critical step is adjusting the sensitivity settings. Most UV leak detectors feature adjustable sensitivity levels, allowing users to fine-tune the device based on the environment and the suspected leak size. For instance, in a well-lit area or when searching for a minor leak, a lower sensitivity setting may suffice. Conversely, in dimly lit spaces or when dealing with larger leaks, increasing the sensitivity can enhance detection accuracy. Manufacturers often provide guidelines for these adjustments, ensuring users strike a balance between minimizing false alarms and maximizing detection efficiency.
A common oversight is ignoring the manufacturer’s instructions, which can lead to suboptimal performance or even damage to the device. For example, some detectors require specific handling during warm-up, such as avoiding obstructions in front of the UV lamp or maintaining a stable operating temperature. Additionally, over-adjusting sensitivity settings can drain the battery faster or cause unnecessary strain on the device. By adhering to the manufacturer’s recommendations, users can prolong the detector’s lifespan and ensure consistent, reliable performance.
Practical tips can further enhance the effectiveness of UV refrigerant leak detectors. For instance, holding the detector at a 45-degree angle to the inspected surface maximizes UV light coverage and improves visibility of fluorescent dye. Similarly, moving the detector slowly and methodically allows the UV light to fully interact with the dye, reducing the likelihood of missing small leaks. Combining these techniques with proper warm-up and sensitivity adjustments transforms the detector from a simple tool into a precision instrument capable of pinpointing even the most elusive refrigerant leaks.
Can Insulin Be Stored Without Refrigeration? Essential Tips and Safety Guidelines
You may want to see also
Explore related products
Scanning Techniques: Move detector slowly near suspected areas, listen for alarms, and pinpoint leak sources
Effective scanning with a UV refrigerant leak detector hinges on deliberate, methodical movement. Unlike a metal detector’s sweeping motion, this tool demands precision. Move the detector at a pace of 1–2 inches per second, maintaining a consistent distance of 1–2 inches from the suspected leak area. This slow, controlled approach ensures the UV light fully reacts with refrigerant dyes, maximizing detection accuracy. Rushing increases the risk of missing faint leaks, particularly in complex systems like HVAC coils or pipe joints.
The auditory feedback of the detector is your second critical tool. Most models emit a rising pitch or alarm as the sensor approaches a leak. Train your ear to distinguish subtle changes in tone, as these often precede the full alarm. For instance, a slight increase in pitch near a fitting might indicate a micro-leak, even if the alarm hasn’t triggered. Pair this with visual inspection under UV light to confirm dye fluorescence, creating a dual-verification system.
Pinpointing the source requires a systematic grid-like pattern. Start with broad strokes to identify high-probability zones (e.g., compressor seals, valve connections), then narrow your focus. Once the alarm sounds, reduce the scanning radius by 50% and repeat the process. This iterative method isolates leaks within a 1-inch area, crucial for precise repair. For example, in a refrigeration unit, focus on the evaporator coil’s solder joints, where leaks often occur due to vibration fatigue.
Environmental factors can complicate scanning. High humidity or ambient UV light may dull dye fluorescence, while extreme temperatures affect sensor sensitivity. In such cases, use a shielding cloth to block external light and ensure the detector’s sensor is clean. Additionally, always verify the UV light’s intensity before scanning; a weak bulb (below 365 nm wavelength) will fail to excite dyes effectively.
Mastering these techniques transforms the UV detector from a tool into a diagnostic instrument. Patience in movement, attentiveness to alarms, and structured pinpointing not only locate leaks but also minimize false positives. For professionals, this precision translates to reduced repair times and costs. For DIY users, it demystifies complex systems, turning a potentially daunting task into a manageable process.
When Is It Legal to Vent Refrigerant? Key Scenarios Explained
You may want to see also
Explore related products
Post-Detection Actions: Record findings, repair leaks, and retest to confirm no residual refrigerant escapes
Detecting a refrigerant leak is only the first step in maintaining the integrity of your HVAC or refrigeration system. Once a leak is identified using a UV refrigerant leak detector, the real work begins. Post-detection actions are critical to ensure the system operates efficiently, safely, and in compliance with environmental regulations. These actions include meticulously recording findings, repairing leaks, and retesting to confirm no residual refrigerant escapes.
Recording Findings: The Foundation of Accountability
After identifying a leak, document every detail systematically. Note the location of the leak, its severity, and the type of refrigerant involved. Use a logbook or digital tracking system to record the date, time, and conditions under which the leak was detected. Include photographs or diagrams if possible, especially for complex systems. This documentation serves as a reference for future inspections and helps track recurring issues. For instance, if a leak is found near a specific valve or joint, mark it clearly to streamline repairs. Accurate records also demonstrate compliance during regulatory audits, avoiding potential fines or penalties.
Repairing Leaks: Precision and Safety First
Once the leak is documented, proceed with repairs promptly to minimize refrigerant loss and system downtime. Start by isolating the affected area to prevent further escape of refrigerant. For small leaks, such as those in fittings or seals, replace the damaged components with OEM parts to ensure compatibility and longevity. For larger leaks, such as cracks in coils or pipes, consult a certified technician to assess whether repair or replacement is more cost-effective. Always follow manufacturer guidelines and safety protocols, including wearing protective gear like gloves and goggles. After repairs, evacuate the system to remove any air or moisture before recharging with the correct amount of refrigerant—typically measured in ounces or grams, depending on the system size.
Retesting: The Ultimate Quality Check
Retesting is non-negotiable to confirm the repair’s effectiveness. Allow the system to run for at least 15–30 minutes to stabilize, then reapply the UV dye and use the leak detector to scan for residual escapes. Pay close attention to the repaired area and adjacent components, as leaks can sometimes migrate. If no leaks are detected, perform a final pressure test to ensure the system holds its charge. For example, a residential AC system should maintain a pressure drop of less than 5 psi over 24 hours. If a leak persists, re-evaluate the repair and address any overlooked issues. Retesting not only ensures system integrity but also builds trust with clients or stakeholders by demonstrating thoroughness.
Practical Tips for Success
To streamline post-detection actions, keep a well-stocked repair kit with common components like O-rings, valves, and UV dye. Train staff on proper documentation practices to avoid errors. For large-scale systems, consider investing in automated monitoring tools that alert you to pressure drops or leaks in real time. Finally, schedule regular maintenance checks every 3–6 months to catch potential issues before they escalate. By treating post-detection actions as a structured process, you’ll extend the lifespan of your system, reduce environmental impact, and save on long-term costs.
Refrigerating Potatoes: Impact on Glycemic Index Explained
You may want to see also
Frequently asked questions
Ensure the detector is fully charged or has fresh batteries. Clean the UV light and inspection area, then turn on the device to allow it to warm up for optimal performance.
Yes, UV leak detectors work with all refrigerants, as they detect the UV dye added to the system, not the refrigerant itself.
Shine the UV light on the refrigerant lines and components. Leaks will appear as bright yellow-green fluorescence where the UV dye has escaped.
Mark the leak location, turn off the system, and repair the leak according to industry standards. Ensure the area is well-ventilated during the process.
