Vacuuming down a refrigeration system is a critical step in the installation, repair, or maintenance process, as it ensures the removal of moisture, air, and non-condensable gases that can compromise system efficiency and longevity. This procedure involves using a vacuum pump to create a low-pressure environment within the system, effectively drawing out contaminants that could lead to corrosion, insulation breakdown, or reduced heat transfer. Properly executing this process requires careful preparation, including checking for leaks, ensuring all components are securely connected, and using the correct equipment. Following manufacturer guidelines and industry best practices is essential to achieving a thorough vacuum, typically measured in microns, and ensuring the refrigeration system operates at optimal performance.
| Characteristics | Values |
|---|---|
| Purpose | Remove air, moisture, and non-condensable gases from the refrigeration system to ensure efficient operation and prevent damage. |
| Required Tools | Vacuum pump, manifold gauge set, micron gauge, service hoses, torque wrench, system access valves. |
| System Preparation | Recover refrigerant, isolate system, ensure all components are clean and dry. |
| Vacuum Pump Connection | Connect vacuum pump to the system using manifold gauges and service hoses. |
| Evacuation Process | Open valves, start vacuum pump, monitor micron gauge for deep vacuum (below 500 microns). |
| Evacuation Time | Typically 30 minutes to 2 hours, depending on system size and conditions. |
| Leak Testing | Perform a standing vacuum test for 24 hours to check for leaks (pressure rise should be minimal). |
| Moisture Removal | Use a filter-dryer to absorb moisture during evacuation. |
| Final Vacuum Level | Achieve and maintain a vacuum level below 500 microns for optimal results. |
| Post-Evacuation | Close valves, isolate vacuum pump, and prepare for refrigerant charging. |
| Safety Precautions | Wear PPE, ensure proper ventilation, avoid contact with refrigerants and oils. |
| Common Issues | Inadequate vacuum, leaks, moisture contamination, improper pump operation. |
| Best Practices | Use a high-quality vacuum pump, regularly service equipment, follow manufacturer guidelines. |
| Environmental Considerations | Dispose of recovered refrigerants and oils responsibly, comply with local regulations. |
Explore related products
What You'll Learn
- Prepare Tools and Safety Gear: Gather vacuum pump, gauges, hoses, gloves, and safety glasses
- Evacuate Air and Moisture: Connect vacuum pump, open valves, and run until deep vacuum is achieved
- Monitor Vacuum Level: Use micron gauge to ensure system reaches below 500 microns
- Check for Leaks: Inspect all connections and joints for bubbles or pressure drops
- Close System and Test: Isolate vacuum pump, shut valves, and verify system holds vacuum
Prepare Tools and Safety Gear: Gather vacuum pump, gauges, hoses, gloves, and safety glasses
Before attempting to vacuum down a refrigeration system, it's essential to assemble the necessary tools and safety gear. A vacuum pump, gauges, hoses, gloves, and safety glasses are the bare minimum requirements for this task. The vacuum pump, typically rated between 5 and 15 CFM (cubic feet per minute), is the workhorse of the operation, responsible for removing air, moisture, and contaminants from the system. Select a pump with a capacity suitable for the size of your refrigeration system, keeping in mind that larger systems may require more powerful pumps.
The gauges, including a compound gauge and a blue gauge for low-side pressure, are critical for monitoring the system's pressure during the vacuum process. Ensure the gauges are compatible with the refrigerant type and have a maximum pressure rating exceeding the system's operating pressure. Hoses, often made of durable materials like rubber or PVC, should be rated for the specific refrigerant and have a burst pressure rating at least four times the maximum expected pressure. When connecting hoses, use wrenches to tighten fittings securely, but avoid over-tightening to prevent damage.
Safety gear, including gloves and safety glasses, is non-negotiable. Refrigeration systems contain hazardous materials, and the vacuum process can release harmful substances. Wear heavy-duty gloves, such as nitrile or butyl rubber gloves, to protect against chemical exposure and sharp edges. Safety glasses with side shields or goggles are essential to prevent eye injuries from flying debris or chemical splashes. Additionally, consider wearing a face shield when working with larger systems or in confined spaces.
In analytical terms, the tools and safety gear serve as the foundation for a successful vacuum process. A well-prepared technician can minimize the risk of contamination, equipment damage, and personal injury. For instance, using a vacuum pump with insufficient capacity can result in prolonged evacuation times, increased energy consumption, and potential damage to the system. Similarly, neglecting to wear safety gear can lead to severe consequences, including chemical burns, eye damage, or respiratory problems. By investing time in gathering the right tools and safety gear, technicians can ensure a more efficient, effective, and safe vacuum process.
To illustrate the importance of proper preparation, consider a scenario where a technician attempts to vacuum down a refrigeration system without using safety glasses. If a hose were to rupture or a fitting were to fail, the technician could be exposed to high-pressure refrigerant, oil, or debris, resulting in serious eye injuries. In contrast, a technician who prioritizes safety by wearing appropriate gear and using well-maintained tools can significantly reduce the risk of accidents and ensure a successful outcome. By following these guidelines and adopting a safety-first mindset, technicians can master the art of vacuuming down refrigeration systems, delivering reliable and efficient performance.
Cooling Cooked Food: Safe Refrigeration Timing Tips for Freshness
You may want to see also
Explore related products

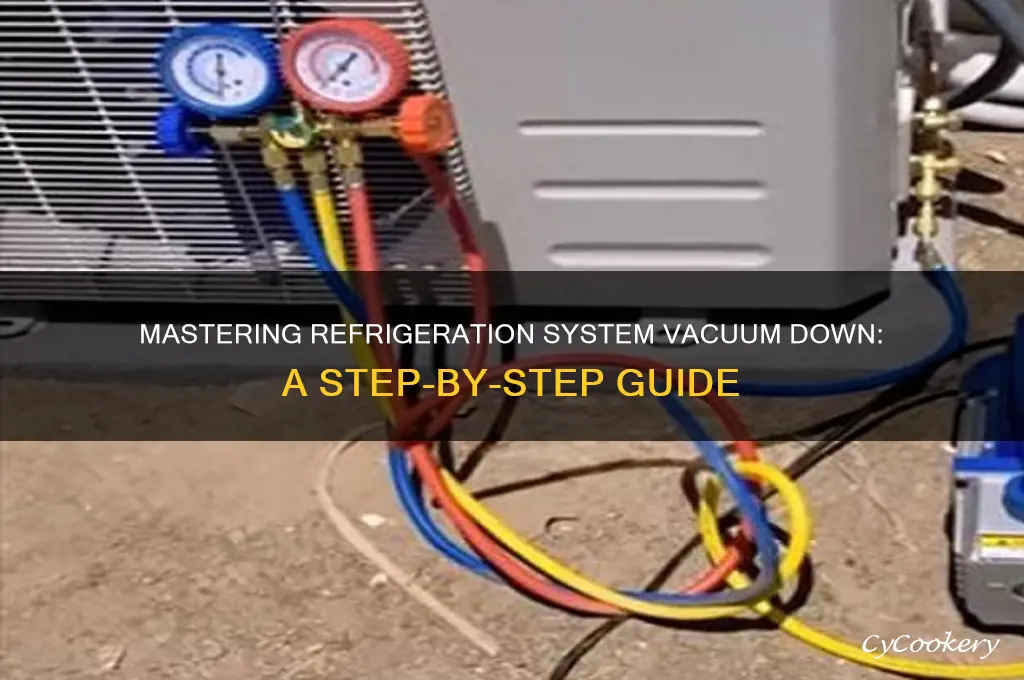

Evacuate Air and Moisture: Connect vacuum pump, open valves, and run until deep vacuum is achieved
Removing air and moisture from a refrigeration system is critical to prevent performance degradation and component damage. A vacuum pump becomes your essential tool here, acting as a powerful suction device to draw out unwanted gases and water vapor. Think of it as creating a temporary, controlled "desert" environment within your system, eliminating conditions conducive to corrosion and inefficiency.
Connecting the vacuum pump is a straightforward process, but precision is key. Use appropriate hoses and fittings to ensure a tight seal, preventing leaks that would undermine the entire operation. Open the necessary valves, typically the service valve on the system and the valve on the vacuum pump, allowing the pump to access the system's interior.
Running the vacuum pump requires patience. Aim for a deep vacuum, typically measured in microns, with the ideal range being below 500 microns. This level ensures the removal of not just air but also moisture in its vapor form. Think of it like boiling water: at lower pressures (higher vacuum), water boils at a lower temperature, allowing the pump to effectively "boil off" moisture from the system.
Monitoring the vacuum gauge is crucial during this process. A steady drop in micron readings indicates successful evacuation. Be mindful of the pump's capacity and the system size – larger systems may require longer evacuation times.
While seemingly simple, this step is a cornerstone of proper refrigeration system maintenance. Skipping or rushing the evacuation process can lead to a host of problems down the line, from reduced cooling efficiency and increased energy consumption to compressor failure due to acid formation from moisture reacting with refrigerant. Remember, a thorough vacuum is an investment in the long-term health and performance of your refrigeration system.
Cilantro Rice Storage: How Long Can It Stay Fresh in the Fridge?
You may want to see also
Explore related products
Monitor Vacuum Level: Use micron gauge to ensure system reaches below 500 microns
Achieving a deep vacuum is critical in refrigeration system maintenance, as it ensures the removal of moisture, air, and non-condensable gases that can compromise efficiency and longevity. The micron gauge becomes your trusted ally in this process, providing precise measurements to confirm the system has reached the desired vacuum level. Aim for a reading below 500 microns, a threshold widely accepted as the point where contaminants are effectively eliminated. This level is crucial because moisture, for instance, can freeze and block expansion valves, while air acts as an insulator, reducing heat transfer efficiency.
To monitor the vacuum level effectively, connect the micron gauge to the system’s service port after evacuation has begun. Ensure the gauge is calibrated and compatible with your vacuum pump to avoid inaccurate readings. Start the pump and observe the micron gauge as the pressure drops. Patience is key here; rushing the process can lead to incomplete evacuation. A steady decline in micron readings indicates progress, but watch for plateaus or slowdowns, which may signal leaks or insufficient pump capacity. Address these issues promptly to maintain the integrity of the vacuum process.
Comparing the micron gauge to other vacuum measurement tools highlights its superiority in this context. While manifold gauges measure pressure in psi or bar, they lack the sensitivity to detect the low pressures required for proper evacuation. The micron gauge, on the other hand, is specifically designed for this task, offering readings in microns—a unit that directly correlates to the presence of moisture and non-condensable gases. This precision ensures you’re not just creating a vacuum but a *deep* vacuum, essential for optimal system performance.
Practical tips can further enhance your vacuum monitoring process. For instance, perform the evacuation in a controlled environment to minimize the introduction of new contaminants. Use a high-quality vacuum pump with a capacity suited to your system size, as underpowered pumps struggle to achieve deep vacuums. Additionally, incorporate a vacuum hose with minimal permeability to prevent air infiltration during the process. Regularly inspect and maintain your micron gauge to ensure its accuracy, as even small discrepancies can lead to suboptimal results.
In conclusion, monitoring the vacuum level with a micron gauge is a non-negotiable step in refrigeration system maintenance. By targeting a level below 500 microns, you safeguard the system against moisture and gas-related issues, ensuring efficiency and longevity. Combine this precision tool with best practices—such as using the right equipment and maintaining a clean environment—to achieve a vacuum that meets industry standards. The micron gauge isn’t just a tool; it’s your assurance that the job is done right.
Should Sesame Tahini Be Refrigerated? Storage Tips for Freshness
You may want to see also
Explore related products
Check for Leaks: Inspect all connections and joints for bubbles or pressure drops
Leak detection is a critical step in the vacuum process of a refrigeration system, as even the smallest breach can compromise efficiency and performance. The integrity of connections and joints is paramount, and a systematic inspection can prevent future issues. Begin by preparing a soap solution—a simple mixture of mild detergent and water—which will serve as your primary tool for identifying leaks. This method is both cost-effective and highly reliable, making it a staple in the technician's arsenal.
The Art of Bubble Detection: Apply the soap solution to all suspected areas, including fittings, valves, and soldered joints. The technique is straightforward: use a brush or spray bottle to coat the surfaces, then observe for bubble formation. Bubbles indicate escaping gas, a telltale sign of a leak. This method is particularly effective for pinpointing leaks in hard-to-reach areas, where visual inspection alone may fall short. For instance, a pinhole leak in a copper tube can be easily missed without the aid of this soapy solution.
In addition to the soap test, monitoring pressure drops is essential. A sudden or gradual decrease in pressure during the vacuum process can signal a leak. Technicians should use a reliable gauge to track pressure levels, ensuring the system holds a consistent vacuum. If a drop occurs, it's imperative to re-inspect all connections, as the leak may not always be visible or accessible during the initial check. This two-pronged approach—visual inspection with soap and pressure monitoring—significantly increases the chances of identifying and rectifying leaks.
Best Practices and Precautions: When performing these checks, ensure the system is isolated and all power sources are disconnected for safety. It's advisable to wear protective gear, including gloves and eye protection, as the soap solution may contain chemicals, and refrigeration systems can pose various hazards. For a thorough inspection, consider using a mirror to view hidden joints and connections, especially in compact or intricate setups. Remember, a meticulous leak check is not just about identifying issues but also about ensuring the system's longevity and optimal performance.
The process of vacuuming down a refrigeration system is a delicate balance of art and science, where attention to detail is key. By combining the simple yet effective soap bubble test with pressure monitoring, technicians can ensure a leak-free system, ready for efficient operation. This step is a crucial investment of time, preventing potential system failures and costly repairs down the line.
Cold Weather Impact: Can Refrigerators Be Damaged in Low Temperatures?
You may want to see also
Explore related products
Close System and Test: Isolate vacuum pump, shut valves, and verify system holds vacuum
Once the refrigeration system has reached the desired vacuum level, the next critical step is to isolate the vacuum pump and close the system to ensure it holds the vacuum. This process is essential for verifying the integrity of the system and preventing air or moisture from re-entering. Begin by shutting off the vacuum pump and allowing it to come to a complete stop. This ensures that no residual pressure from the pump affects the system during the isolation process. Next, close the core isolation valve located between the vacuum pump and the refrigeration system. This valve acts as a barrier, sealing the system from the external environment.
After isolating the vacuum pump, proceed to shut the service valves on both the high and low sides of the refrigeration system. These valves are typically located near the manifold gauges and should be closed slowly to avoid pressure spikes. Once all valves are securely shut, observe the manifold gauges to ensure there is no pressure change. A stable vacuum reading indicates that the system is properly sealed. If the pressure begins to rise, it may suggest a leak or an improperly closed valve, requiring further investigation.
Testing the system’s ability to hold a vacuum is a crucial diagnostic step. Allow the system to sit undisturbed for at least 15 to 30 minutes while monitoring the gauges. During this period, any significant pressure increase could indicate a leak, often caused by faulty seals, loose fittings, or damaged components. For example, a rise of more than 1 psi within 15 minutes is a red flag and warrants a thorough inspection. This test not only confirms the system’s integrity but also ensures that it is ready for the next steps, such as charging with refrigerant.
Practical tips for this stage include using a vacuum gauge with high sensitivity to detect even minor pressure changes. Additionally, ensure all tools and connections are clean and free of debris before closing the system, as contaminants can compromise the seal. If the system fails to hold a vacuum, consider using a nitrogen purge to pressurize the system and perform a soap bubble test to locate leaks. This method involves applying soapy water to joints and fittings, where bubbles will form if gas escapes.
In conclusion, isolating the vacuum pump, shutting the valves, and verifying the system holds a vacuum are pivotal steps in the refrigeration system evacuation process. This phase not only ensures the system is leak-free but also prepares it for efficient and safe operation. By following these steps meticulously and using the right tools, technicians can avoid common pitfalls and achieve optimal results.
Refrigerating Shrimp Ceviche: Safe Storage Time and Tips
You may want to see also
Frequently asked questions
Vacuuming down a refrigeration system removes moisture, non-condensable gases, and air from the system, ensuring optimal performance, preventing acid formation, and avoiding damage to components like the compressor.
The vacuum process typically lasts between 30 minutes to 2 hours, depending on the system size, ambient conditions, and the depth of vacuum required. Always follow manufacturer guidelines for specific systems.
Essential tools include a vacuum pump, manifold gauge set, micron gauge, hoses, and a service port adapter. Ensure all equipment is clean, dry, and properly rated for the system’s requirements.
