Vacuuming out refrigerant lines is a critical step in the HVAC and refrigeration maintenance process, ensuring the system operates efficiently and free from contaminants. This procedure involves removing air, moisture, and non-condensable gases from the lines to prevent issues like corrosion, reduced cooling capacity, and system inefficiency. Using a vacuum pump, technicians create a low-pressure environment within the lines, drawing out unwanted substances and preparing the system for refrigerant charging. Proper execution requires careful attention to safety, correct equipment usage, and adherence to manufacturer guidelines to avoid damage and ensure optimal performance.
| Characteristics | Values |
|---|---|
| Purpose | Remove moisture, air, and non-condensable gases from refrigerant lines. |
| Required Tools | Vacuum pump, manifold gauge set, micron gauge, hoses, service valves. |
| Recommended Vacuum Level | 500 microns or lower for optimal results. |
| Duration | 30 minutes to 2 hours, depending on system size and conditions. |
| System Preparation | Close service valves, ensure system is leak-free, and evacuate all air. |
| Vacuum Pump Placement | Connect to the low-pressure side of the system via manifold gauges. |
| Monitoring | Use a micron gauge to monitor vacuum level continuously. |
| Post-Vacuum Steps | Close service valves, turn off the vacuum pump, and perform a leak test. |
| Safety Precautions | Wear safety goggles, gloves, and ensure proper ventilation. |
| Environmental Considerations | Dispose of recovered refrigerant and oil according to local regulations. |
| Common Mistakes to Avoid | Over-tightening fittings, insufficient vacuum time, ignoring leaks. |
| Ideal Conditions | Perform in a clean, dry environment with stable ambient temperatures. |
| Frequency | Required during new installations, repairs, or after opening the system. |
Explore related products
What You'll Learn
- Safety Precautions: Wear protective gear, ensure proper ventilation, and follow refrigerant handling guidelines
- System Preparation: Turn off power, recover remaining refrigerant, and attach gauges to access ports
- Vacuum Pump Setup: Connect the vacuum pump to the system, ensuring tight seals and correct hoses
- Evacuation Process: Run the pump until deep vacuum is achieved, monitoring micron levels for efficiency
- Leak Testing: Perform a leak test post-vacuum to ensure system integrity before recharging refrigerant
Safety Precautions: Wear protective gear, ensure proper ventilation, and follow refrigerant handling guidelines
Refrigerant lines contain chemicals that, if mishandled, can cause skin irritation, respiratory issues, or even frostbite. Before attempting to vacuum out these lines, prioritize your safety by wearing protective gear. This includes safety goggles to shield your eyes from potential splashes, chemical-resistant gloves to protect your skin, and long-sleeved clothing to minimize exposed areas. For added respiratory protection, especially in confined spaces, consider using a respirator with cartridges designed for organic vapors.
Proper ventilation is non-negotiable when working with refrigerants. These substances can displace oxygen, leading to asphyxiation in poorly ventilated areas. Always perform the vacuum process in a well-ventilated space, preferably outdoors or in a workshop with open windows and fans. If working indoors, ensure the area is equipped with exhaust systems to remove fumes efficiently. Avoid using flammable materials or open flames nearby, as some refrigerants can ignite under certain conditions.
Handling refrigerants requires strict adherence to guidelines to prevent environmental harm and personal injury. Familiarize yourself with the specific refrigerant type you’re dealing with, as each has unique properties and handling requirements. Use recovery equipment certified for the refrigerant in question, and never release it into the atmosphere. Follow local regulations for disposal, and store recovered refrigerant in approved containers. Improper handling can result in fines or legal consequences, so treat this step with the utmost seriousness.
A practical tip for ensuring safety is to perform a pre-vacuum inspection of your equipment and workspace. Check hoses, gauges, and connections for leaks or damage before starting. Keep a fire extinguisher nearby as a precautionary measure. If you’re unsure about any step, consult a professional or refer to manufacturer guidelines. Remember, taking shortcuts with safety can lead to irreversible damage—to both your health and the environment.
Refrigerating Pasta Without Sauce: Tips for Freshness and Safety
You may want to see also
Explore related products
System Preparation: Turn off power, recover remaining refrigerant, and attach gauges to access ports
Before initiating the vacuum process, ensuring the system is safely and properly prepared is paramount. The first critical step is to turn off the power to the HVAC or refrigeration unit. This action eliminates the risk of electrical hazards and prevents the compressor from engaging during the procedure, which could lead to damage or injury. Locate the disconnect switch or circuit breaker and confirm that power is completely shut off by testing the system with a voltage meter. Skipping this step could result in severe consequences, including equipment failure or personal harm.
Once the power is off, the next phase involves recovering the remaining refrigerant from the system. This is not only a safety precaution but also a legal requirement in many regions due to environmental regulations. Use a refrigerant recovery machine to extract the refrigerant, ensuring it is stored in an appropriate cylinder. The recovery process should be conducted slowly to avoid system strain, and the technician must monitor the pressure gauges to ensure complete evacuation. Failure to recover refrigerant properly can lead to environmental harm and potential fines.
With the refrigerant safely removed, the system is ready for the attachment of gauges to the access ports. This step is crucial for monitoring the vacuum process and ensuring the system is free of contaminants. Connect the blue low-side gauge to the suction side and the red high-side gauge to the discharge side, ensuring all connections are tight to prevent leaks. Proper gauge placement allows for accurate pressure readings, which are essential for diagnosing issues and confirming the system’s readiness for vacuuming. Incorrect attachment can lead to inaccurate readings and compromise the entire process.
Throughout this preparation phase, attention to detail is key. For instance, when attaching gauges, use thread sealant or Teflon tape on the threads to ensure an airtight seal. Additionally, verify that all valves are closed before beginning the recovery process to prevent unintended refrigerant release. These small but critical steps collectively contribute to a safe and effective vacuum procedure, setting the stage for the next phase of system maintenance.
Refrigerating Cooked Veggies: Safe Storage Time and Tips
You may want to see also
Explore related products

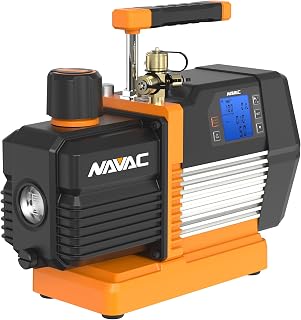

$206.99 $259.99
