Emilie Meyer

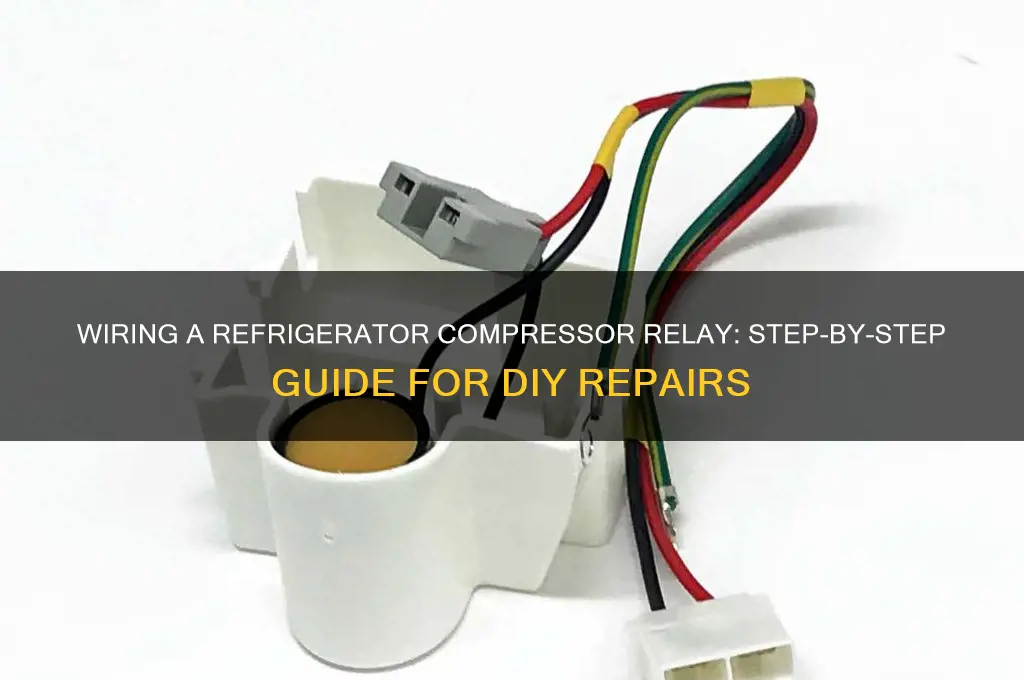

Wiring a refrigerator compressor relay is a critical task that ensures the efficient operation of your refrigerator’s cooling system. The relay acts as a switch, controlling the power supply to the compressor motor, which is essential for maintaining optimal temperatures. Proper wiring involves identifying the correct terminals on the relay, connecting the power source, and ensuring the start and run capacitors are appropriately linked. Understanding the relay’s wiring diagram and using the right tools is crucial to avoid electrical hazards and ensure the system functions reliably. This process requires attention to detail and adherence to safety protocols to prevent damage to the appliance or personal injury.
| Characteristics | Values |
|---|---|
| Relay Type | Start Relay or Potential Relay (specific to refrigerator compressors) |
| Terminals | Typically 3 or 4 terminals (e.g., S, M, R, or Start, Run, Common) |
| Voltage Rating | Matches refrigerator compressor voltage (e.g., 110V, 220V) |
| Current Rating | Matches or exceeds compressor start current (e.g., 5-15A) |
| Start Capacitor | Often integrated or connected externally (e.g., 5-20 µF, 250V) |
| Run Capacitor | Optional, connected in parallel with the run winding (e.g., 5-10 µF) |
| Wiring Configuration | Start winding wired through relay, run winding directly to power |
| Overload Protection | Built-in or external overload protector connected in series |
| Connection Diagram | Follow manufacturer's diagram or standard refrigerator wiring schema |
| Safety Precautions | Disconnect power before wiring; verify polarity and connections |
| Testing Procedure | Use a multimeter to check continuity and resistance of windings |
| Common Issues | Relay overheating, capacitor failure, or incorrect wiring |
| Replacement Parts | Match relay and capacitor specifications to the original parts |
| Tools Required | Screwdriver, wire stripper, multimeter, electrical tape |
| Compatibility | Ensure relay is compatible with compressor model and refrigerator type |
Explore related products
What You'll Learn
- Identify Relay Type: Determine if your relay is a start relay or overload protector
- Disconnect Power: Always unplug or turn off power before starting work
- Locate Compressor Terminals: Find the compressor’s start, run, and common terminals for wiring
- Connect Relay Wires: Match relay wires to compressor terminals using the wiring diagram
- Test the Relay: Reapply power and check if the compressor starts correctly
Identify Relay Type: Determine if your relay is a start relay or overload protector
Before attempting to wire a refrigerator compressor relay, it's crucial to identify the type of relay you're dealing with. Refrigerator compressors typically use two types of relays: start relays and overload protectors. These components serve distinct functions, and mistaking one for the other can lead to improper wiring, potential damage, or even safety hazards. Start relays are designed to provide an initial boost of power to the compressor during startup, while overload protectors safeguard the compressor from overheating by cutting off power if excessive current is detected.
To determine whether you have a start relay or an overload protector, begin by examining the relay’s physical characteristics. Start relays often have three or four terminals, labeled as "R," "S," and "M" (or "C" for common), with the "S" terminal specifically designated for the start winding. Overload protectors, on the other hand, typically have two terminals and are integrated into a single unit with a temperature-sensitive component that trips when the compressor overheats. Additionally, overload protectors are usually mounted directly on the compressor, whereas start relays may be located separately within the relay housing.
Another method to identify the relay type is to consult the refrigerator’s wiring diagram or user manual. These resources often provide detailed information about the relay’s function, terminal designations, and location. If the diagram labels a component as a "start capacitor relay" or "potential relay," it’s likely a start relay. Conversely, if the component is described as an "overload switch" or "thermal protector," it’s an overload protector. Cross-referencing these labels with the physical relay can confirm its type.
Practical testing can also help differentiate between the two. A multimeter can be used to check continuity across the terminals. For a start relay, there should be continuity between the "R" and "M" terminals when the relay is engaged. An overload protector, however, will show continuity between its terminals under normal conditions but will open the circuit if the compressor overheats. Be cautious during testing, as mishandling electrical components can pose risks.
In summary, accurately identifying whether your relay is a start relay or overload protector is essential for proper wiring and compressor functionality. By examining physical features, consulting documentation, and performing continuity tests, you can confidently determine the relay type. This knowledge ensures you wire the component correctly, preventing potential malfunctions and extending the lifespan of your refrigerator’s compressor.
Should Nutrisystem Meals Be Refrigerated? Storage Tips for Freshness
You may want to see also
Explore related products
Disconnect Power: Always unplug or turn off power before starting work
Before touching any electrical components in a refrigerator, the first and most critical step is to disconnect the power. This isn't just a precautionary measure—it's a fundamental safety rule that prevents electric shock, short circuits, and potential damage to the appliance. Even if the refrigerator appears to be off, residual power can still be present in the capacitor of the compressor relay, posing a hidden danger. Always unplug the refrigerator from the wall outlet or flip the dedicated circuit breaker to ensure no electricity is flowing to the unit.
The process of wiring a compressor relay involves working with live electrical connections, which can be lethal if mishandled. For instance, a 120V or 240V circuit, common in household refrigerators, carries enough power to cause severe injury or death. By disconnecting the power, you eliminate the risk of accidental contact with live wires or components. This step is non-negotiable, regardless of your experience level or the urgency of the repair. Even professional technicians adhere strictly to this rule, as it forms the bedrock of electrical safety.
To ensure power is truly disconnected, use a non-contact voltage tester to verify that no current is present in the wiring or components. These testers are inexpensive, easy to use, and provide an additional layer of safety. Simply hold the tester near the wires or terminals; if it beeps or lights up, power is still active, and you must double-check your disconnection method. This step is particularly important in older refrigerators or systems where wiring may be frayed or damaged, increasing the risk of accidental contact.
Beyond personal safety, disconnecting power protects the refrigerator itself. Working on a live circuit can cause arcing, which may damage the compressor relay, control board, or other sensitive components. For example, a misstep while connecting wires could create a spark, frying the relay’s contacts or melting insulation. By cutting off the power supply, you minimize the risk of such accidents, ensuring the repair process is as safe for the appliance as it is for you.
In summary, disconnecting power is not just a step—it’s a safeguard. It protects you from electric shock, prevents damage to the refrigerator, and ensures a controlled environment for troubleshooting or repairs. Treat this step with the same importance as wearing protective gear or following a manual. Skipping it, even momentarily, can turn a routine repair into a hazardous situation. Always unplug or turn off the power—it’s the first and most crucial decision you’ll make when wiring a refrigerator compressor relay.
Refrigerating Matcha Tea: Best Practices for Freshness and Flavor
You may want to see also
Explore related products
Locate Compressor Terminals: Find the compressor’s start, run, and common terminals for wiring
The compressor in a refrigerator is the heart of its cooling system, and understanding its terminals is crucial for proper wiring. The three primary terminals you’ll encounter are the start, run, and common terminals. These are typically labeled on the compressor itself, often as "S" (start), "R" (run), and "C" (common). If labels are absent, consult the compressor’s manual or look for color-coded wires—commonly, the start terminal is connected to a brown or yellow wire, the run terminal to a black or blue wire, and the common terminal to a white or red wire. Identifying these terminals correctly is the first step in ensuring your relay wiring functions as intended.
Once you’ve located the terminals, it’s essential to understand their roles. The start terminal provides the initial high-current boost needed to overcome the compressor’s inertia, while the run terminal maintains steady operation. The common terminal acts as the bridge between the start and run windings, completing the circuit. Miswiring these terminals can lead to inefficient operation, overheating, or even permanent damage to the compressor. For instance, connecting the start terminal to the run terminal directly bypasses the relay, causing the start winding to remain energized, which can burn it out within minutes.
To locate these terminals confidently, start by disconnecting power to the refrigerator to avoid electrical hazards. Use a multimeter set to the resistance (ohms) setting to test continuity between the terminals. The start and run terminals will show a lower resistance when measured against the common terminal, typically around 3–5 ohms. The resistance between the start and run terminals will be higher, around 10–15 ohms. This method is particularly useful when labels or color codes are unclear or missing. Always double-check your findings against the compressor’s documentation to ensure accuracy.
Practical tips can streamline this process. If you’re working with an older compressor, inspect the terminals for signs of corrosion or damage, as this can affect readings. For new installations, ensure the compressor is mounted securely and all connections are clean before wiring. If you’re replacing a relay, take note of the existing wiring configuration as a reference. Remember, the goal is not just to locate the terminals but to understand their function in the broader context of the refrigerator’s cooling cycle. This knowledge will help you troubleshoot issues and ensure a reliable, long-lasting repair.
Refrigerator on New Tile: Timing and Tips for Safe Placement
You may want to see also
Explore related products
Connect Relay Wires: Match relay wires to compressor terminals using the wiring diagram
Matching relay wires to compressor terminals is a critical step in wiring a refrigerator compressor relay, as it ensures the electrical circuit functions correctly and safely. Begin by locating the wiring diagram specific to your refrigerator model, typically found on the appliance itself, in the user manual, or online. This diagram is your roadmap, detailing which wire connects to which terminal. Common terminals include "R" (power supply), "S" (start winding), "C" (common), and "O" or "M" (main winding). Each wire from the relay must align precisely with these terminals to avoid malfunctions or damage.
Analyzing the wiring diagram reveals the logic behind the connections. For instance, the "R" terminal often connects to the power source, while the "C" terminal bridges the relay and compressor. The "S" and "M" terminals are crucial for the start and run windings, respectively. Misidentifying these can lead to overheating, reduced efficiency, or complete failure. Always double-check the diagram against the physical terminals, as slight variations exist between models. If unsure, consult a professional or cross-reference with manufacturer guidelines.
A practical tip is to label wires before disconnecting them, especially if replacing an old relay. Use colored tape or tags to mark wires corresponding to their terminals (e.g., red for "R," blue for "C"). This prevents confusion during reassembly. When connecting wires, ensure they are stripped to expose ¼ inch of copper and securely tightened to the terminals. Loose connections can cause arcing or intermittent operation. For added safety, use a multimeter to verify continuity between the relay and compressor before powering the unit.
Comparing this process to other electrical tasks highlights its precision-dependent nature. Unlike wiring a light switch, where polarity is the primary concern, compressor relay wiring demands exact terminal matching. Mistakes here aren’t just inconvenient—they’re potentially hazardous. For example, reversing "S" and "M" wires can cause the compressor to run backward, leading to immediate burnout. This underscores the importance of patience and attention to detail, traits that distinguish a successful repair from a costly mistake.
In conclusion, connecting relay wires to compressor terminals is a task that blends technical knowledge with practical skill. By meticulously following the wiring diagram, labeling wires, and ensuring secure connections, you safeguard both the appliance and yourself. Treat this step as the linchpin of the entire process—done correctly, it ensures your refrigerator operates efficiently for years to come. Done incorrectly, it risks voiding warranties or causing irreparable harm. Always prioritize accuracy over speed, and when in doubt, seek expert guidance.
Should You Refrigerate Super 8 Film? Preservation Tips Revealed
You may want to see also
Explore related products
![True MODS 1 Pack 5-Pin 12V Bosch Style Waterproof Relay Kit [Harness Socket] [12 AWG Hot Wires] [SPDT] [30/40 Amp] 12 Volt Automotive Marine Relays for Boats Auto Fan Cars](https://m.media-amazon.com/images/I/81m2P8Wl3RL._AC_UY218_.jpg)
Test the Relay: Reapply power and check if the compressor starts correctly
After wiring the refrigerator compressor relay, the critical next step is to verify its functionality. Reapply power to the system and observe whether the compressor engages as expected. This test is essential to ensure the relay is correctly installed and operational, preventing potential damage to the compressor or other components. Start by restoring power to the refrigerator, either by plugging it back in or flipping the circuit breaker. Listen carefully for the distinctive hum of the compressor starting up, which typically occurs within a few seconds to a minute after power is applied. If the compressor fails to start, double-check the wiring connections for tightness and accuracy, as loose or incorrect connections are common culprits.
A systematic approach can further validate the relay’s performance. Use a multimeter to measure voltage at the relay’s output terminals while power is applied. If voltage is present but the compressor doesn’t start, the issue may lie with the compressor itself or the start capacitor. Conversely, if no voltage is detected, the relay might be faulty or improperly wired. For safety, ensure the refrigerator is unplugged before handling any electrical components. This diagnostic step not only confirms the relay’s functionality but also narrows down potential issues, saving time and effort in troubleshooting.
Persuasively, testing the relay is not just a procedural step but a safeguard against costly repairs. A malfunctioning relay can lead to compressor overheating or failure, which is expensive to replace. By confirming the relay operates correctly, you ensure the longevity of the refrigerator and avoid unnecessary downtime. Additionally, this test builds confidence in your wiring work, providing tangible proof that the system is ready for regular use. It’s a small investment of time that pays dividends in reliability and peace of mind.
Comparatively, testing the relay differs from testing other components like the thermostat or fan motor. While those tests often involve visual or auditory cues, relay testing requires a blend of observation and measurement. For instance, a fan motor’s operation is immediately apparent, but a relay’s functionality is more subtle, relying on the compressor’s response. This distinction highlights the importance of using tools like a multimeter to complement sensory observations, ensuring a comprehensive assessment.
Descriptively, the moment of truth comes when the compressor springs to life, its rhythmic hum filling the air. This sound is a symphony of success, signaling that the relay has performed its duty and the refrigeration cycle is underway. If the compressor fails to start, the silence is equally telling, prompting a methodical review of the wiring and components. This contrast between sound and silence is a powerful indicator of the system’s health, making the test both practical and intuitive. By mastering this step, you transform uncertainty into certainty, ensuring the refrigerator operates as intended.
Can Plumbers Repair Fridges? Exploring Appliance Repair Expertise
You may want to see also
Frequently asked questions
A refrigerator compressor relay is an electrical switch that controls the power supply to the compressor motor. It is crucial because it prevents the compressor from overheating by cycling the motor on and off, ensuring efficient and safe operation of the refrigerator.
To identify the correct wires, refer to the wiring diagram provided with your refrigerator or relay. Typically, the relay has three terminals: one for the power supply (usually marked "L" or "Line"), one for the compressor (marked "C" or "Load"), and one for the start capacitor (if applicable). Match these terminals to the corresponding wires in your refrigerator.
You’ll need a screwdriver, wire strippers, and a multimeter for testing. Always disconnect the refrigerator from the power source before starting. Wear insulated gloves and ensure the work area is dry to avoid electrical hazards. Double-check connections and use electrical tape or heat shrink tubing to insulate exposed wires.
