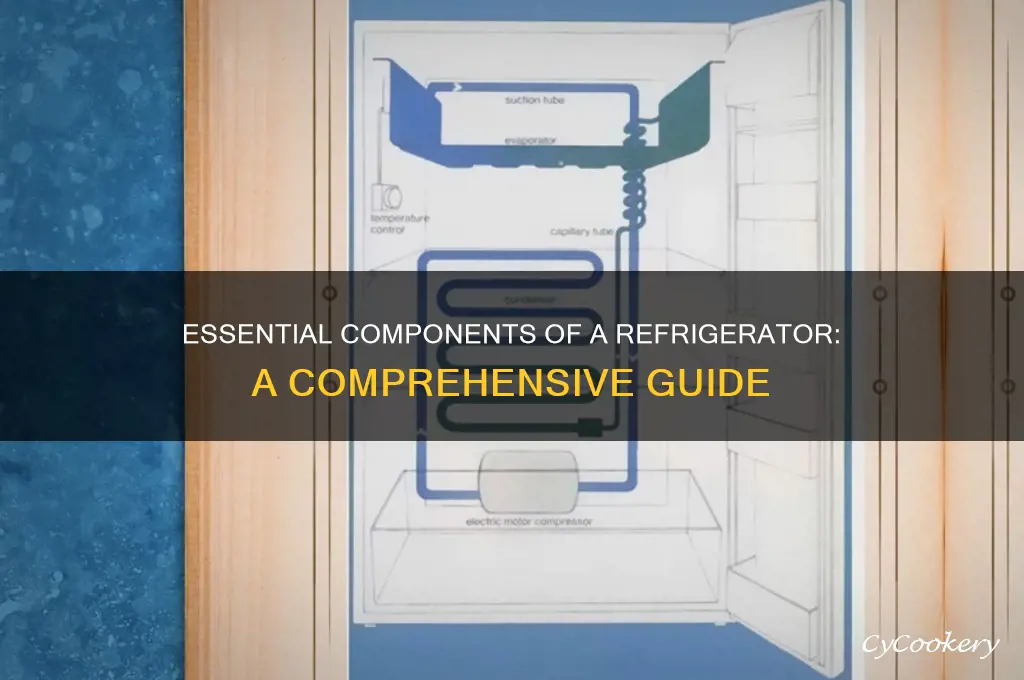

A refrigerator is an essential household appliance designed to keep food and beverages cool and fresh by maintaining a low temperature. Understanding its components is crucial for both maintenance and troubleshooting. The primary parts of a refrigerator include the compressor, which acts as the heart of the cooling system by circulating refrigerant; the condenser coils, which dissipate heat from the refrigerant; the evaporator coils, which absorb heat from the refrigerator’s interior; the thermostat, which regulates the temperature; and the refrigerant, the substance that cycles through the system to facilitate cooling. Additionally, modern refrigerators often feature components like door seals, shelves, and advanced features such as ice makers or smart technology, all working together to ensure efficient and reliable performance.
| Characteristics | Values |
|---|---|
| Compressor | Motor-driven pump that compresses refrigerant gas, raising its temperature and pressure. Typically located at the bottom rear of the refrigerator. |
| Condenser Coils | Tubes or coils located at the back or bottom of the refrigerator where the hot, compressed refrigerant gas releases heat to the surrounding air. |
| Expansion Valve | A small device that regulates the flow of refrigerant, reducing its pressure and temperature as it enters the evaporator. |
| Evaporator Coils | Tubes or coils located inside the freezer compartment where the cold refrigerant absorbs heat from the surrounding air, cooling the refrigerator. |
| Refrigerant | A chemical compound (e.g., R-134a, R-600a) that cycles through the refrigeration system, absorbing and releasing heat to cool the interior. |
| Thermostat | A temperature-sensitive switch that controls the compressor, turning it on or off to maintain the desired temperature inside the refrigerator. |
| Insulation | Foam or other insulating materials in the walls, doors, and lid to prevent heat transfer between the interior and exterior. |
| Door Gaskets | Rubber seals around the doors to ensure an airtight closure, preventing cold air from escaping and warm air from entering. |
| Defrost System | Components (e.g., defrost timer, heater, or fan) that periodically melt frost buildup on the evaporator coils to maintain efficiency. |
| Fans | Internal fans to circulate cold air evenly throughout the refrigerator and freezer compartments; some models also have condenser fans to cool the compressor. |
| Shelves and Drawers | Adjustable or fixed compartments made of materials like glass, plastic, or metal for organizing and storing food. |
| Lighting | Interior lights, often LED, to illuminate the refrigerator's interior for visibility. |
| Control Panel | Digital or mechanical interface for adjusting temperature settings, activating features (e.g., ice makers, water dispensers), and monitoring system status. |
| Ice Maker (Optional) | A mechanism that automatically produces and dispenses ice cubes, often integrated into the freezer compartment. |
| Water Dispenser (Optional) | A feature that dispenses chilled water, typically located on the exterior of the refrigerator door. |
| Filters (Optional) | Water and air filters to purify water for dispensers and ice makers, and to remove odors from the refrigerator interior. |
Explore related products
What You'll Learn
- Compressor: Heart of the fridge, circulates refrigerant to remove heat, enabling cooling
- Evaporator Coils: Absorb heat from inside, cooling the fridge and freezer compartments
- Condenser Coils: Release absorbed heat outside, located at the back or bottom
- Refrigerant: Chemical compound (e.g., Freon) that cycles between gas and liquid states
- Thermostat: Regulates temperature by controlling the compressor's on/off cycle
Compressor: Heart of the fridge, circulates refrigerant to remove heat, enabling cooling
The compressor is the powerhouse of a refrigerator, a critical component that drives the entire cooling process. Without it, the fridge would be nothing more than an insulated box. This small yet mighty device is responsible for circulating the refrigerant, a chemical compound that absorbs and releases heat as it changes state from gas to liquid and back again. Think of the compressor as the heart of the fridge, pumping life into the system by enabling the continuous cycle of heat removal.
To understand its function, imagine a simple yet ingenious process. The compressor takes in low-pressure, low-temperature refrigerant gas from the evaporator coils inside the fridge. By exerting pressure, it raises the temperature of this gas, turning it into a high-pressure, high-temperature vapor. This hot vapor then moves to the condenser coils, usually located at the back or bottom of the fridge, where it releases heat into the surrounding environment. As it cools, the vapor condenses back into a liquid, ready to absorb more heat in the next cycle. This continuous loop is what keeps your food cold and fresh.
From a practical standpoint, maintaining the compressor is key to extending the lifespan of your refrigerator. One common issue is dust and debris buildup on the condenser coils, which can force the compressor to work harder, leading to increased energy consumption and potential overheating. To prevent this, clean the coils every six months using a vacuum or a soft brush. Additionally, ensure proper ventilation around the fridge, as restricted airflow can strain the compressor. If you notice unusual noises or a significant increase in energy bills, it may be a sign that the compressor needs professional attention.
Comparing the compressor to other household appliances highlights its unique role. While a fan simply moves air around, and a heater generates warmth, the compressor actively manipulates the refrigerant to remove heat, a process that requires precision and durability. Modern compressors are designed to be more energy-efficient, with some models using inverter technology to adjust their speed based on cooling demand. This not only reduces electricity usage but also minimizes wear and tear, making the fridge quieter and more reliable over time.
In essence, the compressor is the unsung hero of refrigeration, working tirelessly behind the scenes to keep your food at the ideal temperature. By understanding its function and taking simple maintenance steps, you can ensure that this vital component continues to perform efficiently, keeping your fridge—and your kitchen—running smoothly.
Can You Safely Dispose of Refrigerant? Eco-Friendly Tips and Guidelines
You may want to see also
Explore related products
Evaporator Coils: Absorb heat from inside, cooling the fridge and freezer compartments
The evaporator coils are the unsung heroes of your refrigerator, working silently to absorb heat from the inside and keep your food fresh. These coils, typically located in the freezer compartment or behind a panel in the fresh food section, are filled with refrigerant that evaporates at a low temperature, absorbing heat from the surrounding air. This process is the cornerstone of refrigeration, as it directly cools the fridge and freezer compartments, maintaining the ideal temperature for food preservation. Without these coils, your refrigerator would be nothing more than an insulated box.
To understand their efficiency, consider the refrigeration cycle: the refrigerant enters the evaporator coils as a low-pressure liquid, where it evaporates into a gas as it absorbs heat. This phase change is critical, as it allows the coils to extract thermal energy from the air, effectively cooling the interior. For optimal performance, ensure the coils are clean and free from dust or debris, as blockages can reduce airflow and hinder heat absorption. Regular maintenance, such as vacuuming the coils every six months, can improve efficiency by up to 30%, reducing energy consumption and extending the appliance’s lifespan.
Comparing evaporator coils to other cooling methods highlights their unique advantages. Unlike air conditioners, which expel heat outdoors, refrigerators must operate in a closed system, making the evaporator coils’ role even more crucial. Their design often includes a fan to circulate air over the coils, ensuring even cooling throughout the compartments. Modern refrigerators may also feature frost-free technology, where the coils are integrated into a defrost cycle to prevent ice buildup, further enhancing their effectiveness. This innovation eliminates the need for manual defrosting, saving time and effort for the user.
For those troubleshooting cooling issues, the evaporator coils are often the first component to inspect. If your refrigerator isn’t cooling properly, check for signs of frost accumulation on the coils, which indicates a potential defrost system failure. Additionally, listen for the evaporator fan motor; if it’s not running, the air won’t circulate over the coils, leading to uneven cooling. In such cases, replacing the fan motor or defrost heater may resolve the issue. Always unplug the refrigerator before performing any maintenance to avoid electrical hazards.
In conclusion, evaporator coils are indispensable in the refrigeration process, serving as the primary heat exchangers that keep your food cold. Their efficiency, maintenance, and integration with other components make them a focal point for both performance and troubleshooting. By understanding their function and caring for them properly, you can ensure your refrigerator operates at its best, preserving your food and saving energy in the process.
Refreezing Thawed Meat: Safe Practices for Refrigerator-Thawed Foods
You may want to see also
Explore related products
![[Upgraded] WR71X10761 Fridge Shelf Trim (Clear) for GE Refrigerators, Door Shelf Insert Module Replacement Part, Replaces WR71X10289, AP4327432 (2 Pack)](https://m.media-amazon.com/images/I/41cvMhV76QL._AC_UY218_.jpg)
Condenser Coils: Release absorbed heat outside, located at the back or bottom
Condenser coils are the unsung heroes of your refrigerator, working tirelessly to expel heat and maintain the cool interior. Located at the back or bottom of the appliance, these coils are part of the refrigeration cycle, a process that involves absorbing, moving, and releasing heat. After the refrigerant picks up heat from inside the fridge, it travels to the condenser coils, where it dissipates into the surrounding air. This heat release is crucial for the system’s efficiency, as it allows the refrigerant to return to a cool state and repeat the cycle. Without functional condenser coils, your refrigerator would struggle to keep food cold, leading to spoilage and wasted energy.
To ensure optimal performance, regular maintenance of condenser coils is essential. Dust, pet hair, and debris can accumulate on the coils, insulating them and reducing their ability to release heat. This buildup forces the refrigerator to work harder, increasing energy consumption and potentially shortening its lifespan. Cleaning the coils every six months is a simple yet effective task. Use a vacuum cleaner with a brush attachment or a coil-cleaning brush to gently remove debris. For bottom-mounted coils, slide the refrigerator out carefully and clean both the front and back of the coil panel. Always unplug the appliance before cleaning to avoid electrical hazards.
Comparing condenser coils to other heat-exchange systems highlights their efficiency and design simplicity. Unlike air conditioners, which often use fans to enhance heat dissipation, refrigerators rely on natural convection or forced air from a small fan. This design minimizes noise and energy use while ensuring effective cooling. However, their exposed location makes them more susceptible to dirt and damage. For instance, placing a refrigerator too close to a wall or cabinet can restrict airflow, reducing coil efficiency. Maintaining a gap of at least 1–2 inches around the appliance ensures proper ventilation and heat release.
A practical tip for maximizing condenser coil efficiency is to monitor their temperature during operation. On average, the coils should feel warm to the touch, indicating active heat dissipation. If they are excessively hot or barely warm, it may signal a problem, such as a refrigerant leak or airflow obstruction. In such cases, consult a professional technician to diagnose and repair the issue. Additionally, consider the refrigerator’s environment: placing it in a cool, well-ventilated area reduces the workload on the coils, improving overall performance and energy efficiency. By understanding and caring for condenser coils, you can extend the life of your refrigerator and keep it running smoothly for years to come.
Should You Refrigerate Canned Sardines? Storage Tips for Freshness
You may want to see also
Explore related products
Refrigerant: Chemical compound (e.g., Freon) that cycles between gas and liquid states
The refrigerant is the lifeblood of a refrigerator, a chemical compound that undergoes a continuous cycle of phase changes to absorb and release heat. Common refrigerants like Freon (R-22) or its more environmentally friendly successor, R-410A, are designed to transition efficiently between gas and liquid states. This process is fundamental to the refrigeration cycle, where the refrigerant evaporates to absorb heat from the refrigerator’s interior and condenses to release that heat outside. Without this unique property, the cooling mechanism would fail, rendering the appliance ineffective.
Consider the refrigeration cycle as a four-stage process: compression, condensation, expansion, and evaporation. In the compressor, the refrigerant is pressurized into a hot, high-pressure gas. Next, it moves to the condenser coils, where it condenses into a liquid as heat dissipates into the surrounding air. The expansion valve then reduces pressure, causing the refrigerant to evaporate rapidly, absorbing heat from the refrigerator’s interior. This cooled gas returns to the compressor, restarting the cycle. The efficiency of this process depends on the refrigerant’s ability to change states at specific temperatures and pressures, making its chemical composition critical.
Choosing the right refrigerant is not just a technical decision but an environmental one. Older refrigerants like R-22 are being phased out due to their ozone-depleting properties, with alternatives like R-410A or natural refrigerants (e.g., propane or ammonia) gaining popularity. For homeowners, this means ensuring compatibility when repairing or replacing systems. For instance, R-410A operates at higher pressures, requiring specialized equipment. Always consult a certified technician to avoid damage or inefficiency, as improper handling can void warranties or compromise performance.
Practical maintenance tips can extend the life of your refrigerant system. Regularly clean condenser coils to ensure efficient heat dissipation—dust buildup can reduce cooling capacity by up to 30%. Check for leaks using electronic detectors or soap bubbles, as even small leaks can lead to system failure. Keep the refrigerator’s temperature between 35°F and 38°F (2°C and 3°C) to minimize compressor strain. Finally, consider upgrading to a newer model with eco-friendly refrigerants if your unit is over 10 years old, as this can reduce energy consumption by up to 20%.
In summary, the refrigerant’s role in a refrigerator is both complex and indispensable. Its ability to cycle between gas and liquid states drives the cooling process, but its environmental impact and compatibility with modern systems require careful consideration. By understanding its function and maintaining the system properly, you can ensure your refrigerator operates efficiently and sustainably for years to come.
How to Replace the Seal on Your GE Profile Refrigerator
You may want to see also
Explore related products
![[2 PACK] UPGRADED 242126602 Refrigerator Door Bin Shelf Replacement For Frigidaire Door Shelf Replacement -LFSS2612TF0 LFSS2612TF4 Frigidaire Door Bin Bottom Shelf Parts 2421266 PS12364199 Shelves](https://m.media-amazon.com/images/I/61pSnVlo1sL._AC_UY218_.jpg)
Thermostat: Regulates temperature by controlling the compressor's on/off cycle
The thermostat is the brain of a refrigerator's temperature control system, ensuring your food stays fresh without freezing or spoiling. It operates by monitoring the internal temperature and signaling the compressor to activate or deactivate based on preset thresholds. For instance, if the fridge interior rises above the desired temperature (typically around 37°F or 3°C), the thermostat triggers the compressor to start the cooling cycle. Conversely, once the temperature drops to the set point, it shuts off the compressor to conserve energy. This on/off cycle is critical for maintaining consistency, especially in fluctuating ambient conditions.
Understanding how to calibrate your thermostat can significantly improve efficiency and longevity. Most modern refrigerators allow users to adjust temperature settings via a digital interface, often with a range between 34°F and 42°F (1°C to 6°C). For older models with mechanical dials, a small screwdriver can be used to turn the adjustment screw clockwise for a colder temperature or counterclockwise for a warmer one. A practical tip: place a thermometer inside the fridge for 24 hours to verify accuracy, adjusting the thermostat as needed. Misalignment can lead to overcooling, which wastes energy, or undercooling, which risks food safety.
Comparatively, the thermostat’s role in a refrigerator is akin to a thermostat in an HVAC system, but with unique challenges. While home heating and cooling systems regulate larger spaces with slower temperature fluctuations, refrigerators must maintain precision in a compact, insulated environment where even minor deviations can impact food quality. For example, a 5°F (3°C) variance can accelerate bacterial growth in perishables like dairy and meat. This highlights the thermostat’s critical function in balancing energy efficiency with food preservation.
A malfunctioning thermostat can manifest in several ways: inconsistent temperatures, a compressor that runs continuously, or one that never turns on. Troubleshooting begins with checking the thermostat’s physical condition—look for cracks, loose wires, or corrosion. If the issue persists, replacing the thermostat is often a straightforward DIY task, costing between $20 and $50 for the part, depending on the model. However, always unplug the refrigerator before attempting repairs to avoid electrical hazards. For those less comfortable with DIY, consulting a technician ensures proper diagnosis and installation.
In conclusion, the thermostat is a small but mighty component that dictates the efficiency and effectiveness of your refrigerator. By understanding its function, calibrating it correctly, and addressing issues promptly, you can extend the appliance’s lifespan and reduce energy consumption. Whether you’re adjusting settings for seasonal changes or troubleshooting a problem, this guide underscores the thermostat’s indispensable role in keeping your fridge—and your food—in optimal condition.
Does Dollar General Sell Car AC Refrigerant? Find Out Here
You may want to see also
Frequently asked questions
The main components of a refrigerator include the compressor, condenser coils, evaporator coils, expansion valve, thermostat, refrigerant, and the insulated cabinet.
The compressor is the heart of the refrigerator. It circulates the refrigerant and increases its pressure and temperature, enabling the cooling process.
Evaporator coils are located inside the refrigerator and freezer compartments. They absorb heat from the air, cooling the interior, as the refrigerant evaporates.
Condenser coils are typically located at the back or bottom of the refrigerator. They release the heat absorbed from the interior to the surrounding environment, condensing the refrigerant from gas to liquid.
The thermostat monitors and controls the temperature inside the refrigerator. It signals the compressor to turn on or off to maintain the desired cooling level.
