How Baffled Oil Pans Enhance Performance And Efficiency

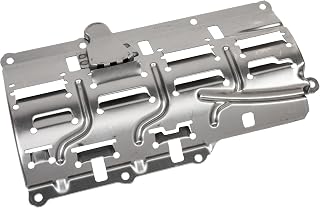

Oil pan baffles are 'ribs' inside the pan that restrict the movement of oil from sloshing to the sides of the pan. They are used to prevent oil starvation, which can lead to excessive wear and catastrophic engine failure. Oil pan baffles are particularly important in motorsports where the car and engine are subjected to high g-forces for an extended period of time. Baffles can take the form of vertical metal slots or flaps, also known as 'trap doors', that only open in one direction. They can also feature a scraper section to contain oil splash from the rotating crank.

Baffled oil pans prevent oil starvation

Baffled oil pans are a great way to prevent oil starvation, a common issue in high-performance driving. Normal production cars have what is called a "wet sump" system, where the majority of the oil is stored in the oil pan, and a pump sucks up the oil to lubricate the engine. However, during high-speed cornering, the oil can slosh to one side of the pan, away from the pump, leading to oil starvation and potentially catastrophic engine failure.

Baffled oil pans are an effective solution to this problem. They feature chambers and trap doors that allow oil to easily flow towards the pump but restrict its movement away from the pump, preventing oil starvation. The trap doors only open inwards, allowing oil to enter but not exit the chamber. Additionally, baffled oil pans often have increased capacity, ensuring more oil is available in the system.

The design of a baffled oil pan can vary depending on the specific application. For example, a baffled oil pan for drag racing may have different design considerations compared to one used for road racing, where lateral acceleration and cornering forces come into play.

Some other methods to prevent oil starvation include using a dry sump system (commonly used in racing series like Formula 1 and NASCAR) or adding an accumulator, which stores oil under pressure and releases it into the engine if the pressure drops. However, these methods can be more complex and expensive.

In summary, baffled oil pans are a cost-effective solution to prevent oil starvation, especially for high-performance or track-day drivers. By controlling the flow of oil with chambers and trap doors, baffled oil pans ensure that oil remains available for the pump, even during high-speed cornering.

They are used in motorsports

Baffled oil pans are used in motorsports to address the problem of high g-forces causing oil to slosh away from the oil pump pickup, starving the engine of oil and leading to excessive wear and engine failure.

Baffled oil pans have chambers that make it easy for the oil to travel toward the oil pickup but difficult for it to get sloshed the other way. They also tend to increase the capacity of the oil pan, making more oil available in the system.

In addition, baffled oil pans can help to prevent oil from sloshing up out of the pan and into the cylinder head. This is achieved by removing the stock "windage tray" and installing a scraper, which returns oil to the pan instead of allowing the crank to run in a bowl of oil.

The use of baffled oil pans in motorsports can contribute to longer engine bearing and oil pump life by reducing the tendency for oil pickup starvation during aggressive driving sessions.

Baffles are designed with 'trap doors'

Baffles are designed with trap doors to control oil flow within the oil pan. Unlike static baffles, trap-door baffles open and close to allow almost unrestricted one-way fluid flow while limiting flow in the opposite direction. This is achieved by allowing the doors to only open inward, towards the pickup, and not the other way around. The doors are also designed with a stop that prevents them from opening beyond a certain point, typically around 60 degrees, to ensure they close quickly and effectively limit oil flow in the opposite direction.

Trap-door baffles are particularly useful in motorsports where the car and engine are subjected to high g-forces for extended periods of time. During a long continuous high-g turn, for example, oil will slosh to one side of the pan away from the oil pickup, leading to oil starvation and potentially catastrophic engine failure. Baffles with trap doors help to limit the oil's movement and keep it where the pump can suck it up into the engine.

The size of the trap doors can vary, but it is recommended to make them as large as possible without interfering with each other or the pickup. In addition, features such as lips or horizontal baffles can be added to prevent oil from splashing out of the chamber. The doors can also be designed to hang slightly open when no g-forces are applied, allowing oil to flow freely into the oil pump pickup area.

Trap-door baffles can be arranged in different configurations depending on the type of racing and the forces acting on the vehicle. For example, Moroso's "diamond baffle" consists of a square arrangement of four trap doors, each opening inward towards the pickup, to keep the sump fed with oil under various combinations of acceleration, deceleration, and cornering forces.

Baffles prevent oil splashing

There are several designs of oil pan baffles. Some have vertical metal slots to slow the movement of oil, while others have one-way flaps or 'trap doors' that only allow oil to flow into the oil pickup chamber. These trap doors are designed to seal when oil is slung against them due to G-forces, preventing oil from flowing out of the chamber. Baffles can also be designed to increase the capacity of the oil pan, providing more oil for the system.

In addition to preventing oil starvation, baffles also help to prevent oil splashing and foaming, which can result in vapour residue being piped into the engine instead of oil. This residue can be detrimental to engine performance. By containing the oil within the pan, baffles help to ensure that only oil is drawn into the pickup and circulated to the engine.

Furthermore, complex baffle designs may include a scraper section that helps to contain oil splash from the rotating crank, preventing it from travelling up the cylinders. This feature further reduces the risk of oil starvation and engine damage. Overall, the presence of baffles within the oil pan helps to maintain proper lubrication of engine components, reducing the likelihood of mechanical failure due to insufficient oil supply.

Baffles are not limited to a single design

Baffles can also feature a scraper section to prevent oil splash from the rotating crank that could travel up the cylinders. This is in addition to their primary function of preventing oil from sloshing to the sides of the pan, which can cause engine failure as the oil pickup is unable to suck up any oil.
