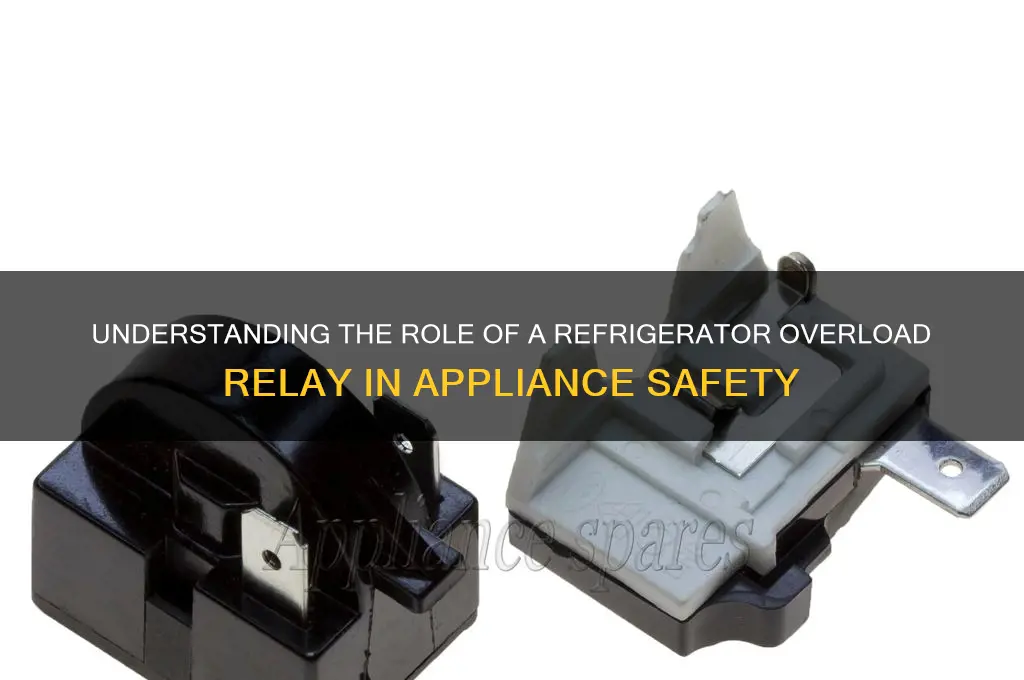

A refrigerator overload relay is a critical component in the appliance's electrical system, designed to protect the compressor motor from damage caused by excessive current or overheating. Essentially, it acts as a safety switch that monitors the motor's electrical load; when the current exceeds a safe threshold, the relay automatically cuts off power to prevent burnout or electrical failure. This mechanism ensures the longevity of the compressor, which is the heart of the refrigeration cycle, by safeguarding it against prolonged operation under stressful conditions. Understanding the function of the overload relay is essential for troubleshooting common refrigerator issues and maintaining the appliance's efficiency and reliability.
| Characteristics | Values |
|---|---|
| Function | Protects the refrigerator's compressor motor from overheating or overcurrent. |
| Location | Typically mounted on the compressor or near the start relay. |
| Operation | Opens the circuit if the motor draws excessive current, preventing damage. |
| Reset Mechanism | Automatically resets once the motor cools down to a safe temperature. |
| Components | Contains a bimetallic strip that responds to temperature changes. |
| Voltage Rating | Matches the refrigerator's electrical system (e.g., 120V or 240V). |
| Current Rating | Designed to handle the compressor's maximum current load. |
| Failure Symptoms | Refrigerator not cooling, compressor not starting, or frequent cycling. |
| Testing Method | Check continuity with a multimeter; a closed circuit indicates functionality. |
| Replacement Necessity | Replace if faulty, as it can cause compressor burnout or system failure. |
| Compatibility | Must match the refrigerator model and compressor specifications. |
Explore related products
What You'll Learn
Protects compressor from overheating
The refrigerator overload relay is a critical component in safeguarding the compressor, the heart of the refrigeration cycle. It acts as a sentinel, monitoring the compressor's electrical current and stepping in when it detects excessive draw. This excessive current, often a symptom of overheating, can lead to catastrophic compressor failure if left unchecked. By interrupting the power supply, the overload relay prevents the compressor from operating under these stressful conditions, effectively protecting it from self-destruction.
Imagine a marathon runner pushing through a race despite severe muscle cramps. The overload relay is like a vigilant coach, pulling the runner from the race before permanent damage occurs.
Overheating in compressors can stem from various factors: a clogged condenser coil hindering heat dissipation, a malfunctioning fan, or even a refrigerant leak. The overload relay doesn't diagnose the root cause; its sole purpose is to react to the symptom – excessive current draw. This reactive approach, while not preventative, is crucial for preventing immediate damage. Think of it as a circuit breaker specifically designed to protect the compressor, the most expensive and vital component in your refrigerator.
Unlike a general circuit breaker that protects the entire circuit, the overload relay's focus is laser-sharp, ensuring the compressor's longevity.
Recognizing the signs of a failing overload relay is crucial for timely intervention. If your refrigerator fails to cool adequately, makes unusual noises, or cycles on and off frequently, the overload relay might be malfunctioning. A qualified technician can diagnose the issue using a multimeter to test the relay's continuity. Remember, attempting DIY repairs on electrical components can be hazardous. Always prioritize safety and consult a professional if you suspect a problem.
Regular maintenance, such as cleaning the condenser coils and ensuring proper ventilation around the refrigerator, can significantly reduce the risk of overload relay activation and extend the lifespan of your appliance.
