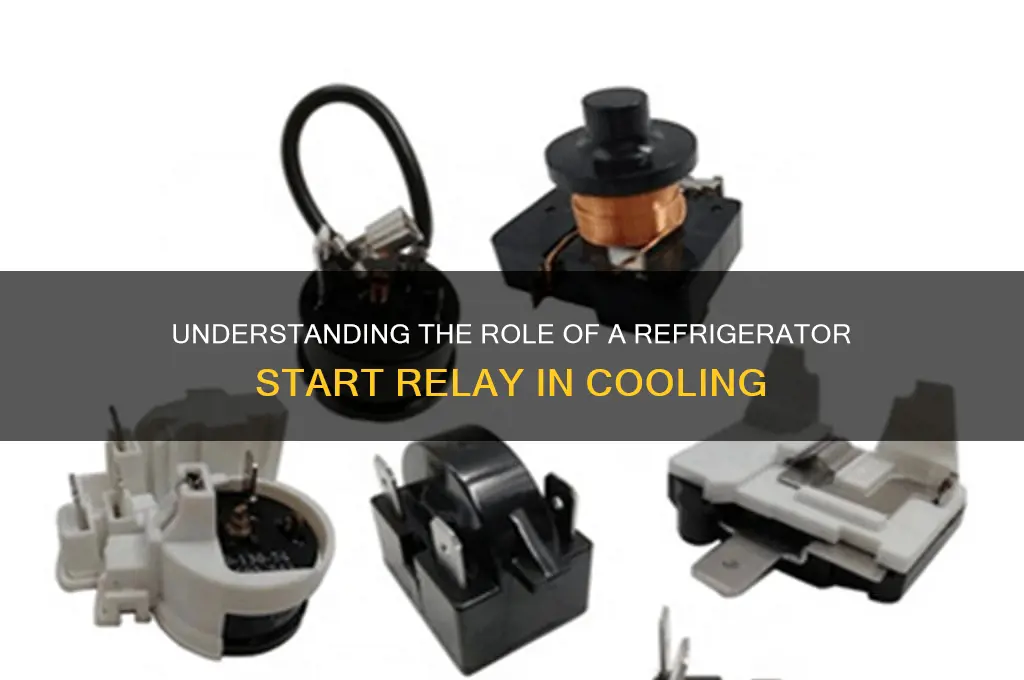

A refrigerator start relay is a crucial component in the appliance's compressor system, responsible for initiating the compressor motor's operation. When the refrigerator's thermostat signals the need for cooling, the start relay provides an extra electrical boost to the compressor, enabling it to overcome inertia and begin running. This temporary high-current circuit is essential for starting the motor, after which the relay switches to a lower-current circuit to maintain continuous operation. Without a functioning start relay, the compressor may fail to start, leading to inadequate cooling and potential food spoilage. Understanding the role of the start relay is vital for diagnosing and addressing refrigeration issues, ensuring the appliance operates efficiently and reliably.
| Characteristics | Values |
|---|---|
| Function | Provides an initial boost of power to the compressor motor during startup |
| Purpose | Overcomes the high starting torque required by the compressor motor |
| Operation | Temporarily connects an extra winding (start winding) to the motor circuit |
| Duration | Engages only for a few seconds until the motor reaches a certain speed |
| Disengagement | Automatically disengages the start winding once the motor is running |
| Components | Typically includes a relay switch and a start capacitor |
| Location | Usually found near the compressor, often integrated into the compressor unit |
| Failure Symptoms | Refrigerator not cooling, compressor humming but not starting, or clicking noises |
| Common Issues | Burnt contacts, faulty switch, or damaged start capacitor |
| Replacement | Requires replacement of the entire start relay or start capacitor assembly |
| Safety | Should be handled by a qualified technician due to electrical hazards |
Explore related products
What You'll Learn
- Relay Functionality: Controls power to the compressor, enabling it to start and run efficiently
- Start vs. Run: Differentiates between start-up and continuous operation modes of the compressor
- Overload Protection: Prevents compressor damage by cutting power during electrical overload or overheating
- Common Failures: Symptoms include clicking noises, failure to start, or frequent cycling
- Replacement Process: Steps to safely replace a faulty relay and restore refrigerator function
Relay Functionality: Controls power to the compressor, enabling it to start and run efficiently
The refrigerator start relay is a critical component in the refrigeration cycle, acting as the gatekeeper for power delivery to the compressor. Without it, the compressor—the heart of the cooling system—would fail to activate, rendering the appliance ineffective. This small yet powerful device ensures that the compressor receives the precise amount of electrical current needed to start and operate efficiently. By controlling the power flow, the relay prevents energy wastage and reduces the risk of overheating, which can damage the compressor and shorten its lifespan.
Consider the relay as a traffic controller for electricity. When the refrigerator’s thermostat signals a need for cooling, the relay closes the circuit, allowing current to reach the compressor. Once the compressor starts, the relay may open a secondary circuit to reduce power consumption during steady operation, a process known as "start-boost." This dual functionality ensures the compressor doesn’t draw excessive power, which could strain the motor and increase energy bills. For example, a typical household refrigerator compressor requires a start current of 6–10 amperes, significantly higher than its running current of 1–2 amperes. The relay manages this surge, protecting both the appliance and the electrical system.
To understand the relay’s importance, imagine starting a car without a starter motor—the engine would struggle to turn over. Similarly, a compressor without a start relay would face difficulty initiating its cycle, leading to inefficient cooling or complete failure. Over time, relays can wear out due to repeated use, arcing, or overheating, manifesting as symptoms like a warm refrigerator, unusual noises, or failure to cool. If you suspect a faulty relay, inspect it for signs of burning or melting, and test it with a multimeter for continuity. Replacement is straightforward: unplug the refrigerator, locate the relay (often near the compressor), disconnect the wires, and install the new unit, ensuring compatibility with your model.
Practical tip: When replacing a start relay, opt for a high-quality, OEM-approved part to ensure longevity and compatibility. Avoid generic alternatives, as they may lack the precise specifications required for your refrigerator’s compressor. Additionally, consider replacing the overload protector simultaneously, as these components often work in tandem and fail around the same time. Regular maintenance, such as cleaning condenser coils and ensuring proper ventilation, can also reduce strain on the relay and extend its lifespan.
In summary, the start relay is the unsung hero of refrigerator functionality, orchestrating power delivery to the compressor with precision. Its role in managing start-up surges and optimizing running efficiency not only ensures consistent cooling but also safeguards the appliance from electrical damage. By understanding its operation and recognizing signs of failure, homeowners can address issues promptly, maintaining their refrigerator’s performance and energy efficiency.
Refrigerating Rice Krispie Treats: Best Practices for Freshness and Texture
You may want to see also
Explore related products
Start vs. Run: Differentiates between start-up and continuous operation modes of the compressor
The refrigerator start relay is a critical component that ensures the compressor, the heart of the refrigeration cycle, operates efficiently. It serves a dual purpose: facilitating the compressor's start-up and maintaining its continuous operation. Understanding the distinction between these two modes—start and run—is essential for diagnosing issues and ensuring optimal performance.
The Start Mode: Overcoming Inertia
When you first turn on a refrigerator or after a defrost cycle, the compressor needs to transition from a stationary state to full operation. This is where the start relay comes into play. It provides an additional electrical pathway, delivering a higher current to the compressor's start winding. This extra boost is necessary because the compressor motor faces maximum resistance, or inertia, when starting. Without the start relay, the compressor might struggle to initiate, leading to overheating or failure. The start mode typically lasts for a few seconds, just long enough to get the compressor running smoothly.
The Run Mode: Sustaining Efficiency
Once the compressor is up and running, the start relay disengages, and the system switches to the run mode. In this phase, the compressor operates on a lower current supplied to the run winding. This mode is designed for energy efficiency and long-term operation. The run winding maintains the compressor's speed and performance without the extra power required during start-up. If the start relay fails to disengage, it can cause excessive current draw, leading to higher energy consumption and potential damage to the compressor.
Practical Implications: Troubleshooting and Maintenance
Understanding the start vs. run distinction is invaluable for troubleshooting. For instance, if your refrigerator clicks but doesn’t cool, the start relay might be stuck in the start mode or failing to engage altogether. A multimeter can test the relay’s continuity in both modes to diagnose the issue. Regular maintenance, such as cleaning the condenser coils and ensuring proper ventilation, can also reduce the strain on the start relay during start-up.
Takeaway: Balancing Power and Efficiency
The start relay’s role in differentiating between start and run modes is a delicate balance of power and efficiency. It ensures the compressor overcomes initial resistance without wasting energy during continuous operation. By recognizing the symptoms of relay failure—unusual noises, frequent cycling, or inadequate cooling—you can address issues before they escalate. This knowledge not only extends the life of your refrigerator but also optimizes its performance, keeping your food fresh and your energy bills in check.
Mastering Liquid Refrigerant Charging: A Step-by-Step Guide for Technicians
You may want to see also
Explore related products
Overload Protection: Prevents compressor damage by cutting power during electrical overload or overheating
Electrical overload or overheating can spell disaster for a refrigerator’s compressor, the heart of its cooling system. Overload protection, a critical function of the start relay, acts as a safeguard, cutting power to the compressor when these conditions arise. Without this feature, excessive current or heat could cause irreversible damage, leading to costly repairs or premature system failure. This mechanism ensures the longevity of the appliance by addressing issues before they escalate.
Consider the start relay as a vigilant gatekeeper, constantly monitoring the compressor’s operating conditions. When it detects an abnormal surge in electrical current or a rise in temperature beyond safe thresholds, it immediately interrupts the power supply. This instantaneous response prevents the compressor from operating under stress, which could warp components, melt wiring, or burn out the motor. For instance, if a refrigerator is subjected to frequent power fluctuations or is placed in a poorly ventilated area, the overload protection activates to mitigate potential harm.
Practical tips for homeowners include ensuring proper airflow around the refrigerator, avoiding overloading electrical circuits, and scheduling regular maintenance checks. Keep the appliance at least 2–3 inches away from walls and cabinets to allow heat dissipation. If the refrigerator frequently trips the overload protection, it may indicate an underlying issue, such as a failing compressor or a malfunctioning start relay, warranting professional inspection. Ignoring these signs could lead to more severe problems, including complete system failure.
Comparatively, refrigerators without advanced overload protection are more susceptible to damage, especially in regions with unstable power grids or extreme climates. Modern start relays often integrate thermal sensors and current detectors, offering dual-layer protection. In contrast, older models may rely solely on thermal cutouts, which are less responsive to electrical overloads. Upgrading to a newer start relay with enhanced overload protection can be a wise investment, particularly for aging appliances.
In conclusion, overload protection is not just a feature but a necessity for preserving the compressor’s integrity. By understanding its role and taking proactive measures, users can ensure their refrigerator operates efficiently and reliably for years. This small yet vital component exemplifies how preventive technology can save both money and inconvenience in the long run.
Should You Turn Off Your Refrigerator? Energy-Saving Tips and Myths
You may want to see also
Explore related products
Common Failures: Symptoms include clicking noises, failure to start, or frequent cycling
A refrigerator start relay is a critical component that facilitates the compressor's operation, ensuring your fridge maintains optimal cooling. However, when this relay malfunctions, it can lead to a cascade of issues, often manifesting as clicking noises, failure to start, or frequent cycling. These symptoms are not merely inconveniences; they are red flags signaling potential system failure if left unaddressed. Understanding these common failures can help you diagnose problems early and take corrective action before your refrigerator becomes a costly repair or replacement.
Clicking Noises: The Audible Warning Sign
One of the most recognizable symptoms of a failing start relay is a repetitive clicking sound emanating from the refrigerator. This noise typically occurs when the relay attempts to engage the compressor but fails to establish a consistent connection. Each click represents an unsuccessful attempt to start the compressor, often due to worn contacts or electrical arcing within the relay. If you hear this sound, it’s crucial to act promptly. Ignoring it can lead to further damage, such as overheating of the relay or compressor, which may result in more extensive and expensive repairs. A practical tip: unplug the refrigerator immediately and inspect the relay for visible burn marks or damage before considering a replacement.
Failure to Start: When the Relay Fails Its Primary Function
A start relay’s primary role is to provide the initial high-current boost needed to start the compressor. When the relay fails entirely, the compressor cannot start, leaving your refrigerator unable to cool. This failure can stem from a variety of causes, including age-related wear, voltage spikes, or manufacturing defects. If your refrigerator is not cooling despite being powered on, check the relay for continuity using a multimeter. A reading of zero ohms indicates an open circuit, confirming the relay’s failure. Replacing the relay is often a straightforward DIY task, but ensure you match the new relay’s specifications to your refrigerator model.
Frequent Cycling: The Energy-Draining Consequence
Another symptom of a failing start relay is frequent cycling, where the compressor turns on and off rapidly. This behavior not only reduces the efficiency of your refrigerator but also places undue stress on the compressor, potentially shortening its lifespan. Frequent cycling often occurs when the relay fails to maintain a stable connection, causing the compressor to shut off prematurely. This issue can be particularly problematic in older refrigerators or those subjected to voltage fluctuations. To mitigate this, consider installing a voltage stabilizer or surge protector. Additionally, monitor your energy bills; a sudden increase could indicate inefficient operation due to relay issues.
Practical Tips for Prevention and Maintenance
Preventing start relay failures begins with regular maintenance and awareness. Keep your refrigerator’s condenser coils clean to ensure proper airflow and reduce the strain on the compressor. Avoid overloading the fridge, as this can force the compressor to work harder, increasing the risk of relay failure. If you live in an area with unstable voltage, invest in a surge protector to safeguard your appliance. Lastly, familiarize yourself with the location of the start relay in your refrigerator model, as this knowledge can save time during inspections or replacements. By staying proactive, you can extend the life of your refrigerator and avoid the inconvenience of unexpected breakdowns.
Refrigerator Bean Soaking: How Long is Safe and Effective?
You may want to see also
Explore related products
Replacement Process: Steps to safely replace a faulty relay and restore refrigerator function
A faulty start relay is a common culprit behind a refrigerator that fails to cool properly. This small component plays a critical role in initiating the compressor, the heart of your fridge’s cooling system. When the relay malfunctions, the compressor may not start, leading to warm temperatures and spoiled food. Replacing a faulty relay is a straightforward DIY task that can save you from costly repairs or premature appliance replacement. Here’s how to do it safely and effectively.
Step 1: Identify and Access the Relay
Begin by unplugging the refrigerator to ensure safety. Locate the start relay, typically found near the compressor at the back or bottom of the unit. It’s a small, cylindrical or rectangular component with wires attached. Consult your refrigerator’s manual or search online for your model’s specific relay location. Once identified, remove the protective cover or panel to access it. Be cautious not to damage nearby components or wiring during this process.
Step 2: Disconnect and Remove the Faulty Relay
With the relay exposed, carefully disconnect the wires attached to it. Take note of their positions or label them to avoid confusion during reinstallation. Some relays may have clips or screws holding them in place; remove these to free the relay. Gently pull the relay out, ensuring no wires are snagged or damaged. If the relay is stuck, avoid forcing it—use a gentle twisting motion to release it from its socket.
Step 3: Install the New Relay
Insert the replacement relay into the same socket, ensuring it fits securely. Reattach any clips or screws to hold it in place. Reconnect the wires to their respective terminals, following your notes or labels for accuracy. Double-check that all connections are tight and secure. A loose connection can prevent the relay from functioning properly, so take your time with this step.
Step 4: Test and Reassemble
Plug the refrigerator back in and listen for the compressor to start. If the relay is functioning correctly, you should hear the compressor engage within a few seconds. Allow the fridge to run for at least 15 minutes to ensure it’s cooling properly. Once confirmed, reattach any panels or covers you removed during the process. Dispose of the old relay responsibly, as it may contain materials that require special handling.
Cautions and Tips
Always prioritize safety by unplugging the refrigerator before working on it. If you’re unsure about any step, consult a professional or refer to detailed guides specific to your model. Keep a flashlight handy to illuminate hard-to-see areas. Finally, purchase a replacement relay that matches your refrigerator’s make and model to ensure compatibility. With these steps, you can restore your refrigerator’s function efficiently and extend its lifespan.
Calibrating Your Fridge Thermometer: A Simple Step-by-Step Guide
You may want to see also
Frequently asked questions
A refrigerator start relay is an electrical component that helps the compressor motor start by providing an initial boost of power. It temporarily connects the start winding of the motor to the power supply, allowing the compressor to overcome inertia and begin running.
The start relay works by closing a set of contacts that connect the start winding of the compressor motor to the power source. Once the motor reaches a certain speed, the relay opens the contacts, disconnecting the start winding and allowing the motor to run on the main winding.
Common signs of a faulty start relay include the refrigerator not cooling, the compressor not starting, clicking noises from the relay, or the relay overheating. If the relay fails, the compressor may hum but not start properly.
No, a refrigerator cannot work without a start relay because the compressor motor relies on it to initiate the starting process. Without the relay, the motor may not start at all, leading to a lack of cooling in the refrigerator.
