Ella Walter

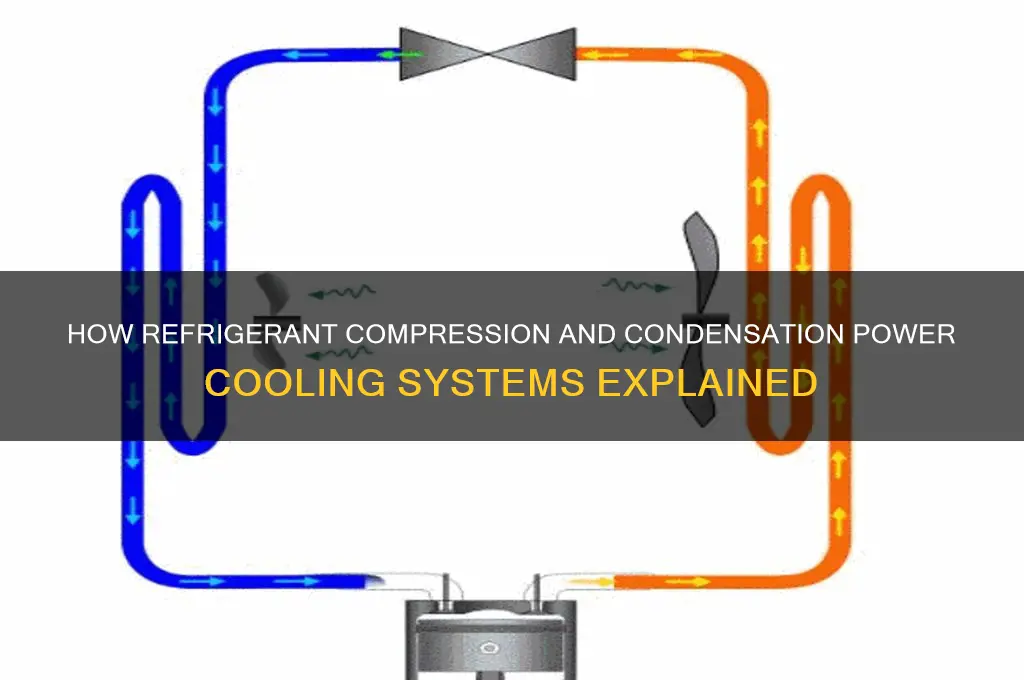

When a refrigerant is compressed and condensed, it undergoes a critical phase in the refrigeration cycle. As the refrigerant is compressed, its temperature and pressure rise significantly, transforming it from a low-pressure gas into a high-pressure, high-temperature vapor. This compressed vapor then enters the condenser, where it is cooled by the surrounding environment, causing it to condense into a high-pressure liquid. During this condensation process, the refrigerant releases heat to the external environment, which is a key step in transferring unwanted heat from the cooled space. The resulting high-pressure liquid is now ready to move to the next stage of the cycle, where it will expand and evaporate to absorb heat again, repeating the process efficiently.
| Characteristics | Values |
|---|---|
| State Change | Gas (vapor) to liquid |
| Temperature | Increases significantly due to compression |
| Pressure | Increases significantly due to compression |
| Volume | Decreases as the refrigerant is condensed into a liquid |
| Heat Transfer | Releases heat (latent and sensible heat) to the surroundings during condensation |
| Entropy | Decreases as the refrigerant becomes more ordered in liquid form |
| Enthalpy | Decreases slightly after condensation due to heat rejection, despite initial increase during compression |
| Density | Increases as the refrigerant transitions from vapor to liquid |
| Phase | Changes from vapor to subcooled liquid (if fully condensed) |
| Energy Consumption | Requires mechanical work (energy) to compress the refrigerant |
| Application | Essential step in refrigeration and air conditioning cycles (e.g., compression, condensation, expansion, evaporation) |
| Environmental Impact | Depends on the refrigerant type; modern refrigerants aim to minimize ozone depletion and global warming potential |
Explore related products
$555 $595.69
What You'll Learn
- Pressure and Temperature Rise: Compression increases refrigerant pressure, causing temperature to rise significantly
- Phase Change to Liquid: High-pressure gas condenses into a high-temperature liquid during condensation
- Heat Dissipation: Condenser releases absorbed heat to the surrounding environment, cooling the refrigerant
- Subcooling Process: Liquid refrigerant is further cooled below its saturation temperature for efficiency
- Energy Transfer: Compression work and heat rejection prepare refrigerant for expansion and evaporation
Pressure and Temperature Rise: Compression increases refrigerant pressure, causing temperature to rise significantly
Compression of a refrigerant is a fundamental step in the refrigeration cycle, and its impact on pressure and temperature is both immediate and significant. When a refrigerant is compressed, its molecules are forced closer together, increasing the density of the gas. This process is governed by the ideal gas law, which states that pressure and temperature are directly proportional when volume is constant. As the compressor reduces the volume, the pressure rises, and this increase in pressure leads to a corresponding rise in temperature. For instance, a refrigerant like R-410A, commonly used in modern air conditioning systems, can experience a temperature increase from 40°F (4.4°C) at the evaporator outlet to over 160°F (71.1°C) at the compressor outlet during compression.
To understand the practical implications, consider the role of compression in a typical air conditioning system. The compressor acts as the heart of the system, drawing in low-pressure, low-temperature refrigerant vapor from the evaporator. As this vapor is compressed, its pressure can increase from around 68 psi (pounds per square inch) to over 250 psi, depending on the system design and ambient conditions. This dramatic rise in pressure is accompanied by a significant temperature increase, which is essential for the subsequent condensation process. However, this heat must be managed carefully to prevent inefficiencies or damage to the system. Technicians often monitor these values using gauges to ensure the system operates within safe and efficient parameters.
From an analytical perspective, the relationship between pressure and temperature during compression highlights the importance of thermodynamic principles in refrigeration. The work done on the refrigerant during compression converts mechanical energy into thermal energy, raising the refrigerant’s enthalpy. This process is not 100% efficient, as some energy is lost as heat to the surroundings, underscoring the need for proper compressor design and cooling mechanisms. For example, industrial refrigeration systems often incorporate oil cooling and intercooling stages to manage the heat generated during compression, ensuring the refrigerant reaches the condenser at the desired temperature and pressure.
For homeowners or technicians troubleshooting refrigeration systems, understanding this pressure-temperature relationship is crucial. If the compressor fails to raise the refrigerant’s pressure and temperature sufficiently, the refrigerant may not condense effectively in the condenser, leading to poor cooling performance. Conversely, excessive compression can cause the refrigerant to reach temperatures that degrade its oil or damage system components. Practical tips include regularly cleaning condenser coils to ensure efficient heat rejection and checking for refrigerant leaks, as low refrigerant levels can reduce the compressor’s ability to achieve the necessary pressure and temperature rise.
In summary, the compression stage of the refrigeration cycle is a critical process where pressure and temperature rise in tandem, driven by the reduction in volume and the work input from the compressor. This phenomenon is not just a theoretical concept but a practical reality that dictates the efficiency and reliability of refrigeration and air conditioning systems. By grasping the specifics of this process, from the thermodynamic principles to the practical implications, one can better maintain, troubleshoot, and optimize these essential systems.
Refrigerated Half and Half in Coffee: A Creamy Dilemma Explained
You may want to see also
Explore related products
Phase Change to Liquid: High-pressure gas condenses into a high-temperature liquid during condensation
During the condensation process, a refrigerant undergoes a remarkable transformation, shifting from a high-pressure gas to a high-temperature liquid. This phase change is a cornerstone of refrigeration and air conditioning systems, where the refrigerant's ability to absorb and release heat is harnessed to regulate temperature. As the gas is compressed, its molecules are forced closer together, increasing the pressure and temperature. When this hot, high-pressure gas enters the condenser, it encounters a cooler environment, typically facilitated by air or water flowing over the condenser coils. The heat from the refrigerant is dissipated to the surroundings, causing the gas to lose energy and transition into a liquid state. This process is not just a simple cooling effect; it’s a fundamental energy exchange that leverages the principles of thermodynamics.
Consider the practical application in a residential air conditioning unit. The refrigerant, such as R-410A, enters the condenser as a superheated gas at approximately 150 psi and 120°F. As it flows through the condenser coils, exposed to ambient air around 80°F, the refrigerant releases heat, dropping its temperature to about 100°F while maintaining high pressure. This phase change is critical because it prepares the refrigerant to absorb heat again in the evaporator, ensuring the cycle’s efficiency. For optimal performance, ensure the condenser coils are clean and free of debris, as blockages can reduce heat dissipation, increasing energy consumption by up to 30%.
From a comparative perspective, the condensation process in refrigeration systems mirrors natural phenomena like dew formation. Just as water vapor condenses into liquid droplets on a cool surface, refrigerants condense when their temperature drops below the dew point at a given pressure. However, the scale and control in refrigeration systems are far more precise. For instance, in industrial refrigeration, refrigerants like ammonia (R-717) condense at pressures around 150–200 psi and temperatures of 100–120°F, depending on ambient conditions. This controlled phase change allows for efficient heat removal, making it ideal for large-scale applications like cold storage facilities.
To maximize efficiency during condensation, follow these steps: first, ensure the condenser is properly sized for the system’s load; undersized units can lead to high head pressures, reducing efficiency. Second, maintain adequate airflow around the condenser; a minimum of 12 inches of clearance on all sides is recommended. Third, monitor refrigerant charge levels; overcharging can lead to liquid flooding, while undercharging reduces heat transfer capacity. For DIY enthusiasts, investing in a digital manifold gauge set can help monitor pressures and temperatures, ensuring the system operates within optimal ranges.
In conclusion, the phase change from high-pressure gas to high-temperature liquid during condensation is a critical step in the refrigeration cycle. It’s a process that combines physics, engineering, and practical maintenance to achieve efficient temperature control. Whether in a home AC unit or an industrial chiller, understanding and optimizing this phase change can lead to significant energy savings and system longevity. By focusing on cleanliness, proper sizing, and precise monitoring, anyone can ensure their refrigeration system operates at peak performance.
Does Fresh Lime Juice Spoil in the Fridge? Storage Tips
You may want to see also
Explore related products
Heat Dissipation: Condenser releases absorbed heat to the surrounding environment, cooling the refrigerant
The condenser is the unsung hero of any refrigeration or air conditioning system, tasked with a critical mission: expelling heat. When a refrigerant is compressed, its temperature and pressure soar, transforming it into a high-energy state. This heat, absorbed from the evaporator and generated during compression, must be released to complete the cycle. The condenser accomplishes this by transferring the heat to the surrounding environment—whether it’s outdoor air, water, or another medium—effectively cooling the refrigerant back into a liquid state. Without this heat dissipation, the system would stall, unable to cycle and provide cooling.
Consider the mechanics: as the hot, compressed refrigerant enters the condenser, it flows through a network of coils or tubes. These coils are designed to maximize surface area, enhancing contact with the cooling medium. For air-cooled systems, fans blow ambient air over the coils, carrying away heat. In water-cooled systems, chilled water circulates around the coils, absorbing and dissipating the thermal energy. The efficiency of this process depends on factors like airflow, water flow rate, and the cleanliness of the coils. For instance, a clogged condenser coil can reduce heat transfer efficiency by up to 30%, highlighting the importance of regular maintenance.
From a practical standpoint, optimizing heat dissipation is key to system performance. In residential air conditioners, ensure the outdoor unit is free from obstructions like leaves or debris, as restricted airflow can impair heat release. For industrial systems, monitor water temperatures in cooling towers to maintain optimal heat rejection. A rule of thumb: keep condenser coils clean by scheduling bi-annual inspections and cleanings, especially in dusty or humid environments. Additionally, consider upgrading to microchannel condensers, which offer superior heat transfer efficiency compared to traditional tube-fin designs, particularly in high-ambient temperature conditions.
Comparatively, the condenser’s role in heat dissipation is akin to a car’s radiator, both serving as thermal exchangers. However, while a radiator cools engine coolant, the condenser cools refrigerant, a substance specifically engineered for phase changes. This distinction underscores the refrigerant’s unique ability to absorb and release large amounts of heat with minimal volume changes. For example, R-410A, a common refrigerant, can absorb approximately 120 BTU per pound during evaporation, all of which must be rejected via the condenser. This efficiency makes it a cornerstone of modern HVAC systems, but it also demands precise engineering to ensure effective heat dissipation.
In conclusion, heat dissipation via the condenser is not just a step in the refrigeration cycle—it’s the linchpin that sustains the entire process. By understanding its mechanics, optimizing its performance, and drawing parallels to familiar systems, we can appreciate its critical role. Whether you’re troubleshooting a home AC unit or designing an industrial chiller, prioritizing efficient heat rejection ensures the system operates reliably, efficiently, and sustainably. After all, cooling isn’t just about removing heat—it’s about knowing where to put it.
Refrigerator Soaking Guide: How Long Can Beans Stay Submerged?
You may want to see also
Explore related products
Subcooling Process: Liquid refrigerant is further cooled below its saturation temperature for efficiency
The subcooling process is a critical enhancement in refrigeration and air conditioning systems, where liquid refrigerant is intentionally cooled below its saturation temperature after condensation. This step ensures that the refrigerant remains in a fully liquid state as it moves through the system, eliminating any residual vapor or flash gas that could reduce efficiency. By subcooling the refrigerant, typically by 5° to 20°F (3° to 11°C) below its saturation temperature, the system gains several advantages, including increased cooling capacity, reduced energy consumption, and improved reliability.
Consider the practical implementation of subcooling in a residential air conditioning unit. After the refrigerant is condensed in the outdoor coil, it passes through a subcooling section, often integrated into the condenser or via a separate heat exchanger. For example, a system using R-410A refrigerant might subcool the liquid from its saturation temperature of 90°F (32°C) down to 75°F (24°C). This process ensures that the refrigerant enters the expansion valve fully liquid, preventing pressure drops that could lead to inefficient evaporation in the indoor coil. The result is a more consistent and effective cooling cycle, even under varying load conditions.
From an analytical perspective, subcooling directly impacts the system’s coefficient of performance (COP), a measure of efficiency. Without subcooling, flash gas formation in the liquid line can reduce the effective refrigerant mass flow rate, lowering the system’s ability to transfer heat. By maintaining the refrigerant in a subcooled state, the system maximizes the usable cooling effect per unit of energy input. For instance, a 10°F (5.5°C) subcooling can increase the COP by up to 5%, translating to measurable energy savings over time. This is particularly valuable in commercial refrigeration systems, where even small efficiency gains can significantly reduce operational costs.
To implement subcooling effectively, technicians must carefully design and maintain the system. One common method is to extend the length of the condenser coil or add a separate subcooling pass. Another approach is to use a liquid line heat exchanger, where the cool liquid refrigerant exiting the condenser is further chilled by the colder suction gas returning to the compressor. However, caution must be exercised to avoid over-subcooling, as excessive cooling can lead to unnecessary pressure drops and strain on the expansion valve. Regular monitoring of subcooling levels, using tools like temperature clamps and pressure gauges, ensures optimal performance without compromising system integrity.
In summary, the subcooling process is a strategic refinement in refrigeration cycles, offering tangible benefits in efficiency and performance. By deliberately cooling the liquid refrigerant below its saturation temperature, systems can operate more reliably, consume less energy, and deliver consistent cooling. Whether in residential air conditioners or large-scale industrial chillers, subcooling exemplifies how small adjustments in design and operation can yield significant improvements in overall system effectiveness.
Easy Steps to Power On Your Frigidaire Refrigerator Quickly
You may want to see also
Explore related products
Energy Transfer: Compression work and heat rejection prepare refrigerant for expansion and evaporation
Compression and condensation are pivotal stages in the refrigeration cycle, transforming a refrigerant from a low-pressure gas into a high-pressure liquid. This process begins with compression work, where mechanical energy is applied to increase the refrigerant’s pressure and temperature. For instance, a typical household air conditioner compresses R-410A refrigerant from approximately 68 psi (low-pressure gas) to 250 psi (high-pressure gas), raising its temperature from 40°F to 160°F. This energy transfer is essential, as it prepares the refrigerant for the next phase: heat rejection.
Heat rejection occurs in the condenser, where the hot, high-pressure gas releases thermal energy to the surrounding environment. This phase is critical for efficiency; a well-designed condenser can reject up to 80% of the heat absorbed during evaporation. For example, in a split AC system, the condenser coils are exposed to outdoor air, allowing fans to accelerate heat dissipation. The refrigerant condenses into a high-pressure liquid at a temperature slightly above the ambient air, typically around 100°F for R-410A. This step is not just about cooling—it’s about energy recovery, ensuring the refrigerant is primed for expansion and evaporation.
The transition from condensation to expansion is where the refrigerant’s potential energy is harnessed. As the high-pressure liquid passes through an expansion valve, its pressure drops dramatically, causing rapid cooling. This process, known as flash gas formation, partially vaporizes the refrigerant, reducing its temperature to around 40°F. The key here is enthalpy conservation: the energy removed during condensation is temporarily stored and then utilized during evaporation to absorb heat from the indoor space. Without efficient heat rejection in the condenser, this energy transfer would be incomplete, reducing system performance.
Practical considerations underscore the importance of this energy transfer. For instance, in commercial refrigeration systems, maintaining optimal condenser cleanliness can improve heat rejection efficiency by 15–20%. Similarly, ensuring the expansion valve is properly sized prevents over- or under-feeding of refrigerant, which can lead to inefficiencies. Technicians often use subcooling (cooling the liquid refrigerant below its condensation temperature) to enhance system stability, typically aiming for 10–15°F of subcooling in R-410A systems. These steps ensure the refrigerant is fully prepared for evaporation, maximizing cooling capacity while minimizing energy consumption.
In summary, the energy transfer during compression and condensation is a delicate balance of work input and heat rejection, setting the stage for efficient expansion and evaporation. By understanding this interplay, engineers and technicians can optimize refrigeration systems for performance, reliability, and energy efficiency. Whether in residential air conditioners or industrial chillers, mastering these principles ensures the refrigerant cycle operates seamlessly, delivering consistent cooling with minimal waste.
Properly Storing Fresh Oysters in Your Refrigerator: A Complete Guide
You may want to see also
Frequently asked questions
When a refrigerant is compressed, its pressure and temperature increase significantly. The compressor reduces the volume of the refrigerant gas, forcing its molecules closer together, which raises both pressure and temperature, turning the refrigerant into a high-pressure, high-temperature vapor.
During condensation, the high-pressure, high-temperature refrigerant vapor is cooled in the condenser, causing it to change from a vapor to a liquid state. Heat is released to the surrounding environment (e.g., outdoor air or water) as the refrigerant condenses, preparing it for the next stage of the refrigeration cycle.
The refrigerant condenses after compression because the compression process raises its pressure above the dew point, and the subsequent cooling in the condenser lowers its temperature to the point where it can no longer remain a vapor. This phase change from vapor to liquid is essential for releasing heat and continuing the refrigeration cycle.
