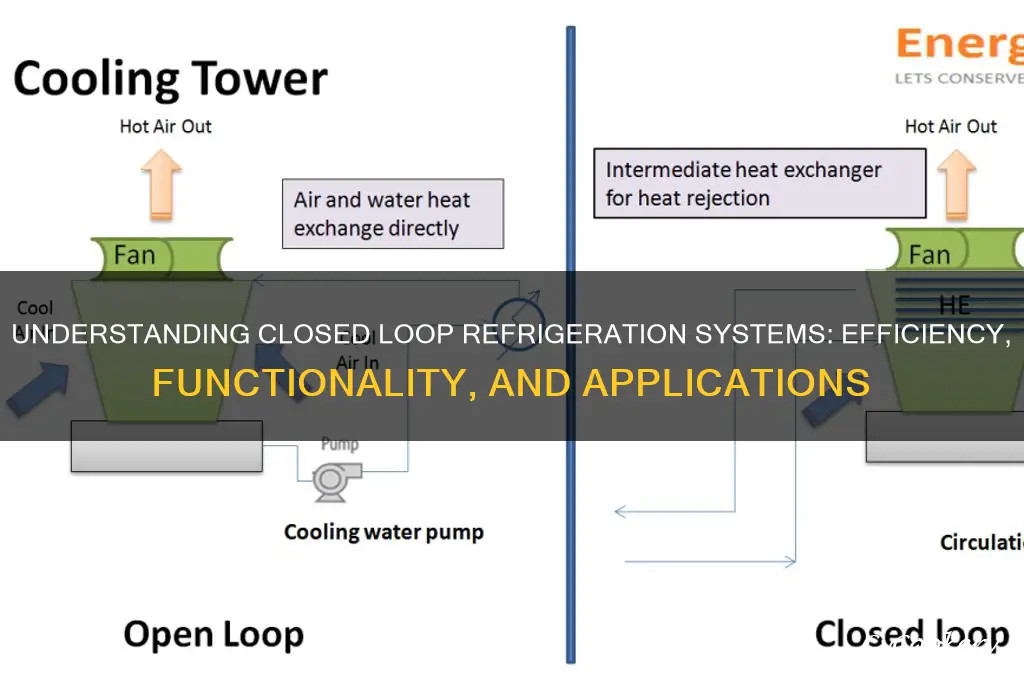

A closed loop refrigeration system is a highly efficient and self-contained cooling mechanism where the refrigerant circulates continuously within a sealed network of components, including the compressor, condenser, expansion valve, and evaporator. Unlike open systems, it does not exchange refrigerant with the external environment, minimizing leaks and reducing environmental impact. This design ensures consistent performance, improved energy efficiency, and easier maintenance, making it ideal for applications requiring precise temperature control, such as industrial processes, HVAC systems, and data centers. Its reliability and sustainability have made it a preferred choice in modern refrigeration technology.
Explore related products
What You'll Learn
- System Components: Compressor, condenser, expansion valve, evaporator, and refrigerant work together in a cycle
- Heat Transfer Process: Absorbs heat from inside, releases it outside, maintaining temperature balance efficiently
- Refrigerant Cycle: Continuous loop where refrigerant changes state, absorbing and releasing heat repeatedly
- Energy Efficiency: Closed systems minimize energy loss, reducing operational costs and environmental impact
- Applications: Used in HVAC, industrial cooling, and refrigeration units for precise temperature control
System Components: Compressor, condenser, expansion valve, evaporator, and refrigerant work together in a cycle
A closed loop refrigeration system operates as a continuous cycle, where each component plays a critical role in transferring heat and maintaining desired temperatures. At the heart of this system is the compressor, a mechanical workhorse that pressurizes and heats the refrigerant, transforming it from a low-pressure gas into a high-pressure, high-temperature vapor. This process is the first step in moving thermal energy from one place to another, typically from inside a cooled space to the external environment. Without the compressor, the refrigerant would remain stagnant, and the system would fail to function.
Next in the cycle is the condenser, which acts as a heat exchanger, dissipating the heat absorbed by the refrigerant. As the hot, compressed vapor passes through the condenser coils, it condenses into a high-pressure liquid, releasing thermal energy into the surrounding air or water. This phase is crucial for efficiency, as the effectiveness of heat rejection directly impacts the system’s cooling capacity. For optimal performance, ensure the condenser is free from debris and operates within recommended ambient temperature ranges, typically between 50°F and 115°F (10°C and 46°C).
The expansion valve introduces a controlled restriction, rapidly reducing the refrigerant’s pressure and temperature, converting the high-pressure liquid into a low-pressure, low-temperature mixture of liquid and vapor. This sudden drop in pressure is essential for the refrigerant to absorb heat in the next stage. Precision is key here; an improperly sized or malfunctioning expansion valve can lead to inefficient cooling or even system damage. Regular calibration and maintenance are advised to ensure consistent performance.
The evaporator is where the magic happens—heat absorption. As the cold, low-pressure refrigerant flows through the evaporator coils, it absorbs thermal energy from the space being cooled, evaporating into a low-pressure gas. This process is what provides the cooling effect in refrigerators, air conditioners, or industrial chillers. To maximize efficiency, maintain proper airflow around the evaporator coils and ensure the refrigerant charge is neither overfilled nor underfilled, as deviations can reduce cooling effectiveness by up to 30%.
Finally, the refrigerant ties the entire cycle together, acting as the medium for heat transfer. Whether it’s R-410A, R-134a, or a natural refrigerant like ammonia, its thermodynamic properties enable it to change states efficiently under varying pressures and temperatures. Selecting the right refrigerant is critical, as it impacts not only performance but also environmental compliance. For instance, refrigerants with low Global Warming Potential (GWP) are increasingly preferred to meet regulatory standards and reduce ecological footprints.
Together, these components form a seamless cycle, each relying on the others to achieve efficient and reliable cooling. Understanding their roles and interdependencies allows for better troubleshooting, maintenance, and optimization of closed loop refrigeration systems, ensuring they operate at peak performance across diverse applications.
Can a Broken Fan Cause Your Refrigerator to Freeze Over?
You may want to see also
Explore related products
Heat Transfer Process: Absorbs heat from inside, releases it outside, maintaining temperature balance efficiently
A closed loop refrigeration system operates by continuously cycling a refrigerant through a sealed network, absorbing heat from an interior space and expelling it externally to maintain precise temperature control. This process hinges on the phase changes of the refrigerant—evaporation and condensation—which facilitate efficient heat transfer without exposing the refrigerant to the external environment. Unlike open systems, closed loops prevent contamination and minimize refrigerant loss, making them ideal for applications requiring long-term reliability, such as industrial cooling, HVAC systems, and data centers.
Consider the refrigeration cycle as a four-stage process: evaporation, compression, condensation, and expansion. In the evaporation stage, the refrigerant absorbs heat from the interior space, transitioning from a liquid to a vapor state. This occurs in the evaporator coil, where the refrigerant’s low boiling point allows it to effectively draw thermal energy from the surrounding air. For instance, in a supermarket refrigeration unit, the evaporator coil might operate at temperatures between -10°C and 5°C, depending on the cooling requirements. The efficiency of this stage is critical, as it directly impacts the system’s ability to maintain desired temperatures.
The compression stage follows, where the vaporized refrigerant is pressurized by a compressor, raising its temperature significantly. This step is energy-intensive but essential for preparing the refrigerant for heat rejection. A typical compressor in a residential air conditioning system might operate at a ratio of 3:1 to 5:1, meaning the pressure of the refrigerant is increased three to five times its original value. Proper maintenance of the compressor, including regular oil changes and monitoring for leaks, is crucial to prevent system failures and ensure energy efficiency.
During condensation, the high-pressure, high-temperature refrigerant releases heat to the external environment, condensing back into a liquid. This occurs in the condenser coil, often located outdoors or in a well-ventilated area. For optimal performance, the condenser should be kept free of debris, and airflow around it should be unobstructed. In large-scale systems, such as those used in manufacturing plants, condenser coils may be paired with cooling towers to enhance heat dissipation, especially in high-ambient-temperature conditions.
Finally, the expansion stage reduces the refrigerant’s pressure and temperature, preparing it to repeat the cycle. This is achieved through an expansion valve or capillary tube, which meters the refrigerant flow into the evaporator. Careful calibration of the expansion device is necessary to avoid issues like freezing or insufficient cooling. For example, in a commercial refrigeration system, an improperly set expansion valve can lead to superheating or liquid slugging, both of which reduce efficiency and can damage components.
In practice, the efficiency of a closed loop refrigeration system depends on balancing these stages while minimizing energy consumption. Techniques such as variable-speed compressors, economizer cycles, and heat recovery systems can further optimize performance. For instance, a heat recovery system might redirect waste heat from the condenser to preheat water for industrial processes, achieving energy savings of up to 30%. By understanding and fine-tuning the heat transfer process, operators can ensure their systems maintain temperature balance efficiently, even under demanding conditions.
