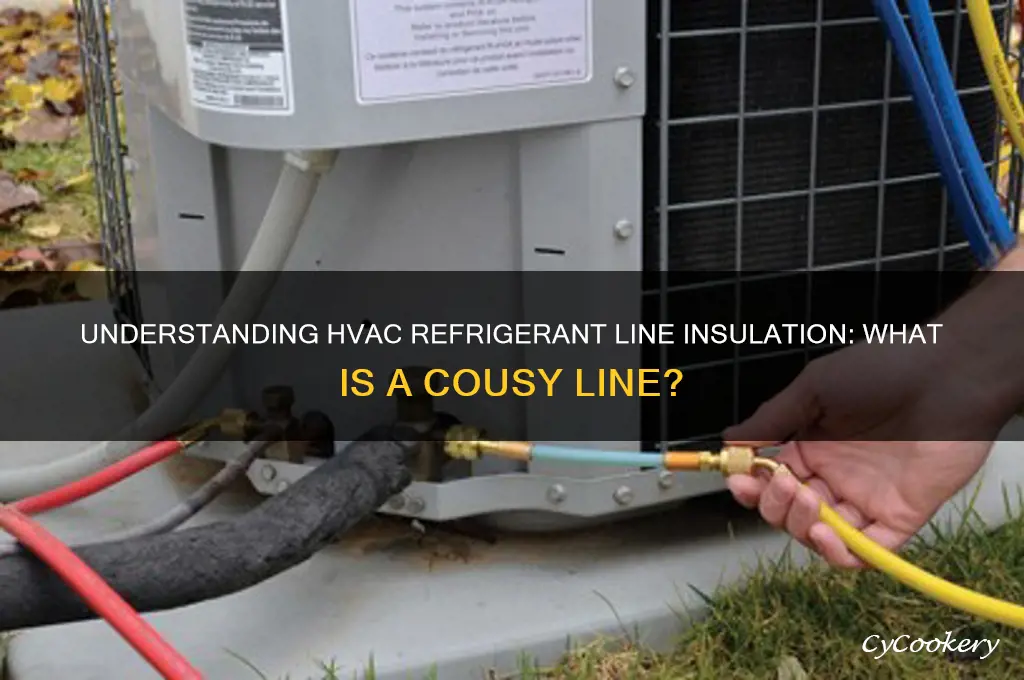

A HVAC refrigerant line coupler, often referred to as a cousy in the industry, is a critical component in heating, ventilation, and air conditioning (HVAC) systems. It serves as a connecting device that joins refrigerant lines, allowing for the transfer of refrigerant between different parts of the system, such as the indoor and outdoor units. The coupler is designed to ensure a secure, leak-free connection, which is essential for maintaining the efficiency and functionality of the HVAC system. Typically made from durable materials like brass or copper, it is equipped with seals or gaskets to prevent refrigerant leaks and is often used during installation, maintenance, or repair to facilitate easy disconnection and reconnection of refrigerant lines. Understanding the role and proper use of a refrigerant line coupler is vital for HVAC technicians to ensure optimal system performance and longevity.
Explore related products
What You'll Learn
- Refrigerant Line Insulation: Importance of insulation to prevent energy loss and maintain system efficiency
- Line Set Components: Overview of copper tubing, insulation, and connectors in HVAC systems
- Refrigerant Flow Direction: Understanding how refrigerant moves between indoor and outdoor units
- Line Set Sizing: Proper sizing for optimal performance and system compatibility
- Leak Detection Methods: Techniques to identify and repair refrigerant line leaks effectively
Refrigerant Line Insulation: Importance of insulation to prevent energy loss and maintain system efficiency
Refrigerant lines in HVAC systems are the lifelines of temperature control, carrying the vital fluid that absorbs and releases heat to cool or heat your space. However, these lines are susceptible to energy loss, especially when exposed to external temperatures. This is where insulation becomes crucial. Properly insulated refrigerant lines act as a thermal barrier, minimizing heat transfer between the refrigerant and the surrounding environment. Without this barrier, the system must work harder to maintain desired temperatures, leading to increased energy consumption and higher utility bills.
Consider the analogy of a thermos: its double-walled design with a vacuum or insulating material between the walls prevents heat transfer, keeping beverages hot or cold for extended periods. Similarly, refrigerant line insulation creates a thermal envelope around the lines, preserving the refrigerant’s temperature as it travels between indoor and outdoor units. For example, in air conditioning systems, insulation prevents the refrigerant from absorbing external heat, ensuring it remains cool and efficient. In heating systems, it prevents heat loss, allowing the refrigerant to deliver warmth effectively. Studies show that uninsulated lines can lose up to 20% of their energy efficiency, highlighting the direct impact of insulation on system performance.
The type and thickness of insulation matter significantly. Common materials include foam, rubber, and fiberglass, each with varying R-values (a measure of thermal resistance). For optimal efficiency, select insulation with an R-value appropriate for your climate and system requirements. For instance, in hot climates, thicker insulation with a higher R-value is recommended to combat heat gain. Conversely, in colder regions, insulation should focus on preventing heat loss. Installation is equally critical—ensure the insulation fits snugly without gaps, as even small openings can compromise its effectiveness. Regularly inspect for wear, tears, or moisture damage, as compromised insulation can negate its benefits.
Beyond energy savings, refrigerant line insulation contributes to system longevity and reliability. By reducing the workload on the HVAC system, insulation minimizes wear and tear on components like compressors and coils, potentially extending the system’s lifespan by several years. Additionally, it helps maintain consistent indoor temperatures, enhancing comfort and reducing the strain on thermostats and controls. For homeowners and businesses, this translates to fewer repairs, lower maintenance costs, and a more sustainable operation. Practical tips include using UV-resistant insulation for outdoor lines and applying vapor barriers to prevent moisture infiltration, which can degrade insulation over time.
In summary, refrigerant line insulation is not just an accessory but a necessity for maximizing HVAC efficiency. It directly combats energy loss, reduces operational costs, and supports system durability. By investing in quality insulation and maintaining it properly, you ensure your HVAC system operates at peak performance, delivering comfort and savings year-round. Whether upgrading an existing system or installing a new one, prioritize insulation as a critical component of your HVAC strategy.
Quick Guide to Resetting Your Refrigerator Defrost Timer Easily
You may want to see also
Explore related products
Line Set Components: Overview of copper tubing, insulation, and connectors in HVAC systems
Copper tubing serves as the backbone of HVAC refrigerant line sets, facilitating the flow of refrigerant between indoor and outdoor units. Its durability, corrosion resistance, and thermal conductivity make it the material of choice for this critical application. Available in soft and hard temper varieties, soft copper is ideal for bending and maneuvering through tight spaces, while hard copper provides structural stability for longer runs. Standard sizes range from 1/4-inch to 1-inch outer diameter, with wall thicknesses designated by ACR (air conditioning and refrigeration) standards. Proper sizing ensures optimal refrigerant flow and minimizes pressure drop, directly impacting system efficiency.
Insulation is the unsung hero of line sets, preventing energy loss and condensation buildup. Closed-cell foam insulation, typically made from polyethylene or elastomeric materials, wraps around the copper tubing to maintain refrigerant temperature. Thickness varies based on application, with 3/4-inch to 1-inch insulation common for residential systems. Properly insulated lines reduce heat gain or loss by up to 80%, improving system efficiency and preventing water damage from condensation. For outdoor installations, UV-resistant jackets are essential to protect insulation from sun degradation, ensuring longevity in exposed environments.
Connectors and fittings are the critical junctions that link line set components, requiring precision to prevent leaks and ensure system integrity. Flared fittings, brazed joints, and press-to-connect systems are the most common methods. Flared fittings, paired with O-rings or nuts, are cost-effective and easy to install but require careful torqueing to avoid leaks. Brazed joints, using a torch and filler metal, provide a permanent, leak-free connection but demand skilled labor. Press-to-connect systems, such as those using jaw tools, offer a quick, flame-free alternative ideal for retrofits or tight spaces. Each method has its trade-offs, with material compatibility and system pressure dictating the best choice.
Installing line sets demands attention to detail, from sizing and routing to securing and testing. Begin by calculating the correct tubing length and insulation thickness based on system requirements and local codes. Route lines away from heat sources and sharp edges, using supports every 6 to 8 feet to prevent sagging. Secure insulation with foil tape or adhesive to ensure a tight seal, and vacuum-test the system to 500 microns or less before charging refrigerant. Neglecting these steps can lead to inefficiency, leaks, or system failure, underscoring the importance of precision in every component and connection.
In summary, the line set components—copper tubing, insulation, and connectors—form a trifecta essential to HVAC system performance. Copper’s reliability, insulation’s energy-saving properties, and connectors’ leak-prevention capabilities work in harmony to ensure efficient refrigerant flow. By understanding the unique role of each component and adhering to best practices in installation, technicians can optimize system longevity and efficiency, delivering comfort and reliability to end-users.
Does the International Space Station Have Refrigerators? Exploring ISS Storage
You may want to see also
Explore related products
Refrigerant Flow Direction: Understanding how refrigerant moves between indoor and outdoor units
Refrigerant flow direction is a critical aspect of HVAC systems, dictating how heat is transferred between indoor and outdoor units. In a typical split-system air conditioner or heat pump, refrigerant cycles in a closed loop, alternating between high-pressure liquid and low-pressure gas states. During cooling mode, the outdoor unit compresses refrigerant into a hot, high-pressure gas, which travels through the condenser coil to release heat outdoors. This condensed liquid then moves indoors via the liquid line to the evaporator coil, where it absorbs heat from indoor air, evaporating into a low-pressure gas. The cycle repeats as the gas returns outdoors through the suction line to be compressed again.
Understanding this flow is essential for troubleshooting and maintenance. For instance, if the liquid line is warm and the suction line is cold during cooling mode, the system is functioning correctly. However, if the liquid line is cold or the suction line is warm, it could indicate a refrigerant leak, restriction, or improper charge. Technicians often use this knowledge to diagnose issues like low refrigerant levels or clogged filters. For homeowners, recognizing these signs can prompt timely professional intervention, preventing system inefficiency or damage.
In heating mode (for heat pumps), the flow reverses via a reversing valve, allowing the outdoor unit to absorb heat from outside air while the indoor unit releases it. This reversal is a key differentiator from air conditioners, which only cool. Proper refrigerant flow direction ensures optimal heat transfer efficiency, especially in extreme temperatures. For example, in sub-zero climates, defrost cycles periodically reverse the flow to melt ice buildup on outdoor coils, maintaining performance.
Practical tips for homeowners include regular inspection of refrigerant lines for insulation damage, which can lead to energy loss. Additionally, ensuring outdoor units are free of debris allows unrestricted airflow, aiding heat exchange. For technicians, using gauges to monitor pressure differentials between the liquid and suction lines provides insights into system health. A pressure difference of 100–150 psi during cooling mode, for instance, indicates normal operation, while deviations suggest issues requiring attention.
In summary, refrigerant flow direction is the backbone of HVAC efficiency, enabling precise temperature control. Whether cooling or heating, the seamless movement of refrigerant between units hinges on proper system design, maintenance, and troubleshooting. By grasping this concept, both professionals and homeowners can ensure their systems operate reliably, extending lifespan and reducing energy costs.
Refrigerating Turmeric: Benefits, Best Practices, and Storage Tips
You may want to see also
Explore related products
Line Set Sizing: Proper sizing for optimal performance and system compatibility
Refrigerant line sets are the veins and arteries of an HVAC system, transporting the lifeblood of cooling and heating between the indoor and outdoor units. Proper line set sizing is critical, as undersized lines restrict refrigerant flow, leading to inefficiency and potential compressor damage, while oversized lines increase costs without performance benefits. The goal is to match the line set diameter to the system’s capacity, ensuring optimal refrigerant velocity and pressure drop. For instance, a 3-ton air conditioner typically requires a 3/8-inch liquid line and a 3/4-inch suction line, but this varies based on manufacturer specifications and system length.
To determine the correct line set size, start by consulting the HVAC unit’s installation manual, which provides recommended diameters based on tonnage and refrigerant type (e.g., R-410A or R-22). Next, calculate the equivalent length of the line set, accounting for both horizontal and vertical runs, as well as fittings and bends, which add resistance. A rule of thumb is that each 90-degree elbow adds 5 feet to the total length. For example, a 50-foot line set with two elbows has an equivalent length of 60 feet. Use this value to cross-reference sizing charts, ensuring the selected diameter accommodates the system’s refrigerant flow rate without exceeding maximum pressure drop limits, typically 50–75 psi for split systems.
Material selection also plays a role in line set sizing. Copper is the industry standard due to its durability and thermal conductivity, but alternatives like aluminum or composite lines may require larger diameters to achieve equivalent performance. Insulation thickness must be factored in as well, as it affects outer diameter and installation clearance. For instance, a 3/8-inch liquid line with 1-inch insulation has an outer diameter of approximately 2.25 inches, which must fit within wall cavities or conduit. Always verify local building codes and manufacturer guidelines to ensure compliance and warranty validity.
Improper line set sizing can lead to costly consequences. Undersized lines cause high head pressure, reduced cooling capacity, and increased energy consumption, while oversized lines waste material and complicate installation. For example, a 2-ton system with a 1/2-inch liquid line instead of the recommended 3/8-inch may experience a 10–15% efficiency loss. Conversely, using a 7/8-inch suction line for a 3-ton unit where 3/4-inch is sufficient adds unnecessary expense without performance gain. Regularly inspect line sets for signs of stress, such as kinking or oil staining, which indicate flow issues and potential sizing errors.
In summary, proper line set sizing is a balance of precision and practicality. Begin with manufacturer specifications, account for equivalent length and fittings, and select materials that meet performance and installation requirements. By adhering to these principles, technicians can ensure HVAC systems operate at peak efficiency, prolong equipment lifespan, and avoid callbacks. Remember, the line set is not just a connection—it’s a critical component that demands careful consideration for optimal system compatibility and performance.
Should Pie Dough Be Refrigerated? Tips for Perfect Crust Storage
You may want to see also
Explore related products
Leak Detection Methods: Techniques to identify and repair refrigerant line leaks effectively
Refrigerant leaks in HVAC systems can lead to inefficiency, increased energy costs, and environmental harm. Identifying and repairing these leaks promptly is crucial for maintaining system performance and compliance with regulations. Effective leak detection methods range from simple visual inspections to advanced technological solutions, each with its own advantages and applications.
Visual Inspection and Soap Bubble Testing
Begin with a visual inspection of the refrigerant lines, looking for oil stains, corrosion, or frost buildup, which often indicate leaks. For a more hands-on approach, apply a soapy water solution to suspected areas using a spray bottle or brush. Bubbles will form at the leak site, pinpointing the issue. This method is cost-effective and requires minimal equipment, making it ideal for small-scale or preliminary checks. However, it’s less effective for detecting microleaks or leaks in hard-to-reach areas.
Electronic Leak Detectors and UV Dyes
Electronic leak detectors offer a more precise solution, using sensors to identify refrigerant molecules in the air. These devices are portable and can detect leaks as small as 0.1 oz per year. For systems with inaccessible components, UV dye can be added to the refrigerant during maintenance. Under UV light, the dye fluoresces, revealing leak locations. This method is particularly useful for complex systems but requires prior dye injection and specialized equipment.
Ultrasonic Detectors and Thermal Imaging
Ultrasonic detectors identify high-frequency sounds emitted by refrigerant escaping under pressure, making them effective for noisy environments where electronic detectors might struggle. Thermal imaging cameras, on the other hand, detect temperature variations caused by leaks, providing a visual representation of the issue. Both methods are non-invasive and highly accurate but come with higher costs and a steeper learning curve.
Repairing Leaks: Best Practices
Once a leak is identified, isolate the affected area to prevent further refrigerant loss. Small leaks can often be repaired with epoxy or sealants, but larger issues may require replacing the damaged section of the line. Always evacuate and recharge the system according to manufacturer guidelines, ensuring proper disposal of recovered refrigerant. Regular maintenance, including pressure testing and vacuum checks, can prevent future leaks and extend system life.
Comparative Analysis and Takeaway
Each leak detection method has its strengths and limitations. Visual and soap bubble tests are simple and affordable but lack precision. Electronic detectors and UV dyes offer greater accuracy but require additional preparation. Ultrasonic and thermal imaging tools are advanced but costly. The choice depends on the system’s complexity, budget, and the technician’s expertise. Regardless of the method, timely detection and repair are essential to minimize downtime, reduce costs, and protect the environment.
Do Olives Go Bad Without Refrigeration? Storage Tips Revealed
You may want to see also
Frequently asked questions
An HVAC refrigerant line coupler is a device used to connect two refrigerant lines together, allowing for the transfer of refrigerant in heating, ventilation, and air conditioning (HVAC) systems. It ensures a secure and leak-free connection during installation, repair, or maintenance.
Common types include flare couplers, sweat couplers, and push-to-connect couplers. Flare couplers use a flared end for a tight seal, sweat couplers are soldered or brazed for a permanent connection, and push-to-connect couplers offer a quick, tool-free installation.
Using the correct coupler ensures system efficiency, prevents refrigerant leaks, and maintains safety. Incorrect couplers can lead to system malfunctions, reduced performance, or even damage to the HVAC unit. Always match the coupler to the refrigerant line type and system requirements.
