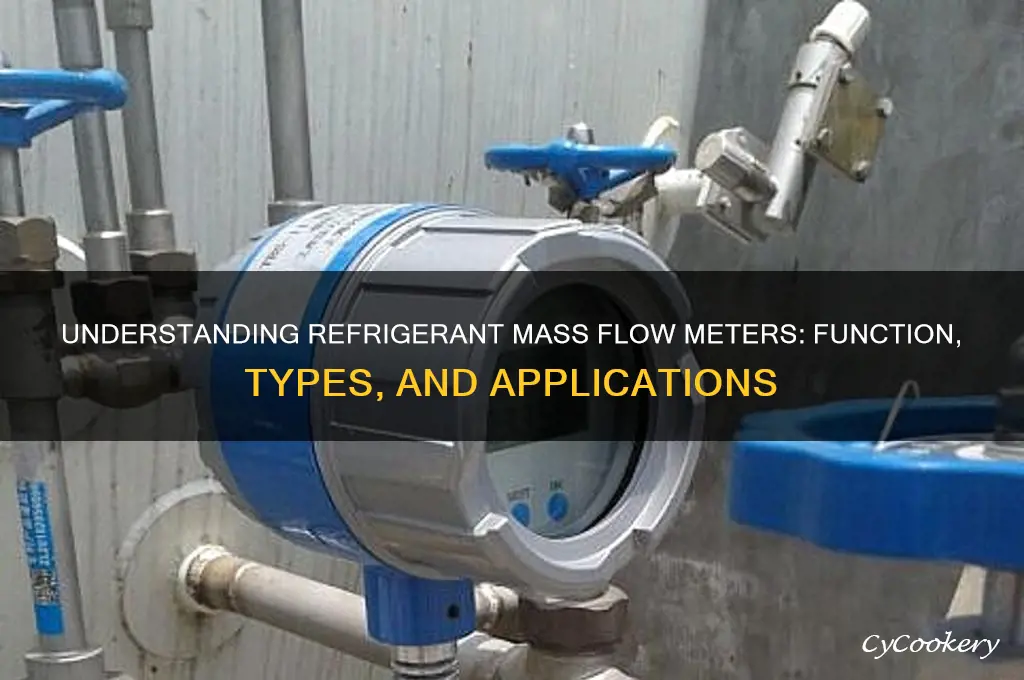

A refrigerant mass flow meter is a specialized device designed to measure the mass flow rate of refrigerants in HVAC, refrigeration, and air conditioning systems. Unlike traditional volumetric flow meters, which measure the volume of fluid passing through a system, mass flow meters directly quantify the mass of refrigerant, providing more accurate and reliable data regardless of changes in temperature, pressure, or fluid density. This precision is crucial for optimizing system performance, ensuring energy efficiency, and maintaining compliance with environmental regulations. Typically utilizing technologies such as Coriolis, thermal dispersion, or differential pressure, these meters play a vital role in monitoring and controlling refrigerant flow, enabling better system diagnostics, leak detection, and overall operational efficiency.
| Characteristics | Values |
|---|---|
| Definition | A device that measures the mass flow rate of refrigerant in a system, typically used in HVAC, refrigeration, and heat pump applications. |
| Measurement Principle | Often uses thermal dispersion, Coriolis, or ultrasonic technology to directly measure mass flow, unlike volumetric flow meters which require additional calculations. |
| Accuracy | Typically ±1-2% of reading, depending on the technology and manufacturer. |
| Response Time | Fast, usually in milliseconds to seconds, enabling real-time monitoring and control. |
| Pressure Range | Varies by model, typically 0-500 psig (pounds per square inch gauge) or higher for industrial applications. |
| Temperature Range | Typically -40°C to 120°C (-40°F to 248°F), depending on the refrigerant and sensor materials. |
| Refrigerant Compatibility | Compatible with common refrigerants like R-410A, R-32, R-134a, and natural refrigerants (e.g., CO2, ammonia). |
| Material Construction | Stainless steel, brass, or other corrosion-resistant materials to withstand refrigerant properties. |
| Flow Range | Varies by model, typically 0.1 to 1000 kg/h (0.22 to 2204 lbs/h) or higher. |
| Output Signals | Analog (4-20 mA, 0-10 V) or digital (HART, Modbus, etc.) for integration with control systems. |
| Installation | Inline or insertion type, requiring proper upstream/downstream straight pipe runs for accurate measurement. |
| Applications | HVAC systems, refrigeration plants, heat pumps, chillers, and industrial cooling processes. |
| Maintenance | Low maintenance, but periodic calibration and sensor cleaning may be required. |
| Cost | Higher initial cost compared to volumetric flow meters but offers better accuracy and reliability for mass flow measurement. |
| Standards Compliance | Often complies with industry standards like ASHRAE, ISO, or IEC for accuracy and safety. |
Explore related products
What You'll Learn
- Working Principle: Measures refrigerant flow rate using thermal, vortex, or Coriolis force principles
- Types of Meters: Includes thermal dispersion, ultrasonic, and Coriolis mass flow meters
- Applications: Used in HVAC, refrigeration systems, and industrial cooling processes for efficiency
- Installation Requirements: Needs proper positioning, calibration, and compatibility with refrigerant type
- Benefits: Enhances system efficiency, reduces energy consumption, and ensures accurate refrigerant dosing
Working Principle: Measures refrigerant flow rate using thermal, vortex, or Coriolis force principles
Refrigerant mass flow meters are essential tools in HVAC and refrigeration systems, ensuring efficient operation by accurately measuring the flow rate of refrigerants. The working principle behind these devices hinges on three primary methods: thermal, vortex, and Coriolis force measurements. Each approach offers distinct advantages and is suited to specific applications, depending on factors like fluid properties, system requirements, and desired accuracy. Understanding these principles is crucial for selecting the right meter and optimizing system performance.
Thermal Mass Flow Meters: Precision Through Heat Transfer
Thermal mass flow meters operate by measuring the heat dissipated by the refrigerant as it flows through a heated sensor. The key lies in the direct relationship between mass flow rate and the cooling effect of the refrigerant on the sensor. For instance, in a typical setup, two temperature sensors are used: one heated and one reference. As refrigerant flows, it absorbs heat from the heated sensor, and the temperature difference between the two sensors is proportional to the mass flow rate. This method is particularly effective for low-flow applications and gases, including refrigerants like R-410A or R-32. Calibration is critical, as the thermal properties of the refrigerant must match the meter’s specifications. For optimal performance, ensure the refrigerant is dry and free of contaminants, as moisture can skew readings.
Vortex Flow Meters: Harnessing Fluid Oscillations
Vortex meters rely on the principle of the von Kármán vortex street, where a bluff body placed in the refrigerant flow creates alternating vortices. The frequency of these vortices is directly proportional to the flow velocity, which, when combined with the fluid’s density, yields the mass flow rate. This method is robust and suitable for a wide range of refrigerants, including ammonia (R-717) and carbon dioxide (R-744). Vortex meters excel in high-pressure, high-temperature environments, making them ideal for industrial refrigeration systems. However, they require a minimum flow velocity to generate detectable vortices, so they may not be suitable for very low-flow scenarios. Regular maintenance, such as checking for bluff body wear, ensures long-term accuracy.
Coriolis Flow Meters: Direct Mass Measurement
Coriolis meters offer the most direct measurement of refrigerant mass flow by exploiting the inertial forces acting on the fluid as it flows through a vibrating tube. As refrigerant passes through the oscillating tube, the Coriolis force causes a phase shift between the tube’s inlet and outlet. This phase difference is measured and converted into mass flow rate. Coriolis meters are highly accurate and can handle a wide range of refrigerants, from traditional HCFCs to modern HFOs. They are particularly valuable in applications requiring precise dosing, such as in heat pump systems or refrigerant charging. However, their complexity and cost make them more suitable for critical applications rather than general-purpose use. Ensure the meter is properly grounded to avoid electrical interference, and calibrate periodically to maintain accuracy.
Choosing the Right Principle for Your Application
Selecting the appropriate working principle depends on the specific demands of your system. Thermal meters are ideal for low-flow, gas-phase refrigerants, while vortex meters shine in high-pressure, high-velocity environments. Coriolis meters, though expensive, provide unmatched accuracy for critical applications. For example, in a supermarket refrigeration system using R-744, a vortex meter might be preferred for its durability, whereas a laboratory-grade heat pump could benefit from the precision of a Coriolis meter. Always consider the refrigerant’s properties, system conditions, and required accuracy when making your choice. Proper installation and maintenance are equally vital to ensure reliable performance and longevity.
