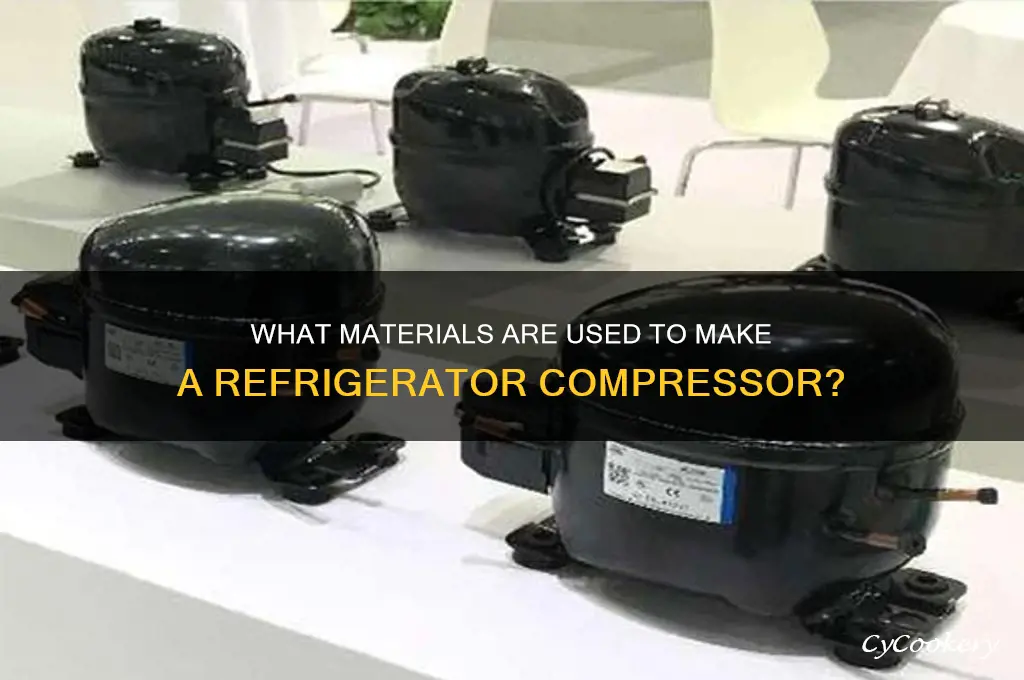

A refrigerator compressor is a critical component of the refrigeration cycle, responsible for circulating refrigerant and maintaining the cooling process. Typically made from durable materials such as cast iron, aluminum, or steel, the compressor's construction ensures it can withstand high pressures and continuous operation. Its core components include a motor, pistons or a rotary mechanism, and valves, all housed within a robust casing. The choice of materials depends on factors like efficiency, cost, and the specific refrigeration system requirements, with each material offering unique advantages in terms of strength, weight, and thermal conductivity. Understanding the composition of a refrigerator compressor provides insight into its functionality and longevity in cooling appliances.
| Characteristics | Values |
|---|---|
| Material Composition | Primarily made of cast iron, aluminum, or steel for durability and strength. |
| Core Components | Includes a motor, piston, cylinder, valves, and crankshaft. |
| Coating/Protection | Often coated with anti-corrosion materials to prevent rust and wear. |
| Lubrication | Uses refrigerant oil for smooth operation and reduced friction. |
| Sealing Material | Seals are typically made of rubber or synthetic materials for airtightness. |
| Magnetic Components | Contains magnets (e.g., in brushless DC motors) for efficient operation. |
| Electrical Parts | Includes windings, capacitors, and relays made of copper and other alloys. |
| Refrigerant Compatibility | Designed to work with specific refrigerants like R134a or R600a. |
| Thermal Conductivity | Materials chosen for efficient heat dissipation during compression. |
| Weight | Varies by type; reciprocating compressors are heavier than rotary types. |
| Size | Compact designs for modern refrigerators, especially in inverter models. |
| Noise Reduction | Incorporates vibration-dampening materials for quieter operation. |
| Energy Efficiency | Uses materials and designs optimized for low energy consumption. |
| Lifespan | Typically designed to last 10–15 years with proper maintenance. |
Explore related products
What You'll Learn
- Compressor Housing Materials: Typically made of cast iron, aluminum, or steel for durability and heat resistance
- Motor Components: Copper windings, steel laminations, and insulated bearings ensure efficient operation
- Piston and Cylinder: High-strength aluminum or steel pistons operate within a durable cylinder
- Valves and Springs: Stainless steel valves and springs handle high pressure and frequent cycling
- Lubrication System: Mineral oil or synthetic lubricants reduce friction and cool internal parts
Compressor Housing Materials: Typically made of cast iron, aluminum, or steel for durability and heat resistance
The compressor housing is the backbone of a refrigerator’s compressor, enduring extreme pressures, temperatures, and vibrations daily. Its material must balance strength, thermal stability, and cost-effectiveness. Cast iron, aluminum, and steel dominate this role, each bringing distinct advantages to the table. Cast iron, with its high tensile strength and wear resistance, is a traditional choice, though its weight can complicate installation. Aluminum, lighter and more corrosion-resistant, is increasingly favored in modern designs, especially for residential units. Steel, often alloyed for enhanced properties, strikes a middle ground, offering durability without excessive weight.
Consider the application when selecting a material. For commercial refrigerators operating in harsh environments, cast iron’s robustness may outweigh its heft. Residential models, however, benefit from aluminum’s lighter profile, which reduces energy consumption during operation. Steel, particularly stainless steel, is ideal for humid or coastal settings due to its superior corrosion resistance. Manufacturers often treat these materials with coatings or heat treatments to further improve longevity, ensuring the housing withstands decades of use without failure.
A critical factor in material choice is thermal conductivity. Aluminum, with a conductivity of approximately 205 W/m·K, dissipates heat more efficiently than steel (15–50 W/m·K) or cast iron (50–60 W/m·K). This property is vital for compressors running continuously, as overheating can lead to efficiency loss or mechanical breakdown. However, aluminum’s lower melting point (660°C) compared to steel (1370°C) and cast iron (1200°C) limits its use in high-temperature applications. Engineers must weigh these trade-offs to match the material to the compressor’s operational demands.
Maintenance and repairability are also influenced by housing material. Cast iron, while durable, is brittle and prone to cracking under impact, making repairs challenging. Aluminum, though malleable, can deform under extreme stress, requiring precise handling during installation. Steel, particularly alloyed variants, offers a balance of toughness and machinability, simplifying repairs. For DIY enthusiasts or technicians, understanding these material properties can streamline troubleshooting and extend the compressor’s lifespan.
In conclusion, the choice of compressor housing material—cast iron, aluminum, or steel—is far from arbitrary. It reflects a careful consideration of the refrigerator’s intended use, environmental conditions, and performance requirements. By prioritizing durability and heat resistance, manufacturers ensure the compressor remains the reliable heart of the refrigeration system, even under demanding conditions. Whether upgrading an existing unit or selecting a new one, understanding these materials empowers consumers to make informed decisions tailored to their needs.
Should English Muffins Be Refrigerated? Storage Tips for Freshness
You may want to see also
Explore related products
Motor Components: Copper windings, steel laminations, and insulated bearings ensure efficient operation
The heart of a refrigerator compressor is its motor, a marvel of engineering designed for continuous, efficient operation. Central to this efficiency are three critical components: copper windings, steel laminations, and insulated bearings. Each plays a distinct role in ensuring the motor runs smoothly, minimizes energy loss, and withstands the rigors of constant use. Understanding these components not only highlights their importance but also underscores the precision required in their design and assembly.
Copper windings are the lifeblood of the motor, conducting electricity to generate the magnetic field necessary for rotation. Copper is chosen for its high electrical conductivity, which reduces energy loss in the form of heat. The windings are meticulously coiled around the motor’s core, often in layers, to maximize efficiency. Over time, advancements in winding techniques, such as using thicker wires or optimizing coil density, have further enhanced performance. For instance, some modern compressors use enamelled copper wire to prevent short circuits and ensure longevity. When selecting a refrigerator, look for models that specify high-quality copper windings, as these contribute directly to energy efficiency and durability.
Steel laminations form the core of the motor, providing a low-reluctance path for magnetic flux while minimizing eddy current losses. These thin, insulated sheets of silicon steel are stacked together to create the core, reducing energy waste as electricity flows through the windings. The lamination process is critical; even slight imperfections can lead to increased heat generation and reduced efficiency. Manufacturers often treat these laminations with insulating coatings to further reduce losses. For consumers, understanding the role of steel laminations highlights why a well-constructed compressor motor is quieter, cooler, and more energy-efficient.
Insulated bearings are the unsung heroes of the compressor motor, ensuring smooth rotation while minimizing friction and heat. These bearings are typically made of high-quality steel and coated with insulating materials to prevent electrical currents from passing through them, which could cause premature wear or failure. Proper lubrication and sealing are also essential to protect against moisture and contaminants. In refrigerators, where compressors operate for years without maintenance, the quality of these bearings directly impacts the appliance’s lifespan. Regularly cleaning the area around the compressor and ensuring proper ventilation can help maintain bearing health, though this is often a task best left to professionals.
Together, copper windings, steel laminations, and insulated bearings form a trifecta of efficiency in refrigerator compressors. Each component is designed to work in harmony, reducing energy consumption, heat generation, and wear. For homeowners, understanding these elements can guide smarter purchasing decisions, favoring models with high-quality materials and construction. For technicians, recognizing the role of each component aids in diagnostics and maintenance, ensuring compressors operate at peak efficiency for years to come. In the end, these motor components are not just parts—they are the foundation of a refrigerator’s reliability and performance.
Optimal RV Refrigerator Temperature: A Guide for Safe Food Storage
You may want to see also
Explore related products
Piston and Cylinder: High-strength aluminum or steel pistons operate within a durable cylinder
The heart of a refrigerator's compressor lies in its piston and cylinder assembly, a critical component responsible for compressing refrigerant gases. This process is fundamental to the refrigeration cycle, enabling heat transfer and cooling. High-strength aluminum or steel pistons are typically employed due to their exceptional durability and resistance to wear under high-pressure conditions. These materials are chosen for their ability to withstand repeated stress without deformation, ensuring longevity and reliability in the compressor's operation.
Aluminum pistons, often preferred for their lightweight properties, are treated with specialized coatings or anodized to enhance their hardness and reduce friction. This treatment is crucial as it minimizes wear on the cylinder walls, which are usually made of cast iron or steel for added robustness. Steel pistons, on the other hand, offer superior strength and are ideal for compressors operating under extreme conditions, such as those in commercial refrigeration systems. The choice between aluminum and steel depends on the specific application, balancing factors like cost, weight, and performance requirements.
The cylinder itself is designed to provide a smooth, precise bore for the piston's movement. Its inner surface is often honed to achieve a mirror-like finish, reducing friction and ensuring efficient sealing. This precision is vital for maintaining the compressor's efficiency and preventing energy loss. Additionally, the cylinder's material and construction must be compatible with the refrigerant used, as some refrigerants can be corrosive or reactive with certain metals.
Maintenance of the piston and cylinder assembly is key to extending the compressor's lifespan. Regular inspection for wear, proper lubrication, and timely replacement of seals are essential practices. For instance, using a high-quality compressor oil with the correct viscosity can significantly reduce friction and heat buildup, thereby preventing premature failure. It’s also important to monitor the compressor's operating temperature, as excessive heat can accelerate wear on both the piston and cylinder.
In summary, the piston and cylinder assembly is a cornerstone of refrigerator compressor design, with high-strength aluminum or steel pistons operating within a durable cylinder to ensure efficient and reliable performance. The choice of materials, precision engineering, and proper maintenance are all critical factors in maximizing the compressor's efficiency and longevity. Whether in a household refrigerator or a large-scale industrial cooling system, this assembly plays a pivotal role in maintaining optimal cooling performance.
Fresh Eggs: To Wash and Refrigerate or Not?
You may want to see also
Explore related products
Valves and Springs: Stainless steel valves and springs handle high pressure and frequent cycling
Stainless steel valves and springs are critical components in a refrigerator compressor, engineered to withstand the relentless demands of high pressure and frequent cycling. These parts operate in an environment where temperatures fluctuate dramatically, and the system cycles on and off thousands of times annually. Stainless steel is chosen for its exceptional corrosion resistance, strength, and durability, ensuring the compressor can maintain efficiency over its lifespan. Unlike standard steel, stainless steel’s chromium content forms a protective oxide layer, preventing rust and degradation even in the presence of refrigerants and moisture.
Consider the role of valves in a compressor: they regulate the flow of refrigerant, ensuring it moves efficiently between the low-pressure and high-pressure sides of the system. Stainless steel valves are precision-engineered to open and close rapidly without warping or sticking, even under extreme pressure differentials. For instance, a typical household refrigerator compressor operates at pressures up to 250 psi, and the valves must handle this stress repeatedly without failing. Springs, on the other hand, provide the necessary force to actuate these valves, requiring a material that retains its elasticity over millions of cycles. Stainless steel springs achieve this by maintaining their shape and tension, avoiding fatigue that could lead to compressor failure.
From a practical standpoint, the use of stainless steel in valves and springs directly impacts the reliability and energy efficiency of a refrigerator. Inferior materials, such as carbon steel, would corrode or deform under the same conditions, leading to leaks, reduced cooling performance, and higher energy consumption. For homeowners, this translates to fewer repairs and a longer-lasting appliance. Technicians should inspect these components during routine maintenance, looking for signs of wear or corrosion, especially in older units. Replacing worn valves or springs with stainless steel parts is a cost-effective way to extend the life of a compressor.
Comparatively, while other materials like brass or aluminum might seem suitable, they fall short in durability and performance. Brass, for example, is prone to dezincification in the presence of refrigerants, while aluminum lacks the strength to handle high pressures. Stainless steel strikes the perfect balance, offering both resilience and longevity. Manufacturers often specify 300-series stainless steel for these components due to its optimal combination of corrosion resistance and mechanical properties. For DIY enthusiasts, understanding this material choice can guide smarter decisions when repairing or upgrading refrigeration systems.
In conclusion, stainless steel valves and springs are not just components but the backbone of a refrigerator compressor’s reliability. Their ability to endure high pressure and frequent cycling ensures the appliance operates smoothly, efficiently, and without premature failure. Whether you’re a homeowner, technician, or enthusiast, recognizing the importance of these materials can save time, money, and frustration. Always opt for stainless steel replacements when maintaining or repairing compressors to maximize performance and lifespan.
Where to Buy Genuine Maytag Refrigerator Parts: A Comprehensive Guide
You may want to see also
Explore related products
Lubrication System: Mineral oil or synthetic lubricants reduce friction and cool internal parts
The lubrication system in a refrigerator compressor is a critical component that ensures longevity and efficiency. At its core, this system relies on either mineral oil or synthetic lubricants to reduce friction between moving parts, such as the crankshaft and bearings, while simultaneously dissipating heat generated during operation. Without proper lubrication, the compressor would overheat, wear out prematurely, and fail to maintain the refrigeration cycle effectively. The choice between mineral oil and synthetic lubricants often depends on the compressor design, operating conditions, and desired performance outcomes.
Mineral oil, derived from petroleum, has been the traditional lubricant for refrigerator compressors due to its affordability and compatibility with most materials. It forms a stable film that protects metal surfaces from wear and corrosion, while its thermal properties help absorb and transfer heat away from critical components. However, mineral oil has limitations, such as lower thermal stability at high temperatures and a tendency to degrade over time, leading to sludge formation. For residential refrigerators operating under moderate conditions, mineral oil remains a reliable and cost-effective choice, typically requiring replacement every 5–10 years depending on usage.
Synthetic lubricants, on the other hand, offer superior performance in demanding environments. Engineered from chemically modified compounds, they provide higher thermal stability, better resistance to oxidation, and reduced viscosity changes over a wide temperature range. This makes them ideal for commercial or industrial refrigeration systems that operate continuously under high loads or extreme temperatures. For instance, synthetic lubricants can maintain their protective properties at temperatures exceeding 150°C, whereas mineral oil begins to break down around 120°C. While more expensive upfront, synthetic lubricants often extend compressor lifespan and reduce maintenance frequency, making them a long-term investment.
When selecting a lubricant, it’s essential to follow the manufacturer’s recommendations, as using the wrong type can void warranties or cause damage. For example, some compressors are designed exclusively for mineral oil, while others require synthetic blends. Additionally, proper dosage is critical—overfilling can lead to oil foaming and reduced efficiency, while underfilling leaves components vulnerable to wear. A general rule of thumb is to maintain the oil level between 1/3 and 2/3 of the sight glass or dipstick, depending on the model. Regularly monitoring oil condition and replacing it as needed ensures optimal compressor performance and energy efficiency.
In practice, maintaining the lubrication system involves more than just choosing the right oil. It requires periodic inspections for leaks, contamination, or discoloration, which can indicate degradation or the presence of refrigerants in the oil. For synthetic lubricants, using oil analysis kits can help detect early signs of wear or chemical breakdown, allowing for proactive maintenance. Lastly, when replacing lubricants, ensure the system is thoroughly flushed to remove old oil residues, as mixing mineral and synthetic oils can compromise performance. By prioritizing the lubrication system, users can maximize the efficiency and lifespan of their refrigerator compressors, ultimately saving on repair costs and energy consumption.
Can a Refrigerator and Coffee Maker Share the Same Circuit?
You may want to see also
Frequently asked questions
A refrigerator compressor is typically made of cast iron, aluminum, or steel for the housing, with internal components like pistons, valves, and crankshafts often constructed from durable metals such as steel or aluminum alloys.
While refrigerator compressors are not primarily made of copper, copper is often used in the motor windings and electrical components due to its excellent conductivity. The main body and mechanical parts are usually made of stronger materials like steel or aluminum.
Refrigerator compressors generally do not contain plastic parts in their core mechanical components due to the high pressure and heat involved. However, some external components, like insulation or protective covers, may use plastic materials.
The compressor's piston is usually made of cast iron or aluminum alloy, as these materials offer the necessary strength, durability, and heat resistance to withstand the high-pressure environment inside the compressor.
