An evaporator in a refrigerator is a critical component of the cooling system, responsible for absorbing heat from the interior of the appliance to maintain a consistent temperature. Typically located inside the freezer compartment, the evaporator consists of a coil of refrigerant tubing surrounded by a series of fins to maximize surface area for efficient heat exchange. As the liquid refrigerant passes through the evaporator, it undergoes a phase change from liquid to gas, absorbing heat from the surrounding air in the process. This cooled air is then circulated throughout the refrigerator and freezer compartments by a fan, ensuring that food and beverages remain at the desired temperature. The evaporator works in conjunction with other components, such as the compressor, condenser, and expansion valve, to complete the refrigeration cycle, making it an essential element in the overall functionality of the appliance.
| Characteristics | Values |
|---|---|
| Definition | A heat exchanger in a refrigeration system that absorbs heat from the refrigerated space, causing the refrigerant to evaporate from a liquid to a vapor state. |
| Primary Function | Absorbs heat from the refrigerator's interior to cool the air and maintain the desired temperature. |
| Location | Typically located in the freezer compartment or behind a panel in the refrigerator section. |
| Refrigerant Flow | Low-pressure liquid refrigerant enters the evaporator, evaporates into a vapor, and exits as a low-pressure gas. |
| Heat Transfer | Facilitates heat exchange between the warm air inside the refrigerator and the cold refrigerant. |
| Types | 1. Finned Tube Evaporator: Tubes with fins for increased surface area. 2. Plate Evaporator: Flat plates for compact design. 3. Microchannel Evaporator: Small channels for efficient heat transfer. |
| Material | Commonly made of copper or aluminum due to their high thermal conductivity. |
| Frost Formation | In older systems, frost may accumulate on the evaporator coils, requiring periodic defrosting. Modern systems often use automatic defrost mechanisms. |
| Efficiency | Efficiency depends on coil cleanliness, proper airflow, and refrigerant charge. |
| Maintenance | Regular cleaning to remove dust and debris ensures optimal performance. |
| Role in Refrigeration Cycle | Part of the vapor compression cycle, where it follows the expansion valve and precedes the compressor. |
| Temperature Range | Operates at temperatures below the freezing point of water (0°C or 32°F) to maintain refrigeration. |
| Airflow | Relies on fans or natural convection to circulate air over the evaporator coils for effective cooling. |
Explore related products
What You'll Learn
- Evaporator Function: Absorbs heat from fridge interior, cooling air via refrigerant evaporation
- Evaporator Location: Typically found in freezer compartment or behind fridge panels
- Evaporator Coils: Thin copper tubes with fins for efficient heat exchange
- Frost-Free Evaporators: Use fans to prevent ice buildup, maintaining airflow
- Evaporator Maintenance: Requires regular cleaning to ensure optimal cooling performance
Evaporator Function: Absorbs heat from fridge interior, cooling air via refrigerant evaporation
The evaporator is the unsung hero of your refrigerator, working silently to keep your food fresh and your beverages cold. Nestled within the freezer compartment, this coil of tubing is where the magic happens—heat absorption. As the refrigerant flows through the evaporator, it transitions from a liquid to a gas, a process that requires energy. This energy is drawn from the surrounding air, effectively cooling the interior of your fridge. Think of it as a heat sponge, soaking up warmth to maintain the chilly environment your groceries depend on.
To understand its role better, consider the refrigeration cycle as a relay race. The evaporator is the second runner, taking the baton from the compressor. Here’s how it works: the compressor pressurizes the refrigerant, turning it into a hot, high-pressure gas. This gas then moves to the condenser, where it cools and condenses into a liquid. Next, the liquid refrigerant passes through an expansion valve, which reduces its pressure and temperature, preparing it for the evaporator. Once inside, the refrigerant absorbs heat from the fridge’s interior, evaporating back into a gas. This cycle repeats, ensuring consistent cooling. Without the evaporator’s heat-absorbing prowess, your fridge would be just another insulated box.
Practical maintenance can extend the life and efficiency of your evaporator. Frost buildup on the evaporator coils is a common issue, especially in older models. When frost accumulates, it acts as an insulator, reducing the evaporator’s ability to absorb heat. Defrosting your fridge regularly—at least every six months—can prevent this. For frost-free models, ensure proper airflow by keeping the vents clear of food items. If you notice uneven cooling or excessive frost, it might be time to inspect the evaporator fan motor, which circulates air over the coils. A malfunctioning fan can lead to inefficient cooling, so listen for unusual noises or check for ice buildup around the fan blades.
Comparing the evaporator to other cooling methods highlights its efficiency. Unlike air conditioners, which expel heat outdoors, refrigerators must manage heat within a confined space. The evaporator’s design—often a series of coils with a large surface area—maximizes heat absorption in a compact form. This efficiency is crucial, as refrigerators operate 24/7, making energy consumption a key concern. Modern fridges use eco-friendly refrigerants with lower global warming potential, but the evaporator’s role remains unchanged: to absorb heat and keep temperatures stable. Its simplicity and effectiveness make it a cornerstone of refrigeration technology.
Finally, understanding the evaporator’s function can help troubleshoot common fridge issues. If your fridge isn’t cooling properly, the evaporator could be the culprit. Check for signs of refrigerant leaks, such as hissing sounds or oil stains around the coils. While DIY repairs are risky, simple steps like cleaning the coils or replacing the fan motor can sometimes resolve the issue. For persistent problems, consult a professional technician. By appreciating the evaporator’s role, you’re better equipped to maintain your fridge and ensure it runs efficiently for years to come.
Storing Medical Supplies in Staff Fridges: Safe Practice or Risky Move?
You may want to see also
Explore related products
![[DA61-06796A Clip OEM Mania] DA61-06796A NEW OEM Produced for SAM-SUNG Refrigerator Drain Clip Evaporator Replacement Part - Replaces AP5579885 2683162 PS4145120](https://m.media-amazon.com/images/I/61LEQ-dMosL._AC_UY218_.jpg)
Evaporator Location: Typically found in freezer compartment or behind fridge panels
The evaporator in a refrigerator is a critical component of its cooling system, and its location is strategically chosen to maximize efficiency. Typically, you’ll find the evaporator either in the freezer compartment or behind the fridge panels, depending on the appliance’s design. This placement is no accident—it ensures the evaporator is close to the coldest areas, where it can absorb heat most effectively. In top-freezer models, the evaporator coils are often located in the freezer section, while side-by-side or bottom-freezer models may position them behind panels to optimize cooling distribution. Understanding this location is key to troubleshooting issues like frost buildup or uneven cooling.
From an analytical perspective, the freezer compartment is the ideal location for the evaporator because it’s the coldest zone in the refrigerator. Here, the evaporator can efficiently absorb heat from both the freezer and fridge sections, maintaining consistent temperatures. However, this design can lead to frost accumulation on the evaporator coils, which is why modern refrigerators often include automatic defrost systems. Behind-panel placement, on the other hand, is common in more advanced models, where the evaporator is integrated into the fridge’s structure to provide uniform cooling without the risk of frost in visible areas. This design choice reflects a balance between functionality and aesthetics.
If you’re troubleshooting your refrigerator, knowing the evaporator’s location can save you time and frustration. For instance, if your fridge isn’t cooling properly, check the freezer compartment for frost buildup on the evaporator coils—a sign they may need defrosting. In models with behind-panel evaporators, uneven cooling could indicate a blockage or malfunction in the airflow system. Practical tip: Regularly clean the coils and ensure proper ventilation around the fridge to prevent overheating. For older models, manually defrosting the freezer every 3–6 months can extend the life of the evaporator and improve efficiency.
Comparatively, the location of the evaporator also influences energy consumption. Freezer-based evaporators tend to work harder in humid climates, where frequent door openings introduce more moisture, leading to faster frost buildup. Behind-panel designs, while more energy-efficient, may require professional maintenance if issues arise, as accessing the evaporator involves removing panels. For households in warmer regions, opting for a fridge with a behind-panel evaporator could reduce energy costs by minimizing the strain on the cooling system. Always refer to your refrigerator’s manual to understand its specific design and maintenance needs.

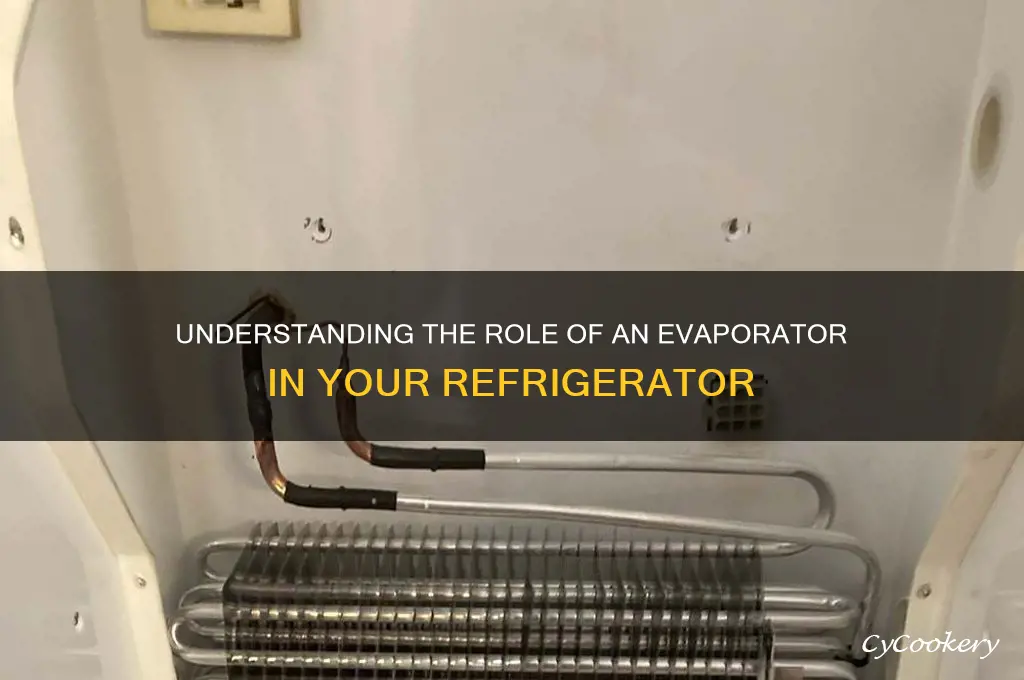

Descriptively, the evaporator’s placement is a testament to the ingenuity of refrigerator engineering. In the freezer compartment, the coils are often visible as a grid-like structure, covered in frost during operation. Behind-panel designs, however, hide the evaporator seamlessly, maintaining a sleek interior appearance. This difference highlights how manufacturers prioritize either functionality or aesthetics, depending on the target market. Whether you’re a homeowner or a technician, recognizing these design choices empowers you to make informed decisions about maintenance, repairs, or future appliance purchases.
Can Dogs Safely Ingest Refrigerant Gel? Risks and Precautions
You may want to see also
Explore related products
$14.97 $15.99
Evaporator Coils: Thin copper tubes with fins for efficient heat exchange
The heart of a refrigerator's cooling system lies in its evaporator coils, a network of thin copper tubes often accompanied by aluminum fins. These coils are not just a random design choice; they are a masterpiece of engineering, optimized for efficient heat exchange. The primary function of these coils is to absorb heat from the refrigerator's interior, a process that is crucial for maintaining the desired temperature. This is achieved through the circulation of a refrigerant, which undergoes a phase change from liquid to gas as it absorbs heat, a principle fundamental to refrigeration.
Design and Functionality:
Imagine a series of tubes, each as thin as a pencil lead, intricately arranged to maximize surface area. These copper tubes are the backbone of the evaporator, chosen for their excellent thermal conductivity. Copper's ability to rapidly transfer heat ensures that the refrigerant can efficiently absorb thermal energy from the surrounding air. The fins, typically made of aluminum, are attached to these tubes, serving a dual purpose. Firstly, they increase the overall surface area, allowing for more effective heat absorption. Secondly, they facilitate better airflow, ensuring that the heat exchange process is not hindered by stagnant air. This design is a testament to the principle that efficiency in heat exchange is directly proportional to the surface area available for interaction.
The Science Behind the Fins:
The fins on evaporator coils are not merely decorative; they play a critical role in enhancing heat transfer. As air passes over the fins, it creates a convective flow, carrying away the heat absorbed by the refrigerant. This process is akin to a runner's sweat evaporating, cooling their body. The efficiency of this heat removal is measured by the heat transfer coefficient, which is significantly improved by the presence of fins. For instance, a typical refrigerator evaporator coil with fins can achieve a heat transfer coefficient of around 10-20 W/m²K, ensuring rapid cooling. This is particularly important in maintaining consistent temperatures, especially during frequent door openings.
Maintenance and Longevity:
Given their crucial role, maintaining the cleanliness and integrity of evaporator coils is essential. Dust and debris accumulation on the fins can insulate the coils, reducing their heat absorption capacity. Regular cleaning, at least twice a year, is recommended to ensure optimal performance. This involves gently vacuuming or brushing the coils to remove any buildup. Additionally, ensuring proper airflow around the coils is vital. Obstructions can lead to reduced efficiency and increased energy consumption. For instance, a clogged coil might cause a refrigerator to run continuously, leading to higher electricity bills and potential compressor strain.
In the realm of refrigeration, the evaporator coils are the unsung heroes, working tirelessly to keep our food fresh and beverages chilled. Their design, a symphony of copper and aluminum, showcases the beauty of engineering in everyday appliances. Understanding their function and maintenance not only ensures the longevity of our refrigerators but also highlights the intricate science behind temperature control. By appreciating the role of these thin copper tubes and their fins, we gain insight into the complex yet elegant solutions that make modern refrigeration possible.
Refrigerating Plastic Silverware: Safe Practice or Unnecessary Hassle?
You may want to see also
Explore related products
Frost-Free Evaporators: Use fans to prevent ice buildup, maintaining airflow
Frost-free evaporators represent a significant advancement in refrigeration technology, addressing the age-old problem of ice buildup. Traditional evaporators rely on periodic defrosting cycles, which can lead to temperature fluctuations and energy inefficiency. Frost-free systems, however, use strategically placed fans to circulate cold air evenly, preventing moisture from settling and freezing on the evaporator coils. This innovation not only eliminates the need for manual defrosting but also ensures consistent cooling performance, making it a cornerstone of modern refrigerator design.
The mechanism behind frost-free evaporators is both simple and ingenious. Fans are integrated into the evaporator compartment, creating a constant airflow that keeps the coils at a temperature just below freezing. This prevents moisture in the air from condensing and forming ice, which is the primary cause of frost buildup. By maintaining optimal airflow, these systems also enhance energy efficiency, as the compressor doesn’t need to work harder to compensate for blocked or inefficient heat exchange. For homeowners, this translates to lower utility bills and a more reliable appliance.
One of the key benefits of frost-free evaporators is their ability to maintain consistent temperatures throughout the refrigerator. In traditional models, ice buildup can restrict airflow, leading to uneven cooling and potential food spoilage. Frost-free systems, on the other hand, ensure that every corner of the fridge remains at the desired temperature. This is particularly important for storing perishables like fresh produce, dairy, and meats, which require precise temperature control to stay fresh. For families or individuals who rely heavily on their refrigerator, this feature is a game-changer.
Despite their advantages, frost-free evaporators require proper maintenance to function effectively. Dust and debris can accumulate on the fans and coils over time, reducing airflow and undermining the system’s efficiency. To prevent this, it’s recommended to clean the evaporator compartment every six months using a soft brush or vacuum. Additionally, ensure the door seals are tight to minimize warm air infiltration, which can increase humidity and strain the system. By following these simple steps, you can maximize the lifespan and performance of your frost-free refrigerator.
In comparison to manual-defrost models, frost-free evaporators offer unparalleled convenience and efficiency. While the initial cost may be higher, the long-term savings in energy and maintenance often outweigh the investment. For those seeking a hassle-free refrigeration solution, frost-free technology is a clear winner. Its ability to prevent ice buildup, maintain consistent temperatures, and reduce energy consumption makes it an essential feature for modern households. Whether you’re upgrading an old appliance or purchasing a new one, prioritizing frost-free evaporators is a decision you won’t regret.
Frost on Your Fridge: Normal or Cause for Concern?
You may want to see also
Explore related products
Evaporator Maintenance: Requires regular cleaning to ensure optimal cooling performance
The evaporator coil in your refrigerator is a workhorse, silently absorbing heat from the interior to keep your food chilled. But like any hardworking component, it needs regular care to perform at its best. Dust, debris, and even pet hair can accumulate on the evaporator coil, insulating it and hindering its ability to efficiently transfer heat. This buildup forces the refrigerator to work harder, leading to increased energy consumption, uneven cooling, and potentially costly repairs.
Regular cleaning, ideally every 6-12 months depending on your environment, is crucial for maintaining optimal cooling performance and extending the lifespan of your appliance.
Imagine your evaporator coil as a radiator. Just as a dirty radiator struggles to dissipate heat from your car's engine, a clogged evaporator coil struggles to absorb heat from your refrigerator's interior. This inefficiency translates to warmer temperatures inside your fridge, potentially spoiling food and compromising food safety. Regular cleaning removes this insulating layer of debris, allowing the coil to function efficiently and maintain consistent cooling throughout your refrigerator.
Think of it as giving your fridge a breath of fresh air, ensuring it operates at peak performance.
Cleaning your evaporator coil is a straightforward process, but it requires some preparation and caution. First, unplug your refrigerator to ensure safety. Locate the evaporator coil, typically found behind a removable panel in the freezer compartment or at the back of the fridge. Use a soft-bristled brush or vacuum cleaner with a brush attachment to gently remove dust and debris. Avoid using harsh chemicals or abrasive cleaners, as these can damage the coil's delicate fins. For stubborn buildup, a coil cleaning solution specifically designed for refrigerators can be used, following the manufacturer's instructions carefully.
Remember, a little preventative maintenance goes a long way in keeping your refrigerator running smoothly and efficiently.
By incorporating regular evaporator coil cleaning into your appliance maintenance routine, you'll reap several benefits. You'll enjoy consistent cooling performance, ensuring your food stays fresh and safe. You'll also reduce energy consumption, lowering your utility bills and minimizing your environmental footprint. Finally, you'll extend the lifespan of your refrigerator, delaying the need for costly repairs or replacements. It's a simple task with significant rewards, demonstrating that a little care can go a long way in keeping your appliances running at their best.
Cooling the Desert: Innovative Ways to Make Ice Without a Fridge
You may want to see also
Frequently asked questions
The evaporator is a crucial component in a refrigerator's cooling system. It is a coil that absorbs heat from the refrigerator's interior, allowing the refrigerant to evaporate from a liquid to a gas, which cools the surrounding air.
The evaporator is typically located inside the freezer compartment or behind a panel in the refrigerator section. It is often covered by a fan that circulates cold air throughout the appliance.
The evaporator works by receiving cold, low-pressure liquid refrigerant from the expansion valve. As the refrigerant passes through the evaporator coils, it absorbs heat from the refrigerator's interior, causing it to evaporate into a gas. This process cools the air inside the fridge.
If the evaporator fails, the refrigerator may not cool properly, leading to warm temperatures inside the fridge or freezer. Common issues include frost buildup, reduced airflow, or complete loss of cooling.
To maintain the evaporator, regularly defrost manual-defrost refrigerators to prevent ice buildup. For frost-free models, ensure proper airflow by keeping vents clear and cleaning the coils periodically. Additionally, avoid overloading the fridge to allow cold air to circulate efficiently.
