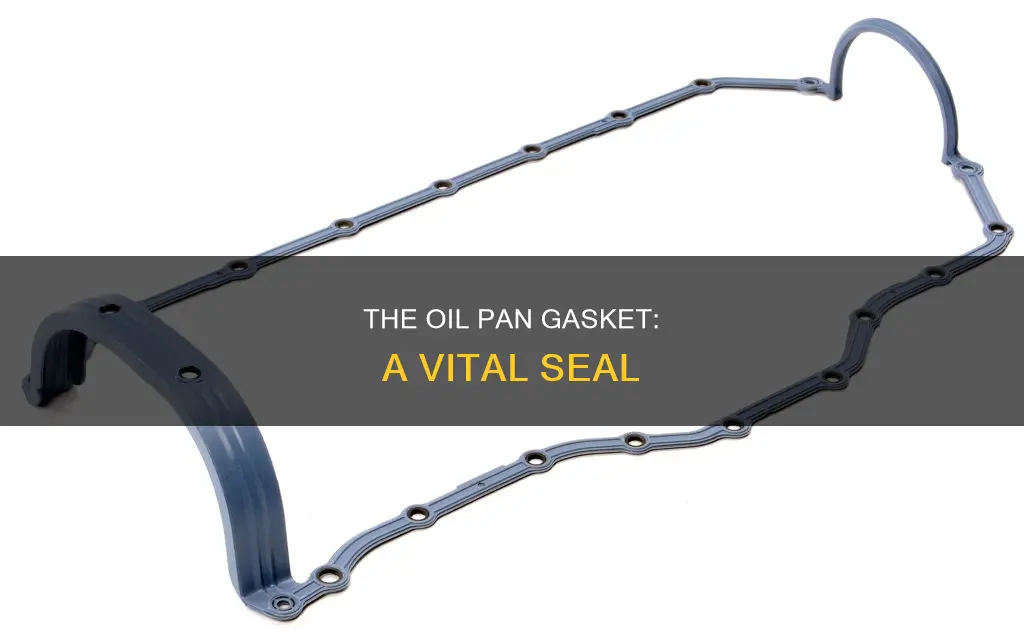

An oil pan gasket is a seal that sits between the oil pan and the engine block in a vehicle. It prevents oil leaks and keeps oil away from areas it shouldn't be in. The oil pan is the reservoir for motor oil, which lubricates and cools the engine's moving parts. Over time, the oil pan gasket can fail due to heat and age, causing the gasket to become brittle and cracked, and allowing oil to leak out. This can lead to issues such as low oil levels and engine overheating. Oil pan gaskets are relatively inexpensive to replace, ranging from $10 to $40 for the gasket itself, with labour costs varying depending on the make and model of the vehicle.
Explore related products
What You'll Learn
Oil pan gasket failure causes
An oil pan gasket is a seal that sits between the oil pan and the engine block to prevent oil leaks and keep oil out of areas where it should not be. Gaskets, in general, are used as sealing and cushioning material, placed between two surfaces and joined by bolts.
Oil pan gaskets can fail due to several reasons. Here are some common causes of oil pan gasket failure:
Deterioration and Wear
Oil pan gaskets can deteriorate over time due to constant exposure to heat and pressure. With use and wear, the gasket material can break down, leading to leaks. This is a common issue with rubber gaskets, which can dry out, crack, and become brittle, causing them to fail to seal properly.
Oil Pan Warp
If the oil pan itself is warped or damaged, it can cause the gasket to fail. A warped oil pan may not sit properly against the engine block, which can compromise the seal created by the gasket. This can lead to oil leaks and other issues.
Improper Installation
Incorrect installation of the oil pan gasket can also lead to its failure. If the gasket is not installed properly, it may not seal effectively, resulting in leaks and other complications.
Extreme Heat and Friction
The engine generates significant heat and friction during operation. Over time, this can take a toll on the oil pan gasket, causing it to degrade and fail prematurely.
Coolant Contamination
Motor oil plays a crucial role in cooling the engine by reducing friction and heat. If the oil pan gasket fails, coolant can leak into the oil pan, contaminating the motor oil. This contamination can lead to a drop in oil efficiency, affecting the engine's performance and potentially causing damage.
It is important to regularly inspect your vehicle's oil pan gasket and address any leaks or issues promptly. While some oil leaks may seem minor, they can lead to significant problems if left unattended.
Baking Woes: Flat Cookies and Sticky Pans
You may want to see also
Explore related products
Oil pan gasket symptoms
Oil pan gaskets are automotive seals that prevent oil leaks and keep oil out of areas where it should not be. Over time, oil pan gaskets can fail due to wear and tear, leading to oil leaks. Here are some common symptoms of a failing oil pan gasket:
Low Oil Level
Oil leaks can be challenging to locate, and a decrease in oil level is often the first noticeable sign of a failing oil pan gasket. If your vehicle's oil warning light illuminates, it indicates that the oil level is low and requires immediate attention. Driving your vehicle with low oil levels can potentially damage the engine.
Oil Spots Under the Vehicle
If you notice dark brown or black puddles of fluid underneath your vehicle, it could be a sign of an oil leak. The size of the stain can indicate the severity of the leak. Oil spots under the car suggest a potential issue with the oil pan gasket, and it is advisable to have it inspected by a mechanic.
Burning Smell
When oil leaks onto the outside of the engine, it can create an unpleasant burning smell. If you detect an acrid odour, it could indicate an oil leak, and you may need to repair your oil pan gasket.
Overheating
Engine oil helps regulate engine temperature by reducing friction and heat. If oil levels are low due to a leaking oil pan gasket, the engine may struggle to maintain optimal temperatures, leading to overheating.
It is important to address oil pan gasket leaks promptly to prevent further complications and potential engine damage. Regular maintenance and timely gasket replacement can help ensure the proper functioning of your vehicle.
Hot Pot Packet Expiration: A Cautionary Tale
You may want to see also
Explore related products
Oil pan gasket repair advice
An oil pan gasket is a seal that prevents oil leaks and keeps oil out of areas it shouldn't be. Over time, the gasket can dry out and become brittle, leading to cracks and holes for the oil to seep out. Oil leaks can be difficult to locate, but a few signs of a leaking oil pan gasket include low oil levels, a vehicle's oil light illuminating, and oil spots under the car.
If you're considering repairing or replacing your oil pan gasket, here's some advice:
Diagnosis and Planning:
- If you suspect an oil leak, clean the engine with a degreaser and follow the trail of oil to its highest point to identify the source.
- Refer to your vehicle's service manual for specific procedures and bolt locations. The manual will also guide you in identifying any parts or brackets that need to be removed first to access the oil pan.
- Plan the repair before the leak reaches a critical level. If you need to add more than a quart of oil occasionally, it's time to address the issue.
Repair or Replacement:
- Obtain the appropriate oil pan gasket replacement. Gasket materials vary depending on the type of metal they are intended to seal.
- While the oil is draining, remove the splash shield and bell housing cover. You may also need to detach accessories like the exhaust manifold support and air conditioning bracketry.
- Identify and remove all oil pan bolts. Some may be obscured behind other parts.
- Remove the oil pan by dropping it or tapping it lightly with a mallet to break the seal. Be careful not to bend the oil pan during this process.
- Scrape off any gasket residue and clean all sealing surfaces thoroughly with a solvent.
- Clean the inside of the oil pan and inspect it for cracks.
- Install the new gasket following the instructions provided. Some gaskets may require the use of thread sealer or grease to hold it in position.
- Torque the oil pan bolts to the specified torque in a spiral pattern, starting from the center.
Considerations:
- The repair process can be messy, and there are potential pitfalls. Be careful not to bend the oil pan or crack it when removing it.
- The cost of repairing or replacing an oil pan gasket can vary depending on the make and model of your vehicle. The gasket itself is typically inexpensive, ranging from $10 to $40. However, labour costs can range from $100 to over $300, depending on the accessibility of the oil pan.
- If you are uncomfortable or unsure about performing the repair yourself, consult a qualified mechanic with experience in engine repair. They can advise on the time needed for the repair and provide accurate estimates.
Easy Cleanup: Rice Crispy Treats Without the Mess
You may want to see also
Explore related products
Oil pan gasket replacement cost
An oil pan gasket is a seal that prevents oil leaks and keeps oil out of areas where it should not be. Gaskets are used as sealing and cushioning material, placed between two surfaces and joined by bolts. The oil pan gasket specifically seals the area between the oil pan and the engine block. The oil pan is the reservoir for motor oil that flows through the engine to lubricate and cool moving parts.
The cost of replacing an oil pan gasket can vary depending on the make and model of the car, the extent of the damage, and the labour required. Some sources suggest that the average cost of replacing an oil pan gasket is between $933 and $1037. However, this can vary depending on the location and the mechanic. For example, one person reported being quoted $2,387.35 to replace the oil pan on their 2011 Hyundai, while another was quoted nearly $4,000 for an upper oil pan replacement on their Prius, which would require the entire engine to be removed.
It is important to note that oil leaks can be caused by various factors, and a proper diagnosis is necessary to determine the root cause of the leak. Some mechanics may charge a fee for this diagnosis, which can range from $100 to several hundred dollars. Once the cause of the leak is identified, the price of repairs can vary widely. An oil leak repair can cost anywhere from $600 to $1,000 or more, depending on the severity and location of the leak.
To save costs, it is recommended to check your warranty coverage before paying for repairs. Seals and gaskets are typically covered under a powertrain warranty, which can help offset the cost of replacement. Additionally, regular oil changes and maintenance can help extend the life of the oil pan gasket and prevent leaks.
Paris Cookware Shopping: Pots and Pans
You may want to see also
Explore related products
Oil pan gasket seal
An oil pan gasket seal is an essential component of your vehicle's engine. The oil pan gasket, also known simply as an oil gasket or a seal, is responsible for sealing the oil pan to the bottom of the engine block. This seal prevents oil leaks as the oil moves from the pan to the engine and back, lubricating and cooling various components.
The oil pan is located at the bottom of the engine block, covering the crankcase and bolted to the engine. It serves as a reservoir for motor oil, which is crucial for reducing friction and heat in the engine. The oil pan gasket sits between the oil pan and the engine block, creating a tight seal that prevents oil from escaping.
Over time, oil pan gaskets can deteriorate and fail due to the heat and vibrations produced by the engine. This can result in oil leaks, which may manifest as low oil levels, an illuminated oil light, or puddles under the car. If you suspect a leak, it is important to have your vehicle inspected by a qualified mechanic to confirm the source and recommend repairs.
The type of gasket used in your vehicle depends on the material of the oil pan. For example, a pressed steel pan typically uses a formed rubber gasket, while aluminum pans may use liquid silicone. The gasket provides a cushion between the oil pan and the engine block, allowing for expansion and contraction due to heat. This cushioning effect also helps prevent damage from engine vibrations.
Replacing an oil pan gasket is a common repair and can often be done within a day. The cost of the gasket itself is relatively inexpensive, typically ranging from $10 to $40. However, the labour cost for installation can vary depending on the make and model of the vehicle, with some repairs requiring the removal of additional components to access the oil pan. Therefore, it is advisable to consult a reputable mechanic for accurate diagnostics, quotes, and repairs.
Navigate to Pan Pacific: A Guide to Reaching the Hotel
You may want to see also
Frequently asked questions
An oil pan gasket is a seal that sits between the oil pan and the engine block to prevent oil leaks and keep oil out of areas it shouldn't be.
The oil pan gasket seals the oil pan to the bottom of the engine block. It prevents oil leaks as the oil moves from the pan to the engine and back. It also allows for expansion and contraction from the heat produced by the engine and provides a cushion to prevent damage from vibrations.
You may notice a lower than usual oil level, an illuminated oil light, or overheating. Oil spots under the car may also indicate a failed oil pan gasket.
