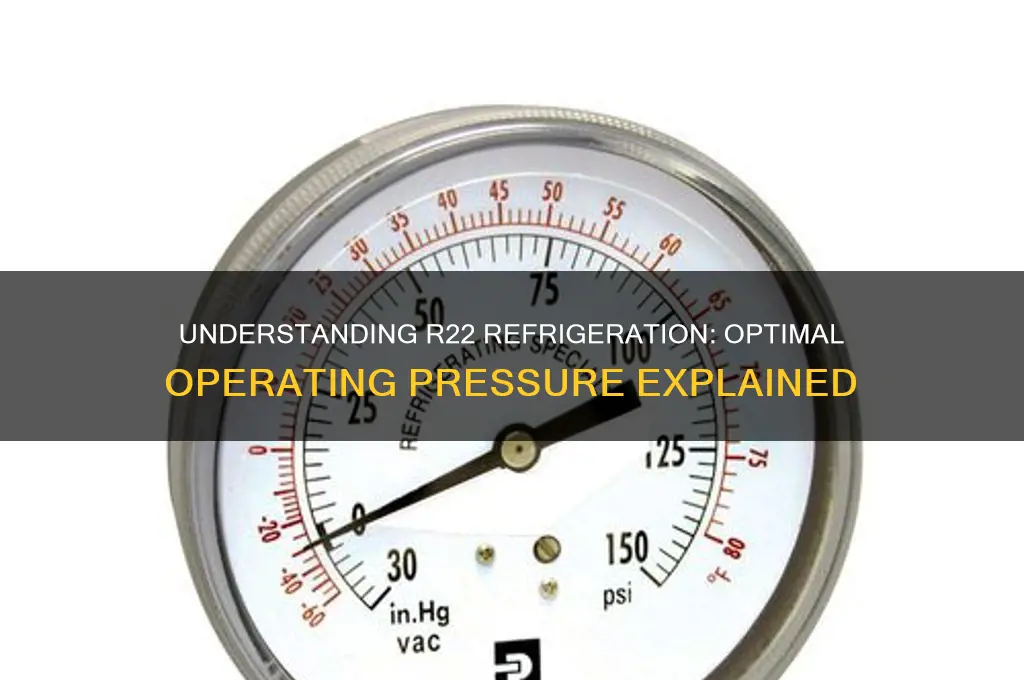

Operating pressure for R22 refrigeration refers to the specific pressure at which the refrigerant R22, a hydrochlorofluorocarbon (HCFC), functions within a refrigeration or air conditioning system. This pressure is critical for maintaining the efficiency and effectiveness of the system, as it directly influences the refrigerant's ability to absorb and release heat during the cooling cycle. R22 operates under different pressures depending on the system's design, ambient temperature, and desired cooling capacity, typically ranging from approximately 60 to 200 psi for low-side (evaporator) and 200 to 300 psi for high-side (condenser) pressures. Understanding and maintaining the correct operating pressure is essential for optimal performance, energy efficiency, and to prevent system damage or failure. However, due to its ozone-depleting properties, R22 is being phased out globally, with alternatives like R410A becoming more prevalent in modern systems.
Explore related products
What You'll Learn
R22 Optimal Pressure Range
R22, a hydrochlorofluorocarbon (HCFC) refrigerant, has been widely used in air conditioning and refrigeration systems for decades. Its operating pressure is a critical parameter that ensures efficient and safe performance. The optimal pressure range for R22 varies depending on the application and ambient conditions, but it typically falls between 68 psig (4.7 bar) and 240 psig (16.5 bar) for most systems. These values correspond to the refrigerant’s saturation pressure at common operating temperatures, ensuring proper heat transfer and system functionality.
Understanding the optimal pressure range begins with recognizing the relationship between temperature and pressure in R22 systems. For example, at a condensing temperature of 110°F (43°C), the corresponding pressure is approximately 200 psig (13.8 bar), while at an evaporating temperature of 40°F (4°C), the pressure drops to around 70 psig (4.8 bar). Technicians often use pressure-temperature (PT) charts to correlate these values, ensuring the system operates within safe and efficient limits. Deviations from this range can lead to reduced efficiency, compressor damage, or system failure.
Maintaining R22 within its optimal pressure range requires regular monitoring and adjustments. For instance, low suction pressure (<68 psig) may indicate a refrigerant leak, restricted airflow, or an undersized evaporator, while high discharge pressure (>240 psig) could signal issues like dirty condenser coils, inadequate airflow, or non-condensables in the system. Technicians should use gauges and thermometers to diagnose these issues, ensuring the system operates within the specified range. Additionally, periodic maintenance, such as cleaning coils and checking for leaks, is essential to prevent pressure-related problems.
It’s worth noting that R22 is being phased out due to its ozone-depleting properties, with alternatives like R-410A gaining prominence. However, many existing systems still rely on R22, making knowledge of its optimal pressure range invaluable. For retrofitted systems, technicians must carefully recalibrate pressures, as alternative refrigerants operate at different levels. For example, R-410A typically runs at 25-40% higher pressures than R22, requiring system components rated for these conditions. Until complete phase-out, understanding and maintaining R22’s optimal pressure range remains crucial for system longevity and performance.
In practical terms, operators can use simple tools like digital manifold gauges to monitor R22 pressures in real-time. For split systems, the suction pressure should ideally read 68-80 psig during normal operation, while the discharge pressure should stay below 240 psig. In heat pump applications, these values may shift slightly due to reversing valve operation, but the overall range remains consistent. By adhering to these guidelines and addressing deviations promptly, operators can ensure their R22 systems operate efficiently until they are replaced or retrofitted with more environmentally friendly alternatives.
