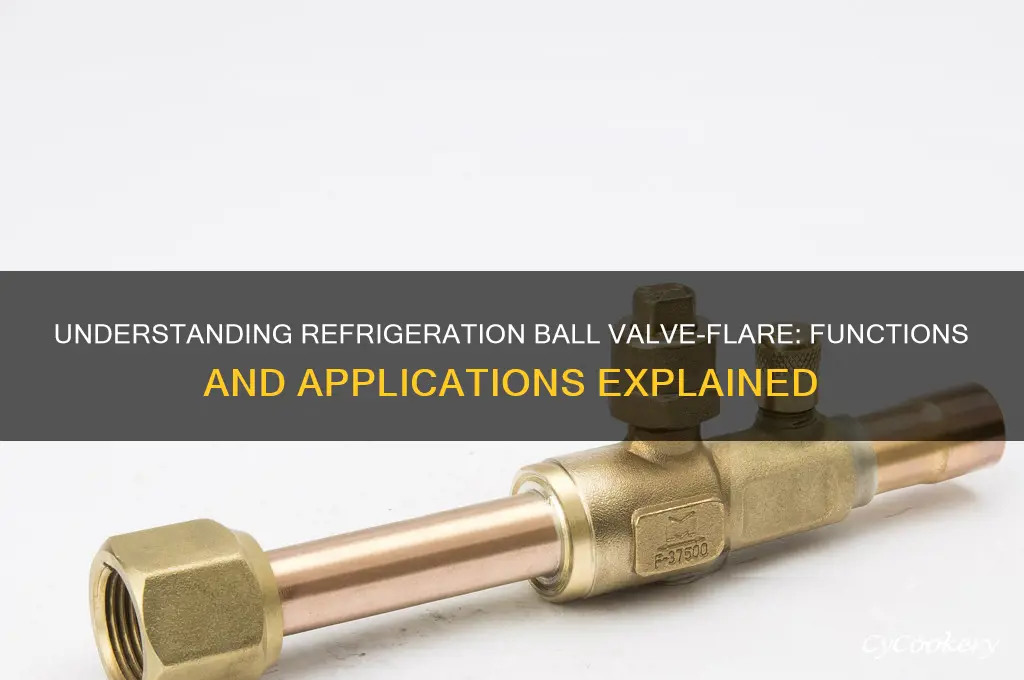

The refrigeration ball valve-flare is a critical component in refrigeration and air conditioning systems, designed to control the flow of refrigerants while ensuring a secure, leak-proof connection. It features a ball mechanism with a quarter-turn operation for easy on/off control and incorporates a flared fitting, which allows for a reliable, sealed connection to copper tubing. This valve is commonly used in HVAC systems to isolate or regulate refrigerant flow during maintenance, repairs, or system charging, making it an essential tool for technicians and engineers working with cooling systems. Its durability, combined with its ability to handle high pressures and temperatures, ensures efficient and safe operation in demanding refrigeration environments.
| Characteristics | Values |
|---|---|
| Purpose | Controls refrigerant flow in HVAC and refrigeration systems |
| Connection Type | Flare (flared tubing connection) |
| Valve Type | Ball valve |
| Material | Typically brass, stainless steel, or forged brass |
| Size | Varies (common sizes: 1/4", 3/8", 1/2", 5/8", 3/4") |
| Pressure Rating | Varies (typically up to 800 PSI) |
| Temperature Range | Wide range (typically -40°F to 250°F) |
| Flow Control | Quarter-turn (90-degree rotation) for on/off control |
| Leak Resistance | High (flare connection provides reliable seal) |
| Applications | Refrigeration systems, air conditioning units, heat pumps |
| Advantages | Easy installation, durable, low maintenance, bubble-tight shutoff |
| Disadvantages | Limited throttling capability compared to globe valves |
| Standards | SAE J512, J514 (flare fittings) |
Explore related products
What You'll Learn
- Definition: Refrigeration ball valve-flare: a quarter-turn valve with flared fittings for secure refrigerant line connections
- Function: Controls refrigerant flow, ensures tight seals, prevents leaks in HVAC and refrigeration systems
- Design: Features a ball with a bore, flared ends, and compatible with copper tubing systems
- Applications: Used in AC units, refrigerators, heat pumps, and other refrigeration systems for reliability
- Installation: Requires flaring tools, proper torque, and leak testing for optimal performance and safety
Definition: Refrigeration ball valve-flare: a quarter-turn valve with flared fittings for secure refrigerant line connections
A refrigeration ball valve-flare is a critical component in HVAC and refrigeration systems, designed to control the flow of refrigerant with precision and reliability. Its quarter-turn operation allows for quick and efficient shut-off or modulation, making it ideal for systems requiring frequent adjustments. The flared fittings, typically conforming to standards like SAE J512 or J514, ensure a leak-proof connection by creating a metal-to-metal seal when tightened. This design is particularly suited for refrigerants that operate under high pressure, such as R-410A, where even minor leaks can compromise system efficiency or safety.
When installing a refrigeration ball valve-flare, proper technique is essential to avoid leaks or damage. Begin by cleaning and deburring the tubing ends to ensure a smooth surface for the flare. Use a flaring tool to create a 45-degree flare on the tubing, taking care to match the flare angle to the fitting’s design. Apply a small amount of refrigerant oil or thread sealant to the flared end, but avoid over-application, as excess can contaminate the system. Tighten the nut by hand before using a wrench to secure it, ensuring the flare seats correctly without over-tightening, which can deform the fitting.
Comparatively, refrigeration ball valve-flares offer advantages over solder or braze connections, particularly in retrofit or repair scenarios. Soldered joints require heat, which can be risky near flammable refrigerants or insulation, and they are irreversible once installed. In contrast, flared connections are reusable and allow for easier disassembly during maintenance. However, they require more precision during installation, as improper flaring or tightening can lead to leaks. For this reason, professionals often prefer them for their flexibility and reliability in dynamic system environments.
In practice, refrigeration ball valve-flares are commonly used in applications like split AC systems, refrigeration units, and heat pumps. Their quarter-turn mechanism ensures minimal pressure drop when fully open, maintaining system efficiency. When selecting a valve, consider the refrigerant type, operating pressure, and temperature range to ensure compatibility. For example, valves rated for 800+ psi are suitable for R-410A systems, while lower-pressure models may suffice for R-22 or R-134a. Regular inspection of the flare connections is recommended, especially after system startup or vibration-prone installations, to detect and address potential leaks early.
Finally, while refrigeration ball valve-flares are durable, they are not immune to wear or corrosion, particularly in harsh environments. Exposure to moisture or corrosive agents can degrade the flare fittings over time, leading to leaks or reduced sealing integrity. To mitigate this, use valves with stainless steel or brass bodies, which offer superior corrosion resistance compared to standard carbon steel. Additionally, consider installing a filter-drier upstream of the valve to capture debris and moisture, prolonging the life of both the valve and the system. With proper selection, installation, and maintenance, a refrigeration ball valve-flare can provide years of reliable service in demanding refrigeration applications.
Can You Legally Dispose of a Refrigerator in a Dumpster?
You may want to see also
Explore related products
Function: Controls refrigerant flow, ensures tight seals, prevents leaks in HVAC and refrigeration systems
Refrigeration ball valve-flares are critical components in HVAC and refrigeration systems, designed to perform a dual role: controlling refrigerant flow and maintaining system integrity. These valves feature a spherical design with a bore that can be rotated 90 degrees to either allow or block the passage of refrigerant. The "flare" component refers to the flared tubing connection, which creates a tight, leak-proof seal when properly installed. This combination ensures precise control over refrigerant movement while minimizing the risk of leaks, a common issue in systems under constant pressure and temperature fluctuations.
To achieve a tight seal, the installation of a refrigeration ball valve-flare requires careful attention to detail. Start by cutting the copper tubing cleanly and deburring the edges to ensure a smooth fit. Use a flaring tool to create a 45-degree flare on the tubing end, which will mate securely with the valve’s female fitting. Apply a thin layer of flux and solder to the joint, heating evenly to create a strong, leak-free connection. Overheating or underheating can compromise the seal, so monitor the temperature closely. Always follow manufacturer guidelines for torque specifications when tightening the nut to avoid over-tightening, which can damage the flare or the valve body.
The ability of refrigeration ball valve-flares to prevent leaks is particularly vital in systems handling refrigerants like R-410A, which operate at higher pressures than older refrigerants. Leaks not only reduce system efficiency but also pose environmental risks, as refrigerants contribute to ozone depletion and global warming. By ensuring a secure seal, these valves help maintain optimal system performance and comply with regulatory standards. Regular inspection of the flare connections and the valve body for signs of corrosion or wear is essential, especially in systems exposed to harsh environmental conditions.
Comparatively, refrigeration ball valve-flares offer advantages over other valve types, such as gate or globe valves, in HVAC and refrigeration applications. Their quarter-turn operation allows for quick and easy flow control, reducing downtime during maintenance or repairs. The design also minimizes pressure drop, ensuring efficient refrigerant flow. Unlike gate valves, which can become jammed or difficult to operate over time, ball valves maintain smooth operation due to their simple, durable mechanism. This reliability makes them a preferred choice for critical points in the system where flow control and leak prevention are non-negotiable.
In practice, refrigeration ball valve-flares are often installed at key points in the system, such as near the condenser, evaporator, or service ports, where access for maintenance or refrigerant charging is required. When selecting a valve, consider the system’s operating pressure and temperature range to ensure compatibility. For example, valves rated for 800 PSI are suitable for R-410A systems, while lower-pressure systems may use 600 PSI valves. Always use valves made from materials resistant to corrosion, such as brass or stainless steel, to prolong service life. By understanding their function and proper installation, technicians can maximize the effectiveness of refrigeration ball valve-flares in maintaining efficient, leak-free HVAC and refrigeration systems.
Does AC Refrigerant Expire? Understanding Its Lifespan and Effectiveness
You may want to see also
Explore related products
Design: Features a ball with a bore, flared ends, and compatible with copper tubing systems
The refrigeration ball valve-flare is a critical component in cooling systems, designed with precision to ensure efficient fluid control. At its core lies a ball with a bore, a feature that allows for smooth and unrestricted flow when the valve is open. This design minimizes pressure drop, ensuring optimal performance in refrigeration cycles. The ball’s rotation—typically 90 degrees—provides a clear, binary state: fully open or fully closed. This simplicity reduces wear and tear, making it a reliable choice for long-term use in demanding environments.
Flared ends are another key design element, specifically engineered for compatibility with copper tubing systems. These flares create a secure, leak-proof connection by compressing the tubing against the valve body. This method eliminates the need for solder or additional sealing materials, streamlining installation and reducing the risk of refrigerant leaks. For professionals working with copper tubing, this feature is a time-saver, ensuring a tight seal without compromising system integrity. Always use a flaring tool to create consistent, precise flares for optimal performance.
Compatibility with copper tubing systems is a defining trait of the refrigeration ball valve-flare. Copper’s excellent thermal conductivity and corrosion resistance make it a preferred material in refrigeration, and the valve’s design complements these properties. When installing, ensure the tubing is cut cleanly and deburred to avoid damaging the valve’s sealing surfaces. For systems operating with refrigerants like R-410A, which exert higher pressures, verify the valve’s pressure rating to prevent failure. Proper sizing—typically ranging from 1/4” to 1”—is crucial to match the system’s flow requirements.
In practice, the ball valve-flare’s design offers both functionality and ease of maintenance. Its quarter-turn operation allows for quick shutoff in emergencies, a critical feature for safety and system protection. During maintenance, the valve’s simple construction enables easy disassembly for cleaning or inspection. For instance, if debris obstructs the bore, removing the valve and flushing the system can restore efficiency. Regularly check for signs of corrosion or wear, especially in systems exposed to moisture or harsh conditions, to ensure longevity.
Ultimately, the refrigeration ball valve-flare’s design—featuring a ball with a bore, flared ends, and copper tubing compatibility—addresses the specific demands of cooling systems. Its streamlined flow, secure connections, and ease of use make it an indispensable tool for professionals. By understanding its features and adhering to best practices, technicians can maximize system performance and reliability, ensuring consistent refrigeration outcomes.
Revolutionizing Food Storage: Latest Refrigerator Innovations You Need to Know
You may want to see also
Explore related products
Applications: Used in AC units, refrigerators, heat pumps, and other refrigeration systems for reliability
Refrigeration ball valves with flare fittings are critical components in systems where precision and reliability are non-negotiable. In air conditioning units, for instance, these valves regulate refrigerant flow, ensuring optimal cooling efficiency. Unlike standard valves, the flare connection provides a leak-proof seal, crucial for handling high-pressure refrigerants like R-410A. This design minimizes the risk of system failures, which can lead to costly repairs or downtime, especially in commercial HVAC setups. Without such valves, AC units would struggle to maintain consistent temperatures, particularly in extreme climates.
In refrigerators and freezers, refrigeration ball valves play a dual role: controlling refrigerant flow and enabling serviceability. Technicians rely on these valves to isolate sections of the system during maintenance or repairs, preventing refrigerant loss and ensuring safety. For example, when replacing a compressor, closing the ball valve prevents the entire system from depressurizing, saving time and reducing environmental impact. Homeowners and businesses alike benefit from this functionality, as it extends the lifespan of refrigeration equipment and reduces the frequency of professional interventions.
Heat pumps, which operate year-round for both heating and cooling, demand valves that can withstand frequent cycling and temperature fluctuations. Refrigeration ball valves with flare fittings excel here due to their robust construction and resistance to corrosion. In a typical residential heat pump, these valves are often installed at the evaporator and condenser coils, where they manage refrigerant flow based on seasonal needs. Their reliability ensures that the system operates efficiently, whether it’s extracting heat from outdoor air in winter or dissipating it in summer.
Beyond these applications, refrigeration ball valves are integral to specialized systems like walk-in coolers, ice machines, and industrial chillers. In a supermarket’s walk-in cooler, for example, these valves regulate refrigerant flow to maintain precise temperatures, preserving perishable goods. Similarly, in ice machines, they ensure consistent refrigerant distribution, critical for producing ice at high volumes. Across all these systems, the flare connection’s ability to withstand vibration and pressure spikes makes it a preferred choice for engineers and installers.
For DIY enthusiasts or technicians, understanding the proper installation of these valves is key. Always use a flare nut wrench to tighten connections, ensuring a secure seal without over-tightening, which can damage the fitting. Additionally, apply a suitable thread sealant, like Teflon tape or pipe dope, to enhance leak resistance. Regularly inspect valves for signs of wear or corrosion, particularly in outdoor units exposed to the elements. By prioritizing these practices, users can maximize the performance and longevity of refrigeration systems, ensuring they operate reliably for years to come.
Should Balsamic Vinegar Be Refrigerated? Storage Tips Revealed
You may want to see also
Explore related products
Installation: Requires flaring tools, proper torque, and leak testing for optimal performance and safety
Refrigeration ball valve-flare connections demand precision during installation to ensure system integrity. Flaring tools are indispensable for creating the necessary flare on copper tubing, which forms a secure, leak-resistant seal with the valve. Without the correct flare angle—typically 45 degrees—the connection risks failure, leading to refrigerant leaks, system inefficiency, or even safety hazards. This step is not merely procedural; it’s foundational to the valve’s functionality and longevity.
Proper torque application is equally critical when tightening the nut onto the flared tubing. Over-tightening can deform the flare or damage the valve body, while under-tightening results in inadequate sealing. Manufacturers often specify torque values, such as 10 to 15 foot-pounds for ¼-inch tubing, but these should be verified for the specific valve and tubing size. A torque wrench is essential here, as it provides the control needed to avoid excessive force. Skipping this step or relying on guesswork can compromise the entire refrigeration system.
Leak testing is the final, non-negotiable step in the installation process. Even a minor leak can lead to refrigerant loss, reduced cooling efficiency, and potential environmental harm. Use a soap solution or electronic leak detector to inspect the flare connection thoroughly. Apply the solution to the joint and watch for bubbles, or rely on the detector’s sensitivity to pinpoint leaks. If a leak is detected, disassemble the connection, re-flare the tubing, and reassemble with proper torque before retesting. This iterative process ensures the connection is flawless before the system is pressurized.
The interplay of flaring tools, torque precision, and leak testing underscores the meticulous nature of refrigeration ball valve-flare installation. Each step builds on the last, creating a robust connection that withstands the pressures and temperatures inherent in refrigeration systems. Cutting corners or omitting any of these steps risks not only the valve’s performance but also the safety and efficiency of the entire system. Mastery of these techniques is essential for technicians, as it directly impacts the reliability and lifespan of refrigeration equipment.
Understanding Sabbath Mode: How Your Refrigerator Accommodates Religious Observance
You may want to see also
Frequently asked questions
A refrigeration ball valve-flare is used to control the flow of refrigerant in HVAC and refrigeration systems. The flare connection ensures a secure, leak-proof seal, making it ideal for high-pressure applications.
Unlike standard ball valves, a refrigeration ball valve-flare features a flared fitting designed specifically for refrigerant lines. This ensures compatibility with refrigeration systems and minimizes the risk of leaks.
The advantages include a reliable seal, easy installation, and resistance to vibration and pressure changes. The flare connection also allows for quick disassembly and maintenance.
Yes, refrigeration ball valve-flares are compatible with most refrigerants, including R-22, R-410A, and others. However, always check the manufacturer’s specifications to ensure compatibility with your specific refrigerant.
