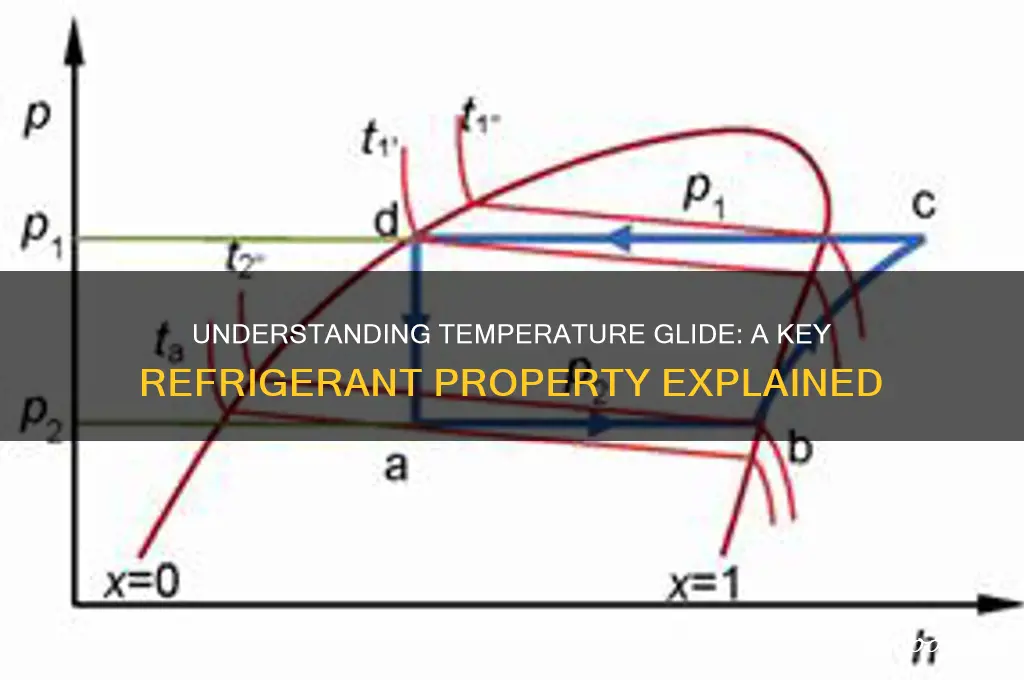

Temperature glide refers to the change in temperature of a refrigerant mixture as it undergoes a phase change, such as evaporation or condensation, while maintaining a constant pressure. Unlike pure refrigerants, which evaporate or condense at a single temperature, refrigerant blends exhibit a temperature glide due to their varying compositions. As the mixture transitions between liquid and vapor phases, the more volatile components evaporate first, causing the temperature to gradually shift until all components have fully changed state. This phenomenon is crucial in HVAC and refrigeration systems, as it affects system efficiency, capacity, and performance, requiring careful consideration in system design and operation.
| Characteristics | Values |
|---|---|
| Definition | Temperature glide refers to the difference in temperature between the saturated liquid and saturated vapor states of a refrigerant blend as it evaporates or condenses. |
| Cause | Occurs in zeotropic refrigerant blends (non-azeotropic mixtures) where components have different boiling points. |
| Effect on Evaporation | Evaporation occurs over a temperature range rather than at a single temperature, leading to a gradual increase in temperature during the phase change. |
| Effect on Condensation | Condensation also occurs over a temperature range, resulting in a gradual decrease in temperature during the phase change. |
| Impact on System Efficiency | Can reduce system efficiency due to the inability to maintain a precise evaporating or condensing temperature. |
| Glide Magnitude | Depends on the composition of the refrigerant blend and the pressure (temperature) at which it is operating. |
| Measurement | Typically measured in degrees Celsius (°C) or Fahrenheit (°F) and represents the difference between the bubble point and dew point temperatures. |
| Example Refrigerants | Common in blends like R-407C, R-410A, and R-404A, which are used as replacements for ozone-depleting refrigerants. |
| Design Consideration | Systems using refrigerants with temperature glide require careful design to account for the varying temperatures during phase changes. |
| Advantage | Can provide a more stable evaporator temperature in applications with varying loads, reducing the risk of freezing or overheating. |
| Disadvantage | Complexity in system design and control, as well as potential for reduced energy efficiency compared to single-component refrigerants. |
Explore related products
$11.99 $13.89
What You'll Learn
- Definition: Temperature glide is the temperature change during phase change in a refrigerant blend
- Zeotropic vs. Azeotropic: Zeotropic blends exhibit glide; azeotropic blends do not, maintaining constant temperature
- Impact on Efficiency: Glide affects system efficiency by altering heat transfer rates and capacity
- Application in HVAC: Used in heat pumps and ACs for improved performance in varying conditions
- Measurement Techniques: Glide is measured using pressure-temperature charts and refrigerant composition analysis
Definition: Temperature glide is the temperature change during phase change in a refrigerant blend
Temperature glide is a critical concept in refrigeration systems, particularly when using refrigerant blends. Unlike pure refrigerants, which change phase at a constant temperature, blends exhibit a temperature glide—a gradual change in temperature during the phase transition from liquid to vapor or vice versa. This phenomenon occurs because refrigerant blends consist of multiple components with different boiling points, causing the mixture to evaporate or condense over a temperature range rather than at a single point. For instance, the blend R-410A, commonly used in air conditioning systems, has a temperature glide of approximately 2.8°C (5°F) during evaporation, which is significantly different from the behavior of a pure refrigerant like R-22.
Understanding temperature glide is essential for designing and optimizing refrigeration systems. Engineers must account for this temperature change to ensure efficient heat transfer and system performance. For example, in a heat exchanger, the temperature glide affects the distribution of refrigerant and the overall heat transfer coefficient. If not properly managed, it can lead to reduced system efficiency or even malfunction. Practical tips include selecting blends with glide characteristics suited to the application—for instance, blends with minimal glide for precise temperature control in industrial processes, or those with moderate glide for residential air conditioning systems where slight temperature variations are less critical.
From a comparative perspective, temperature glide distinguishes refrigerant blends from their pure counterparts, offering both advantages and challenges. On one hand, blends can provide improved thermodynamic properties, such as higher capacity or efficiency, due to their ability to operate over a temperature range. On the other hand, the glide complicates system design, requiring additional considerations in component sizing, control strategies, and refrigerant distribution. For example, systems using blends with significant glide may need larger heat exchangers or more sophisticated expansion devices to maintain performance.
To illustrate, consider a refrigeration system using R-407C, a blend with a temperature glide of about 5°C (9°F). During the evaporation process, the refrigerant absorbs heat at a gradually increasing temperature, which affects the superheat and subcooling calculations. Technicians must adjust their practices, such as using glide-specific pressure-temperature charts and ensuring proper charge levels, to account for this behavior. Ignoring temperature glide can result in issues like liquid slugging in compressors or inadequate cooling capacity, underscoring the need for precise system tuning.
In conclusion, temperature glide is a defining characteristic of refrigerant blends that demands careful attention in system design and operation. By recognizing its impact on phase change behavior, engineers and technicians can harness the benefits of blends while mitigating potential drawbacks. Whether optimizing a commercial refrigeration unit or troubleshooting a residential air conditioner, understanding and accounting for temperature glide is key to achieving reliable and efficient performance. Practical steps include selecting appropriate blends, using glide-specific tools, and continuously monitoring system operation to ensure optimal results.
Refrigerating Uncooked Breaded Chicken: Best Practices for Freshness and Safety
You may want to see also
Explore related products
Zeotropic vs. Azeotropic: Zeotropic blends exhibit glide; azeotropic blends do not, maintaining constant temperature
Refrigerants are the lifeblood of cooling systems, but not all are created equal. A critical distinction lies in their behavior during phase changes, particularly whether they exhibit temperature glide. Zeotropic blends, unlike their azeotropic counterparts, display this phenomenon, which significantly impacts system performance. Understanding this difference is essential for selecting the right refrigerant for specific applications, ensuring efficiency, and maintaining optimal cooling conditions.
The Glide Effect: A Zeotropic Signature
Imagine a refrigerant as a mixture of components with varying boiling points. In zeotropic blends, these components evaporate at different rates, creating a temperature glide. This means that as the refrigerant evaporates, its temperature doesn't remain constant but instead "glides" across a range. For instance, a zeotropic blend like R-410A, commonly used in air conditioning systems, exhibits a temperature glide of approximately 2.8°C (5°F) during evaporation. This glide can be visualized as a slope on a pressure-enthalpy diagram, contrasting sharply with the horizontal line representing azeotropic blends.
Azeotropic Blends: Constant Temperature Masters
Azeotropic blends, on the other hand, are meticulously formulated to behave like a single substance. Their components evaporate at the same rate, maintaining a constant temperature throughout the phase change. R-502, an azeotropic blend, is a prime example, offering a stable temperature profile during evaporation. This characteristic simplifies system design and control, as there's no need to account for temperature variations. However, achieving this azeotropic behavior requires precise mixing ratios, limiting the flexibility in blend composition.
Practical Implications: Choosing the Right Blend
The choice between zeotropic and azeotropic blends depends on the application's requirements. Zeotropics, with their temperature glide, are often preferred in systems where a broader temperature range is acceptable or even advantageous. For instance, in heat pumps, the glide can be utilized to enhance heating performance. Azeotropics, with their constant temperature, are ideal for applications demanding precise temperature control, such as in refrigeration systems for food storage, where maintaining a specific temperature is critical to preserve freshness.
Optimizing Performance: Tips and Considerations
When working with zeotropic blends, it's crucial to account for the temperature glide in system design. This may involve adjusting expansion valves or incorporating additional heat exchangers to manage the varying temperatures. For azeotropic blends, ensuring the correct mixture ratio is essential to maintain their unique properties. Regular maintenance, including checking for leaks and monitoring refrigerant charge, is vital for both types to ensure optimal performance and energy efficiency. Understanding these nuances allows for informed decisions, ensuring the selected refrigerant blend aligns perfectly with the system's needs.
Safe Storage: How Long Can Raw Chicken Stay in the Fridge?
You may want to see also
Explore related products
Impact on Efficiency: Glide affects system efficiency by altering heat transfer rates and capacity
Temperature glide in a refrigerant refers to the change in temperature that occurs as the refrigerant transitions between its liquid and vapor states during the heat absorption and rejection processes. This phenomenon is particularly pronounced in zeotropic refrigerant blends, where the components have different boiling points, leading to a temperature variation rather than a constant temperature during phase change. While glide can offer benefits such as improved heat transfer in certain applications, its impact on system efficiency is complex and multifaceted.
Consider a heat pump operating with a refrigerant blend exhibiting a 5°C glide. During the evaporation process, the refrigerant absorbs heat over this temperature range, which can enhance heat pickup from the source. However, this same glide reduces the effective temperature difference between the refrigerant and the heat sink during condensation, diminishing the heat rejection efficiency. For instance, a system designed for a single-component refrigerant with a constant condensing temperature may experience a 3-5% drop in coefficient of performance (COP) when using a glide refrigerant due to this mismatch. Engineers must account for this by adjusting heat exchanger designs or selecting refrigerants with glide characteristics tailored to the specific application.
Instructively, minimizing efficiency losses due to glide requires precise control of operating pressures and temperatures. For example, in a refrigeration system using R-404A (a zeotropic blend with a glide of ~4°C), maintaining the evaporator temperature within ±1°C of the design setpoint can reduce energy consumption by up to 8%. This involves calibrating expansion valves and ensuring proper refrigerant charge levels to optimize heat transfer across the glide range. Additionally, employing microchannel heat exchangers, which have higher surface area per volume, can mitigate the negative effects of glide by improving thermal conductivity at varying temperatures.
Persuasively, while glide can complicate system design, it also presents opportunities for efficiency gains in specific scenarios. For instance, in air conditioning systems operating under part-load conditions, a refrigerant with a moderate glide (2-3°C) can better match the varying cooling demands, reducing cycling losses and improving part-load efficiency by 10-15%. This is particularly advantageous in climates with significant diurnal temperature swings, where the glide allows the system to adapt more effectively to changing ambient conditions. However, such benefits require careful selection of refrigerants and system components to avoid penalties during peak load operation.
Comparatively, the impact of glide on efficiency is more pronounced in systems with large temperature differentials, such as industrial chillers, than in residential HVAC units. A chiller using a refrigerant with a 6°C glide may experience a 7% reduction in capacity compared to a near-azeotropic blend, whereas a residential heat pump might see only a 2-3% difference due to its smaller operating envelope. This highlights the importance of application-specific refrigerant selection: what works for a supermarket refrigeration system may not be optimal for a home air conditioner. By understanding these trade-offs, designers can leverage glide to enhance efficiency in targeted applications while minimizing its drawbacks.
Should You Refrigerate Bananas? The Surprising Truth Revealed
You may want to see also
Explore related products
Application in HVAC: Used in heat pumps and ACs for improved performance in varying conditions
Temperature glide, the difference between the bubble point and dew point temperatures in a refrigerant blend, is a critical factor in HVAC systems, particularly heat pumps and air conditioners. This phenomenon occurs when a refrigerant mixture, rather than a pure substance, is used, leading to a gradual change in temperature during phase transitions. In HVAC applications, this characteristic is not a drawback but a strategic advantage, especially in systems designed to operate efficiently across varying environmental conditions.
Consider a heat pump operating in a region with fluctuating outdoor temperatures. During mild weather, the system may only need to provide moderate heating or cooling, but during extreme conditions, it must perform at its peak. A refrigerant with a temperature glide can maintain optimal performance across this spectrum. For instance, R-410A, a common refrigerant blend, exhibits a glide of approximately 0.5°C to 2°C, depending on the pressure and composition. This glide allows the refrigerant to absorb or release heat more gradually, reducing the risk of overworking the compressor and improving overall efficiency. In practical terms, this means a heat pump can deliver consistent comfort without frequent cycling, which extends the system’s lifespan and reduces energy consumption.
In air conditioning systems, temperature glide plays a pivotal role in humidity control. During cooling, the evaporator coil’s surface temperature remains relatively stable due to the glide, preventing rapid drops that could lead to excessive condensation and potential waterlogging. For example, in high-humidity climates like Florida, an AC system using a refrigerant blend with a glide of 1.5°C can maintain a more consistent dew point on the coil, effectively removing moisture from the air without freezing. This not only enhances indoor air quality but also reduces the load on the system, as it doesn’t have to work as hard to manage humidity.
To maximize the benefits of temperature glide in HVAC systems, proper system design and refrigerant selection are essential. Engineers must account for the specific glide characteristics of the refrigerant blend, ensuring that the heat exchangers and expansion devices are optimized for gradual temperature changes. For instance, a heat pump using R-407C, which has a glide of around 3°C, requires a larger evaporator surface area to effectively utilize the refrigerant’s properties. Additionally, technicians should monitor the system’s performance regularly, particularly during seasonal transitions, to ensure the refrigerant charge is accurate and the components are functioning within the glide’s parameters.
While temperature glide offers significant advantages, it also demands precision in system operation. Overcharging or undercharging the refrigerant can negate the benefits, leading to inefficiencies or even system damage. For example, an overcharged system may experience higher discharge temperatures, increasing the risk of compressor failure. Conversely, an undercharged system may not fully utilize the glide, resulting in inadequate heating or cooling. Therefore, adherence to manufacturer guidelines and regular maintenance are crucial. By leveraging temperature glide effectively, HVAC systems can achieve superior performance, adaptability, and energy efficiency, making them well-suited for diverse and demanding environments.
Toyota Camry LE Refrigerant Refill: Locating the AC System Entry Point
You may want to see also
Explore related products
Measurement Techniques: Glide is measured using pressure-temperature charts and refrigerant composition analysis
Temperature glide in a refrigerant is a critical parameter that reflects the change in temperature during phase transitions, particularly in zeotropic mixtures. Accurate measurement of this glide is essential for optimizing system performance, energy efficiency, and safety. Two primary techniques dominate this field: pressure-temperature (P-T) charts and refrigerant composition analysis. Each method offers distinct advantages and requires careful application to yield reliable results.
Pressure-Temperature Charts: A Visual Diagnostic Tool
P-T charts serve as the cornerstone for glide measurement, providing a graphical representation of a refrigerant’s thermodynamic behavior under varying conditions. To use this method, technicians plot the system’s pressure against the corresponding saturation temperature, referencing standardized charts for the specific refrigerant blend. For instance, R-410A, a common zeotropic mixture, exhibits a glide of approximately 0.5°C (0.9°F) during evaporation, which can be visually confirmed on its P-T chart. The key lies in identifying the bubble point (start of evaporation) and dew point (end of condensation) temperatures at a given pressure. A wider gap between these points indicates a larger glide. However, accuracy depends on precise pressure measurements, typically taken using digital gauges with a resolution of ±1 psi, and cross-referencing with manufacturer-specific charts to account for blend variations.
Refrigerant Composition Analysis: A Molecular Approach
While P-T charts offer a macroscopic view, refrigerant composition analysis delves into the microscopic, quantifying the proportions of individual components in a mixture. This technique is particularly useful for non-azeotropic refrigerants, where glide is directly influenced by component volatility differences. Gas chromatography (GC) is the gold standard here, capable of detecting component concentrations with an accuracy of ±0.1%. For example, an R-407C sample might reveal a 23/25/52% blend of R-32, R-125, and R-134a, respectively. By comparing these ratios to the original specification, technicians can calculate the expected glide using thermodynamic models like the Antoine equation. This method is invaluable for diagnosing contamination or degradation, which can alter glide characteristics and system efficiency.
Practical Tips and Cautions
When employing these techniques, several precautions ensure accuracy. For P-T charts, always verify the refrigerant’s charge state and system stability before measurement, as transient conditions can skew results. Calibrate pressure gauges annually and use charts updated to the latest refrigerant formulations. In composition analysis, ensure samples are collected from the liquid phase to avoid vapor bias, and store them in sealed containers to prevent air ingress. For GC analysis, maintain column temperatures between 50–100°C to optimize component separation, and run duplicate samples to validate results.
Neither method stands alone; their combined use provides a comprehensive understanding of temperature glide. P-T charts offer real-time, field-ready diagnostics, while composition analysis delivers forensic insights into refrigerant integrity. Together, they empower technicians to fine-tune systems, troubleshoot anomalies, and ensure compliance with performance benchmarks. Mastery of these techniques transforms glide measurement from a theoretical concept into a practical tool for enhancing HVAC&R operations.
Refrigerated Beer at Room Temp: Safe or Spoiled?
You may want to see also
Frequently asked questions
Temperature glide refers to the change in temperature of a refrigerant mixture as it evaporates or condenses at a nearly constant pressure. Unlike pure refrigerants, which evaporate or condense at a single temperature, refrigerant blends experience a gradual temperature change during phase transitions.
Temperature glide occurs because refrigerant blends consist of multiple components with different boiling points. As the mixture changes phase, the components evaporate or condense at slightly different temperatures, causing the overall temperature to "glide" rather than remain constant.
Temperature glide can impact system efficiency, heat transfer rates, and capacity. It may reduce the effectiveness of heat exchangers but can also provide benefits, such as improved temperature control in certain applications. Proper system design is crucial to account for glide effects.
Refrigerant blends or zeotropes, such as R-410A, R-407C, and R-507, exhibit temperature glide. Pure refrigerants (e.g., R-134a, R-22) and azeotropes (e.g., R-502) do not show glide because they behave as single-component fluids during phase changes.
