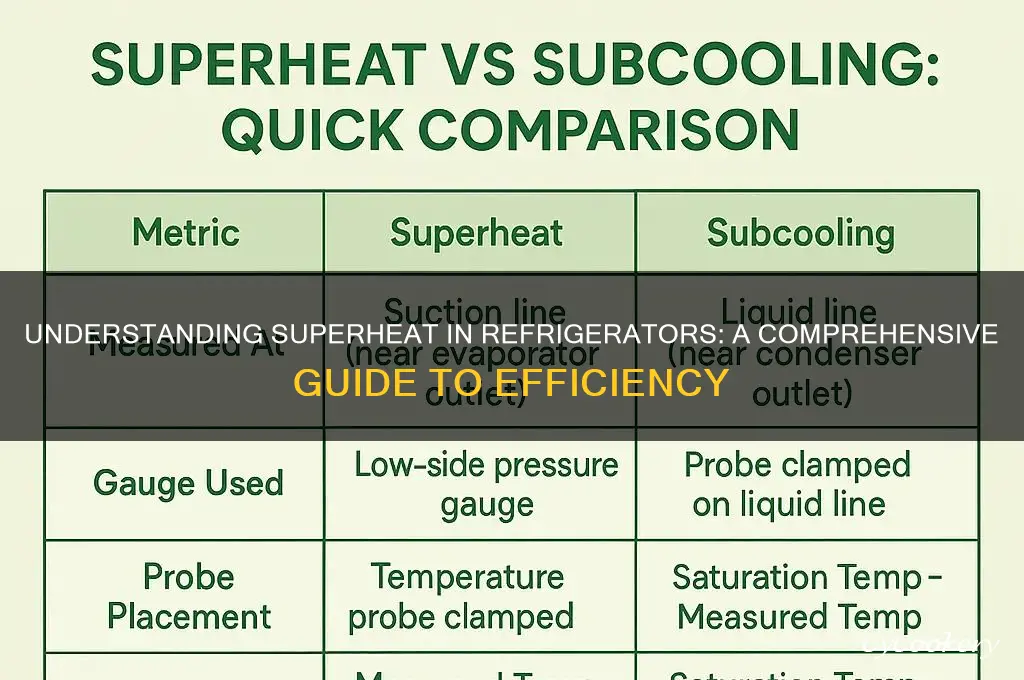

Superheat is a critical concept in refrigeration systems, referring to the amount of heat added to a refrigerant vapor after it has completely boiled off from its liquid state in the evaporator. In simpler terms, it is the temperature difference between the refrigerant vapor leaving the evaporator and the saturation temperature at the evaporator pressure. Proper superheat ensures efficient operation of the refrigerator by preventing liquid refrigerant from entering the compressor, which can cause damage. Technicians measure superheat to diagnose system performance, adjust refrigerant charge, and optimize energy efficiency, making it a key parameter in maintaining the reliability and effectiveness of refrigeration systems.
| Characteristics | Values |
|---|---|
| Definition | Superheat refers to the amount of heat added to a refrigerant vapor after it has completely boiled off from a liquid state, ensuring it is entirely in a gaseous state before entering the compressor. |
| Purpose | Prevents liquid refrigerant from entering the compressor, which can cause damage due to liquid slugging. |
| Typical Range | 8°F to 25°F (4.4°C to 13.9°C), depending on the system and refrigerant type. |
| Measurement | Calculated by subtracting the saturation temperature (at the evaporator pressure) from the actual temperature of the refrigerant vapor at the evaporator outlet. |
| Tools Required | Thermometer, pressure gauge, and superheat chart specific to the refrigerant being used. |
| Factors Affecting Superheat | Evaporator load, refrigerant charge, airflow over the evaporator, and system design. |
| Optimal Superheat | Varies by system; typically specified by the manufacturer to ensure efficient operation and prevent compressor damage. |
| High Superheat | Indicates low refrigerant charge, restricted airflow, or other issues reducing heat absorption in the evaporator. |
| Low Superheat | Suggests overcharge, excessive refrigerant flow, or inadequate heat load, potentially leading to liquid refrigerant returning to the compressor. |
| Refrigerant Type | Superheat values differ based on the refrigerant (e.g., R-134a, R-410A) due to varying thermodynamic properties. |
| Importance | Critical for system efficiency, compressor longevity, and proper refrigeration cycle operation. |
Explore related products
What You'll Learn
- Definition of Superheat: Temperature rise of refrigerant vapor above its saturation point in the evaporator coil
- Measuring Superheat: Use thermometers and pressure gauges to calculate superheat accurately
- Importance of Superheat: Ensures efficient heat absorption and prevents liquid refrigerant from entering the compressor
- Optimal Superheat Range: Typically 8-12°F for most refrigeration systems to balance efficiency and performance
- Troubleshooting Superheat: High or low superheat indicates issues like undercharging, overcharging, or airflow problems
Definition of Superheat: Temperature rise of refrigerant vapor above its saturation point in the evaporator coil
Superheat is a critical concept in refrigeration, referring specifically to the temperature rise of refrigerant vapor above its saturation point within the evaporator coil. This phenomenon occurs after the refrigerant has absorbed heat from the refrigerated space, transitioning from a liquid to a vapor state. The saturation point is the temperature at which the refrigerant boils at a given pressure, and superheat is the additional heat added beyond this point, ensuring the vapor is completely free of liquid before it reaches the compressor. Without proper superheat, liquid refrigerant could enter the compressor, leading to damage or failure.
To measure superheat, technicians use a combination of temperature and pressure gauges. First, measure the suction line temperature at the evaporator outlet, which indicates the refrigerant vapor’s actual temperature. Next, determine the saturation temperature by reading the suction pressure and referencing the refrigerant’s pressure-temperature chart. Subtract the saturation temperature from the suction line temperature to calculate superheat. For example, if the suction line temperature is 50°F and the saturation temperature is 40°F, the superheat is 10°F. Ideal superheat values vary by system but typically range from 5°F to 20°F, depending on the refrigerant type and system design.
Maintaining proper superheat is essential for efficient refrigeration. Insufficient superheat can lead to liquid slugging in the compressor, while excessive superheat reduces the system’s cooling capacity and increases energy consumption. Factors influencing superheat include airflow over the evaporator coil, refrigerant charge, and evaporator load. For instance, restricted airflow reduces heat absorption, lowering superheat, while an overcharged system can flood the evaporator, decreasing superheat further. Technicians must adjust these variables to achieve optimal superheat, ensuring the system operates reliably and efficiently.
Practical tips for managing superheat include regularly cleaning evaporator coils to maximize heat transfer and verifying proper refrigerant charge using subcooling and superheat measurements. In residential refrigerators, superheat is often controlled by fixed orifices or capillary tubes, while commercial systems may use thermostatic expansion valves (TXVs) for precise regulation. Homeowners can monitor system performance by observing frost patterns on evaporator coils; uneven frosting suggests airflow or refrigerant issues affecting superheat. For professionals, investing in digital manifold gauges with automatic superheat calculation simplifies diagnostics and adjustments.
In summary, superheat is a vital parameter in refrigeration, ensuring refrigerant vapor is fully dry before entering the compressor. By understanding its definition, measurement, and impact on system performance, technicians and users can maintain efficient, reliable cooling. Whether troubleshooting a malfunctioning unit or optimizing an existing system, mastering superheat principles is key to extending equipment lifespan and reducing energy costs.
Easy Steps to Replace Relay in Samsung Refrigerator
You may want to see also
Explore related products
Measuring Superheat: Use thermometers and pressure gauges to calculate superheat accurately
Superheat is a critical parameter in refrigeration systems, representing the temperature difference between the refrigerant vapor leaving the evaporator and its saturation temperature at the measured pressure. Accurately measuring superheat ensures optimal system performance, prevents liquid refrigerant from reaching the compressor (a condition known as floodback), and maximizes energy efficiency. To calculate superheat, technicians rely on two primary tools: thermometers and pressure gauges. This process requires precision, as even small errors can lead to misdiagnosis or inefficient operation.
The first step in measuring superheat involves taking two simultaneous measurements: the suction line temperature (SLT) and the suction pressure. The SLT is recorded using a thermocouple or digital thermometer placed on the suction line near the evaporator outlet. Simultaneously, a pressure gauge measures the suction pressure, which corresponds to the refrigerant’s saturation temperature. For example, if the suction pressure reads 68 PSIG for R-22 refrigerant, the saturation temperature is approximately 40°F. These tools must be calibrated and accurate to ensure reliable results, as discrepancies can skew calculations.
Once both measurements are obtained, superheat is calculated by subtracting the saturation temperature (derived from the suction pressure) from the SLT. For instance, if the SLT is 55°F and the saturation temperature is 40°F, the superheat is 15°F. This value is then compared to the manufacturer’s recommended superheat range, typically between 8°F and 18°F for most systems. Deviations from this range indicate issues such as undercharging, overcharging, or airflow problems, requiring further diagnosis and corrective action.
While the process seems straightforward, several cautions must be observed. First, ensure the thermometer is securely attached to the suction line and insulated to prevent ambient temperature influence. Second, take measurements when the system is in steady-state operation, avoiding transient conditions that could distort readings. Lastly, be mindful of refrigerant type, as different refrigerants have unique pressure-temperature relationships. For example, R-410A operates at higher pressures than R-22, necessitating compatible gauges and accurate PT charts.
In conclusion, measuring superheat is a fundamental skill for refrigeration technicians, blending precision with practical knowledge. By using thermometers and pressure gauges correctly, professionals can diagnose system issues, optimize performance, and extend equipment lifespan. Mastery of this technique not only enhances efficiency but also underscores the importance of attention to detail in HVAC/R work. Whether troubleshooting or performing routine maintenance, accurate superheat measurement remains a cornerstone of effective refrigeration system management.
RV Propane Efficiency: Understanding Refrigerator Usage and Consumption
You may want to see also
Explore related products
Importance of Superheat: Ensures efficient heat absorption and prevents liquid refrigerant from entering the compressor
Superheat is a critical concept in refrigeration, referring to the temperature difference between the refrigerant vapor leaving the evaporator and its saturation temperature at the same pressure. Typically, a superheat value of 8°F to 12°F (4°C to 7°C) is recommended for most refrigeration systems. This precise control ensures the refrigerant fully evaporates into a dry vapor before reaching the compressor, maximizing heat absorption efficiency in the evaporator coil. Without adequate superheat, the system risks underperforming, as liquid refrigerant cannot absorb heat as effectively as vapor.
Consider the evaporator as the workhorse of heat absorption in a refrigerator. If the refrigerant exits the evaporator as a wet vapor (partially liquid), it reduces the system’s capacity to cool. For instance, a superheat value below 5°F (2.8°C) indicates insufficient evaporation, leading to liquid refrigerant entering the compressor. This not only diminishes efficiency but also poses a risk of compressor damage due to liquid slugging. Conversely, excessive superheat (above 15°F or 8.3°C) wastes energy by overheating the refrigerant, reducing the system’s overall performance.
Preventing liquid refrigerant from entering the compressor is paramount for system longevity. Compressors are designed to handle vapor, not liquid. Even small amounts of liquid can cause mechanical stress, leading to premature wear or catastrophic failure. For example, a technician measuring a superheat of 3°F (1.7°C) during a routine check should immediately adjust the expansion valve to increase superheat, ensuring the refrigerant is fully vaporized before it reaches the compressor. This simple corrective action can extend the compressor’s lifespan by years.
Achieving optimal superheat requires careful calibration of the refrigeration system. Technicians use a thermometer and pressure gauge to measure the refrigerant’s temperature and pressure at the evaporator outlet, then calculate superheat by subtracting the saturation temperature from the actual temperature. Adjusting the expansion valve or metering device is the most common method to fine-tune superheat. For DIY enthusiasts, investing in a digital manifold gauge set simplifies this process, providing real-time data for precise adjustments.
In summary, superheat is not just a technical metric but a safeguard for both efficiency and equipment health in refrigeration systems. By maintaining the recommended superheat range, users ensure the refrigerant absorbs heat effectively while protecting the compressor from liquid damage. Whether you’re a professional technician or a homeowner troubleshooting a fridge, understanding and controlling superheat is essential for optimal performance and longevity.
Storing Formula in the Fridge: How Long is it Safe?
You may want to see also
Explore related products
Optimal Superheat Range: Typically 8-12°F for most refrigeration systems to balance efficiency and performance
Superheat is a critical parameter in refrigeration systems, representing the temperature increase of refrigerant vapor after it leaves the evaporator coil. For most systems, maintaining an optimal superheat range of 8-12°F is essential to strike a balance between energy efficiency and cooling performance. This range ensures the refrigerant fully evaporates without excessive heat absorption, which could lead to inefficiencies or compressor damage.
Consider the analogy of boiling water: just as water needs to reach 212°F to fully vaporize at sea level, refrigerant must achieve a specific superheat to ensure complete evaporation. Falling below 8°F indicates underfeeding of refrigerant, causing the evaporator to operate inefficiently. Conversely, exceeding 12°F suggests overfeeding, which can flood the compressor with liquid refrigerant, risking mechanical failure. Technicians use this range as a benchmark during system calibration, adjusting the thermostatic expansion valve (TXV) to modulate refrigerant flow precisely.
Achieving this optimal range requires careful measurement using a superheat calculator or digital gauges. Start by recording the suction pressure and temperature at the evaporator outlet, then subtract the saturation temperature (corresponding to the suction pressure) from the actual temperature. For instance, if the suction pressure is 68 PSIG (saturation temperature of 40°F) and the outlet temperature is 50°F, the superheat is 10°F—right in the middle of the ideal range. Regular monitoring, especially during seasonal temperature shifts, ensures the system adapts to varying loads without compromising efficiency.
While 8-12°F is the standard, exceptions exist. Low-temperature applications, such as walk-in freezers, may require higher superheat (12-16°F) to prevent liquid refrigerant from reaching the compressor. Conversely, systems with long refrigerant lines may need slightly lower superheat to account for pressure drops. Always consult manufacturer guidelines for system-specific recommendations, as deviations from the optimal range can void warranties or reduce equipment lifespan.
In practice, maintaining this range translates to tangible benefits: reduced energy consumption, extended equipment life, and consistent cooling performance. For homeowners, this means lower utility bills and fewer repair calls. For commercial operators, it ensures product safety and operational reliability. By prioritizing superheat calibration, users can maximize their refrigeration system’s potential, proving that small adjustments yield significant returns.
Refrigerating Fudge: Tips for Storing and Preserving Your Sweet Treat
You may want to see also
Explore related products
Troubleshooting Superheat: High or low superheat indicates issues like undercharging, overcharging, or airflow problems
Superheat is a critical measurement in refrigeration systems, indicating the temperature of the refrigerant vapor as it leaves the evaporator. It’s the difference between the actual temperature of the refrigerant vapor and its saturation temperature at the same pressure. A proper superheat value ensures efficient heat absorption and prevents liquid refrigerant from returning to the compressor, which can cause damage. However, deviations from the ideal superheat range—typically 8°F to 20°F for most residential refrigerators—signal underlying issues that require immediate attention.
High superheat often points to undercharging or restricted airflow. When refrigerant charge is insufficient, the evaporator coil doesn’t absorb enough heat, leading to higher-than-normal superheat values. For example, if a system is charged with only 70% of the required refrigerant, superheat might spike to 25°F or higher. Similarly, dirty air filters, blocked vents, or a malfunctioning evaporator fan can reduce airflow, causing the evaporator coil to underperform. To troubleshoot, start by checking the refrigerant charge using a manifold gauge set. If the charge is low, add refrigerant incrementally while monitoring superheat. Simultaneously, inspect and clean air filters, ensure vents are unobstructed, and verify fan operation.
Low superheat, on the other hand, suggests overcharging or excessive airflow. An overcharged system floods the evaporator coil with liquid refrigerant, reducing the superheat value—sometimes below 5°F. This condition risks liquid refrigerant entering the compressor, leading to slugging and potential failure. Overcharging often occurs during improper maintenance or when refrigerant is added without measuring superheat. Excessive airflow, though less common, can also lower superheat by cooling the evaporator coil too quickly. To address overcharging, recover excess refrigerant until superheat returns to the target range. If airflow is the issue, adjust fan speed or check for oversized evaporators.
Practical tips for troubleshooting superheat include using a digital thermometer and clamp-on thermistor to measure suction line temperature and pressure accurately. Calculate superheat by subtracting the saturation temperature (from the pressure-temperature chart) from the actual suction line temperature. Always measure superheat under stable operating conditions—let the system run for at least 15 minutes before taking readings. Keep a log of superheat values over time to identify trends and catch issues early. For instance, a gradual increase in superheat might indicate a slow refrigerant leak, while sudden spikes could signal a clogged filter drier.
In summary, superheat is a diagnostic tool that reveals the health of a refrigeration system. High superheat demands attention to refrigerant charge and airflow, while low superheat requires checking for overcharging or excessive airflow. By understanding these indicators and applying precise measurements, technicians can resolve issues efficiently, ensuring optimal system performance and longevity. Regular monitoring and proactive troubleshooting transform superheat from a mere metric into a powerful ally in refrigeration maintenance.
Refrigerating Raw Bread Dough: Tips for Perfectly Preserved Yeast
You may want to see also
Frequently asked questions
Superheat refers to the amount of heat added to a refrigerant vapor after it has completely changed from a liquid to a gas in the evaporator. It ensures the refrigerant is fully vaporized before entering the compressor, preventing liquid from damaging the compressor.
Superheat is measured by calculating the difference between the actual temperature of the refrigerant vapor at the evaporator outlet and the saturation temperature (boiling point) of the refrigerant at the same pressure.
The ideal superheat range for a refrigerator typically falls between 8°F to 12°F (4°C to 7°C), though this can vary depending on the system design and refrigerant type.
If superheat is too high, it indicates that the evaporator is not fully utilizing the refrigerant, leading to reduced cooling efficiency, higher energy consumption, and potential strain on the compressor.
If superheat is too low, it means liquid refrigerant may be entering the compressor, which can cause damage to the compressor due to liquid slugging and reduce the system's overall lifespan.
