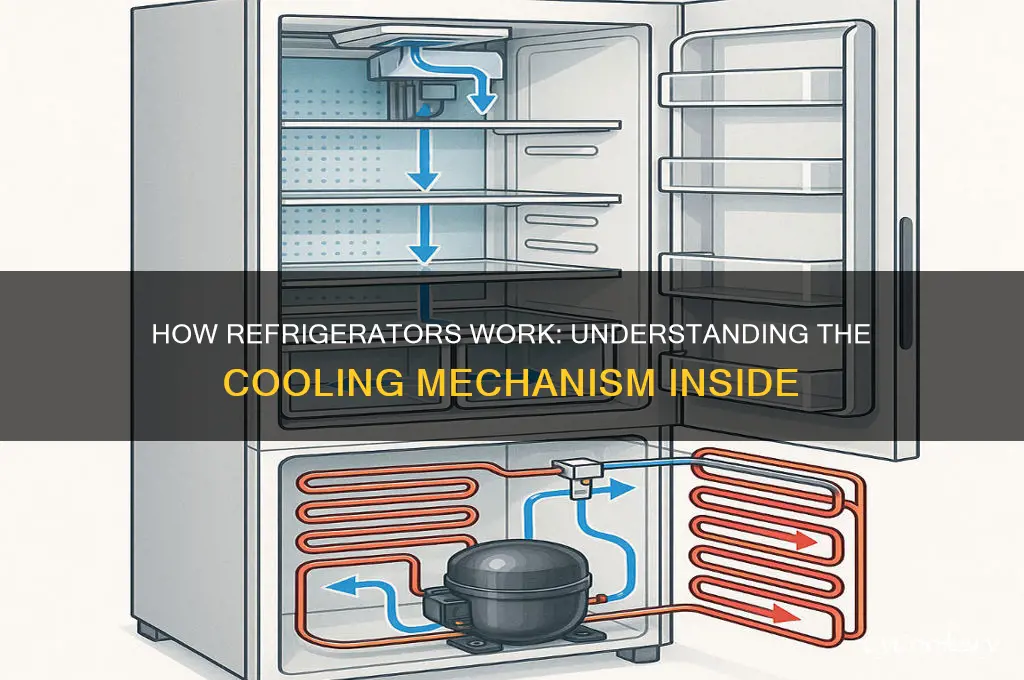

A refrigerator operates on the principles of thermodynamics, specifically the vapor compression cycle, to transfer heat from the inside of the appliance to the external environment, thereby cooling its interior. The process begins with a refrigerant, a substance with a low boiling point, which is compressed into a high-pressure, high-temperature gas by the compressor. This gas then flows through the condenser coils, where it dissipates heat to the surrounding air and condenses into a high-pressure liquid. The liquid refrigerant passes through an expansion valve, which reduces its pressure and temperature, causing it to partially evaporate and cool further. As it enters the evaporator coils inside the refrigerator, it absorbs heat from the surrounding air, cooling the interior. The refrigerant, now a low-pressure gas, returns to the compressor, completing the cycle and continuously removing heat to maintain a low temperature inside the refrigerator.
| Characteristics | Values |
|---|---|
| Working Principle | Vapor Compression Cycle |
| Primary Components | Compressor, Condenser, Expansion Valve, Evaporator |
| Refrigerant | Environmentally friendly refrigerants (e.g., R-134a, R-600a) |
| Heat Transfer | Absorbs heat from inside (evaporator) and releases it outside (condenser) |
| Phase Changes | Refrigerant changes from gas to liquid (condensation) and liquid to gas (evaporation) |
| Pressure Changes | High pressure in condenser, low pressure in evaporator |
| Temperature Control | Thermostat regulates the compressor to maintain desired temperature |
| Insulation | Thick insulation to minimize heat transfer between interior and exterior |
| Energy Efficiency | Rated by Energy Star or similar standards (e.g., kWh/year) |
| Defrosting Mechanism | Automatic or manual defrosting to remove ice buildup |
| Environmental Impact | Designed to minimize ozone depletion and global warming potential |
Explore related products
![[Upgraded] DA97-12625A Refrigerator Auto Close Lever Assembly fit for Samsung Refrigerators (2 Pack)](https://m.media-amazon.com/images/I/516TtV3+5rL._AC_UL320_.jpg)
![[Upgraded] DA97-12625A Refrigerator Auto Close Lever Assembly fit for Samsung Refrigerators (1 Pack)](https://m.media-amazon.com/images/I/51ZJOE-zwkL._AC_UL320_.jpg)
What You'll Learn
- Heat Absorption: Evaporator absorbs heat from fridge interior, cooling the air inside
- Compression Process: Compressor raises refrigerant temperature and pressure for condensation
- Heat Release: Condenser releases heat to surroundings, turning refrigerant into liquid
- Expansion Valve: Reduces refrigerant pressure, causing rapid cooling for evaporation
- Refrigeration Cycle: Continuous loop of evaporation, compression, condensation, and expansion
Heat Absorption: Evaporator absorbs heat from fridge interior, cooling the air inside
The evaporator coil is the unsung hero of your refrigerator's cooling process. Nestled within the freezer compartment or along the back of the fridge, this serpentine network of tubing is where the magic of heat absorption begins. As the refrigerant, a substance with a low boiling point like R-134a, enters the evaporator in a low-pressure, low-temperature state, it rapidly absorbs heat from the surrounding air. This phase change from liquid to gas is the cornerstone of refrigeration, effectively siphoning thermal energy from the fridge interior and leaving the air cooler in its wake.
Consider the evaporator as a thermal sponge, tirelessly drawing warmth from the chilled compartment. For optimal performance, ensure proper airflow around the evaporator coils. Dust, debris, or ice buildup can impede this process, reducing efficiency. A simple maintenance tip: defrost manual-defrost refrigerators regularly and vacuum the coils every six months. In frost-free models, check the condenser coils instead, as they play a complementary role in heat dissipation. This proactive care can enhance cooling efficiency by up to 30%, prolonging the appliance’s lifespan and reducing energy consumption.
From a comparative standpoint, the evaporator’s role in heat absorption is akin to a heat exchanger in an air conditioning system, but with a critical difference. While both rely on refrigerant phase changes, the fridge’s evaporator operates in a confined space, maintaining temperatures just above freezing (0–4°C or 32–39°F). This precision is vital for food preservation, as temperatures below 0°C can freeze perishables, while those above 4°C accelerate spoilage. Understanding this nuance underscores the evaporator’s role as a guardian of freshness, not just a cooling agent.
For the analytically inclined, the evaporator’s efficiency is governed by the second law of thermodynamics, which dictates that heat naturally flows from warmer to cooler areas. Here, the refrigerant’s low-temperature state creates a gradient, compelling heat to migrate from the fridge interior into the evaporator coils. This principle is further amplified by the forced circulation of air via fans, ensuring uniform cooling. A practical takeaway: if your fridge isn’t cooling evenly, inspect the fan near the evaporator for malfunctions, as its role in distributing chilled air is indispensable.
Finally, a persuasive argument for appreciating the evaporator’s function lies in its environmental impact. By efficiently absorbing heat, it minimizes the workload on the compressor, the refrigerator’s most energy-intensive component. Modern refrigerators with advanced evaporator designs, such as those using microchannel coils, can achieve up to 20% greater energy efficiency compared to older models. Upgrading to such appliances not only reduces your carbon footprint but also yields long-term savings on utility bills, making it a win-win for both your wallet and the planet.
Can Refrigerator Doors Be Removed for Easier Delivery? Find Out Here
You may want to see also
Explore related products
Compression Process: Compressor raises refrigerant temperature and pressure for condensation
The heart of a refrigerator's cooling mechanism lies in the compression process, a critical phase where the refrigerant undergoes a dramatic transformation. This process begins with the compressor, a powerful pump that inhales low-pressure, low-temperature refrigerant vapor from the evaporator. As the compressor activates, it exerts immense force on the vapor, compressing it into a high-pressure, high-temperature state. This compression is not merely a physical act but a thermodynamic marvel, converting mechanical energy into thermal energy, thereby raising the refrigerant's temperature significantly. For instance, a typical household refrigerator compressor can elevate the refrigerant temperature from around -20°C to approximately 50°C or higher, depending on the model and ambient conditions.
Consider the analogy of squeezing a balloon filled with air. As you compress the balloon, the air molecules are forced closer together, increasing both pressure and temperature. Similarly, the compressor in a refrigerator squeezes the refrigerant vapor, intensifying its molecular activity and preparing it for the next stage of the cooling cycle. This step is crucial because it ensures the refrigerant can condense effectively in the subsequent phase. Without adequate compression, the refrigerant would lack the necessary pressure and heat to transition from a vapor to a liquid state, rendering the cooling process inefficient or entirely ineffective.
From a practical standpoint, the compression process demands precision and durability. Compressors are engineered to withstand high pressures and temperatures, often operating at pressures exceeding 100 psi (pounds per square inch) and temperatures above 50°C. Homeowners should be aware that regular maintenance, such as cleaning condenser coils and ensuring proper ventilation around the refrigerator, can significantly extend the compressor's lifespan. Additionally, modern refrigerators often incorporate variable-speed compressors, which adjust their output based on cooling demand, optimizing energy efficiency and reducing wear and tear.
A comparative analysis reveals that the compression process in refrigerators is akin to the role of a boiler in a steam engine, both serving as the primary drivers of energy conversion. However, unlike a steam engine, which uses water as the working fluid, refrigerators employ specialized refrigerants like R-134a or R-600a, chosen for their favorable thermodynamic properties and environmental impact. These refrigerants undergo phase changes at specific temperatures and pressures, making them ideal for the cyclic process of refrigeration. For example, R-134a has a boiling point of -26.5°C at atmospheric pressure, allowing it to absorb heat efficiently in the evaporator before being compressed and condensed.
In conclusion, the compression process is a cornerstone of refrigerator functionality, bridging the gap between heat absorption and dissipation. By raising the refrigerant's temperature and pressure, the compressor sets the stage for condensation, where the refrigerant releases its accumulated heat to the surroundings. This process not only exemplifies the principles of thermodynamics but also underscores the ingenuity behind modern refrigeration technology. Whether in a home kitchen or a commercial cold storage facility, understanding this mechanism empowers users to appreciate and maintain their appliances more effectively.
Kefir Refrigeration Guide: Optimal Storage Time and Freshness Tips
You may want to see also
Explore related products
Heat Release: Condenser releases heat to surroundings, turning refrigerant into liquid
The condenser is the unsung hero of your refrigerator's cooling cycle, a critical component that facilitates heat release. As the refrigerant flows through the condenser coils, it undergoes a phase change from a high-pressure, high-temperature vapor to a high-pressure liquid. This process is essential for removing heat from the refrigerant, which has absorbed warmth from the refrigerator's interior. The condenser's efficiency in releasing this heat to the surrounding environment is a key factor in the overall performance of the refrigeration system.
Consider the condenser as a heat exchanger, designed to maximize surface area for optimal heat dissipation. The coils are often made of materials with high thermal conductivity, such as copper or aluminum, to facilitate rapid heat transfer. As the refrigerant passes through these coils, it comes into contact with the cooler surrounding air, causing the refrigerant to condense into a liquid. This phase change is accompanied by a significant release of latent heat, which is then dissipated into the environment. In a typical household refrigerator, the condenser can release anywhere from 100 to 400 watts of heat, depending on the size and efficiency of the unit.
To optimize condenser performance, proper ventilation is crucial. Ensure that the area around the condenser coils is free from obstructions, such as dust, debris, or nearby objects that could restrict airflow. Regular cleaning of the coils is also essential, as dirt and grime can act as insulators, reducing heat transfer efficiency. For instance, a 1-2 mm layer of dust on condenser coils can decrease heat transfer by up to 30%, leading to increased energy consumption and reduced cooling capacity. Use a soft brush or vacuum cleaner to gently remove dust and debris, being careful not to damage the delicate fins.
In commercial refrigeration systems, condenser performance is often enhanced through the use of cooling towers or evaporative cooling systems. These methods can significantly improve heat rejection, particularly in high-temperature environments. For example, a cooling tower can reduce the condenser's leaving water temperature by 10-15°C, allowing the refrigerant to condense more efficiently. When designing or maintaining a refrigeration system, consider the specific heat rejection requirements and select a condenser type (air-cooled, water-cooled, or evaporative) that best suits the application.
A practical tip for homeowners is to ensure that the refrigerator is not placed in a confined space, as this can restrict airflow and reduce condenser efficiency. Ideally, the refrigerator should have at least 2-3 inches of clearance on all sides to allow for proper ventilation. Additionally, avoid placing heat-generating appliances, such as ovens or dishwashers, near the refrigerator, as this can increase the condenser's heat load. By understanding the importance of heat release in the condenser and taking steps to optimize its performance, you can improve the overall efficiency and longevity of your refrigeration system.
Standard Refrigerator Heights: What’s the Average Size for Homes?
You may want to see also
Explore related products
Expansion Valve: Reduces refrigerant pressure, causing rapid cooling for evaporation
The expansion valve is a critical component in the refrigeration cycle, acting as the gateway between the high-pressure and low-pressure sides of the system. Its primary function is to meter the flow of refrigerant, ensuring it enters the evaporator at the correct pressure and temperature for efficient cooling. This process begins with the refrigerant arriving at the expansion valve in a high-pressure, liquid state after being condensed in the condenser. As the refrigerant passes through the valve’s narrow orifice, its pressure drops dramatically, causing a portion of the liquid to flash into vapor. This phase change is the key to the rapid cooling effect, as it absorbs heat from the surrounding environment, which in a refrigerator, is the air inside the appliance.
Analyzing the mechanics, the expansion valve operates based on the principle of the Joule-Thomson effect, where a gas or liquid cools upon expansion if it’s below its inversion temperature. For common refrigerants like R-134a or R-410A, this condition is easily met. The valve’s design is precise, often featuring a thermostatic element that adjusts the opening size in response to the superheat of the refrigerant leaving the evaporator. This ensures the refrigerant evaporates completely within the evaporator coil, maximizing heat absorption efficiency. For instance, in a typical household refrigerator, the refrigerant might enter the expansion valve at around 100–120 psi and exit at 10–20 psi, a drop that facilitates evaporation at temperatures as low as -10°C to -20°C.
From a practical standpoint, understanding the expansion valve’s role is essential for troubleshooting and maintenance. A malfunctioning valve can lead to issues like frost buildup, inadequate cooling, or even compressor damage. For example, if the valve fails to reduce pressure sufficiently, the refrigerant won’t evaporate properly, resulting in poor heat absorption. Conversely, if it restricts flow too much, the evaporator may become starved of refrigerant, leading to inefficient operation. Technicians often use tools like manifold gauges to measure suction and discharge pressures, ensuring the valve is operating within optimal parameters. For DIY enthusiasts, recognizing symptoms like uneven cooling or unusual noises can signal the need for professional inspection.
Comparatively, the expansion valve’s function contrasts with other throttling devices like capillary tubes, which are simpler but less precise. While capillary tubes are fixed in size and rely on refrigerant flow rate for pressure reduction, expansion valves offer dynamic control, making them more suitable for systems requiring precise temperature regulation. This adaptability is particularly valuable in modern refrigerators with variable speed compressors or multi-zone cooling systems. For instance, in a side-by-side refrigerator with separate freezer and fresh food compartments, the expansion valve ensures each section maintains its set temperature by adjusting refrigerant flow in real time.
In conclusion, the expansion valve is a cornerstone of refrigeration technology, enabling the rapid cooling necessary for evaporation by precisely reducing refrigerant pressure. Its ability to balance flow and pressure ensures efficient heat absorption, making it indispensable in both residential and commercial refrigeration systems. Whether you’re a homeowner looking to understand your appliance or a technician diagnosing performance issues, grasping the expansion valve’s role provides valuable insights into the refrigeration cycle’s intricacies. Regular maintenance and timely repairs can extend the life of your refrigerator, ensuring it operates at peak efficiency for years to come.
How Refrigerators Work: The Science Behind Cooling Your Food
You may want to see also
Explore related products
Refrigeration Cycle: Continuous loop of evaporation, compression, condensation, and expansion
The refrigeration cycle is a marvel of thermodynamics, a continuous loop that harnesses the principles of phase changes and energy transfer to cool spaces efficiently. At its core, this cycle consists of four key stages: evaporation, compression, condensation, and expansion. Each stage plays a critical role in removing heat from one area and expelling it elsewhere, ensuring the refrigerator maintains a consistently low temperature. Understanding this process not only demystifies how refrigerators work but also highlights the elegance of engineering in everyday appliances.
Consider the evaporation stage as the starting point. Inside the refrigerator, a refrigerant—a substance with a low boiling point, such as R-134a—absorbs heat from the surrounding air, causing it to evaporate from a liquid to a gas. This phase change is endothermic, meaning it absorbs heat, which cools the refrigerator’s interior. For optimal performance, ensure the evaporator coils are clean and free of dust, as blockages can reduce heat absorption efficiency by up to 30%. Regular maintenance, such as vacuuming or brushing the coils every six months, can significantly enhance cooling effectiveness.
Next, the compression stage transforms the low-pressure gas into a high-pressure, high-temperature gas. The compressor, often the noisiest component of a refrigerator, raises the refrigerant’s energy level, preparing it for the next phase. Modern refrigerators use hermetically sealed compressors, which are durable and require minimal maintenance. However, if the compressor overheats or fails, it can lead to costly repairs. To prolong its lifespan, avoid overloading the refrigerator and ensure proper ventilation around the appliance, as compressors operate most efficiently when ambient temperatures are below 32°C (90°F).
The condensation stage occurs when the high-pressure gas passes through the condenser coils, typically located at the back or bottom of the refrigerator. As the refrigerant releases heat to the surrounding environment, it condenses back into a high-pressure liquid. This stage is exothermic, expelling heat outside the refrigerator. For maximum efficiency, ensure the condenser coils are not obstructed by furniture or debris, as this can force the compressor to work harder, increasing energy consumption by 15–25%. Cleaning these coils annually with a soft brush or vacuum can yield noticeable energy savings.
Finally, the expansion stage regulates the refrigerant’s flow and pressure, preparing it to repeat the cycle. As the high-pressure liquid passes through an expansion valve or capillary tube, it experiences a sudden drop in pressure, causing it to cool and partially evaporate. This low-pressure, low-temperature mixture then re-enters the evaporator, ready to absorb heat once more. Proper calibration of the expansion valve is crucial, as an incorrect setting can lead to inefficient cooling or frost buildup. If you notice ice accumulation in the freezer or inconsistent temperatures, consult a technician to adjust the valve.
In summary, the refrigeration cycle is a symphony of thermodynamic processes, each stage seamlessly transitioning into the next to maintain a cool environment. By understanding and maintaining the components involved—evaporator, compressor, condenser, and expansion valve—you can ensure your refrigerator operates efficiently and lasts longer. Practical tips, such as regular cleaning and proper ventilation, can significantly enhance performance while reducing energy consumption, making this cycle not just a scientific principle but a cornerstone of household efficiency.
Buffalo Chicken Dip Refrigeration: How Long Does It Last?
You may want to see also
Frequently asked questions
The refrigerator works on the principle of removing heat from a confined space and expelling it into the surrounding environment. It uses a refrigeration cycle involving compression, condensation, expansion, and evaporation of a refrigerant to achieve cooling.
The refrigerant is a chemical compound that absorbs and releases heat as it changes from a gas to a liquid and vice versa. It circulates through the refrigerator's components (compressor, condenser, expansion valve, and evaporator) to transfer heat from inside the fridge to the outside.
The key components are the compressor (which pressurizes the refrigerant), the condenser (which releases heat to the surroundings), the expansion valve (which reduces pressure and temperature), and the evaporator (which absorbs heat from the refrigerator's interior, cooling it down).
