Ella Walter

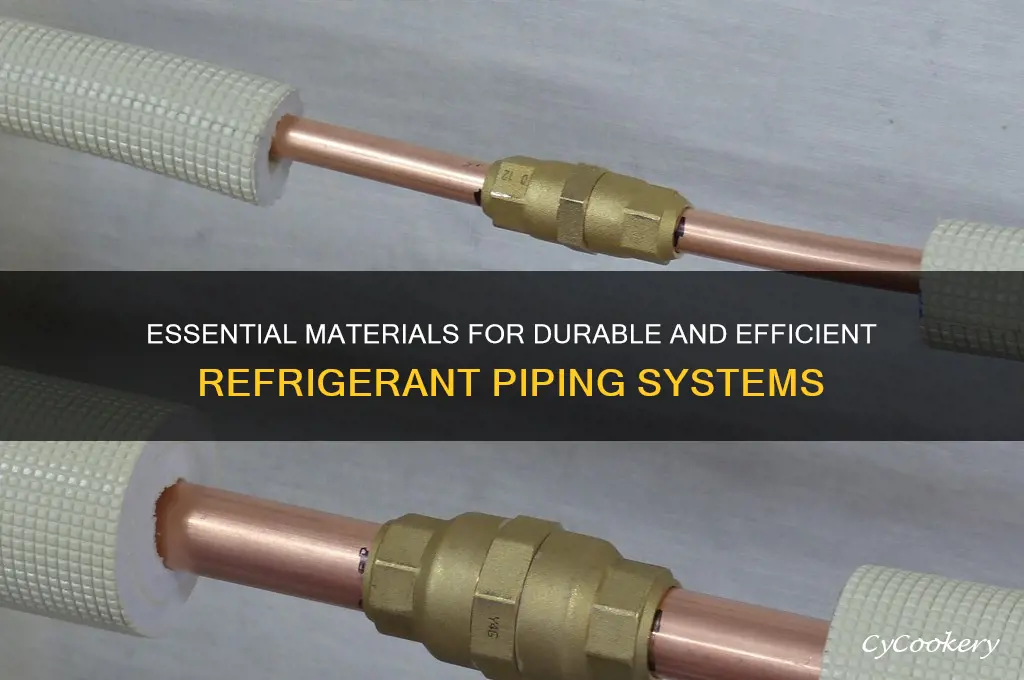

Refrigerant piping is a critical component in HVAC and refrigeration systems, and the choice of materials significantly impacts efficiency, durability, and safety. Commonly used materials include copper, which is favored for its excellent thermal conductivity, corrosion resistance, and ease of installation, making it ideal for most applications. Stainless steel is another option, particularly in environments with high moisture or corrosive substances, due to its superior resistance to rust and chemical degradation. For larger systems or industrial applications, carbon steel is often employed, though it requires protective coatings to prevent corrosion. Additionally, aluminum and plastic piping, such as PEX or PVC, are occasionally used in specific scenarios, though they are less common due to limitations in pressure ratings and compatibility with certain refrigerants. The selection of material depends on factors like system requirements, environmental conditions, and cost considerations.
| Characteristics | Values |
|---|---|
| Material Types | Copper, Steel (Carbon & Stainless), Aluminum, Brass, Plastic (PEX, PVC), Composite |
| Commonly Used | Copper, Steel |
| Corrosion Resistance | Copper (High), Stainless Steel (High), Carbon Steel (Low without coating), Aluminum (Moderate), Brass (Moderate) |
| Thermal Conductivity | Copper (High), Aluminum (High), Steel (Moderate), Brass (Moderate) |
| Pressure Rating | Steel (High), Copper (Moderate), Aluminum (Moderate), Plastic (Low) |
| Cost | Copper (High), Aluminum (Moderate), Steel (Moderate), Plastic (Low) |
| Flexibility | Copper (Moderate), Aluminum (Moderate), Plastic (High), Steel (Low) |
| Ease of Installation | Copper (Moderate), Aluminum (Easy), Plastic (Easy), Steel (Difficult) |
| Compatibility with Refrigerants | Copper (Excellent with most), Steel (Good with most, avoid acidic refrigerants), Aluminum (Good with most, avoid ammonia), Brass (Limited use due to dezincification) |
| Environmental Impact | Copper (Recyclable), Aluminum (Recyclable), Steel (Recyclable), Plastic (Less environmentally friendly) |
| Applications | Copper (Widely used in HVAC, refrigeration), Steel (Commercial & industrial systems), Aluminum (Residential & light commercial), Plastic (Limited to low-pressure systems) |
Explore related products
What You'll Learn
- Copper Tubing: Commonly used for its durability, corrosion resistance, and excellent heat transfer properties
- Steel Piping: Preferred for high-pressure systems due to strength, often galvanized to prevent rust
- Aluminum Tubing: Lightweight and cost-effective, ideal for low-pressure refrigerant applications
- Brass Fittings: Used for connections due to malleability, corrosion resistance, and ease of soldering
- Insulation Materials: Foam, rubber, or fiberglass wraps to prevent condensation and energy loss
Copper Tubing: Commonly used for its durability, corrosion resistance, and excellent heat transfer properties
Copper tubing stands as a cornerstone in refrigerant piping systems, prized for its exceptional durability, corrosion resistance, and thermal conductivity. These properties make it a go-to choice for HVAC and refrigeration applications where reliability and efficiency are non-negotiable. Unlike materials prone to rust or degradation, copper maintains its integrity even in harsh environments, ensuring long-term performance without compromising system efficiency. Its ability to withstand extreme temperatures, from sub-zero chillers to high-pressure heat pumps, further cements its versatility across diverse climates and operational demands.
From an installation perspective, copper tubing offers practical advantages that streamline the process. Its malleability allows for easy bending and shaping, reducing the need for additional fittings and minimizing potential leak points. Soldering copper joints creates a secure, leak-proof seal, a critical factor in maintaining refrigerant containment and system safety. However, installers must exercise caution to avoid overheating during soldering, as excessive heat can anneal the copper, weakening its structure. Proper flux application and controlled heat input are essential to preserve the tubing’s integrity.
A comparative analysis highlights copper’s superiority over alternatives like steel or aluminum. While steel offers strength, it lacks copper’s corrosion resistance and thermal efficiency, often requiring additional coatings that add complexity and cost. Aluminum, though lightweight, is more susceptible to fatigue and chemical corrosion, particularly in acidic environments. Copper’s natural oxide layer acts as a protective barrier, enhancing its longevity without the need for supplementary treatments. This inherent resilience translates to lower maintenance costs and fewer system disruptions over time.
For optimal performance, selecting the appropriate copper tubing grade is crucial. Type L copper, with its thicker walls, is ideal for high-pressure applications like commercial refrigeration systems. Type M, thinner and more cost-effective, suits residential HVAC setups where pressure demands are lower. Proper insulation is equally vital to prevent condensation and energy loss. Pairing copper tubing with closed-cell foam insulation maximizes efficiency, ensuring the refrigerant’s temperature remains stable throughout the system.
In conclusion, copper tubing’s dominance in refrigerant piping is no accident. Its durability, corrosion resistance, and heat transfer capabilities address the core needs of HVAC and refrigeration systems. By understanding its strengths and application nuances, professionals can leverage copper to build robust, efficient, and long-lasting systems. Whether for a small residential unit or a large industrial chiller, copper tubing remains a reliable foundation for optimal performance.
Famotidine Suspension Storage: Does It Require Refrigeration?
You may want to see also
Explore related products
![Piping Cord Trim, 5 Yards Polyester 1/2 Inch Satin Piping Bias Tape with Welting Cord for Sewing/Upholstery Trim/Slipcovers/DIY Decor, Lip Tape [Black]](https://m.media-amazon.com/images/I/61Web8pqaSL._AC_UL320_.jpg)
Steel Piping: Preferred for high-pressure systems due to strength, often galvanized to prevent rust
Steel piping stands out as the material of choice for high-pressure refrigerant systems, primarily due to its exceptional tensile strength and durability. Unlike copper or aluminum, steel can withstand the extreme pressures exerted by refrigerants like ammonia or carbon dioxide, making it ideal for industrial applications such as large-scale refrigeration plants or HVAC systems in skyscrapers. Its ability to resist deformation under stress ensures long-term reliability, a critical factor in environments where system failure could lead to costly downtime or safety hazards.
However, steel’s Achilles’ heel is its susceptibility to corrosion, particularly in humid or outdoor environments. To combat this, galvanization—a process where a zinc coating is applied to the steel surface—is commonly employed. This protective layer acts as a barrier, shielding the steel from moisture and oxygen, the primary culprits behind rust formation. For optimal results, hot-dip galvanizing is recommended, as it provides a thicker, more adherent coating compared to electro-galvanizing. Properly galvanized steel piping can last decades, even in harsh conditions, making it a cost-effective solution for long-term installations.
When installing steel refrigerant piping, precision is key. The material’s rigidity requires careful planning to accommodate bends and joints, often necessitating the use of specialized tools like pipe benders or welding equipment. It’s crucial to avoid sharp bends or excessive force, as these can weaken the steel and compromise its integrity. Additionally, ensure all connections are leak-proof by using compatible fittings and sealing materials, such as Teflon tape or O-rings. Regular inspections for signs of corrosion or wear, especially in exposed areas, will further extend the system’s lifespan.
Comparatively, while copper and aluminum offer advantages like flexibility and lighter weight, they fall short in high-pressure scenarios. Copper, for instance, can anneal under extreme stress, leading to leaks or failures, while aluminum’s lower strength limits its use in demanding applications. Steel, on the other hand, strikes a balance between strength and practicality, particularly when galvanized. For projects requiring robust, long-lasting refrigerant lines, steel piping remains unmatched, provided its installation and maintenance are executed with care.
Refrigerating Banana Bread Batter: Tips for Freshness and Flavor
You may want to see also
Explore related products
Aluminum Tubing: Lightweight and cost-effective, ideal for low-pressure refrigerant applications
Aluminum tubing stands out as a lightweight and cost-effective solution for low-pressure refrigerant applications, making it a popular choice in HVAC and refrigeration systems. Its density is approximately one-third that of steel, reducing transportation and installation costs while simplifying handling on job sites. This material’s corrosion resistance, particularly when coated or anodized, ensures longevity in environments where moisture or chemicals might degrade other metals. For instance, aluminum tubing is often used in split air conditioning systems, where its ease of bending and joining allows for flexible installation in tight spaces.
When selecting aluminum tubing, consider the system’s operating pressure and temperature. Aluminum is ideal for low-pressure refrigerants like R-410A or R-32, but it is not suited for high-pressure applications due to its lower tensile strength compared to steel or copper. The tubing’s wall thickness should comply with industry standards, such as ASTM B241, to ensure structural integrity. For example, a typical 1-inch aluminum tube might have a wall thickness of 0.065 inches, balancing durability with weight savings. Always verify compatibility with refrigerants and oils to prevent degradation or leaks.
Installation of aluminum tubing requires specific techniques to maintain efficiency and safety. Use a tubing bender with mandrels to avoid kinking, and ensure all connections are leak-proof by employing proper brazing or mechanical fittings. Aluminum’s thermal conductivity, while lower than copper, still allows for efficient heat transfer in low-pressure systems. However, avoid over-tightening fittings, as aluminum is softer and more prone to deformation. Regularly inspect joints for signs of wear or corrosion, especially in outdoor units exposed to weather.
One of the most compelling advantages of aluminum tubing is its cost-effectiveness. Compared to copper, which can be two to three times more expensive, aluminum offers significant savings without compromising performance in suitable applications. Its recyclability further reduces environmental impact, aligning with sustainable construction practices. For small-scale projects, such as residential heat pumps, aluminum tubing can lower material costs by up to 40%, making it an attractive option for budget-conscious installations.
In summary, aluminum tubing is a practical choice for low-pressure refrigerant systems, combining lightweight design, affordability, and ease of installation. While it may not suit high-pressure or extreme temperature applications, its properties align well with modern HVAC demands. By adhering to proper installation practices and material specifications, professionals can maximize the benefits of aluminum tubing, ensuring efficient and durable refrigerant piping solutions.
Refrigerating Sandwiches: Best Practices for Freshness and Safety
You may want to see also
Explore related products
Brass Fittings: Used for connections due to malleability, corrosion resistance, and ease of soldering
Brass fittings are a cornerstone in refrigerant piping systems, prized for their unique combination of malleability, corrosion resistance, and ease of soldering. These properties make brass an ideal material for creating secure, leak-free connections in HVAC and refrigeration systems. Malleability allows brass fittings to be shaped and adjusted during installation, ensuring a precise fit even in complex configurations. This flexibility reduces the risk of stress fractures and joint failures, which are critical in systems handling high-pressure refrigerants.
Corrosion resistance is another key advantage of brass fittings. Refrigerant systems often operate in environments with varying humidity and temperature levels, conditions that can accelerate corrosion in less durable materials. Brass, however, forms a protective patina that shields it from oxidation and degradation, prolonging the lifespan of the piping system. This resistance is particularly important in systems using ammonia or other corrosive refrigerants, where material integrity is non-negotiable.
The ease of soldering brass fittings is a practical benefit that simplifies installation and maintenance. Brass has a lower melting point than many other metals, allowing it to be soldered with readily available tools and materials. This not only reduces labor costs but also minimizes the risk of damage to surrounding components during the soldering process. For technicians, the ability to quickly and securely join brass fittings is a significant time-saver, especially in large-scale installations or emergency repairs.
Despite its advantages, brass is not without limitations. It is less suitable for systems using certain refrigerants, such as those containing high levels of moisture or acids, which can accelerate dezincification—a form of corrosion specific to brass. In such cases, alternative materials like stainless steel or copper may be more appropriate. However, for most standard refrigerant applications, brass remains a reliable and cost-effective choice.
In practice, selecting the right brass fittings involves considering factors like system pressure, refrigerant type, and environmental conditions. For instance, lead-free brass fittings are increasingly preferred in residential and commercial systems to comply with health and safety regulations. Additionally, using flux specifically designed for brass ensures a strong, clean solder joint. By understanding these nuances, technicians can maximize the benefits of brass fittings while mitigating potential drawbacks, ensuring a robust and efficient refrigerant piping system.
Can Kimchi Be Refrigerated? Storage Tips for Perfect Fermentation
You may want to see also
Explore related products
Insulation Materials: Foam, rubber, or fiberglass wraps to prevent condensation and energy loss
Insulation is critical for refrigerant piping to prevent condensation and energy loss, ensuring system efficiency and longevity. Among the most effective materials are foam, rubber, and fiberglass wraps, each offering unique advantages depending on the application. Foam insulation, typically made from polyethylene or elastomeric foam, is lightweight and easy to install. It provides excellent thermal resistance, making it ideal for both low and high-temperature applications. For instance, elastomeric foam can withstand temperatures ranging from -40°F to 220°F, ensuring versatility across various HVAC systems. Its closed-cell structure also acts as a vapor barrier, reducing the risk of moisture infiltration that could lead to corrosion or mold growth.
Rubber insulation, often composed of EPDM (ethylene propylene diene monomer) or neoprene, excels in flexibility and durability. This material is particularly suited for piping systems with irregular shapes or bends, as it can be easily cut and molded to fit snugly. Rubber’s natural resistance to water and chemicals makes it a reliable choice in humid or corrosive environments. However, it may degrade over time when exposed to UV radiation, necessitating additional protection in outdoor installations. For optimal performance, rubber insulation should be installed with a thickness of at least 1/2 inch, depending on the pipe diameter and operating temperature.
Fiberglass wraps, while less flexible than foam or rubber, offer superior thermal performance and fire resistance. This material is composed of fine glass fibers bonded with a thermosetting resin, providing a rigid yet effective barrier against heat transfer. Fiberglass is often used in commercial and industrial settings where high temperatures or fire safety regulations are a concern. However, its installation requires caution due to the risk of skin irritation from glass fibers. Wearing protective gloves and a mask is essential during application. Additionally, fiberglass insulation must be paired with a vapor retarder to prevent moisture absorption, which can compromise its insulating properties.
When selecting among these materials, consider the specific demands of your refrigerant system. For example, foam insulation is best for residential HVAC systems due to its ease of installation and cost-effectiveness. Rubber insulation is ideal for complex piping layouts or outdoor units, provided it is shielded from direct sunlight. Fiberglass, while more labor-intensive to install, is the top choice for high-temperature applications or environments requiring fire-resistant materials. Regardless of the material chosen, proper installation is key to maximizing insulation performance. Ensure tight seams and secure fastening to avoid gaps that could lead to condensation or heat loss. Regular inspections and maintenance will further extend the lifespan of the insulation and the piping system as a whole.
Butter Bundt Cake Storage: To Refrigerate or Not?
You may want to see also
Frequently asked questions
The most common materials used for refrigerant piping are copper, steel, and aluminum. Copper is the most popular due to its excellent thermal conductivity, corrosion resistance, and ease of installation.
Plastic piping, such as PEX or PVC, is generally not recommended for refrigerant lines due to its lower pressure ratings, limited temperature resistance, and potential for degradation over time. It is not commonly used in HVAC systems for refrigerant transport.
Yes, stainless steel is a suitable material for refrigerant piping, especially in applications requiring high corrosion resistance or where copper is not preferred. It is durable but more expensive and less thermally conductive than copper.
Galvanized steel is not typically used for refrigerant lines because the zinc coating can react with moisture in the system, leading to corrosion and potential blockages. It is generally avoided in favor of copper or stainless steel.
Key factors include the type of refrigerant used, operating pressures and temperatures, corrosion resistance, thermal conductivity, cost, and ease of installation. Compliance with local codes and standards is also essential.
