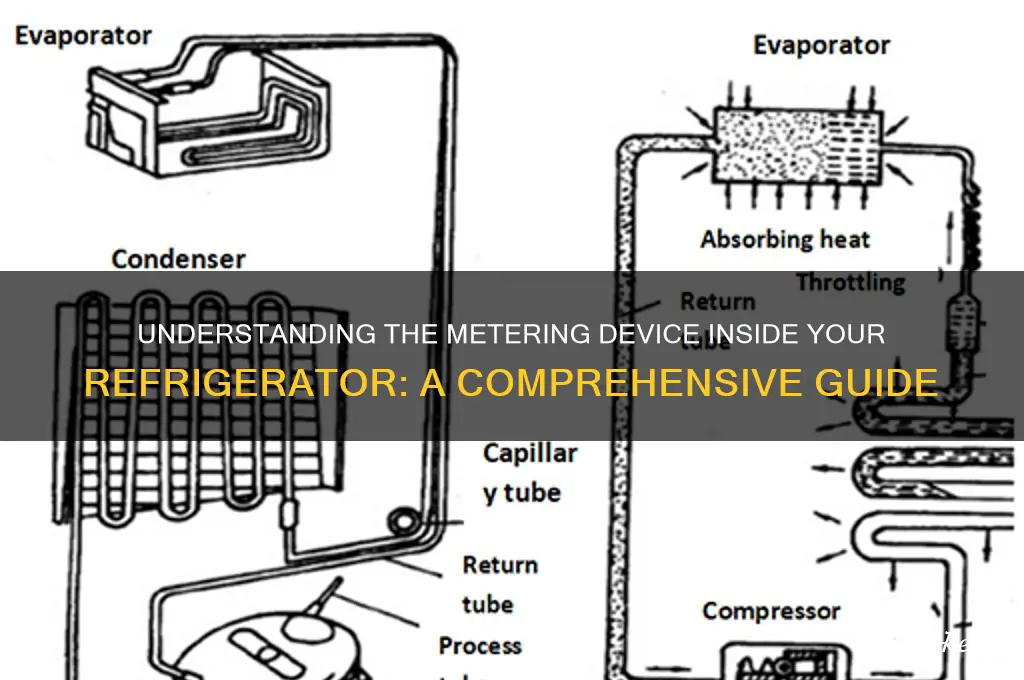

A refrigerator operates by removing heat from its interior to maintain a cool temperature, and this process relies on a precise refrigeration cycle. Central to this cycle is the metering device, which plays a critical role in regulating the flow of refrigerant into the evaporator. The metering device ensures that the refrigerant enters the evaporator at the correct pressure and temperature, allowing it to absorb heat efficiently. Common types of metering devices found in refrigerators include capillary tubes, thermal expansion valves (TXVs), and electronic expansion valves (EXVs), each with its own mechanism for controlling refrigerant flow. Understanding the type of metering device in a refrigerator is essential for diagnosing issues, optimizing performance, and ensuring energy efficiency.
Explore related products
What You'll Learn
- Capillary Tube: Thin tube regulating refrigerant flow by restricting diameter, ensuring proper pressure drop
- Thermal Expansion Valve: Automatically adjusts refrigerant flow based on evaporator temperature and load
- Fixed Orifice: Simple, non-adjustable metering device used in smaller refrigeration systems
- Electronic Expansion Valve: Precise control via electronic signals, optimizing efficiency in modern refrigerators
- Float Valve: Uses liquid level to control refrigerant flow, common in older systems
Capillary Tube: Thin tube regulating refrigerant flow by restricting diameter, ensuring proper pressure drop
The capillary tube is a critical yet often overlooked component in refrigeration systems, serving as the metering device that regulates refrigerant flow. This thin, copper tube—typically ranging from 0.04 to 0.2 inches in diameter and 2 to 12 feet in length—operates on a simple principle: restricting the refrigerant’s path to create a pressure drop. This drop is essential for converting high-pressure liquid refrigerant into low-pressure, low-temperature liquid-vapor mixture, which then enters the evaporator coil to absorb heat. Without this precise regulation, the system would either flood with refrigerant or starve, leading to inefficiency or failure.
Consider the analogy of a garden hose with a partially blocked nozzle. As water flows through the restriction, its pressure drops, and its velocity increases. Similarly, the capillary tube’s narrow diameter forces the refrigerant to slow down, creating a backpressure that ensures only the necessary amount reaches the evaporator. This design is particularly effective in smaller refrigeration systems, such as household refrigerators, due to its simplicity, low cost, and reliability. However, it’s not without limitations—the tube’s fixed diameter means it cannot adjust to varying loads, making it unsuitable for systems requiring precise temperature control under fluctuating conditions.
Installing or replacing a capillary tube requires careful attention to detail. The tube’s length and diameter must match the system’s specifications, as deviations can disrupt the pressure drop and refrigerant flow rate. For instance, a tube that’s too long or too narrow will restrict flow excessively, causing the evaporator to starve and reducing cooling capacity. Conversely, a tube that’s too short or wide will allow too much refrigerant, leading to flooding and potential compressor damage. Always consult the manufacturer’s guidelines or use a refrigerant charging calculator to determine the correct dimensions for your system.
One practical tip for troubleshooting capillary tube issues is to check for blockages or kinks, which can severely impair performance. Even a slight bend or debris buildup can restrict flow, causing the system to underperform. If you suspect a problem, carefully inspect the tube for physical damage or use a flow meter to measure refrigerant velocity. In some cases, cleaning or straightening the tube may resolve the issue, but replacement is often the most reliable solution. Remember, the capillary tube’s role is to maintain balance—any disruption can throw the entire system off.
In comparison to other metering devices like thermostatic expansion valves (TXVs), the capillary tube lacks the ability to modulate refrigerant flow dynamically. TXVs, for example, use a sensing bulb to adjust flow based on evaporator temperature, making them ideal for systems with variable loads. However, the capillary tube’s simplicity and affordability make it the go-to choice for smaller, less complex applications. For homeowners or technicians working on standard refrigerators, understanding the capillary tube’s function and limitations is key to diagnosing and resolving cooling issues efficiently.
DIY Guide: Repairing and Reassembling Your Refrigerator Door Seal Easily
You may want to see also
Explore related products
Thermal Expansion Valve: Automatically adjusts refrigerant flow based on evaporator temperature and load
The thermal expansion valve (TXV) is a critical component in modern refrigeration systems, serving as the metering device that regulates refrigerant flow with precision. Unlike fixed orifices or capillary tubes, which offer static resistance, the TXV dynamically adjusts to changing conditions within the evaporator. This adaptability ensures optimal refrigerant flow based on both evaporator temperature and system load, maintaining efficiency across varying demands. For instance, during peak cooling periods, the TXV opens wider to allow more refrigerant, while it restricts flow during lighter loads to prevent overfeeding and inefficiency.
To understand its operation, consider the TXV’s internal mechanism. It consists of a sensing bulb attached to the evaporator outlet, which detects the superheat—the temperature difference between the refrigerant vapor leaving the evaporator and its saturation temperature. If superheat increases (indicating insufficient refrigerant), the TXV opens further; if it decreases (signaling overfeeding), the valve closes. This feedback loop ensures the evaporator operates at peak efficiency, typically maintaining a superheat value of 8–12°F (4–7°C), depending on the system design. Proper calibration is essential, as deviations can lead to freezing of the suction line or inadequate cooling.
From a practical standpoint, installing or servicing a TXV requires attention to detail. The sensing bulb must be securely fastened to the evaporator outlet, ensuring accurate temperature sensing. Additionally, the TXV should be oriented vertically or at a slight angle to prevent liquid refrigerant from pooling and impairing its function. Technicians often use a charging cylinder to add refrigerant gradually while monitoring superheat, adjusting the charge until the target range is achieved. Regular maintenance, such as cleaning the strainer to prevent debris buildup, is crucial to prolonging the TXV’s lifespan and ensuring consistent performance.
Comparatively, the TXV offers distinct advantages over other metering devices. Capillary tubes, for example, are simpler and less expensive but lack the ability to adjust to load changes, leading to inefficiency under varying conditions. Similarly, fixed orifices provide no modulation, resulting in either overfeeding or underfeeding depending on the load. The TXV’s ability to self-regulate makes it ideal for applications requiring precise temperature control, such as household refrigerators, air conditioners, and commercial freezers. Its higher initial cost is offset by improved energy efficiency and system longevity.
In conclusion, the thermal expansion valve is a sophisticated solution for refrigerant metering, offering automatic adjustments that enhance system performance and reliability. By responding to real-time evaporator conditions, it ensures consistent cooling efficiency, reduces energy consumption, and minimizes wear on components. Whether for residential or commercial use, understanding and properly maintaining the TXV is key to maximizing the effectiveness of any refrigeration system. Its role as a dynamic metering device underscores its importance in achieving both operational precision and sustainability.
Storing Cubed Chicken: Refrigeration Tips for Freshness and Safety
You may want to see also
Explore related products
Fixed Orifice: Simple, non-adjustable metering device used in smaller refrigeration systems
In the heart of every refrigerator lies a metering device, a critical component that regulates the flow of refrigerant, ensuring efficient cooling. Among the various types, the fixed orifice stands out for its simplicity and reliability, particularly in smaller refrigeration systems. Unlike its adjustable counterparts, this device is a one-size-fits-all solution, permanently set to a specific diameter that restricts refrigerant flow based on the system’s design. This non-adjustable nature eliminates the need for complex calibration, making it cost-effective and ideal for compact appliances like mini-fridges, beverage coolers, and small air conditioning units.
From an analytical perspective, the fixed orifice operates on the principle of creating a pressure drop between the high-pressure liquid line and the low-pressure evaporator. This drop causes the refrigerant to expand and evaporate, absorbing heat from the refrigerator’s interior. The orifice’s size is meticulously calculated during the system’s design phase to match the refrigerant type, capacity, and desired cooling performance. For instance, R-134a systems often use orifices with diameters ranging from 0.06 to 0.12 inches, depending on the appliance’s size and cooling load. This precision ensures optimal efficiency without overloading the compressor or causing insufficient cooling.
For those considering DIY repairs or upgrades, understanding the fixed orifice’s limitations is crucial. Unlike thermostatic expansion valves (TXVs), which adjust refrigerant flow based on evaporator temperature, a fixed orifice cannot compensate for varying conditions such as ambient temperature changes or partial loads. This means that while it performs well under consistent conditions, its efficiency may drop in fluctuating environments. For example, a fixed orifice in a mini-fridge placed near a window may struggle to maintain consistent cooling on a hot summer day. Practical advice: if your refrigerator uses a fixed orifice and experiences inconsistent cooling, consider relocating it to a more stable environment rather than attempting to modify the metering device.
Comparatively, the fixed orifice’s simplicity is both its strength and weakness. Its lack of moving parts reduces the risk of mechanical failure, a common issue with more complex metering devices. However, this simplicity also limits its adaptability, making it unsuitable for larger or more dynamic systems. For instance, a household refrigerator with a fixed orifice would likely underperform compared to one with a TXV in a kitchen with frequent door openings. When choosing a refrigeration system, weigh the benefits of reliability and cost against the need for flexibility and precision.
In conclusion, the fixed orifice is a testament to the adage “less is more” in engineering. Its straightforward design and low cost make it a staple in smaller refrigeration systems, where consistency and simplicity outweigh the need for adaptability. Whether you’re a homeowner troubleshooting a mini-fridge or an engineer designing a compact cooling solution, understanding the fixed orifice’s role and limitations ensures you make informed decisions. Remember, while it may not be the most versatile metering device, its reliability in the right application is unmatched.
How to Safely Reboot Your Refrigerator: A Step-by-Step Guide
You may want to see also
Explore related products
Electronic Expansion Valve: Precise control via electronic signals, optimizing efficiency in modern refrigerators
Modern refrigerators demand precision in temperature control, and the electronic expansion valve (EEV) stands at the forefront of this innovation. Unlike traditional mechanical valves, EEVs respond to electronic signals from a control module, adjusting refrigerant flow with pinpoint accuracy. This dynamic control ensures optimal cooling performance across varying loads and ambient temperatures, a critical feature in energy-efficient designs. For instance, during periods of high demand, such as frequent door openings, the EEV can modulate refrigerant flow to maintain consistent temperatures without overcooling or undercooling. This adaptability not only enhances efficiency but also extends the lifespan of the refrigeration system by reducing unnecessary strain on components.
The operation of an EEV involves a stepper motor or solenoid that adjusts the valve opening based on feedback from sensors monitoring evaporator superheat. This real-time data allows the system to fine-tune refrigerant flow, ensuring the evaporator operates at its most efficient state. For example, in a typical household refrigerator, an EEV might adjust its position in increments as small as 1° to maintain a superheat level of 5°F to 10°F, optimizing heat absorption and energy use. This level of precision is unattainable with fixed orifice tubes or thermostatic expansion valves, which rely on passive mechanisms and lack the ability to adapt to changing conditions.
Implementing an EEV in a refrigerator requires careful calibration to align with the system’s specific needs. Technicians must program the control module to interpret sensor data accurately and respond with appropriate valve adjustments. For DIY enthusiasts or homeowners troubleshooting their systems, understanding the EEV’s role is crucial. If the refrigerator fails to maintain consistent temperatures, the EEV or its control circuitry may be at fault. Common issues include motor failure, sensor malfunctions, or blockages in the valve itself. Regular maintenance, such as cleaning the evaporator coil and ensuring proper refrigerant charge, can prevent these problems and maximize the EEV’s efficiency.
From a comparative standpoint, EEVs outperform traditional metering devices in both performance and versatility. While fixed orifice tubes are simple and cost-effective, they lack the ability to adjust to changing conditions, leading to inefficiencies. Thermostatic expansion valves offer some adaptability but are limited by their reliance on mechanical responses to temperature changes. EEVs, however, integrate seamlessly with smart refrigeration systems, enabling features like defrost cycles, rapid cooling modes, and energy-saving algorithms. For example, during a defrost cycle, the EEV can temporarily halt refrigerant flow to the evaporator, preventing ice buildup while minimizing energy consumption.
In conclusion, the electronic expansion valve represents a leap forward in refrigeration technology, offering precise control and optimized efficiency through electronic signaling. Its ability to adapt to real-time conditions ensures consistent performance, reduces energy waste, and enhances system longevity. Whether in residential or commercial applications, the EEV’s role in modern refrigerators is undeniable, making it a cornerstone of contemporary cooling solutions. For those seeking to upgrade their refrigeration systems or troubleshoot existing ones, understanding the EEV’s function and maintenance requirements is essential to harnessing its full potential.
Upgrade Your RV Kitchen: A Guide to Installing a New Refrigerator
You may want to see also
Explore related products
Float Valve: Uses liquid level to control refrigerant flow, common in older systems
Float valves, once the backbone of refrigeration systems, offer a fascinating glimpse into the evolution of cooling technology. These devices, prevalent in older refrigerators, operate on a simple yet ingenious principle: leveraging the liquid level of refrigerant to regulate its flow. Imagine a buoyant mechanism, akin to a boat on water, rising and falling with the refrigerant's surface. This movement directly controls the valve's opening, ensuring a consistent supply of refrigerant to the evaporator while preventing overfeeding. It’s a mechanical dance that balances efficiency and simplicity, a hallmark of pre-digital engineering.
To understand the float valve’s operation, picture a sealed chamber within the refrigerator’s system. As refrigerant liquid enters this chamber, a float—typically a hollow, lightweight object—rises with the increasing level. This upward movement actuates a lever or linkage connected to the valve, gradually closing it as the chamber fills. Conversely, as refrigerant evaporates and the liquid level drops, the float descends, reopening the valve to allow more refrigerant in. This self-regulating mechanism ensures the evaporator receives the right amount of refrigerant, maintaining optimal cooling performance without relying on external sensors or electronics.
Despite their reliability, float valves are not without limitations. Their dependence on gravity and mechanical components makes them susceptible to issues like float sticking, debris buildup, or misalignment, which can disrupt refrigerant flow. Additionally, their bulkier design and sensitivity to system orientation (they must be installed level) make them less adaptable than modern alternatives like capillary tubes or thermal expansion valves. These drawbacks, coupled with advancements in refrigeration technology, have largely relegated float valves to legacy systems or specialized applications.
For those maintaining older refrigerators with float valves, regular inspection and cleaning are critical. Ensure the float moves freely within its chamber and that the valve linkage isn’t obstructed. If the system isn’t cooling effectively, check for refrigerant leaks or a stuck float, which may require professional attention. While float valves may seem outdated, their durability and straightforward design mean many still function reliably decades after installation. Understanding their mechanics can empower homeowners to troubleshoot issues and extend the life of vintage appliances.
In the broader context of refrigeration history, float valves represent a pivotal step in the quest for efficient cooling. They bridged the gap between rudimentary systems and the sophisticated, electronically controlled units of today. While no longer the go-to choice for new installations, their legacy endures as a testament to the ingenuity of early refrigeration engineers. For enthusiasts or technicians working with older systems, mastering the float valve’s intricacies isn’t just a practical skill—it’s a connection to the roots of modern refrigeration.
Why AC Systems Gradually Lose Refrigerant Over Time: Causes and Solutions
You may want to see also
Frequently asked questions
The most common metering device in a refrigerator is a capillary tube, which regulates the flow of refrigerant into the evaporator.
A capillary tube functions by creating a pressure drop, which reduces the refrigerant pressure and allows it to expand into the evaporator, where it absorbs heat from the refrigerator.
Yes, other metering devices include thermal expansion valves (TXVs) and electronic expansion valves (EXVs), which offer more precise control over refrigerant flow compared to capillary tubes.
Capillary tubes are preferred due to their simplicity, low cost, and reliability, making them ideal for standard residential refrigeration systems.
