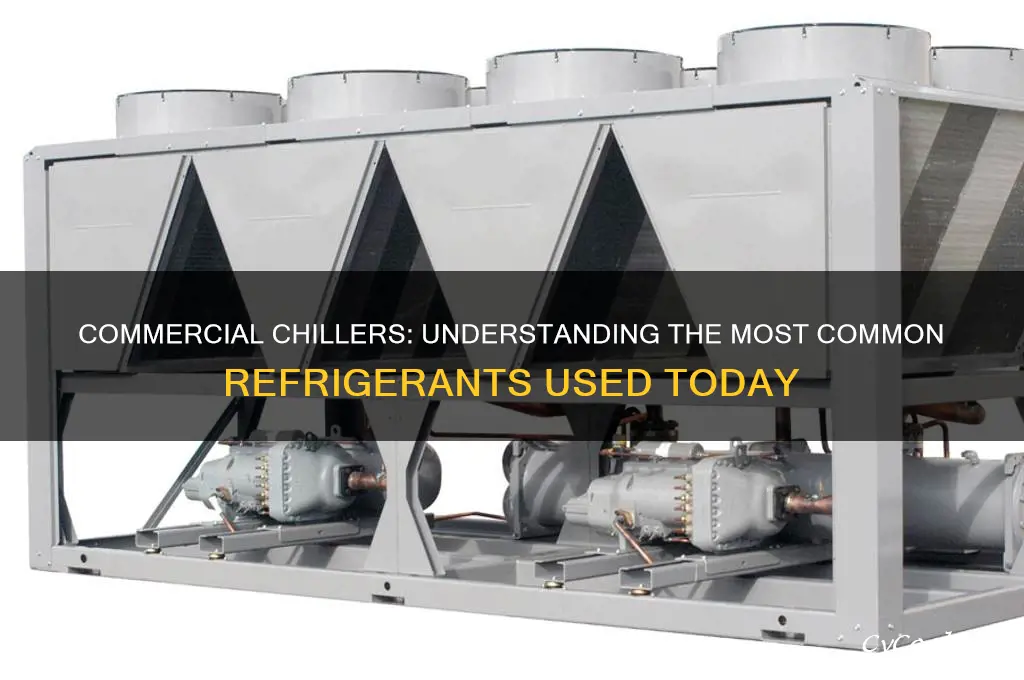

Commercial chillers are essential components in HVAC and industrial cooling systems, and the choice of refrigerant plays a critical role in their efficiency, environmental impact, and compliance with regulations. Historically, chlorofluorocarbons (CFCs) and hydrochlorofluorocarbons (HCFCs) were commonly used, but due to their ozone-depleting properties, they have been phased out in favor of more environmentally friendly alternatives. Today, hydrofluorocarbons (HFCs), such as R-410A and R-134a, are widely used in commercial chillers due to their non-ozone-depleting nature, though they still contribute to global warming. Increasingly, natural refrigerants like ammonia (R-717), carbon dioxide (R-744), and hydrocarbons (e.g., propane R-290) are gaining traction for their lower global warming potential (GWP) and energy efficiency, aligning with global efforts to reduce greenhouse gas emissions and meet sustainability goals. The selection of refrigerant depends on factors such as application requirements, system design, and regulatory standards.
| Characteristics | Values |
|---|---|
| Common Refrigerants | R-134a, R-410A, R-407C, R-404A, R-513A, R-1234ze, R-1234yf, R-717 (Ammonia), R-744 (CO₂) |
| Global Warming Potential (GWP) | Varies: R-134a (1,430), R-410A (2,088), R-407C (1,770), R-513A (631), R-1234ze (6), R-717 (0), R-744 (1) |
| Ozone Depletion Potential (ODP) | Zero for all modern refrigerants (e.g., R-134a, R-410A, R-407C, R-513A, R-1234ze, R-1234yf) |
| Energy Efficiency | R-410A and R-513A are highly efficient; CO₂ (R-744) is efficient in transcritical cycles |
| Operating Pressure | High-pressure refrigerants: R-410A, R-407C; Low-pressure: R-717, R-744 |
| Toxicity | R-717 (Ammonia) is toxic; R-134a, R-410A, R-513A, R-1234ze are non-toxic |
| Flammability | R-1234ze and R-1234yf are mildly flammable; R-717 is flammable; Others are non-flammable |
| Applications | R-134a, R-410A, R-407C for medium-temp cooling; R-717 for industrial; R-744 for large-scale systems |
| Phaseout Status | R-404A and R-507 are being phased out due to high GWP; Low-GWP alternatives (R-513A, R-1234ze) are preferred |
| Environmental Impact | Low-GWP refrigerants (R-513A, R-1234ze, R-717, R-744) are environmentally friendly |
| Cost | R-134a and R-410A are cost-effective; Low-GWP alternatives may be more expensive initially |
Explore related products
What You'll Learn
Common Refrigerants in Commercial Chillers
Commercial chillers rely heavily on refrigerants to efficiently transfer heat, and the choice of refrigerant significantly impacts performance, environmental footprint, and compliance with regulations. Historically, chlorofluorocarbons (CFCs) like R-12 and hydrochlorofluorocarbons (HCFCs) like R-22 were widely used due to their excellent thermodynamic properties. However, their ozone-depleting potential led to their phaseout under the Montreal Protocol. Today, more environmentally friendly alternatives dominate the market, each with unique characteristics suited to specific applications.
One of the most prevalent refrigerants in modern commercial chillers is R-410A, a hydrofluorocarbon (HFC) blend. Known for its zero ozone depletion potential (ODP), R-410A offers superior energy efficiency compared to older refrigerants. It operates at higher pressures, requiring robust system design, but its widespread adoption is driven by its compliance with current regulations. However, R-410A has a high global warming potential (GWP) of approximately 2,088, prompting a shift toward lower-GWP alternatives as regulations tighten.
For those seeking more sustainable options, R-32 has emerged as a viable alternative. With a GWP of 675, it is significantly less harmful to the environment than R-410A. R-32 is a single-component refrigerant, simplifying system design and maintenance. Its higher efficiency and lower charge requirements make it an attractive choice for new installations, though its mild flammability (classified as A2L) necessitates careful handling and system design to ensure safety.
Another increasingly popular choice is R-134a, an HFC with a GWP of 1,430. While not as environmentally friendly as R-32, it remains a common option due to its non-flammable nature and compatibility with existing systems. However, its use is declining in favor of lower-GWP refrigerants as industries prioritize sustainability. For ultra-low temperature applications, R-513A (an HFO blend) is gaining traction, offering a GWP of just 571 and excellent energy efficiency.
When selecting a refrigerant, consider not only environmental impact but also system compatibility, operating conditions, and long-term regulatory trends. For instance, natural refrigerants like ammonia (R-717) and carbon dioxide (R-744) are gaining attention for their zero GWP and ODP. Ammonia is highly efficient but toxic and flammable, limiting its use to industrial settings. Carbon dioxide, while non-toxic, operates at high pressures, requiring specialized equipment. Each refrigerant presents a unique balance of benefits and challenges, making informed decision-making critical for optimal chiller performance and sustainability.
Refrigerating Boiled Crawfish: Safe Storage Tips and Shelf Life
You may want to see also
Explore related products
R-410A vs. R-134a in Chillers
Commercial chillers often rely on refrigerants like R-410A and R-134a, each with distinct properties influencing performance, efficiency, and environmental impact. R-410A, a hydrofluorocarbon (HFC) blend, has become a popular choice due to its higher heat transfer capabilities and energy efficiency compared to older refrigerants. It operates at higher pressures, requiring robust system design but delivering superior cooling capacity. Conversely, R-134a, another HFC, is favored for its low toxicity and non-flammability, making it suitable for smaller or retrofitted systems. However, its lower efficiency and higher global warming potential (GWP) of 1,430 (compared to R-410A’s 2,088) have led to its phasedown in certain applications under regulations like the Kigali Amendment.
When selecting between R-410A and R-134a, consider the chiller’s operating conditions and system design. R-410A’s ability to absorb and release heat more efficiently makes it ideal for high-demand commercial applications, such as large-scale HVAC systems or industrial cooling. However, its higher operating pressure necessitates thicker tubing and stronger components, increasing initial installation costs. R-134a, with its milder pressure requirements, is often chosen for smaller chillers or systems where retrofitting is more cost-effective. For example, a 10-ton chiller using R-410A may achieve 10–15% higher efficiency than one using R-134a, but the latter could be more economical for low-capacity units.
Environmental regulations are reshaping the refrigerant landscape, pushing R-410A into a transitional role. While it outperforms R-134a in efficiency, its GWP of 2,088 exceeds thresholds set by emerging standards, such as the U.S. EPA’s AIM Act. Manufacturers are increasingly turning to lower-GWP alternatives like R-32 or natural refrigerants (e.g., ammonia, CO₂), but R-410A remains a bridge solution for many existing systems. R-134a, despite its lower GWP, faces stricter restrictions in new equipment due to its inefficiency, limiting its long-term viability.
Practical considerations for maintenance and safety further differentiate these refrigerants. R-410A systems require technicians trained to handle high-pressure environments, with specialized tools and safety protocols. R-134a, being less volatile, is easier to manage but demands careful monitoring to avoid leaks, as its ozone depletion potential (ODP) is zero but its GWP remains significant. For instance, a leak in an R-134a system releases 1,430 times more heat-trapping gas than CO₂, underscoring the need for regular inspections.
In summary, the choice between R-410A and R-134a hinges on balancing efficiency, cost, and compliance. R-410A offers superior performance for high-capacity chillers but comes with higher upfront costs and regulatory uncertainty. R-134a suits smaller, budget-conscious applications but falls short in efficiency and environmental impact. As the industry shifts toward sustainable alternatives, understanding these trade-offs ensures informed decisions for both new installations and retrofits.
Refrigerate Hard-Boiled Eggs Before Coloring: Essential Tips for Vibrant Results
You may want to see also
Explore related products
Natural Refrigerants (CO2, Ammonia) Use
Commercial chillers are increasingly turning to natural refrigerants like carbon dioxide (CO₂) and ammonia (NH₃) as environmentally friendly alternatives to synthetic options. These substances have zero ozone depletion potential (ODP) and minimal global warming potential (GWP), aligning with global sustainability goals. CO₂, for instance, operates efficiently in transcritical systems, making it ideal for medium- and low-temperature applications. Ammonia, with its superior heat transfer properties, remains a staple in large-scale industrial refrigeration despite its toxicity and flammability concerns. Both refrigerants are not new—ammonia has been in use for over a century—but their resurgence is driven by stricter regulations on synthetic refrigerants like R-22 and R-410A.
Implementing CO₂ in commercial chillers requires careful system design due to its high operating pressures. Transcritical CO₂ systems, which operate above the refrigerant’s critical point, are optimized by integrating parallel compression or ejector technology to improve efficiency at high ambient temperatures. For example, a CO₂ chiller in a supermarket might use a gas cooler instead of a condenser, with discharge pressures reaching 1,200–1,500 psi. Maintenance teams must be trained to handle these pressures safely, and components like compressors and heat exchangers must be specifically engineered for CO₂ compatibility.
Ammonia, while highly efficient, demands stringent safety protocols due to its toxicity. In commercial chillers, ammonia is often confined to mechanical rooms with proper ventilation and leak detection systems. For instance, a 500-ton ammonia chiller in a food processing plant might require secondary containment, emergency shutdown systems, and regular staff training on handling spills. Despite these challenges, ammonia’s thermal conductivity is 2.5 times higher than synthetic refrigerants, reducing energy consumption by up to 20% in well-designed systems. Its flammability is mitigated by maintaining concentrations below the lower explosive limit (15–28% by volume in air).
The choice between CO₂ and ammonia depends on application-specific factors. CO₂ excels in retail and small-scale commercial settings, where its compact footprint and low charge requirements are advantageous. Ammonia is better suited for large industrial applications, such as cold storage warehouses or chemical plants, where its efficiency outweighs safety complexities. Hybrid systems, combining CO₂ and ammonia, are emerging as a middle ground, leveraging the benefits of both refrigerants while minimizing their drawbacks. For example, a cascaded system might use CO₂ in the low-temperature circuit and ammonia in the high-temperature circuit, optimizing performance across temperature ranges.
Adopting natural refrigerants involves upfront costs but yields long-term savings through reduced energy use and compliance with evolving regulations. Governments and organizations like the EPA and ASHRAE offer incentives for transitioning to low-GWP refrigerants, offsetting initial investments. Practical tips include conducting a thorough site assessment to determine refrigerant suitability, partnering with experienced contractors, and integrating smart controls to optimize system performance. As the industry shifts toward sustainability, natural refrigerants are not just a trend but a strategic imperative for future-proofing commercial chiller systems.
How to Check Freon Levels in Your Frigidaire Refrigerator
You may want to see also
Explore related products
Phase-Out of CFCs and HCFCs
The phase-out of chlorofluorocarbons (CFCs) and hydrochlorofluorocarbons (HCFCs) in commercial chillers has been a pivotal shift driven by environmental concerns, particularly their role in ozone depletion. CFCs, once the refrigerant of choice for their stability and efficiency, were globally banned under the Montreal Protocol in the late 1980s due to their ozone-destroying potential. HCFCs, initially seen as a transitional alternative, were also phased out by 2020 in developed countries, with developing nations following suit by 2030. This systematic elimination has forced industries to adopt more sustainable refrigerants, reshaping the commercial chiller landscape.
Analyzing the impact of this phase-out reveals a cascade of technological and operational changes. Manufacturers had to redesign chiller systems to accommodate new refrigerants like hydrofluorocarbons (HFCs), ammonia, and hydrocarbons, each with unique properties and requirements. For instance, HFCs, while ozone-friendly, have high global warming potential (GWP), prompting further transitions to low-GWP alternatives like R-32 or natural refrigerants. This evolution underscores the delicate balance between environmental compliance and system efficiency, as businesses navigate the trade-offs of each refrigerant.
From a practical standpoint, the phase-out necessitates careful planning for retrofits or replacements of existing chiller systems. Retrofitting involves modifying components like compressors, seals, and controls to handle new refrigerants, which can be costly but extends equipment lifespan. Alternatively, replacing older units with modern, eco-friendly models ensures compliance but requires significant upfront investment. Facility managers must weigh these options against operational needs, budget constraints, and regulatory deadlines to avoid penalties or disruptions.
A persuasive argument for embracing this transition lies in its long-term benefits. Beyond regulatory adherence, adopting sustainable refrigerants enhances corporate sustainability profiles, appealing to environmentally conscious stakeholders. Additionally, many low-GWP refrigerants offer improved energy efficiency, reducing operational costs over time. Governments and organizations also provide incentives, such as tax credits or grants, to offset transition expenses, making the shift more financially viable.
Comparatively, the phase-out of CFCs and HCFCs mirrors broader trends in industrial responsibility. Just as leaded gasoline and asbestos were phased out for public health, refrigerants are being reimagined to protect the planet. This historical parallel highlights the inevitability of such transitions and the importance of proactive adaptation. By learning from past shifts, industries can approach this change not as a burden but as an opportunity to innovate and lead in sustainability.
Proper Storage: How Long Can Polio Vaccine Stay in Refrigerator?
You may want to see also
Explore related products
Low-GWP Refrigerant Alternatives
Commercial chillers traditionally relied on refrigerants like R-22 and R-134a, but their high Global Warming Potential (GWP) has spurred a shift toward low-GWP alternatives. These alternatives, such as R-32, R-1234ze, and R-513A, offer significantly reduced environmental impact while maintaining system efficiency. For instance, R-32 has a GWP of 675, compared to R-410A’s 2,088, making it a popular choice in new installations. However, adopting these refrigerants requires careful consideration of system compatibility, safety protocols, and regulatory compliance.
Analyzing the performance of low-GWP refrigerants reveals both advantages and challenges. R-1234ze, for example, boasts a GWP of just 6, making it one of the most environmentally friendly options available. It is particularly effective in air-cooled chillers, where it demonstrates comparable energy efficiency to traditional refrigerants. However, its low critical temperature limits its use in high-temperature applications. Similarly, R-513A, a blend of R-1234yf and R-134a, offers a balanced GWP of 631 and is suitable for retrofitting existing systems, though it requires adjustments to system components like compressors and heat exchangers.
Instructively, transitioning to low-GWP refrigerants involves several critical steps. First, conduct a thorough system assessment to determine compatibility with the chosen refrigerant. For R-32, ensure the system can handle its flammability (classified as A2L) by upgrading seals, insulation, and safety controls. Second, train technicians on handling and servicing these refrigerants, as their properties differ from traditional options. Third, monitor system performance post-conversion to optimize efficiency and address any issues promptly. For example, R-513A systems may require recalibration of expansion valves to maintain proper refrigerant flow.
Persuasively, the benefits of low-GWP refrigerants extend beyond environmental compliance. They align with global sustainability goals, enhance corporate social responsibility, and future-proof HVAC systems against stricter regulations. For instance, the Kigali Amendment to the Montreal Protocol mandates a phasedown of high-GWP refrigerants, making low-GWP alternatives a strategic investment. Additionally, many of these refrigerants offer improved energy efficiency, reducing operational costs over time. R-1234ze, for example, can achieve up to 10% lower energy consumption in certain applications compared to R-134a.
Comparatively, the choice of low-GWP refrigerant depends on specific application needs. R-32 is ideal for small to medium-sized chillers due to its efficiency and moderate GWP, but its flammability restricts use in large systems. R-513A is versatile for retrofits, while R-1234ze excels in environments prioritizing ultra-low GWP. For example, a data center in a temperate climate might opt for R-513A to balance environmental impact and system performance, whereas a supermarket in a hot region could choose R-32 for its efficiency in high ambient temperatures.
Descriptively, the landscape of low-GWP refrigerants is evolving rapidly, driven by innovation and regulatory pressures. Manufacturers are developing new blends and pure refrigerants to meet diverse needs, while standards organizations like ASHRAE and EPA provide guidelines for safe implementation. For instance, ASHRAE’s Safety Standard 34 classifies refrigerants by toxicity and flammability, helping engineers select appropriate options. Practical tips include using leak detection tools designed for low-GWP refrigerants, as their properties can differ from traditional refrigerants, and staying updated on regional regulations to ensure compliance. This dynamic field demands proactive engagement to harness its benefits effectively.
Quickly Cool Cooked Chicken: Refrigeration Timing Tips for Food Safety
You may want to see also
Frequently asked questions
R-410A is one of the most commonly used refrigerants in commercial chillers due to its efficiency and compliance with environmental regulations.
No, R-22 is being phased out due to its ozone-depleting properties. New commercial chillers typically use more environmentally friendly alternatives like R-410A or R-134a.
R-134a is a non-ozone-depleting refrigerant often used in medium-sized commercial chillers for its reliability and compatibility with existing systems.
Yes, ammonia (R-717) is used in some large-scale commercial chillers, particularly in industrial applications, due to its high efficiency and low environmental impact.
The trend is moving toward low-global warming potential (GWP) refrigerants like R-32, R-1234ze, and natural refrigerants (e.g., CO2, ammonia) to meet stricter environmental regulations.
