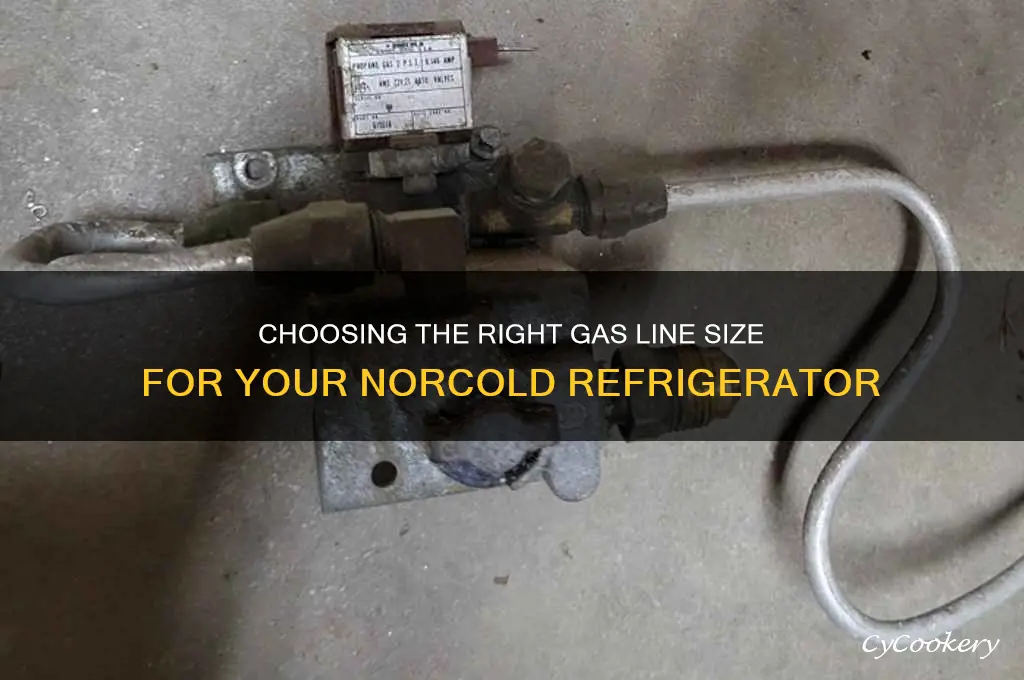

When installing a Norcold refrigerator, selecting the correct size gas line is crucial for ensuring safe and efficient operation. The appropriate gas line size typically depends on the model of the refrigerator and the length of the run from the propane source to the appliance. Most Norcold refrigerators require a 3/8-inch gas line for optimal performance, but it’s essential to consult the specific model’s manual or manufacturer guidelines to confirm compatibility. Using the wrong size can lead to inadequate gas flow, reduced efficiency, or even safety hazards, so proper sizing and installation are key to maintaining functionality and compliance with safety standards.
| Characteristics | Values |
|---|---|
| Recommended Gas Line Size | 1/2 inch (12.7 mm) ID (Inner Diameter) |
| Gas Type | LP Gas (Propane) |
| Pressure Regulator | Required, typically set to 11 inches WC (Water Column) |
| Gas Line Material | Copper or approved flexible gas line |
| Maximum Length | 20 feet (6.1 meters) for optimal performance |
| Fitting Type | Flare fittings or approved gas line connectors |
| Clearance Around Gas Line | Minimum 3 inches (7.6 cm) from any heat source |
| Ventilation | Ensure proper ventilation around the refrigerator and gas line |
| Installation | Must comply with local codes and regulations |
| Manufacturer Recommendation | Always refer to the Norcold refrigerator manual for specific model requirements |
Explore related products
![Puxyblue [2025 New] 72" Flexible Gas Line Kit for Dryer Stove Range Water Heater - 1/2" OD(3/8" ID) Flexible Stainless Steel Gas Dryer Kit Come with 1/2" MIP & 1/2" FIP Additional Raw Belt](https://m.media-amazon.com/images/I/71hJ57Wzh6L._AC_UL320_.jpg)
What You'll Learn
Gas Line Diameter Requirements
The Norcold refrigerator's gas line diameter is a critical factor in ensuring optimal performance and safety. A common recommendation for these refrigerators is a 3/8-inch gas line, which provides sufficient gas flow to support the appliance's operation. This diameter is often specified in the refrigerator's manual or installation guide, emphasizing the importance of adhering to manufacturer guidelines.
From an analytical perspective, the gas line diameter directly impacts the refrigerator's efficiency and safety. A line that is too narrow can restrict gas flow, leading to inadequate cooling or even system failure. Conversely, an overly large diameter may result in excessive gas flow, increasing the risk of leaks or other hazards. The 3/8-inch recommendation strikes a balance, ensuring adequate gas supply without compromising safety. For instance, a study on gas line sizing for RV appliances found that a 3/8-inch line can support a maximum gas flow rate of 1.5 cubic feet per hour, which is well-suited for Norcold refrigerators.
When installing a gas line for a Norcold refrigerator, it's essential to follow a systematic approach. First, measure the distance between the gas source and the refrigerator to determine the required line length. Next, select a high-quality, CSA-approved gas line with a 3/8-inch diameter. Ensure the line is properly secured and routed, avoiding sharp bends or kinks that could restrict flow. Use appropriate fittings and seals to prevent leaks, and always test the system for leaks using a soapy water solution. A helpful tip is to use a gas line with a yellow stripe, which indicates its suitability for propane applications.
In comparison to other gas-powered appliances, Norcold refrigerators have relatively modest gas requirements. For example, a typical RV furnace may require a 1/2-inch gas line to support its higher gas consumption. However, the 3/8-inch line recommended for Norcold refrigerators is sufficient due to their lower gas demand. This highlights the importance of tailoring gas line sizing to the specific appliance, rather than adopting a one-size-fits-all approach. By understanding the unique gas requirements of Norcold refrigerators, installers can ensure a safe and efficient system.
To illustrate the practical implications of gas line diameter requirements, consider a scenario where a 1/4-inch gas line is mistakenly installed for a Norcold refrigerator. This undersized line could result in reduced cooling capacity, increased energy consumption, and potential safety hazards. In contrast, a properly sized 3/8-inch line would provide adequate gas flow, supporting the refrigerator's performance and ensuring safe operation. By adhering to the recommended gas line diameter, installers can avoid these issues and ensure the long-term reliability of the Norcold refrigerator. Regular inspection and maintenance of the gas line are also crucial, as even a small leak can have serious consequences.
Easy Steps to Replace Your Maytag Refrigerator Filter Quickly
You may want to see also
Explore related products
Norcold Model Compatibility Chart
Selecting the correct gas line size for your Norcold refrigerator is crucial for optimal performance and safety. Norcold models vary in their gas consumption rates, which directly influence the required line diameter. The Norcold Model Compatibility Chart serves as a definitive guide, matching specific refrigerator models with their corresponding gas line sizes. For instance, the Norcold N611 model typically requires a 3/8-inch gas line, while the larger N841 model may necessitate a 1/2-inch line to accommodate its higher BTU output. Always consult the chart to ensure compatibility, as using an undersized line can lead to insufficient gas flow, while an oversized line may compromise efficiency.
Analyzing the Norcold Model Compatibility Chart reveals a clear correlation between refrigerator capacity and gas line size. Smaller models, such as the N621, often operate efficiently with a 1/4-inch line due to their lower gas consumption. In contrast, larger units like the N1095 demand a 1/2-inch line to support their higher energy requirements. This relationship underscores the importance of precise matching to avoid issues like flame instability or incomplete combustion. The chart also highlights the need for additional components, such as regulators and shut-off valves, which must be sized appropriately to maintain system integrity.
For practical implementation, follow these steps when using the Norcold Model Compatibility Chart: First, identify your Norcold refrigerator model number, typically located on the unit’s interior or exterior label. Second, cross-reference this model with the chart to determine the recommended gas line size. Third, ensure all fittings and connections comply with the specified diameter to prevent leaks or inefficiencies. Caution: Never attempt to modify a gas line or use incompatible components, as this can pose serious safety risks. Always consult a certified technician if unsure about installation or compatibility.
A comparative analysis of Norcold models within the chart reveals distinct trends. For example, the N611 and N621 share a similar gas line requirement due to their comparable BTU ratings, while the N841 and N1095 diverge significantly in line size due to their larger capacities. This comparison highlights the chart’s utility in streamlining decision-making for both DIY enthusiasts and professionals. By adhering to the chart’s recommendations, users can ensure their Norcold refrigerator operates safely and efficiently, maximizing its lifespan and performance.
In conclusion, the Norcold Model Compatibility Chart is an indispensable tool for anyone installing or maintaining a Norcold gas refrigerator. Its detailed specifications eliminate guesswork, ensuring the correct gas line size is used for each model. Whether you’re upgrading an RV refrigerator or installing a marine unit, this chart provides the clarity needed to achieve a seamless and safe installation. Always prioritize accuracy and safety by referencing this chart, as it is the cornerstone of successful Norcold refrigerator operation.
Why Your Refrigerator Has Humidity: Causes and Quick Fixes
You may want to see also
Explore related products
Safety Standards for Installation
Installing a gas line for a Norcold refrigerator requires strict adherence to safety standards to prevent hazards such as leaks, fires, or explosions. The National Fuel Gas Code (NFPA 54) mandates that gas lines must be sized correctly to ensure adequate flow and pressure. For Norcold refrigerators, the typical gas line size is 3/8-inch, but this can vary based on the model and length of the run. Always consult the manufacturer’s specifications or a certified technician to confirm the appropriate size for your specific unit.
Material selection is another critical safety consideration. Gas lines must be made of approved materials, such as corrugated stainless steel tubing (CSST) or black iron pipe, to withstand pressure and environmental conditions. CSST, for instance, is flexible and easier to install but requires proper bonding and grounding to prevent electrical hazards. Black iron pipe, while more rigid, is durable and resistant to damage but must be threaded and sealed correctly to avoid leaks. Using substandard materials or improper connections can lead to catastrophic failures.
Ventilation is a non-negotiable safety standard when installing gas appliances like Norcold refrigerators. The area around the refrigerator must have sufficient airflow to dissipate any gas leaks and prevent the buildup of flammable vapors. Ensure the installation complies with local building codes regarding clearance from combustible materials and proper venting of exhaust gases. Poor ventilation not only increases the risk of fire but can also lead to carbon monoxide poisoning, a silent and deadly hazard.
Regular inspection and maintenance are essential to uphold safety standards post-installation. Gas lines should be checked for corrosion, leaks, and damage at least annually, or more frequently in high-use environments. Use a gas leak detector or soapy water solution to identify leaks at fittings and connections. Additionally, install a gas shut-off valve near the refrigerator to allow quick response in case of emergencies. Neglecting maintenance can render even the most carefully installed systems unsafe over time.
Finally, hiring a licensed professional is the most reliable way to ensure compliance with safety standards. DIY installations, while tempting, often overlook critical details that only trained technicians are equipped to handle. Professionals will not only size and install the gas line correctly but also secure necessary permits and conduct pressure tests to verify the system’s integrity. Investing in expert installation is a small price to pay for the peace of mind that comes with knowing your Norcold refrigerator operates safely and efficiently.
Should You Refrigerate Panolog Ointment for Cats? Expert Tips
You may want to see also
Explore related products
Measuring Existing Gas Lines
Before installing a Norcold refrigerator, understanding the size of your existing gas line is crucial. A mismatch can lead to inefficiency, safety hazards, or even damage to the appliance. Start by locating the gas line connected to your current setup. Typically, residential gas lines for refrigerators range from 1/4 inch to 3/8 inch in diameter, but Norcold models often require specific sizing based on their BTU rating and installation guidelines.
To measure the gas line accurately, use a caliper or a ruler with precise markings. Ensure the line is clean and free of debris for an accurate reading. If the line is flared or threaded, measure the outer diameter of the tubing itself, not the fitting. Compare this measurement to the manufacturer’s specifications for your Norcold refrigerator. For instance, a Norcold N611 model might require a 3/8-inch line, while smaller units could function with 1/4-inch tubing. Always refer to the manual or consult a professional if unsure.
One common mistake is assuming the existing line is compatible without verification. For example, a 1/4-inch line may suffice for low-BTU models but could restrict gas flow for higher-demand units, leading to poor performance. Conversely, oversized lines can introduce inefficiencies and safety risks. If the existing line doesn’t match the required size, consider replacing it or using adapters, though this should be done cautiously to avoid leaks or pressure issues.
When measuring, also inspect the line for signs of wear, corrosion, or damage. Aged or brittle lines should be replaced regardless of size compatibility. Use a soapy water solution to test for leaks at connections, as even a small leak can pose a significant risk. If you’re uncomfortable with this process, hiring a licensed technician ensures accuracy and safety, especially when dealing with gas systems.
In summary, measuring existing gas lines is a critical step in ensuring your Norcold refrigerator operates safely and efficiently. Precision in measurement, adherence to manufacturer guidelines, and thorough inspection of the line’s condition are key. When in doubt, prioritize professional assistance to avoid costly mistakes or safety hazards.
Should You Refrigerate Infant Vitamin D Drops? Expert Tips
You may want to see also
Explore related products
Common Sizing Mistakes to Avoid
One of the most frequent errors in installing a gas line for a Norcold refrigerator is oversizing the line diameter. While it might seem logical to use a larger line to ensure adequate gas flow, this approach can lead to inefficiency. A gas line that’s too large reduces the gas velocity, causing pressure drops and inconsistent performance. For most Norcold models, a 3/8-inch line is sufficient, as it balances flow rate and pressure effectively. Using a 1/2-inch line, for instance, may seem safer but can disrupt the refrigerator’s ability to regulate gas consumption, leading to wasted fuel and potential safety hazards.
Another common mistake is ignoring the length of the gas line. Longer runs require careful consideration of both diameter and material. For every additional 10 feet of gas line, friction loss increases, which can starve the refrigerator of gas. If your setup exceeds 20 feet, consider stepping up to a 1/2-inch line or adding a regulator to maintain consistent pressure. However, this is rarely necessary for standard RV or marine installations, where shorter runs are typical. Always measure the exact distance from the gas source to the refrigerator to avoid underestimating or overcompensating.
Failing to account for fittings and connections is a subtle but critical error. Each elbow, tee, or valve in the gas line adds resistance, effectively increasing the overall length of the run. For example, three 90-degree elbows can add up to 5 feet of equivalent length. If your setup includes multiple turns or connections, treat it as a longer run and adjust the line size or pressure accordingly. Using flexible corrugated stainless steel tubing (CSST) can reduce the number of fittings needed, but it’s not a substitute for proper sizing calculations.
Lastly, misinterpreting manufacturer guidelines often leads to sizing mistakes. Norcold’s recommendations are specific to their models, but they assume standard conditions. If your installation deviates—for example, operating at high altitudes or in extreme temperatures—the standard 3/8-inch line may not suffice. At altitudes above 5,000 feet, gas appliances require adjustments for reduced air density, which affects combustion. Consult a professional or refer to altitude correction charts to ensure your gas line is appropriately sized for your environment. Ignoring these factors can result in poor refrigerator performance or even safety risks.
How to Safely Recharge Refrigerant in Your Portable AC Unit
You may want to see also
Frequently asked questions
Norcold refrigerators typically require a 1/4-inch or 3/8-inch gas line, depending on the model. Always refer to the specific model's manual for exact requirements.
Using a smaller gas line than recommended can restrict gas flow, leading to poor performance. Always use the size specified in the refrigerator’s manual.
A 1/2-inch gas line is generally larger than necessary for most Norcold refrigerators. Stick to the recommended 1/4-inch or 3/8-inch size to ensure proper operation.
Yes, using the correct gas line size ensures optimal gas flow, which directly impacts the refrigerator’s efficiency and performance.
Check the refrigerator’s manual or contact Norcold customer support for the specific gas line size required for your model.
