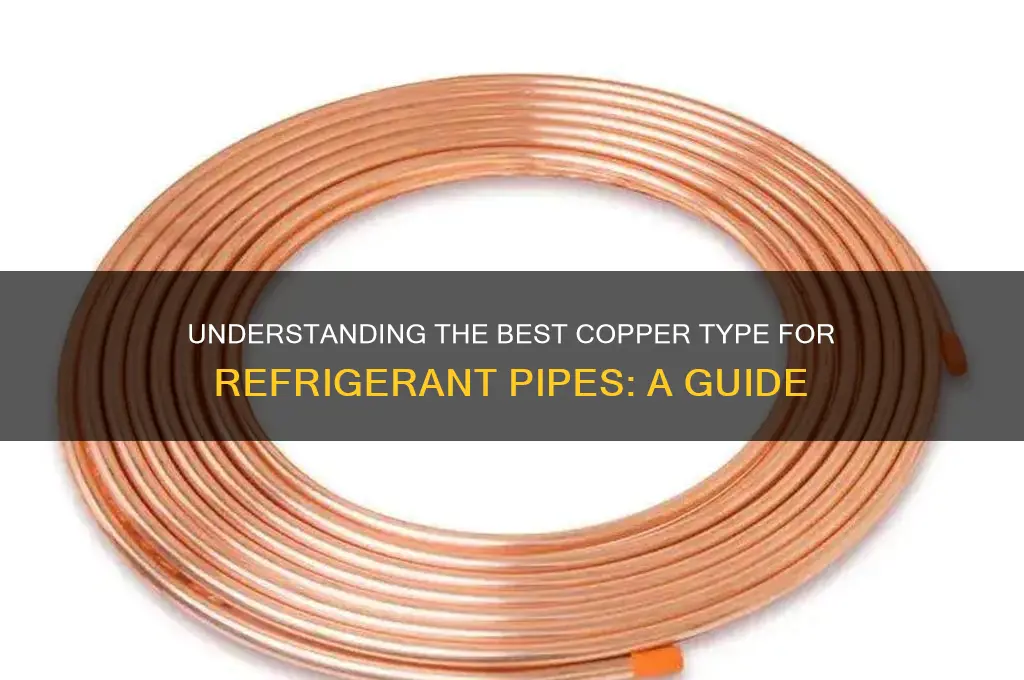

Refrigerant pipes, crucial components in HVAC and refrigeration systems, are often made from copper due to its excellent thermal conductivity, corrosion resistance, and durability. However, not all copper is the same; the type of copper used for refrigerant pipes is typically soft copper (also known as annealed copper), which is highly malleable and easy to bend, making it ideal for installation in tight spaces. Specifically, Type L copper is commonly used for refrigerant lines due to its balance of strength and flexibility, while Type K copper, though stronger, is less frequently chosen for this application because of its reduced workability. Understanding the appropriate type of copper ensures efficient and reliable performance in refrigerant systems.
| Characteristics | Values |
|---|---|
| Type of Copper | Soft Drawn Copper (CDA 110, C12200) |
| Temper | Annealed (Soft) |
| Wall Thickness | Varies by ACR/Refrigeration Standards (e.g., ASTM B280) |
| Outer Diameter | Standard Sizes: 1/4", 3/8", 1/2", 5/8", 3/4", 7/8", 1-1/8", etc. |
| Inner Diameter | Depends on Wall Thickness and Outer Diameter |
| Length | Typically sold in coils (e.g., 15, 50, 100 feet) or straight lengths |
| Color | Natural Copper (Reddish-Brown) |
| Corrosion Resistance | Excellent, especially in HVAC/R applications |
| Thermal Conductivity | High (approximately 385 W/m·K) |
| Pressure Rating | Complies with ACR standards (e.g., 300-500 PSI depending on size) |
| Bendability | Highly flexible due to annealed temper |
| Flammability | Non-flammable |
| Compatibility | Compatible with all common refrigerants (e.g., R-410A, R-22) |
| Standards | ASTM B280, AHRI, ARI 700 |
| Applications | HVAC/R systems, air conditioning, refrigeration lines |
| Recyclability | 100% recyclable |
| Cost | Moderate to high, depending on market prices |
Explore related products
What You'll Learn
- Type L Copper Pipe: Commonly used for refrigerant lines, offers balance of strength and flexibility
- Type K Copper Pipe: Thicker walls, ideal for high-pressure refrigerant systems and durability
- Type M Copper Pipe: Thinner walls, suitable for low-pressure refrigerant applications, cost-effective choice
- ACR Copper Pipe: Specifically designed for air conditioning and refrigeration, meets industry standards
- Soft Copper Refrigerant Line: Flexible, used for connecting components in HVAC systems
Type L Copper Pipe: Commonly used for refrigerant lines, offers balance of strength and flexibility
Type L copper pipe is the go-to choice for refrigerant lines in HVAC systems due to its optimal balance of strength and flexibility. Unlike Type K, which is thicker and more rigid, or Type M, which is thinner and less durable, Type L strikes a middle ground that meets the demands of refrigerant applications. Its wall thickness provides sufficient structural integrity to withstand pressure fluctuations while remaining pliable enough for bending and installation in tight spaces. This combination makes it a reliable and practical option for both residential and commercial cooling systems.
When selecting Type L copper pipe for refrigerant lines, consider the specific requirements of your project. The pipe is available in various lengths and diameters, typically ranging from ¼ inch to 2 inches, to accommodate different system sizes. It’s crucial to pair Type L pipe with compatible fittings, such as solder-joint or flare fittings, to ensure leak-free connections. Additionally, proper insulation is essential to prevent condensation and energy loss, especially in exposed areas. Always follow local building codes and manufacturer guidelines for installation to maintain system efficiency and safety.
One of the standout advantages of Type L copper pipe is its corrosion resistance, which prolongs the lifespan of refrigerant lines. Copper naturally resists degradation from moisture and chemicals commonly found in HVAC environments, reducing the risk of leaks and system failures. However, it’s important to avoid exposure to acidic or alkaline substances that could compromise the pipe’s integrity. Regular maintenance, including inspections for signs of wear or damage, ensures the pipe continues to perform optimally. For outdoor installations, consider using UV-resistant insulation to protect against sun damage.
While Type L copper pipe is versatile, it’s not without limitations. Its flexibility diminishes with larger diameters, making it less suitable for applications requiring sharp bends. In such cases, alternative materials or additional tools like tubing benders may be necessary. Cost is another factor; Type L is more expensive than Type M but less so than Type K. However, its durability and ease of installation often justify the investment, especially in long-term applications. Weighing these considerations ensures you choose the right material for your refrigerant line needs.
In practice, Type L copper pipe excels in scenarios where durability and adaptability are paramount. For instance, in retrofitting older HVAC systems, its flexibility allows for easier integration with existing components. Similarly, in new constructions, its strength ensures the system can handle the rigors of daily operation. By understanding its properties and application nuances, professionals and DIY enthusiasts alike can leverage Type L copper pipe to build efficient, reliable refrigerant lines that stand the test of time.
