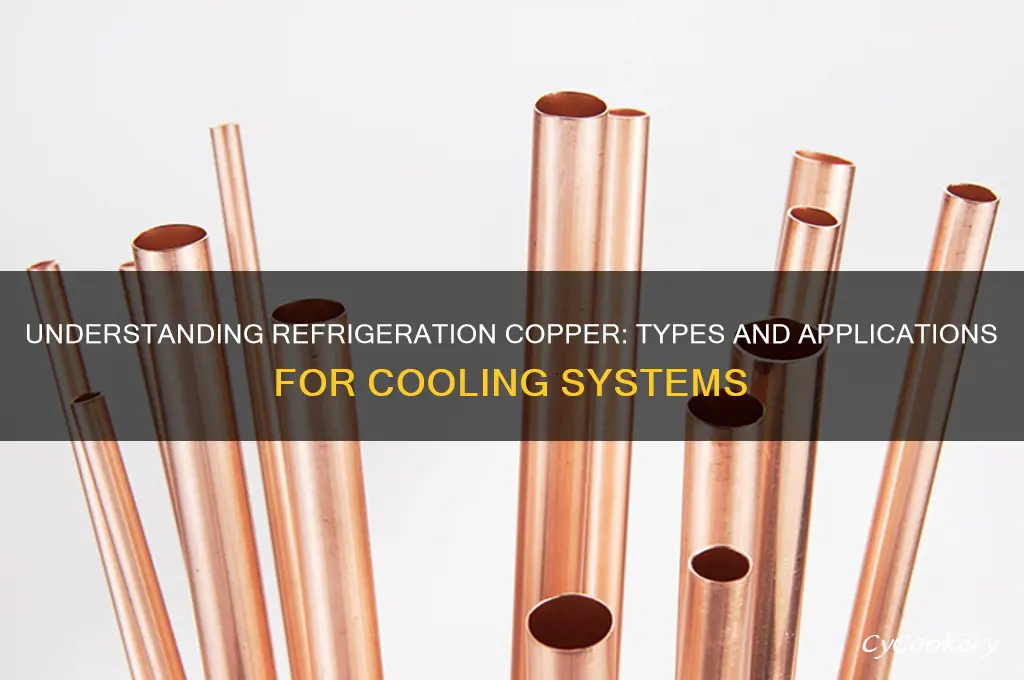

Refrigeration copper, a specialized type of copper tubing, is specifically designed for use in refrigeration and air conditioning systems. This copper is typically made from high-purity copper alloys, such as C12200 (also known as DHP or Drawn High-Purity copper), which offers excellent thermal conductivity, corrosion resistance, and formability. The tubing is often soft-annealed to allow for easy bending and installation, while maintaining the structural integrity required for handling refrigerants under pressure. Refrigeration copper is available in various sizes and thicknesses, adhering to industry standards like ASTM B280, to ensure compatibility with refrigeration components and optimal performance in heat exchange applications. Its reliability and efficiency make it the preferred choice for both residential and commercial cooling systems.
Explore related products
What You'll Learn
- Soft Copper Tubing: Flexible, easy to bend, ideal for refrigeration coils and connections
- Hard Copper Tubing: Rigid, used for structural support and straight refrigeration lines
- ACR Copper Tubing: Air conditioning and refrigeration grade, meets ASTM B280 standards
- Type L Copper Tubing: Medium-thick walls, commonly used in refrigeration systems for durability
- Copper Alloys: Enhanced properties for specific refrigeration applications, like corrosion resistance
Soft Copper Tubing: Flexible, easy to bend, ideal for refrigeration coils and connections
Soft copper tubing, often referred to as refrigeration copper, is the backbone of efficient cooling systems. Its flexibility and ease of bending make it indispensable for crafting the intricate coils and connections required in refrigeration units. Unlike rigid copper pipes, soft tubing can be manipulated into tight spaces and complex shapes without compromising structural integrity, ensuring optimal heat exchange and system performance. This malleability is particularly crucial in applications where precision and adaptability are paramount, such as in air conditioning units, refrigerators, and heat pumps.
When working with soft copper tubing, it’s essential to follow specific techniques to maintain its integrity. Use a tubing bender to create smooth, consistent curves, avoiding kinks that could restrict refrigerant flow. For tighter bends, consider annealing the copper by heating it with a propane torch and quenching it in water to restore its ductility. Always measure twice before cutting to minimize waste, and deburr the edges to prevent damage to internal components. Proper handling ensures the tubing retains its flexibility while meeting the demands of refrigeration systems.
The advantages of soft copper tubing extend beyond its physical properties. Its corrosion resistance and compatibility with refrigerants like R-410A make it a durable and reliable choice for long-term use. Additionally, its thermal conductivity facilitates efficient heat transfer, a critical factor in maintaining system efficiency. For DIY enthusiasts or professionals, soft copper tubing is available in various diameters, typically ranging from 1/4 inch to 1 inch, allowing for precise matching to system requirements. Always select the appropriate size to balance flow rate and pressure drop.
One practical tip for installing soft copper tubing is to use a nitrogen purge to prevent oxidation during brazing, ensuring clean, strong joints. When connecting tubing, apply flux evenly and heat the fitting, not the tube, to avoid annealing the entire length. For refrigeration coils, maintain consistent spacing between turns to maximize surface area and heat dissipation. Regularly inspect tubing for signs of wear or damage, especially in areas exposed to vibration or temperature fluctuations, to prevent leaks and system failures.
In summary, soft copper tubing is the ideal material for refrigeration applications due to its flexibility, ease of manipulation, and superior performance characteristics. By mastering proper handling and installation techniques, users can harness its full potential, ensuring efficient and reliable cooling systems. Whether for residential air conditioners or industrial refrigeration units, soft copper tubing remains the gold standard, combining practicality with durability in every bend and connection.
