When charging refrigerant by weight, you can charge with precision and accuracy using a refrigerant scale, which ensures the correct amount of refrigerant is added to the system based on the manufacturer’s specifications. This method is highly reliable as it eliminates the guesswork associated with pressure-based charging, especially in systems with varying ambient temperatures or conditions. By weighing the refrigerant cylinder before and after the charging process, technicians can determine the exact quantity added, ensuring optimal system performance and compliance with environmental regulations. This approach is particularly useful for systems requiring exact refrigerant amounts, such as those with critical charge tolerances or in applications where overcharging or undercharging could lead to inefficiency or damage.
| Characteristics | Values |
|---|---|
| Method of Charging | By weight (using a scale to measure refrigerant quantity) |
| Accuracy | Highly accurate, reduces overcharging or undercharging |
| Equipment Required | Refrigerant scale, charging hoses, manifold gauge set |
| Applicable Refrigerants | All types (e.g., R-22, R-410A, R-134a, etc.) |
| Units of Measurement | Pounds (lbs) or kilograms (kg) |
| System Capacity | Determined by manufacturer's specifications or system label |
| Environmental Impact | Minimizes refrigerant waste and emissions |
| Compliance | Meets EPA and other regulatory requirements for precise charging |
| Temperature Considerations | Accounts for refrigerant density changes with temperature |
| Pressure Dependency | Independent of system pressure; relies solely on weight |
| Common Tools | Digital refrigerant scale, recovery/recycling machine (if necessary) |
| Advantages | Ensures correct charge, improves system efficiency, reduces callbacks |
| Disadvantages | Requires additional equipment and careful handling |
| Industry Standard | Preferred method for precision charging in HVAC/R systems |
Explore related products
What You'll Learn
- Using Digital Scales: Accurate measurement ensures precise refrigerant charging by weight for optimal system performance
- Manufacturer Specifications: Follow OEM guidelines for correct refrigerant type and weight to avoid system damage
- Temperature Compensation: Adjust charging weight based on ambient temperature for accurate refrigerant density
- Recovery Machines: Use recovery machines to evacuate and recharge refrigerant by weight efficiently
- Charging Hoses: Ensure hoses are properly connected and sealed to prevent refrigerant leaks during charging

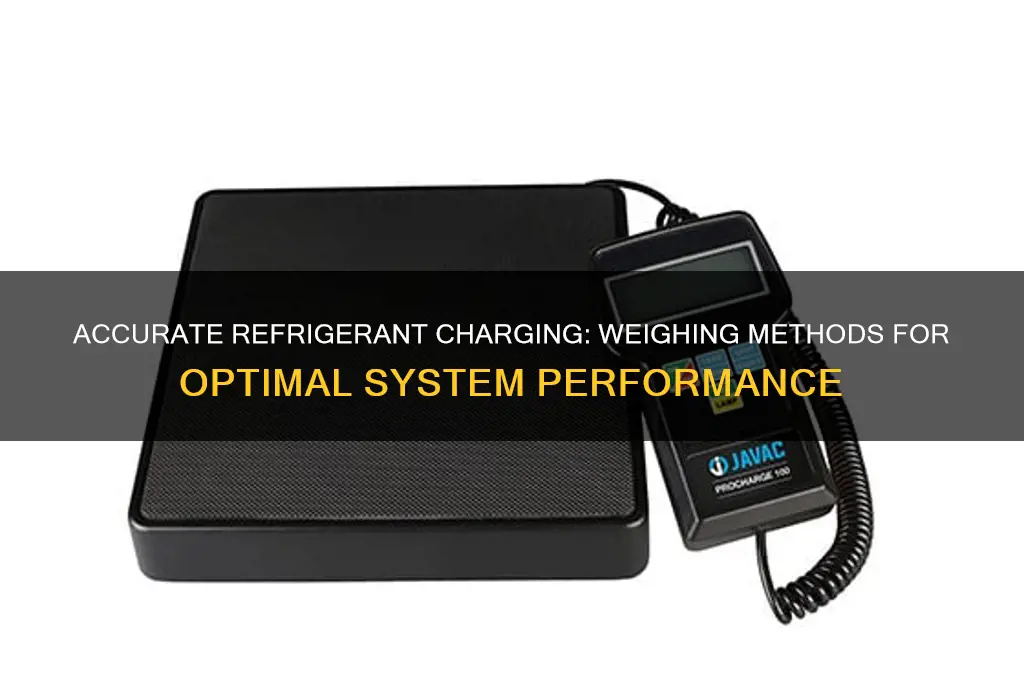

Using Digital Scales: Accurate measurement ensures precise refrigerant charging by weight for optimal system performance
Digital scales are indispensable tools for charging refrigerants by weight, offering precision that manual methods cannot match. When adding refrigerant to a system, accuracy is paramount—even a slight miscalculation can lead to inefficiency, increased energy consumption, or system failure. For instance, a typical residential air conditioning system requires refrigerant charged to within ±0.5 ounces of the manufacturer’s specification. Digital scales, with their ability to measure in increments as small as 0.1 ounces, ensure this level of precision, making them the gold standard for professionals.
The process of using digital scales for refrigerant charging is straightforward but requires attention to detail. First, calibrate the scale to ensure it reads zero before use. Next, place the refrigerant container on the scale and tare it to account for the container’s weight. Slowly add refrigerant while monitoring the scale until the desired weight is achieved. For example, if a system requires 4.2 pounds of R-410A refrigerant, the scale will alert you the moment this weight is reached, preventing overcharging. This method is particularly useful for systems with specific refrigerant requirements, such as those using R-32 or R-1234yf, which demand even greater accuracy due to their unique properties.
One of the key advantages of digital scales is their ability to handle a wide range of refrigerant types and system sizes. Whether charging a small window unit or a large commercial chiller, the scale adapts to the task. For larger systems, scales with higher weight capacities (up to 100 pounds) are ideal, while portable, battery-operated scales are perfect for field work. Additionally, many digital scales feature built-in temperature compensation, ensuring accurate readings even in fluctuating environmental conditions—a common challenge in outdoor installations.
Despite their reliability, digital scales require proper maintenance to ensure long-term accuracy. Regularly clean the weighing platform to remove debris or residue that could affect readings. Store the scale in a dry, stable environment to prevent damage from moisture or impact. Calibrate the scale periodically using certified weights, especially after frequent use or if readings seem inconsistent. Neglecting these steps can lead to errors, undermining the very precision that makes digital scales essential for refrigerant charging.
In conclusion, digital scales are not just tools but critical partners in achieving optimal system performance through precise refrigerant charging. Their accuracy, versatility, and ease of use make them the preferred choice for technicians worldwide. By mastering their operation and maintenance, professionals can ensure that every refrigerant charge is spot-on, maximizing efficiency and extending the lifespan of HVAC systems. When charging by weight, the digital scale is the linchpin of success—a small investment that yields significant returns in performance and reliability.
Refrigerating Warm Turkey: Safe Practices and Cooling Tips for Leftovers
You may want to see also
Explore related products
Manufacturer Specifications: Follow OEM guidelines for correct refrigerant type and weight to avoid system damage
Charging refrigerant by weight is a precise process that hinges on adhering to manufacturer specifications. Original Equipment Manufacturer (OEM) guidelines are not mere suggestions—they are critical directives designed to ensure the longevity and efficiency of your HVAC or refrigeration system. Ignoring these specifications can lead to overcharging or undercharging, both of which can cause compressor failure, reduced cooling capacity, or even system leaks. For instance, a typical residential air conditioning unit might require exactly 4.5 pounds of R-410A refrigerant, a value that varies by model and size. Deviating from this weight, even by a fraction, can disrupt the delicate balance of the system.
The refrigerant type is equally crucial. OEMs specify refrigerants like R-134a, R-410A, or R-290 based on the system’s design and environmental regulations. Using an incorrect refrigerant can lead to chemical incompatibility, corrosion, or insufficient heat transfer. For example, R-410A operates at higher pressures than R-22, so using it in a system not designed for it can cause catastrophic damage. Always consult the manufacturer’s label or manual, typically found near the service valves or in the unit’s documentation, to confirm the correct refrigerant type and charge weight.
Practical adherence to OEM guidelines involves more than just reading the manual. Use a digital scale calibrated for refrigerant charging to ensure accuracy, as analog scales can introduce errors. Charge the system in a controlled environment, avoiding extreme temperatures that can affect refrigerant density. For split systems, ensure the indoor and outdoor units are properly matched, as mismatched components can alter the required charge weight. If the system has been repaired or modified, recheck the OEM specifications, as the required refrigerant type or weight may have changed.
A common mistake is assuming that "close enough" is acceptable when charging refrigerant. However, even a 0.2-pound deviation can lead to system inefficiencies or damage. For example, overcharging an R-410A system by just 10% can increase discharge temperatures, shortening compressor life. Conversely, undercharging reduces heat transfer efficiency, leading to higher energy consumption and inadequate cooling. To avoid these pitfalls, follow the OEM’s step-by-step charging procedure, which often includes running the system at specific conditions (e.g., 95°F outdoor temperature for air conditioners) to ensure accurate measurements.
Finally, consider the environmental and safety implications of ignoring OEM guidelines. Incorrect refrigerant charging not only voids warranties but also contributes to refrigerant leaks, which harm the ozone layer and accelerate climate change. Technicians must prioritize precision and compliance, using recovery machines to reclaim refrigerant during servicing and ensuring all connections are tight to prevent leaks. By strictly adhering to manufacturer specifications, you protect both the system and the environment, ensuring optimal performance and sustainability.
Refrigerated Yogurt Past Expiration: How Long Is It Safe to Eat?
You may want to see also
Explore related products
Temperature Compensation: Adjust charging weight based on ambient temperature for accurate refrigerant density
Refrigerant density fluctuates with temperature, a principle rooted in the ideal gas law. At higher ambient temperatures, refrigerant molecules gain kinetic energy, causing them to occupy more space and reducing density. Conversely, cooler temperatures compress molecules, increasing density. This variability introduces a critical challenge when charging refrigerant by weight: the scale reading alone doesn’t account for density shifts, leading to potential overcharging or undercharging. For instance, charging a system with R-410A at 80°F (26.7°C) using a weight calibrated for 70°F (21.1°C) could result in a 2-3% error in refrigerant quantity, compromising system efficiency and longevity.
To address this, temperature compensation adjusts the charging weight based on ambient conditions, ensuring the correct refrigerant mass is added. Manufacturers often provide density correction factors or charts for specific refrigerants, such as R-22 or R-32, detailing how weight should be modified for temperatures outside the standard calibration range (typically 70°F). For example, if charging R-407C at 85°F (29.4°C), a correction factor of 0.98 might be applied to the target weight, reducing the charge by 2% to account for lower density. Digital scales with built-in temperature compensation automate this process, but manual calculations remain essential for technicians using analog tools.
Implementing temperature compensation requires precision and awareness of system specifics. First, measure the ambient temperature near the refrigerant container using a reliable thermometer. Next, consult the refrigerant’s density correction table or use a mobile app like RefTools to determine the adjustment factor. Multiply the target charge weight by this factor to obtain the corrected weight. For instance, if the target charge is 10 lbs of R-134a at 75°F (23.9°C) but the ambient temperature is 90°F (32.2°C), apply a correction factor of 0.96, resulting in a charge of 9.6 lbs. Always verify compatibility with the system’s specifications and local regulations.
Neglecting temperature compensation can lead to costly errors. Overcharging increases head pressure, risks compressor damage, and reduces energy efficiency, while undercharging diminishes cooling capacity and promotes evaporator freezing. For residential systems, a 5% charging error can translate to a 10-15% drop in efficiency, while commercial units may face even steeper penalties. Technicians must prioritize this step, especially in extreme climates where ambient temperatures deviate significantly from standard conditions. Investing in tools like digital scales with temperature sensors or regularly updating correction factor references can streamline the process and enhance accuracy.
In practice, temperature compensation is a cornerstone of professional refrigerant charging. It bridges the gap between theoretical weight and real-world conditions, ensuring systems operate within design parameters. While it adds a layer of complexity, the payoff is undeniable: optimal performance, extended equipment lifespan, and compliance with industry standards. Whether working on a split system or a chiller, technicians who master this technique position themselves as experts in their field, delivering reliable results that stand the test of time.
Recycling ProPak Refrigerant Packs: Eco-Friendly Disposal and Sustainability Tips
You may want to see also
Explore related products
Recovery Machines: Use recovery machines to evacuate and recharge refrigerant by weight efficiently
Recovery machines are indispensable tools for HVAC technicians and refrigeration specialists, offering a precise and efficient method to manage refrigerant during maintenance or repairs. These machines are designed to evacuate and recharge refrigerant by weight, ensuring compliance with environmental regulations and optimal system performance. By using a recovery machine, technicians can accurately measure the amount of refrigerant removed and added, which is crucial for systems that require specific refrigerant levels to operate effectively. For instance, a typical residential air conditioning unit might need between 4 to 6 pounds of R-410A refrigerant, depending on its size and design. Recovery machines eliminate guesswork, allowing for exact measurements that prevent overcharging or undercharging, both of which can lead to inefficiency or system damage.
The process of using a recovery machine begins with connecting the unit to the refrigeration system via hoses and fittings. Technicians must ensure all connections are secure to prevent leaks, as even small amounts of refrigerant escaping into the atmosphere can harm the environment. Once connected, the machine evacuates the refrigerant from the system, pulling it into a storage tank. This step is critical for repairs or when replacing components, as it removes contaminants and ensures the system is clean before recharging. Modern recovery machines often feature digital displays that show real-time data, such as the weight of refrigerant recovered, making it easier to track progress and maintain accuracy.
Recharging the system by weight is the next step, and it’s where recovery machines truly shine. Technicians program the desired refrigerant weight into the machine, which then automatically stops the flow once the target is reached. This precision is particularly important for newer refrigerants like R-32 or R-454B, which have stricter charging requirements due to their lower global warming potential. Overcharging these refrigerants can cause high-pressure issues, while undercharging reduces efficiency. For example, a system requiring 5.5 pounds of R-454B must be charged accurately to maintain its SEER (Seasonal Energy Efficiency Ratio) rating, which can be as high as 20 or more in modern units.
While recovery machines offer numerous benefits, technicians must follow best practices to maximize their effectiveness. Regular maintenance of the machine itself is essential, including cleaning filters and checking for wear on hoses and seals. Additionally, technicians should always refer to the manufacturer’s guidelines for the specific refrigerant being used, as different types have varying pressure-temperature relationships. For instance, R-22 operates at higher pressures than R-410A, requiring careful handling during recovery and charging. Proper training is also critical, as mishandling refrigerants can lead to safety hazards or regulatory penalties.
In conclusion, recovery machines are a cornerstone of efficient refrigerant management, providing the accuracy and control needed for modern HVAC and refrigeration systems. By evacuating and recharging refrigerant by weight, these machines ensure systems operate at peak performance while minimizing environmental impact. Whether working on a small residential unit or a large commercial system, technicians who master the use of recovery machines position themselves as professionals committed to precision, sustainability, and compliance. With the right tools and knowledge, refrigerant charging becomes not just a task, but a science.
Refrigerated Sushi Safety: Can You Eat It and Stay Healthy?
You may want to see also
Explore related products
Charging Hoses: Ensure hoses are properly connected and sealed to prevent refrigerant leaks during charging
Refrigerant charging by weight is a precise process, and the integrity of your charging hoses is critical to its success. Even a minor leak can compromise the accuracy of the charge, leading to system inefficiencies or failures. Properly connected and sealed hoses ensure that the refrigerant flows seamlessly from the charging cylinder to the system, maintaining the intended pressure and weight measurements.
Inspection and Preparation: Before initiating the charging process, inspect all hoses for signs of wear, cracks, or damage. Replace any compromised hoses immediately. Ensure the fittings are clean and free of debris, as contaminants can interfere with sealing. Use a torque wrench to tighten connections to manufacturer specifications—overtightening can damage threads, while undertightening risks leaks. For R-410A systems, for example, hoses rated for 600+ psi are essential due to the refrigerant’s higher operating pressure.
Sealing Techniques: Proper sealing is as crucial as the connection itself. Apply thread sealant or Teflon tape to male fittings, ensuring a single, even wrap to avoid overloading the threads. For quick-connect hoses, verify that the locking mechanisms engage fully. A common mistake is failing to depress the collar completely, leaving the connection vulnerable to leaks. After connecting, perform a visual and tactile check—look for gaps and feel for any hissing or vibration that indicates escaping refrigerant.
Pressure Testing: Before charging, conduct a pressure test to confirm the system’s integrity. Attach a nitrogen cylinder and pressurize the system to 200–300 psi, then monitor for pressure drops over 15–30 minutes. Any significant drop signals a leak that must be addressed. This step is particularly vital when working with larger systems or high-pressure refrigerants, where leaks can lead to costly refrigerant loss or system damage.
Practical Tips: Always use hoses specifically designed for refrigerant charging, as generic hoses may not withstand the pressures involved. Keep hoses organized and stored properly to prevent kinking or damage. For systems requiring precise charges, such as those using R-32 or R-1234yf, consider using digital scales with hose assemblies to monitor weight in real-time. Finally, train technicians to follow a systematic connection procedure—left to right, top to bottom—to minimize errors and ensure consistency.
By prioritizing the condition and connection of charging hoses, technicians can safeguard the accuracy and efficiency of refrigerant charging by weight. This attention to detail not only prevents leaks but also extends the lifespan of both the hoses and the HVAC system, ultimately saving time and resources.
Refrigerating Fish: Optimal Storage Time for Freshness and Safety
You may want to see also
Frequently asked questions
Yes, you can charge with liquid refrigerant when using the weight method, as it allows for precise measurement of the refrigerant mass.
Yes, you can charge with the system running, but it’s important to monitor the refrigerant flow and ensure accurate weight measurement.
No, you should not charge with an uncalibrated scale, as it may lead to inaccurate refrigerant measurements and improper charging.
No, you should never charge with a different refrigerant type than specified, as it can damage the system and violate safety standards.
Yes, you can charge with the system in a vacuum state, as it allows for precise control of refrigerant flow during the charging process.
