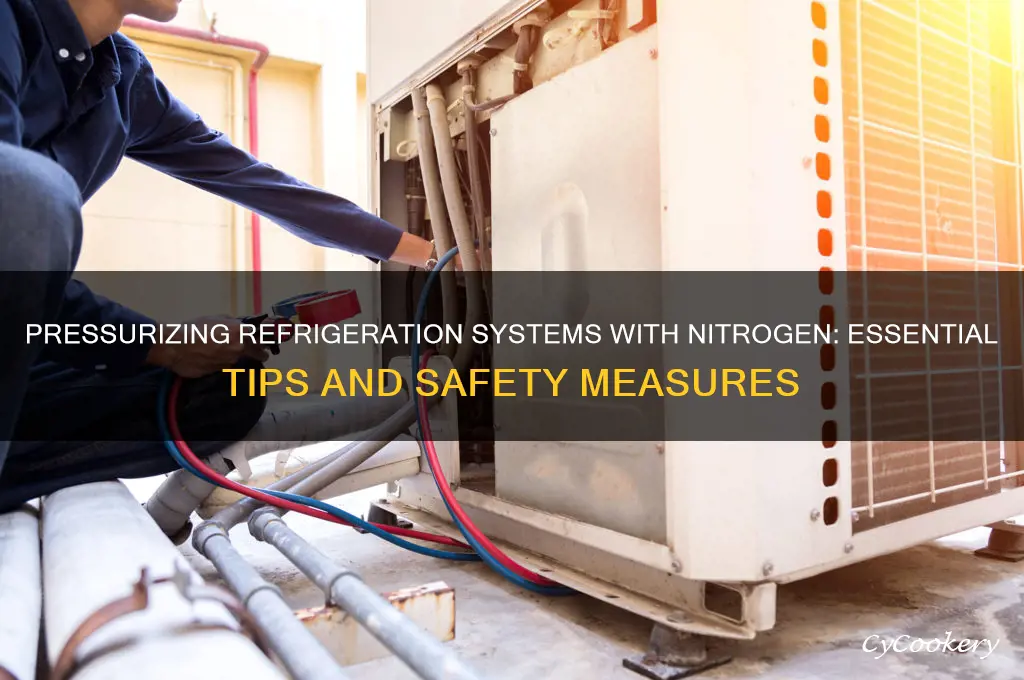

When pressurizing a refrigeration system with nitrogen, it is crucial to follow precise procedures to ensure safety, efficiency, and system integrity. Nitrogen is commonly used to test for leaks, purge oxygen, and stabilize pressure during maintenance or installation. Before pressurizing, the system must be completely evacuated to remove any contaminants or moisture, as these can compromise performance or cause damage. The nitrogen should be introduced slowly and at a controlled rate, using a regulator to monitor pressure levels, typically not exceeding the system’s design pressure. Safety precautions, such as wearing protective gear and ensuring proper ventilation, are essential to mitigate risks associated with high-pressure gases. Additionally, all valves and connections should be checked for tightness to prevent leaks, and the system should be allowed to stabilize before conducting leak tests or further operations. Proper documentation of the process is also recommended to maintain compliance with industry standards and ensure traceability.
Explore related products
What You'll Learn
- Safety Precautions: Essential steps to ensure operator safety during nitrogen pressurization of refrigeration systems
- Pressure Limits: Understanding maximum safe pressure thresholds for different refrigeration system components
- Leak Detection: Using nitrogen to identify leaks in the refrigeration system effectively
- Equipment Requirements: Tools and equipment needed for nitrogen pressurization procedures
- Post-Pressurization Steps: Procedures to follow after pressurizing the refrigeration system with nitrogen
Safety Precautions: Essential steps to ensure operator safety during nitrogen pressurization of refrigeration systems
Nitrogen pressurization in refrigeration systems is a critical process that demands meticulous attention to safety. The inert nature of nitrogen, while beneficial for purging oxygen and moisture, poses unique risks such as asphyxiation and system overpressure. Operators must adhere to stringent safety protocols to mitigate these hazards effectively.
Step-by-Step Safety Measures:
- Personal Protective Equipment (PPE): Always wear gloves, safety goggles, and a respirator with an oxygen sensor. Nitrogen displaces oxygen, and even a small leak can lead to hypoxia without immediate detection.
- Ventilation: Ensure the workspace is well-ventilated. Use exhaust fans or open windows to maintain a constant flow of fresh air, reducing the risk of nitrogen accumulation.
- Pressure Monitoring: Use calibrated gauges to monitor system pressure continuously. Never exceed the manufacturer’s recommended pressure limits, typically 100–150 PSI for refrigeration systems.
- Leak Testing: Before pressurization, perform a soap bubble test or use an electronic leak detector to identify and repair any leaks in the system.
Critical Cautions:
Avoid using nitrogen cylinders near open flames or high-temperature sources, as rapid pressure increases can occur. Always secure cylinders upright and use a regulator to control flow rates. Never pressurize a system without confirming its integrity, as failures can lead to catastrophic ruptures.
Practical Tips for Operators:
Keep a fire extinguisher and first aid kit within reach. Train all personnel in emergency response procedures, including recognizing symptoms of nitrogen exposure (e.g., dizziness, confusion). Regularly inspect equipment for wear and tear, replacing components like hoses and fittings as needed.
By implementing these safety precautions, operators can ensure a secure environment while leveraging nitrogen’s benefits for refrigeration system maintenance and testing. Vigilance and preparation are key to preventing accidents and safeguarding lives.
Can You Finance a Refrigerator in Your Home Loan?
You may want to see also
Explore related products
Pressure Limits: Understanding maximum safe pressure thresholds for different refrigeration system components
Pressurizing a refrigeration system with nitrogen is a critical step in leak testing, but it’s not as simple as applying pressure indiscriminately. Each component in the system—compressors, condensers, evaporators, and piping—has its own maximum safe pressure threshold, often specified by the manufacturer in pounds per square inch (PSI). Exceeding these limits can lead to catastrophic failure, from cracked welds to ruptured vessels. For instance, a typical residential refrigeration system might have a maximum working pressure of 350 PSI, while industrial systems can handle upwards of 500 PSI. Always consult the equipment’s specifications before proceeding.
Consider the compressor, the heart of the refrigeration system. Most reciprocating compressors are rated for a maximum discharge pressure of 250–350 PSI, depending on the model. Exceeding this threshold can cause overheating, mechanical stress, or even seizure. In contrast, condensers and evaporators often have higher pressure ratings, typically 400–600 PSI, but this doesn’t mean they’re invulnerable. For example, a condenser with a small diameter tube might fail prematurely under excessive pressure due to increased wall stress. Always use a pressure gauge calibrated to the system’s requirements and monitor readings closely during testing.
Piping and valves are another critical consideration. Copper tubing, commonly used in refrigeration systems, has a maximum working pressure that varies by diameter and wall thickness. For instance, ½-inch Type L copper tubing can typically handle up to 330 PSI, while Type K tubing of the same diameter can withstand up to 600 PSI. Valves, however, often have lower pressure ratings—a standard service valve might be rated for only 250 PSI. Overpressurizing these components can lead to leaks, deformation, or complete failure. Always isolate and protect vulnerable components before pressurizing the system.
To ensure safety, follow a systematic approach. Start by evacuating the system to remove air and moisture, then introduce nitrogen gradually, using a regulator to control the flow. Increase pressure in stages, pausing at 50% and 75% of the maximum rated pressure to check for leaks. Never exceed 80% of the lowest-rated component’s threshold, even if other parts can handle more. For example, if the compressor is rated for 350 PSI and the piping for 600 PSI, limit the test pressure to 280 PSI. Finally, always depressurize the system slowly and vent nitrogen outdoors, as it can displace oxygen and pose a suffocation risk in confined spaces.
Understanding pressure limits isn’t just about avoiding damage—it’s about ensuring the longevity and efficiency of the refrigeration system. Overpressurization can cause microfractures or fatigue in materials, leading to premature failure even if the system appears intact after testing. Conversely, underpressurization might fail to reveal leaks, defeating the purpose of the test. By respecting manufacturer guidelines and adopting a cautious, methodical approach, technicians can safely and effectively use nitrogen to verify system integrity without compromising safety or performance.
Calculating Exergy Efficiency: A Step-by-Step Guide for Refrigerators
You may want to see also
Explore related products
Leak Detection: Using nitrogen to identify leaks in the refrigeration system effectively
Nitrogen, an inert gas, serves as a safe and effective medium for pressurizing refrigeration systems during leak detection. Unlike air, nitrogen does not introduce moisture or oxygen, which can cause oxidation or contamination. When used correctly, it allows technicians to pinpoint leaks with precision, ensuring system integrity before refrigerant is added. This method is particularly valuable in systems using expensive or environmentally sensitive refrigerants, where minimizing loss is critical.
To begin the process, evacuate the system to remove any residual air or moisture, then introduce nitrogen at a pressure slightly above the system’s operating range—typically 100 to 200 psi for residential systems and up to 400 psi for industrial applications. Use a high-quality regulator and gauge to control pressure accurately. Once pressurized, inspect all joints, valves, and components with a soap solution or electronic leak detector. The soap solution method involves brushing a mixture of water and dish soap onto suspected areas; bubbles will form where nitrogen escapes. Electronic detectors, on the other hand, use sensors to identify nitrogen leaks, offering faster and more precise results.
A key advantage of nitrogen is its ability to reveal microleaks that might go unnoticed during visual inspections. For example, a pinhole leak in a copper line can release enough nitrogen to cause a significant refrigerant loss over time. By pressurizing the system and monitoring for pressure drop, technicians can isolate problem areas efficiently. If the pressure drops by more than 5 psi over 15 minutes, further investigation is warranted. This method is especially useful in large commercial systems, where leaks can be difficult to locate due to extensive piping networks.
However, caution must be exercised to avoid over-pressurization, which can damage system components. Always adhere to the manufacturer’s pressure limits and use a pressure relief valve as a safety measure. Additionally, ensure all tools and connections are nitrogen-compatible to prevent equipment failure. After leak detection, purge the system with nitrogen to remove any residual gas before charging with refrigerant. This step prevents dilution and ensures optimal system performance.
In conclusion, nitrogen pressurization is a reliable and cost-effective technique for leak detection in refrigeration systems. Its inert nature, combined with precise application, makes it superior to alternative methods. By following best practices and using appropriate tools, technicians can maintain system efficiency, reduce refrigerant waste, and extend equipment lifespan. Whether for routine maintenance or pre-commissioning checks, nitrogen remains an indispensable tool in the refrigeration technician’s arsenal.
Refrigerating Gingerbread Cookie Dough Overnight: Tips and Best Practices
You may want to see also
Explore related products
Equipment Requirements: Tools and equipment needed for nitrogen pressurization procedures
Nitrogen pressurization of refrigeration systems demands precision and the right tools to ensure safety and efficiency. At the core of this process is the nitrogen cylinder, which must be equipped with a high-pressure regulator capable of maintaining consistent output, typically between 100 and 300 psi, depending on system requirements. The regulator should have a dual-stage design to minimize pressure fluctuations, ensuring a stable environment for leak testing or system charging. Always verify the cylinder’s certification and inspect it for damage before use.
Equally critical is the manifold gauge set, specifically designed for refrigeration systems. This tool connects to the system’s service ports and allows for precise monitoring of pressure during the nitrogen pressurization process. Opt for a manifold with a dual-gauge setup—one for low-side pressure and one for high-side—to provide a comprehensive view of system conditions. Ensure the gauges are calibrated and compatible with nitrogen to avoid inaccurate readings that could compromise the procedure.
To safely introduce nitrogen into the system, a nitrogen charging hose with a quick-connect fitting is essential. This hose should be rated for high-pressure applications and made of durable materials resistant to corrosion and wear. Always use hoses with a burst pressure rating at least four times the maximum working pressure to prevent failures. Additionally, a purge valve or venting tool is necessary to release excess nitrogen and equalize pressure during the process, ensuring operator safety and system integrity.
For leak detection, a nitrogen-compatible leak detector is indispensable. Electronic detectors with tracer gas capabilities or soap solution kits can identify even minor leaks under pressure. When using electronic detectors, ensure they are calibrated for nitrogen and compatible with the refrigerant type in the system. For soap solutions, apply a mixture of water and detergent to joints and connections, watching for bubbles that indicate leaks. This step is crucial for maintaining system efficiency and preventing refrigerant loss.
Finally, personal protective equipment (PPE) cannot be overlooked. Safety goggles, nitrile gloves, and a face shield protect against potential nitrogen leaks or high-pressure releases. Nitrogen is non-toxic but can displace oxygen, leading to asphyxiation in confined spaces. Always work in well-ventilated areas and use a combustible gas detector to monitor oxygen levels. Proper PPE and environmental controls are the last line of defense, ensuring the procedure is completed without harm to personnel or equipment.
Refrigerating Custard: Optimal Storage Time and Safety Tips
You may want to see also
Explore related products
Post-Pressurization Steps: Procedures to follow after pressurizing the refrigeration system with nitrogen
After pressurizing a refrigeration system with nitrogen, the first critical step is to conduct a thorough leak test. Nitrogen is an inert gas, making it safe for this purpose, but its primary role here is to reveal weaknesses in the system. Begin by isolating the system from the nitrogen source and allowing it to stabilize for 15–30 minutes. Use a high-quality electronic leak detector or a soap solution to inspect all joints, valves, and connections. Even a small leak can compromise system efficiency and safety, so meticulousness is key. If a leak is detected, depressurize the system, repair the fault, and repeat the pressurization and testing process.
Depressurization and evacuation follow successful leak testing. Open the system to atmospheric pressure gradually to avoid sudden pressure drops that could damage components. Once depressurized, evacuate the system using a vacuum pump to remove any residual nitrogen and moisture. Achieving a deep vacuum (below 500 microns) is essential to prevent contamination and ensure optimal refrigerant performance. This step is often overlooked but is crucial for long-term system reliability.
Charging the system with refrigerant is the next logical step, but it requires precision. Before introducing refrigerant, verify that the system is clean, dry, and free of non-condensables. Use a charging scale to add the exact amount of refrigerant specified by the manufacturer, as overcharging or undercharging can lead to inefficiency or damage. For systems using R-410A, for example, accuracy within ±0.5 oz is recommended. Always follow the refrigerant’s safety guidelines, including wearing protective gear and ensuring proper ventilation.
System startup and monitoring complete the post-pressurization process. After charging, start the compressor and monitor the system’s performance closely. Check for proper refrigerant flow, correct temperatures at the evaporator and condenser, and appropriate pressure levels. Use gauges and thermometers to verify that the system operates within design parameters. If anomalies are detected, such as high discharge temperatures or low suction pressures, troubleshoot immediately. This phase ensures the system is not only functional but also optimized for energy efficiency and longevity.
Documentation and maintenance planning are often undervalued but essential final steps. Record all pressurization, testing, and charging details, including dates, pressures, and refrigerant quantities. This documentation aids in future diagnostics and compliance with regulations. Additionally, establish a maintenance schedule based on the system’s size and application. Regular inspections, filter changes, and performance checks can prevent costly downtime and extend the system’s lifespan. Treating post-pressurization as a comprehensive process, rather than isolated steps, ensures a robust and reliable refrigeration system.
Does Japanese Mayonnaise Need Refrigeration? Storage Tips Explained
You may want to see also
Frequently asked questions
Nitrogen is used to pressurize a refrigeration system because it is an inert gas that does not react with the system components or refrigerants, ensuring safety during testing and maintenance.
The pressure used depends on the system design and manufacturer’s specifications, but it typically ranges from 100 to 400 psi. Always refer to the system’s guidelines to avoid over-pressurization.
Ensure all valves are closed, attach the nitrogen cylinder securely, and slowly increase pressure while monitoring for leaks. Use a regulator and pressure gauge, and always wear appropriate PPE to prevent injury.
