When it comes to car air conditioning systems, understanding where the AC refrigerant goes is essential for proper maintenance and troubleshooting. The refrigerant, typically R-134a or the newer R-1234yf, circulates through a closed-loop system, starting at the compressor, where it is pressurized and heated. From there, it moves to the condenser, usually located in front of the radiator, where it cools down and condenses into a liquid. The liquid refrigerant then passes through the receiver-drier or accumulator, which filters out moisture and debris, before heading to the expansion valve or orifice tube. Here, the refrigerant is rapidly depressurized, causing it to cool significantly. Finally, it enters the evaporator, often found behind the dashboard, where it absorbs heat from the cabin air, providing the cooling effect. After completing this cycle, the refrigerant returns to the compressor, repeating the process to maintain a comfortable temperature inside the vehicle.
| Characteristics | Values |
|---|---|
| Location | Typically found in the AC system, a sealed network of components. |
| Primary Component | Compressor: Receives low-pressure refrigerant gas, compresses it into high-pressure, high-temperature gas. |
| Next Stop | Condenser: Located in front of the radiator, cools the hot, compressed refrigerant gas into a high-pressure liquid. |
| Expansion | Expansion Valve (or Orifice Tube): Reduces pressure of the liquid refrigerant, causing it to flash into a low-pressure, low-temperature mist. |
| Evaporation | Evaporator Coil: Located inside the car, absorbs heat from the cabin air, causing the refrigerant to evaporate back into a gas. |
| Cycle Repeats | The refrigerant gas returns to the compressor, starting the cycle again. |
| Refrigerant Type | Most modern cars use R-134a, older cars may use R-12 (being phased out due to environmental concerns). |
| Storage | Refrigerant is stored in a sealed system and should not be released into the atmosphere. |
| Leakage | Leaks can occur at any point in the system, leading to reduced cooling performance. |
Explore related products
What You'll Learn

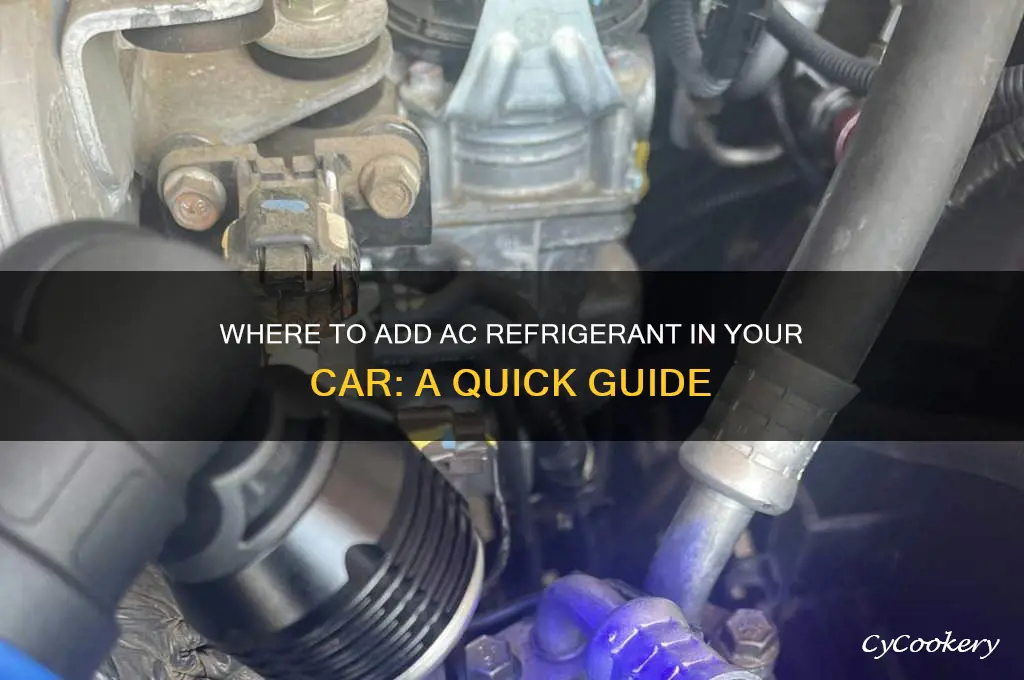

AC Low-Pressure Port Location
The AC low-pressure port is a critical access point for recharging or servicing a vehicle’s air conditioning system, typically located on the larger of the two aluminum lines connected to the AC compressor. Unlike the high-pressure port, which handles refrigerant under extreme pressure from the compressor, the low-pressure port deals with refrigerant in its gaseous state at lower pressures, usually around 25–50 psi when the AC is running. Identifying this port correctly is essential to avoid damaging the system or overcharging it, as using the wrong port can lead to catastrophic failure of components like the compressor or condenser.
To locate the low-pressure port, start by identifying the AC lines near the firewall or engine bay. The low-pressure side is usually the suction line, which connects to the compressor’s inlet and is often wrapped in black foam insulation to prevent condensation. Trace this line to find a service port with a blue cap, which is the industry-standard color for low-pressure ports. If the cap is missing or the color is faded, consult the vehicle’s manual or use a refrigerant gauge to confirm the port’s pressure reading when the AC is active. For example, on a Toyota Camry, the low-pressure port is typically located near the firewall, while on a Ford F-150, it may be closer to the compressor itself.
When accessing the low-pressure port, ensure the engine is off and the AC system is depressurized to avoid refrigerant leaks or injury. Attach the refrigerant can or gauge set to the port securely, following the manufacturer’s instructions for adding refrigerant. A common mistake is overcharging the system, which can cause high-pressure switch trips or compressor damage. Most vehicles require 1–2 pounds of refrigerant (R-134a or R-1234yf), but always refer to the vehicle’s specifications. For instance, a Honda Civic may need 1.5 pounds, while a Chevrolet Silverado could require up to 3 pounds.
Comparatively, the low-pressure port’s location varies across vehicle makes and models, making it a point of confusion for DIY enthusiasts. European vehicles like BMWs or Audis often place the port in less accessible areas, such as behind the front grille or near the radiator, while Asian and American vehicles tend to keep it closer to the engine bay for easier access. Understanding these differences can save time and frustration during maintenance. For example, on a Mercedes-Benz E-Class, the low-pressure port is often hidden behind a plastic cover, requiring additional steps to access.
In conclusion, mastering the location and function of the AC low-pressure port is key to maintaining a vehicle’s cooling system efficiently. By recognizing its distinctive features—larger line size, blue cap, and lower pressure readings—and understanding its role in the refrigerant cycle, you can perform recharges or diagnostics with confidence. Always prioritize safety, follow manufacturer guidelines, and use the correct tools to ensure the longevity of your AC system. Whether you’re working on a compact sedan or a full-size truck, this knowledge is indispensable for keeping your vehicle cool and comfortable.
Does Cheesecake Firm Up in the Fridge? A Setting Guide
You may want to see also
Explore related products
Refrigerant Type for Cars
The automotive industry has seen a significant shift in AC refrigerant types over the years, driven by environmental concerns and regulatory changes. Modern cars primarily use R-134a, a hydrofluorocarbon (HFC) refrigerant, which replaced the ozone-depleting R-12 in the 1990s. However, R-134a itself has come under scrutiny due to its high global warming potential (GWP), leading to the emergence of R-1234yf as a more environmentally friendly alternative. This newer refrigerant has a GWP that is over 99% lower than R-134a, making it the preferred choice in many newer vehicles, particularly in Europe and increasingly in the U.S.
Choosing the correct refrigerant type is crucial for both performance and compliance. Using the wrong refrigerant can damage the AC system, void warranties, and result in costly repairs. For instance, R-1234yf is not compatible with systems designed for R-134a due to differences in lubricants and system components. Always consult your vehicle’s manual or a professional technician to confirm the appropriate refrigerant type. Retrofitting an older system to use a newer refrigerant is possible but requires specialized knowledge and equipment, including flushing the system and replacing certain components like hoses and seals.
From a practical standpoint, R-134a remains widely available and is still used in many vehicles on the road today. If your car requires R-134a, ensure you purchase refrigerant cans with a built-in recharge hose and gauge to avoid overfilling, which can cause system damage. For R-1234yf, recharging is more complex due to its flammability, and it’s typically recommended to have this done by a certified technician. DIY kits for R-1234yf are scarce and often unreliable, posing safety risks if not handled correctly.
The transition to R-1234yf highlights the evolving nature of automotive refrigerants, driven by both regulatory mandates and consumer demand for greener solutions. While R-134a remains prevalent, its phase-out is underway in many regions. For car owners, staying informed about these changes is essential, as using the wrong refrigerant can lead to inefficiency, system failure, or even legal penalties in areas with strict environmental regulations. As technology advances, we may see even more sustainable refrigerants enter the market, further reducing the environmental impact of vehicle air conditioning systems.
Refrigerating Cut Onions: Best Practices for Freshness and Safety
You may want to see also
Explore related products
$44.99
Adding Refrigerant Steps
The AC refrigerant in a car circulates through a closed-loop system, absorbing heat from the cabin and releasing it outside. When levels drop, performance suffers, and adding refrigerant becomes necessary. This process, while seemingly straightforward, requires precision and adherence to safety protocols.
Here’s a step-by-step guide to ensure you do it right.
Step 1: Identify the Correct Refrigerant Type
Modern vehicles primarily use R-134a refrigerant, but newer models may require R-1234yf. Check your car’s manual or the label under the hood to confirm. Using the wrong type can damage the system and void warranties. R-1234yf, for instance, is not compatible with R-134a systems and requires specialized equipment for handling.
Step 2: Prepare the System for Charging
Start the engine and turn the AC to its maximum setting. This ensures the compressor is engaged and ready to accept refrigerant. Connect the refrigerant can to the low-pressure port, typically located on the larger of the two AC lines. If your kit includes a gauge, monitor the pressure to avoid overcharging. The ideal operating pressure varies by vehicle but generally falls between 25–45 psi when the AC is running.
Step 3: Add Refrigerant Gradually
Shake the refrigerant can well and attach it to the charging hose. Slowly release the refrigerant into the system, pausing every 10–15 seconds to check the temperature at the vents. The goal is to reach a vent temperature of 40–45°F (4–7°C). Overcharging can cause the system to freeze up, while undercharging results in poor cooling. A typical car AC system holds 14–28 ounces of refrigerant, but always refer to your vehicle’s specifications.
Step 4: Monitor and Test the System
After adding refrigerant, let the AC run for 2–3 minutes to stabilize. Check for leaks using a UV dye kit or electronic leak detector. If the system still underperforms, the issue may lie elsewhere, such as a faulty compressor or clogged expansion valve. Always dispose of empty refrigerant cans properly, as they contain hazardous materials.
Cautions and Practical Tips
Avoid overcharging, as it can lead to compressor failure or burst hoses. Wear gloves and safety goggles to protect against refrigerant exposure, which can cause skin and eye irritation. If you’re unsure about any step, consult a professional. DIY refrigerant kits are convenient but lack the precision of professional equipment, making them best suited for minor top-ups rather than complete recharges.
Refrigerating Flowers: How Long Can They Stay Fresh and Vibrant?
You may want to see also
Explore related products
Common AC Leak Areas
A car's air conditioning system is a sealed network, yet refrigerant leaks are a common issue. Understanding where these leaks typically occur can save time and money in diagnostics and repairs. The refrigerant, a vital component for cooling, escapes through weak points in the system, often due to age, wear, or damage. Here’s a focused look at the most common AC leak areas in vehicles.
Analytical Perspective: The Role of Seals and Connections
The AC system relies on a series of seals, hoses, and connections to maintain pressure and contain refrigerant. Over time, rubber seals degrade due to exposure to heat, cold, and ozone, becoming brittle and prone to cracking. O-rings, which seal joints between components like the compressor, evaporator, and condenser, are particularly vulnerable. A single compromised seal can lead to a slow leak, often undetectable until the system’s performance drops. For example, a cracked compressor shaft seal is a frequent culprit, especially in older vehicles with high mileage. Inspecting these areas during routine maintenance can prevent refrigerant loss and extend system life.
Instructive Approach: DIY Leak Detection Tips
If you suspect a refrigerant leak, start by examining visible components under the hood. The AC lines, which carry refrigerant between the compressor and evaporator, are often exposed and prone to damage from road debris or corrosion. Look for oily residue, a telltale sign of refrigerant leakage, around fittings and hoses. Another common area is the evaporator core, located inside the cabin, which can corrode due to moisture buildup. While accessing the evaporator requires disassembling the dashboard, a musty odor from the vents often indicates a leak in this area. For a more precise diagnosis, use an electronic leak detector or UV dye, which highlights leaks under ultraviolet light.
Comparative Analysis: High-Pressure vs. Low-Pressure Leaks
Leaks can occur in both high-pressure and low-pressure sides of the AC system, each with distinct characteristics. High-pressure leaks, often found near the compressor or condenser, are more dangerous due to the risk of refrigerant spraying at high velocity. These leaks typically result from damaged hoses or loose fittings. In contrast, low-pressure leaks, common near the evaporator or expansion valve, are slower but equally problematic. Low-pressure leaks often stem from corrosion or failed seals. While high-pressure leaks are easier to spot due to their immediate impact on cooling performance, low-pressure leaks may go unnoticed until the system is nearly empty.
Descriptive Insight: The Hidden Dangers of Microleaks
Not all leaks are obvious. Microleaks, tiny breaches in the system, can be as small as a pinhole yet cause significant refrigerant loss over time. These leaks often occur in the receiver-drier or accumulator, components that filter moisture and debris from the refrigerant. Microleaks are challenging to detect without specialized tools, as they don’t leave visible residue or cause immediate performance issues. However, their cumulative effect can lead to compressor failure, a costly repair. Regular pressure testing and visual inspections are essential to catch these leaks early, especially in vehicles over five years old or with more than 75,000 miles.
Persuasive Argument: The Cost of Ignoring Leaks
Ignoring AC leaks not only compromises comfort but also accelerates system failure. Refrigerant loss reduces cooling efficiency, forcing the compressor to work harder and consume more fuel. Over time, low refrigerant levels can damage the compressor, leading to repairs costing $800 or more. Additionally, refrigerant leaks harm the environment, as most vehicles still use potent greenhouse gases like R-134a. Addressing leaks promptly not only preserves your vehicle’s performance but also aligns with eco-friendly practices. Investing in regular AC inspections and timely repairs is a small price compared to the long-term costs of neglect.
Refrigerated Scrambled Eggs: Safe Storage Time and Tips
You may want to see also
Explore related products
Tools for Refilling AC
Refilling a car's AC system requires precision and the right tools to ensure safety and efficiency. The refrigerant, typically R-134a or the newer R-1234yf, must be introduced into the system at the correct pressure and quantity. The primary tool for this task is a manifold gauge set, which connects to the high and low-pressure ports of the AC system. This set allows you to monitor pressure levels, evacuate air and moisture, and add refrigerant. Without it, you risk overcharging the system, leading to compressor damage or undercharging, resulting in poor cooling performance.
Another essential tool is a refrigerant dispenser, often in the form of a can tap or a larger cylinder with a dispensing hose. For DIY users, small cans of refrigerant with built-in hoses are common, but they lack the precision of professional tools. When using these cans, follow the manufacturer’s instructions carefully, typically adding refrigerant in small increments while the AC is running. For example, a standard car AC system holds between 14 to 28 ounces of refrigerant, but overfilling by just 10% can reduce efficiency by up to 20%.
Professionals often use a vacuum pump in conjunction with the manifold gauge set to remove air, moisture, and old refrigerant before refilling. Moisture in the system can freeze and block components, while air reduces cooling efficiency. A vacuum pump pulls the system down to a pressure of 25–30 inches of mercury, ensuring it’s ready for new refrigerant. This step is critical but often skipped in DIY attempts, leading to recurring AC issues.
For vehicles using R-1234yf, specialized tools are required due to the refrigerant’s flammability and unique properties. A R-1234yf recovery machine is necessary to handle the refrigerant safely, as it operates at different pressures and requires specific hoses and connectors. Attempting to use R-134a tools on a R-1234yf system can cause leaks or damage. Always check your vehicle’s AC system type before starting the refill process.
Finally, a thermometer and leak detector are invaluable for diagnosing issues before refilling. A thermometer helps verify if the AC system is functioning correctly by measuring vent temperatures, which should be around 40–50°F for optimal cooling. A leak detector, either electronic or UV dye-based, identifies refrigerant leaks, which are often the root cause of low refrigerant levels. Addressing leaks before refilling saves time and money, ensuring the refrigerant goes where it’s supposed to—into a sealed, efficient AC system.
Should Spore Syringes Be Refrigerated? Storage Tips for Optimal Viability
You may want to see also
Frequently asked questions
The AC refrigerant port, also known as the low-pressure service port, is typically located on the larger of the two AC lines near the firewall or on the AC accumulator/receiver-drier.
No, refrigerant should only be added through the low-pressure service port. Adding it to the high-pressure side can damage the system and is dangerous.
Common signs include reduced cooling performance, warm air blowing from vents, or hissing noises from the AC system. A professional inspection or pressure gauge can confirm low refrigerant levels.
While DIY refrigerant kits are available, it’s recommended to have a certified technician handle refrigerant, as improper handling can cause injury or damage to the AC system.
Overfilling can cause high pressure, leading to system damage, leaks, or component failure. Always follow the manufacturer’s guidelines or consult a professional.
