The condenser in a Sub-Zero refrigerator is a crucial component of its cooling system, responsible for dissipating heat extracted from the interior. Typically located at the bottom or rear of the unit, the condenser consists of coils and a fan that work together to release heat into the surrounding environment. Its placement is designed to optimize airflow and efficiency, ensuring the refrigerator maintains consistent temperatures. Understanding the condenser’s location is essential for proper maintenance, such as cleaning or troubleshooting, as it directly impacts the appliance’s performance and longevity.
| Characteristics | Values |
|---|---|
| Location | Typically located at the top or bottom rear of the refrigerator, depending on the model. Some models may have it integrated into the grille at the bottom front. |
| Function | Dissipates heat from the refrigeration system to the surrounding environment, ensuring efficient cooling. |
| Accessibility | Often accessible by removing a rear or bottom panel, or by pulling out the refrigerator from the wall. |
| Maintenance | Requires regular cleaning to remove dust and debris for optimal performance. Use a vacuum or soft brush for cleaning. |
| Material | Usually made of copper or aluminum coils with fins for enhanced heat exchange. |
| Noise | May produce a low humming or buzzing sound during operation, which is normal. |
| Compatibility | Specific to Sub-Zero refrigerator models; location and design may vary by series (e.g., Classic, Integrated, Pro 48). |
| Safety | Ensure the refrigerator is unplugged before accessing or cleaning the condenser to avoid electrical hazards. |
| Lifespan | Designed to last the lifetime of the refrigerator with proper maintenance. |
| Warranty | Covered under Sub-Zero's warranty, typically for 2 years on parts and 5 years on sealed system components. |
Explore related products
What You'll Learn
Condenser location in Sub-Zero fridge models
Sub-Zero refrigerators are renowned for their precision engineering and innovative design, but locating the condenser can be a puzzle for even the most seasoned appliance owner. Unlike many standard refrigerators, Sub-Zero models often conceal their condensers to maintain a sleek, integrated appearance. The condenser, a critical component responsible for dissipating heat, is typically housed in a location that balances efficiency with aesthetics. Understanding its placement is essential for maintenance, troubleshooting, and ensuring optimal performance.
In most Sub-Zero models, the condenser is located at the top rear exterior of the refrigerator. This design choice allows for efficient heat exchange while keeping the unit’s footprint compact. For example, in the Sub-Zero BI-36U built-in refrigerator, the condenser coils are positioned along the top grille, which is accessible by removing the grille cover. This placement ensures proper airflow and heat dissipation, but it also means that regular cleaning is necessary to prevent dust buildup, which can hinder performance. Use a soft brush or vacuum attachment every 3–6 months to maintain efficiency, especially in dusty environments.
For Sub-Zero integrated models, such as the IT-30CI, the condenser is often integrated into the cabinet’s top or side panels, depending on the installation type. This design is particularly common in custom cabinetry setups, where the refrigerator is designed to blend seamlessly with surrounding woodwork. In these cases, the condenser’s location may require professional access for maintenance, as it’s often hidden behind decorative panels. Always consult the user manual or a certified technician to avoid damaging the unit during inspection or cleaning.
One notable exception is the Sub-Zero PRO 48, a larger, professional-style model. Here, the condenser is located at the bottom rear of the unit, near the compressor. This placement is strategic, as it leverages the natural flow of warm air rising away from the condenser coils. However, it also means the area is more prone to collecting debris, so regular cleaning is crucial. Use a coil cleaning solution and a soft brush to remove grease or dirt, especially in kitchens with heavy cooking activity.
Understanding the condenser’s location in your Sub-Zero model is not just about maintenance—it’s also about ensuring longevity and energy efficiency. For instance, placing the refrigerator too close to a wall or cabinet can restrict airflow, causing the condenser to overwork and potentially shortening its lifespan. Leave at least 2 inches of clearance around the top and sides of the unit to optimize performance. Additionally, avoid installing Sub-Zero refrigerators in areas with high humidity or direct sunlight, as these conditions can strain the condenser and compressor.
In summary, the condenser in Sub-Zero refrigerators is strategically placed to balance functionality and design, whether at the top rear, integrated into panels, or at the bottom rear in larger models. Knowing its location empowers you to perform routine maintenance, troubleshoot issues, and ensure your appliance operates at peak efficiency. Always refer to your model’s specific guidelines, and when in doubt, consult a professional to avoid costly mistakes.
Smart Tips for Buying a Budget-Friendly Refrigerator Easily
You may want to see also
Explore related products
Identifying condenser coil placement in Sub-Zero units
Sub-Zero refrigerators are renowned for their precision engineering, but locating the condenser coil can be a puzzle for even seasoned appliance owners. Unlike many brands, Sub-Zero units often conceal their condensers within the grille at the bottom front of the unit, blending seamlessly with the appliance’s design. This placement is intentional, optimizing airflow while maintaining the sleek aesthetic Sub-Zero is known for. However, not all models follow this pattern, making identification a model-specific task.
To identify the condenser coil in your Sub-Zero unit, start by examining the grille at the base of the refrigerator. On most models, this grille is removable, revealing the condenser coil and fan assembly behind it. Use a screwdriver to gently pry off the grille, taking care not to damage the clips or surrounding trim. Once removed, you’ll typically find the condenser coil positioned horizontally, with the fan located nearby to facilitate airflow. For built-in models, the condenser may also be accessed from the rear or sides, depending on installation constraints.
A critical aspect of condenser coil placement is its impact on maintenance. Sub-Zero recommends cleaning the coil and grille every six months to ensure optimal performance. Dust and debris accumulation can restrict airflow, forcing the compressor to work harder and potentially shortening the appliance’s lifespan. Use a soft brush or vacuum with a brush attachment to remove buildup, avoiding harsh chemicals or abrasive tools that could damage the fins. For hard-to-reach areas, a compressed air canister can be effective.
Comparatively, Sub-Zero’s condenser placement differs from many competitors, which often locate coils on the back or top of the unit. This design choice reflects Sub-Zero’s focus on both functionality and aesthetics, ensuring the appliance remains unobtrusive in high-end kitchens. However, it also underscores the importance of understanding your specific model’s layout, as variations exist across the brand’s product lines. Consulting your owner’s manual or Sub-Zero’s online resources can provide model-specific guidance.
In conclusion, identifying the condenser coil in a Sub-Zero refrigerator requires familiarity with the brand’s design philosophy and a methodical approach. By focusing on the grille area and understanding the importance of regular maintenance, you can ensure your appliance operates efficiently for years to come. Whether you’re troubleshooting performance issues or performing routine upkeep, knowing where to find the condenser coil is a valuable skill for any Sub-Zero owner.
Reheating Air in Refrigeration Systems: Purpose, Benefits, and Efficiency Explained
You may want to see also
Explore related products
Accessing the condenser in Sub-Zero refrigerators

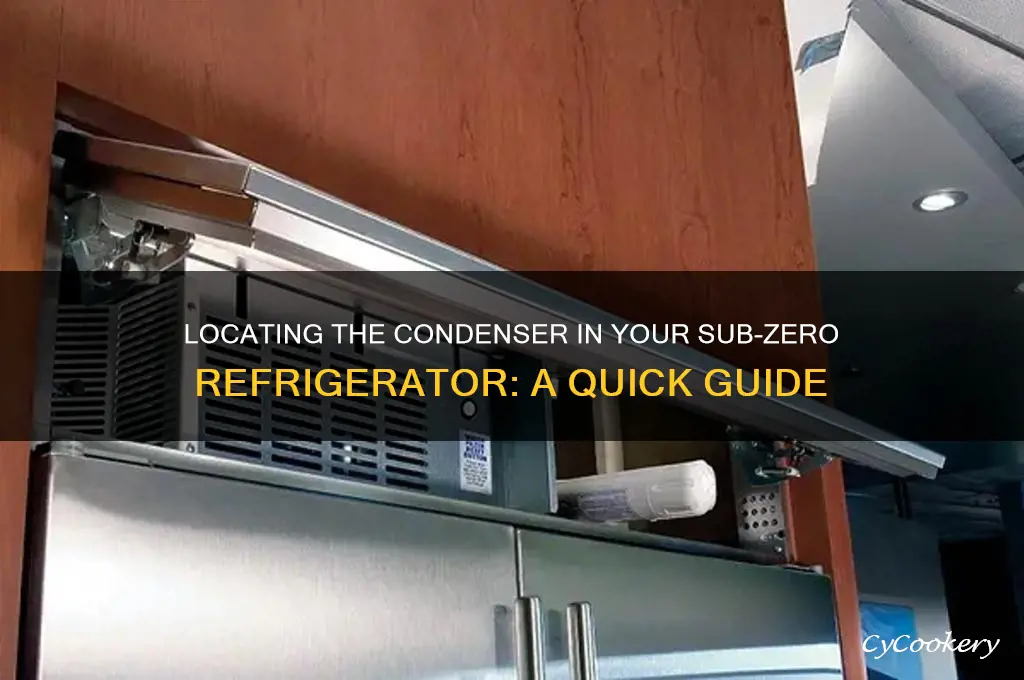

The condenser in Sub-Zero refrigerators is typically located at the top of the unit, behind a removable grille or panel. This placement is strategic, as it allows for efficient heat dissipation, a critical function of the condenser. Understanding this location is the first step in accessing and maintaining this vital component. Sub-Zero’s design prioritizes both performance and accessibility, ensuring that homeowners and technicians can reach the condenser without extensive disassembly of the appliance.
To access the condenser, start by unplugging the refrigerator to ensure safety. Next, locate the grille or panel at the top of the unit, usually held in place by screws or clips. Remove these fasteners carefully, setting them aside for reassembly. Once the grille is off, you’ll find the condenser coil and fan assembly. Use a soft brush or vacuum with a brush attachment to gently remove dust and debris, as buildup can hinder efficiency. Avoid using water or harsh chemicals, as they can damage electrical components.
One common misconception is that the condenser is located at the back of the refrigerator, like in many standard models. Sub-Zero’s top-mounted design sets it apart, reflecting its focus on optimized airflow and cooling performance. This unique placement also reduces the risk of debris accumulation compared to rear-mounted condensers, which are more exposed to kitchen dust and dirt. However, regular cleaning is still essential to maintain peak efficiency.
For those unfamiliar with appliance maintenance, accessing the condenser may seem daunting. However, Sub-Zero’s user-friendly design simplifies the process. If you encounter difficulty removing the grille or notice unusual noises from the condenser fan, consult the user manual or contact a certified technician. Attempting to force components or ignoring warning signs can lead to costly repairs. Proper maintenance not only extends the life of your refrigerator but also ensures consistent performance, especially in high-demand environments like professional kitchens.
In summary, accessing the condenser in a Sub-Zero refrigerator involves locating the top grille, removing it safely, and cleaning the coil and fan assembly. This straightforward process is a testament to Sub-Zero’s thoughtful engineering, balancing high-end performance with practical accessibility. By incorporating this task into your routine appliance care, you’ll preserve the efficiency and longevity of your investment.
Properly Storing Cut Onions in the Fridge: Tips and Tricks
You may want to see also
Explore related products
Condenser maintenance tips for Sub-Zero appliances
The condenser in a Sub-Zero refrigerator is typically located at the top or bottom of the appliance, depending on the model. For built-in models, it’s often integrated into the grill at the top, while for freestanding units, it may be at the base. Knowing its location is the first step in effective maintenance, as it allows for targeted cleaning and inspection to ensure optimal performance.
Analytical Insight: Condenser coils are critical for heat dissipation, a process essential to your Sub-Zero’s cooling efficiency. Over time, dust, pet hair, and debris accumulate on these coils, forcing the compressor to work harder and increasing energy consumption by up to 30%. Regular maintenance not only extends the appliance’s lifespan but also reduces utility costs. For example, a Sub-Zero 48-inch PRO model with clogged coils may struggle to maintain consistent temperatures, particularly in high-humidity environments.
Instructive Steps: To clean the condenser, unplug the refrigerator or turn off the circuit breaker for safety. Use a soft-bristle brush or vacuum with a brush attachment to remove surface debris. For deeper cleaning, a condenser coil cleaning solution (available at hardware stores) can be applied sparingly, followed by a dry cloth to wipe away residue. Aim to clean the coils every 3–6 months, or more frequently if you have pets or live in a dusty area. For top-mounted condensers, remove the grill cover gently to access the coils.
Comparative Caution: Unlike standard refrigerators, Sub-Zero units are engineered with precision components that require careful handling. Avoid using compressed air, as it can force debris deeper into the coils. Similarly, harsh chemicals or abrasive tools can damage the fins, reducing efficiency. Compare this to cleaning a car radiator—gentle, consistent care yields better results than aggressive methods.
Descriptive Takeaway: A well-maintained condenser is not just about cleanliness; it’s about preserving the Sub-Zero’s luxury performance. Imagine the condenser as the lungs of your refrigerator—clear passages ensure smooth operation. By integrating these maintenance tips into your routine, you’ll safeguard your investment, ensuring your Sub-Zero continues to deliver the unparalleled cooling performance it’s renowned for.
Understanding Your Fridge's Adaptive Defrost Thermostat Functionality
You may want to see also
Explore related products
Common condenser issues in Sub-Zero refrigerators
The condenser in a Sub-Zero refrigerator is typically located at the bottom rear of the unit, often behind a removable grille or panel. This component plays a critical role in the refrigeration cycle by dissipating heat extracted from the interior. Despite its robust design, the condenser can encounter issues that affect performance. Understanding these problems is essential for timely maintenance and repair.
One common issue is dust and debris buildup, which obstructs airflow and reduces heat dissipation efficiency. Over time, this can lead to overheating and increased energy consumption. To prevent this, clean the condenser coils every six months using a soft brush or vacuum. For stubborn grime, a coil-cleaning solution can be applied, but ensure the refrigerator is unplugged first. Neglecting this maintenance can shorten the lifespan of the condenser and compressor.
Another frequent problem is corrosion or physical damage to the condenser fins. Sub-Zero refrigerators are often installed in high-moisture environments, such as kitchens, which can accelerate rusting. Bent fins also impede airflow, causing the system to work harder. Inspect the fins periodically and straighten any deformities with a fin comb. If corrosion is severe, consider replacing the condenser to avoid further complications.
Electrical malfunctions are less common but equally disruptive. Faulty wiring or a failing condenser fan motor can prevent proper heat exchange. Symptoms include unusual noises, inconsistent cooling, or a completely non-functional unit. Diagnosing these issues often requires a multimeter and technical expertise. If you suspect an electrical problem, consult a certified Sub-Zero technician to avoid safety hazards or voiding the warranty.
Lastly, refrigerant leaks near the condenser can compromise the entire cooling system. While Sub-Zero units are designed to minimize leaks, they can occur due to aging seals or physical damage. Signs of a leak include reduced cooling capacity, frost buildup, or hissing sounds. Addressing this issue promptly is crucial, as refrigerant leaks not only affect performance but also pose environmental risks. Professional repair is mandatory for handling refrigerants safely and effectively.
By recognizing these common condenser issues and taking proactive measures, Sub-Zero refrigerator owners can ensure optimal performance and longevity. Regular maintenance, coupled with timely professional intervention, is key to preserving this high-end appliance.
Does Godiva Liqueur Need Refrigeration? Storage Tips Revealed
You may want to see also
Frequently asked questions
The condenser in a Sub-Zero refrigerator is typically located at the bottom rear of the unit, behind the grille or panel.
To access the condenser, unplug the refrigerator, remove the lower grille or panel at the back or bottom, and locate the coil assembly.
The condenser dissipates heat from the refrigerant, allowing the cooling process to function efficiently in the refrigerator.
