If you're looking to locate the defrost timer on your Frigidaire refrigerator, it’s typically found in one of a few common places depending on the model. In older Frigidaire refrigerators, the defrost timer is often located behind the control panel at the top of the refrigerator compartment, accessible by removing the panel cover. In newer models, it may be situated near the compressor at the bottom rear of the unit, often behind a small access panel. Some Frigidaire refrigerators also place the defrost timer inside the fresh food compartment, usually behind a kickplate or near the evaporator coils. Consulting your refrigerator’s manual or model-specific diagrams can provide precise guidance for your particular unit.
| Characteristics | Values |
|---|---|
| Location | Typically located behind the refrigerator's control panel or inside the control panel housing. Some models may have it mounted on the back wall of the refrigerator compartment or near the compressor. |
| Appearance | A small, cylindrical or rectangular device with a motor and a series of terminals or wires connected to it. |
| Function | Controls the defrost cycle by turning on and off the defrost heater, terminating the defrost cycle when the defrost thermostat opens. |
| Model-Specific Variations | Location may vary depending on the specific Frigidaire refrigerator model. Common models like FFHN2740PS, FFSS2615TS, or FGHS2631PF may have the defrost timer in different positions. |
| Access | May require removing the control panel or rear panel to access the defrost timer. Refer to the user manual or model-specific guides for detailed instructions. |
| Replacement | If defective, the defrost timer can be replaced with a compatible part. Part numbers may vary, so verify compatibility before purchasing. |
| Troubleshooting | A faulty defrost timer can cause issues like excessive frosting, warm refrigerator, or frozen evaporator coils. Testing with a multimeter can help diagnose problems. |
| Compatibility | Ensure compatibility with your specific Frigidaire refrigerator model when replacing or repairing the defrost timer. |
| Note | Always disconnect power to the refrigerator before attempting to access or replace the defrost timer. |
Explore related products
![[2025 Upgrade] 5304526183 Defrost Timer – Compatible with Frigidaire & White‑Westinghouse Refrigerators – Replaces 4960382, AP7014390, PS16227343, EAP16227343, FIX16227343](https://m.media-amazon.com/images/I/71LkgmK9vJL._AC_UY218_.jpg)
What You'll Learn
Defrost Timer Location in Frigidaire Refrigerator Models
The defrost timer in Frigidaire refrigerator models is a critical component that regulates the automatic defrost cycle, preventing ice buildup in the freezer. Its location varies depending on the model and design, but there are common areas to check. In top-freezer models, the defrost timer is often found behind the control panel at the top of the refrigerator compartment. To access it, remove the screws or clips holding the panel in place, then carefully lift it off to reveal the timer. This area is typically well-ventilated to prevent overheating, making it a logical placement for this component.
For side-by-side and bottom-freezer Frigidaire models, the defrost timer is frequently located in the control housing at the top rear of the refrigerator. This housing is usually accessed by removing a panel or cover, which may require a screwdriver. In some newer models, the timer is integrated into a circuit board, making it less conspicuous but still accessible with the right tools. Always consult the user manual or model-specific diagrams to confirm the exact location, as Frigidaire designs can differ significantly across product lines.
When troubleshooting or replacing a defrost timer, it’s essential to disconnect power to the refrigerator first. This prevents electrical hazards and ensures safety during inspection. If the timer is difficult to locate, consider tracing the defrost heater wires, as they often lead directly to the timer. Additionally, some Frigidaire models may have the timer mounted near the compressor, typically at the bottom rear of the unit. This placement is less common but worth checking if other areas yield no results.
Understanding the defrost timer’s function is key to diagnosing issues. If the refrigerator isn’t defrosting properly, a faulty timer could be the culprit. Symptoms include excessive frost buildup, water leakage, or a freezer that’s too warm. Testing the timer with a multimeter can confirm if it’s malfunctioning. Replacement timers are model-specific, so ensure compatibility before purchasing. Regular maintenance, such as cleaning coils and checking door seals, can also reduce the strain on the defrost system, prolonging the timer’s lifespan.
In summary, locating the defrost timer in a Frigidaire refrigerator requires familiarity with the model’s design and a systematic approach. Whether it’s behind the control panel, in the rear housing, or near the compressor, knowing where to look saves time and effort. Pairing this knowledge with basic troubleshooting skills empowers homeowners to address defrost issues effectively, ensuring their refrigerator operates efficiently for years to come.
Easy Steps to Clean Your Frigidaire Fridge's Defrost Drain
You may want to see also
Explore related products
Identifying the Defrost Timer Component
The defrost timer in a Frigidaire refrigerator is a critical component that regulates the automatic defrost cycle, preventing ice buildup on the evaporator coils. Identifying its location is the first step in troubleshooting issues like excessive frost or inadequate cooling. Typically, Frigidaire models house the defrost timer in one of three areas: behind the control panel, inside the refrigerator compartment near the temperature controls, or in the back lower corner of the unit near the compressor. Knowing where to look saves time and avoids unnecessary disassembly.
Analyzing Frigidaire’s design trends reveals a pattern in defrost timer placement. Older models often locate the timer behind the kickplate or near the compressor, while newer units integrate it into the control panel for easier access. For example, the Frigidaire FFTR1821 series places the timer behind the control panel, accessible by removing a few screws. In contrast, the FFSS2615 model positions it near the compressor, requiring you to slide the refrigerator away from the wall. Understanding these variations ensures you target the correct area based on your model’s age and design.

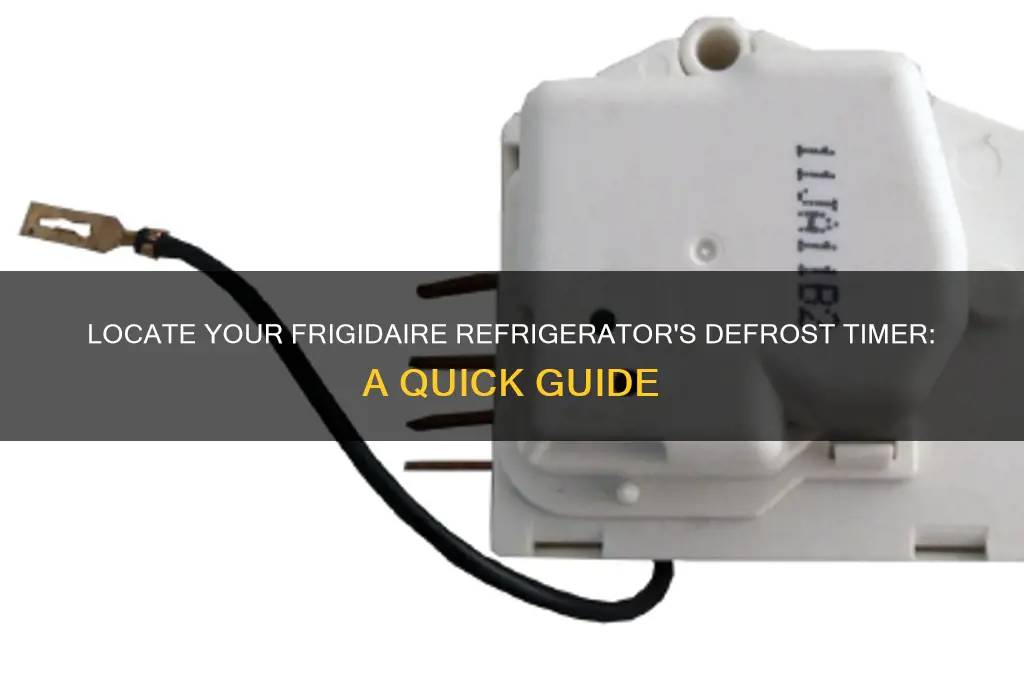

To identify the defrost timer component, look for a small, cylindrical or rectangular device with a series of wires connected to it. It typically has a dial or digital display and may be labeled with terms like “defrost timer” or “timer.” If the label is unclear, consult your refrigerator’s manual or search for your model number online to confirm its appearance. For instance, the Frigidaire Gallery series often features a digital timer with LED indicators, while basic models may have a mechanical dial. Familiarizing yourself with these characteristics prevents confusion with other components like the thermostat or overload protector.
A practical tip for locating the defrost timer is to follow the wiring harness. Start at the evaporator fan or heating element, as these components are directly connected to the timer. Trace the wires back to their source, which will lead you to the timer’s location. Be cautious not to pull or damage the wires during this process. If the timer is inaccessible without disassembling the unit, refer to a step-by-step guide specific to your model to avoid mistakes. For example, removing the control panel on a Frigidaire side-by-side model requires unplugging the refrigerator and carefully prying off the panel with a flathead screwdriver.
In conclusion, identifying the defrost timer component in a Frigidaire refrigerator involves understanding its typical locations, recognizing its physical characteristics, and using practical techniques to trace its position. Whether your model houses the timer behind the control panel or near the compressor, knowing these specifics streamlines troubleshooting and maintenance. Always refer to your model’s manual or online resources for precise instructions, ensuring you approach the task with confidence and accuracy.
Refrigerator Noise and Hearing Loss: Uncovering the Hidden Risks
You may want to see also
Explore related products
Accessing the Defrost Timer in Frigidaire Fridges
The defrost timer in many Frigidaire refrigerators is often tucked away in a location that requires some disassembly to access. Typically, it’s found behind the control panel or near the compressor, depending on the model. For side-by-side or top-freezer models, start by removing the kickplate at the bottom front of the fridge. This exposes the timer, which is usually mounted near the floor or on the back wall of the cabinet. Always unplug the refrigerator before attempting to locate or handle the timer to avoid electrical hazards.
Analyzing Frigidaire’s design trends, the placement of the defrost timer often prioritizes accessibility for technicians while minimizing exposure to everyday users. For instance, in newer models like the FFSS2615TS or FFHB2850TS, the timer is frequently integrated into the control panel assembly. To access it, remove the screws holding the control panel cover, lift the panel, and locate the timer module behind it. This design ensures the timer is shielded from accidental tampering but remains reachable with basic tools.
If your Frigidaire fridge is an older model, the defrost timer might be located in the rear compartment near the compressor. In this case, you’ll need to pull the refrigerator away from the wall, remove the back access panel, and locate the timer mounted on the side or bottom of the compartment. Be cautious when handling components near the compressor, as sharp edges or hot surfaces can pose risks. Always refer to your model’s manual for specific instructions, as designs vary across Frigidaire’s extensive product line.
A practical tip for troubleshooting: if your fridge isn’t defrosting properly, manually advance the timer (if it’s mechanical) by turning the center spindle clockwise with a flathead screwdriver. If the timer is electronic, check for error codes on the control panel. Replacing a faulty timer typically costs between $50 and $150, depending on the model, and can often be done without professional help if you follow safety precautions and step-by-step guides tailored to your specific Frigidaire model.
In conclusion, accessing the defrost timer in a Frigidaire refrigerator requires understanding your model’s design and taking methodical steps to avoid damage or injury. Whether it’s behind the control panel or near the compressor, knowing its location and how to handle it safely can save time and money in troubleshooting or repairs. Always prioritize safety by unplugging the appliance and using the correct tools for disassembly.
Reverse Stage Refrigerated Air Conditioning: Why It's Not Ideal
You may want to see also
Explore related products
Common Defrost Timer Placement Areas
The defrost timer in a Frigidaire refrigerator is often tucked away in locations that balance accessibility with protection from everyday wear and tear. One of the most common placement areas is behind the control panel, typically located at the top of the refrigerator compartment. This design choice shields the timer from accidental damage while keeping it within reach for maintenance. To access it, remove the control panel cover by unsnapping or unscrewing it, depending on the model. This location is ideal for those who prefer a clean, uncluttered exterior but requires a bit of patience to locate and service.
Another frequent spot for the defrost timer is near the compressor compartment, usually at the bottom rear of the refrigerator. This placement leverages the natural airflow around the compressor to help regulate the timer’s temperature, ensuring optimal performance. While this area is less exposed to spills or accidental bumps, accessing it often involves moving the refrigerator away from the wall, which can be cumbersome. If you’re troubleshooting or replacing the timer, ensure the appliance is unplugged and allow ample space to work safely.
For some Frigidaire models, the defrost timer is integrated into the back panel of the refrigerator, either inside or outside the cabinet. This design is common in older or more compact units where space optimization is critical. To locate it, inspect the back panel for a small, rectangular component with wiring connections. While this placement is convenient for quick checks, it may expose the timer to dust or moisture, so periodic cleaning of the area is recommended.
Lastly, a less conventional but still observed placement is within the freezer compartment, often behind the rear panel. This location is less common but can be found in certain Frigidaire models designed to prioritize internal component protection. Accessing the timer here requires removing the freezer panel, which may involve defrosting the freezer to avoid damage from ice buildup. This placement is ideal for those who prioritize component longevity but demands careful handling during maintenance.
Understanding these common placement areas not only simplifies troubleshooting but also highlights Frigidaire’s thoughtful design approach. Whether your timer is behind the control panel, near the compressor, on the back panel, or in the freezer, knowing its location saves time and reduces frustration. Always consult your refrigerator’s manual for model-specific guidance, and approach maintenance with caution to avoid damaging sensitive components.
Storing Pomegranates: Refrigerator Tips for Freshness and Longevity
You may want to see also
Explore related products
Troubleshooting Defrost Timer Issues in Frigidaire Units
The defrost timer in Frigidaire refrigerators is a critical component that prevents ice buildup on the evaporator coils, ensuring efficient cooling. Located typically behind the control panel or near the compressor, its position varies by model. Identifying its exact location requires consulting your unit’s manual or inspecting the refrigerator’s rear or interior panels. Once located, troubleshooting begins with understanding its function: the timer periodically shuts off the compressor to activate the defrost heater, melting accumulated frost. If this process fails, issues like excessive frost, warm temperatures, or water leakage may arise.
Analyzing symptoms is the first step in diagnosing defrost timer problems. Excessive frost in the freezer compartment often indicates a timer stuck in the cooling cycle, preventing defrosting. Conversely, a timer stuck in defrost mode can cause the refrigerator to run continuously without cooling. Use a multimeter to test the timer’s continuity; a lack of continuity during the defrost cycle confirms a faulty timer. For Frigidaire models, timers are usually located in the control panel or near the compressor, accessible by removing the appropriate panel. Always unplug the unit before testing to avoid electrical hazards.
Replacing a defective defrost timer is straightforward but requires precision. First, identify the correct replacement part by matching the model number, typically found on the refrigerator’s label. Disconnect the old timer by unplugging its wiring harness and unscrewing it from its mounting bracket. Install the new timer in reverse order, ensuring all connections are secure. After replacement, plug the unit back in and monitor its performance for 24 hours. If issues persist, consider other components like the defrost heater or thermostat, as timer problems often coexist with failures in the defrost system.
Preventive maintenance can extend the life of your Frigidaire’s defrost timer. Regularly inspect the freezer for frost buildup, manually defrosting if necessary. Clean the condenser coils every six months to ensure efficient operation, reducing strain on the timer. Avoid overloading the refrigerator, as this can disrupt airflow and cause uneven cooling. For older units (over 10 years), consider proactive replacement of the timer, as wear and tear increase the likelihood of failure. By combining troubleshooting with routine care, you can maintain optimal performance and avoid costly repairs.
Should You Refrigerate Olive Oil After Opening? Expert Tips
You may want to see also
Frequently asked questions
The defrost timer on a Frigidaire refrigerator is typically located behind the control panel or inside the refrigerator compartment, often near the thermostat or evaporator coils.
To access the defrost timer, remove the control panel cover or the rear panel inside the refrigerator compartment. It may require unscrewing a few screws or gently prying the panel off.
Yes, the defrost timer can be replaced. After locating it, disconnect the wires, remove the old timer, and install the new one by reconnecting the wires and securing it in place.
Signs of a faulty defrost timer include excessive frost buildup in the freezer, the refrigerator not cooling properly, or the defrost cycle not occurring at regular intervals.
