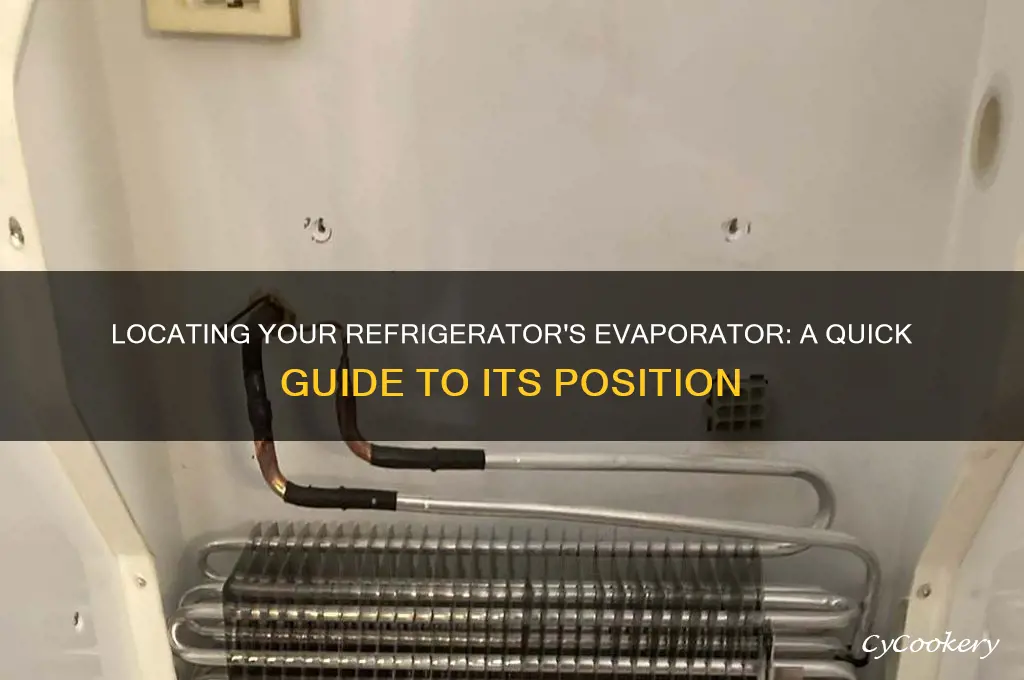

The evaporator in a refrigerator is a crucial component of its cooling system, responsible for absorbing heat from the interior to maintain a consistent temperature. Typically located inside the freezer compartment, the evaporator consists of a coil of refrigerant tubing surrounded by a series of fins to maximize heat exchange. As the refrigerant flows through the evaporator, it evaporates from a liquid to a gas, absorbing heat from the surrounding air and cooling the freezer and refrigerator sections. Understanding its location is essential for troubleshooting issues like insufficient cooling or frost buildup, as the evaporator’s condition and cleanliness directly impact the appliance’s efficiency.
| Characteristics | Values |
|---|---|
| Location | Typically inside the freezer compartment, often behind a panel or at the back of the refrigerator. |
| Function | Absorbs heat from the refrigerator and freezer compartments, cooling the air and maintaining temperature. |
| Appearance | Coiled tubes or a grid-like structure, usually made of copper or aluminum, with fins to increase surface area for heat exchange. |
| Frost Buildup | In older or manual-defrost refrigerators, frost may accumulate on the evaporator coils, requiring periodic defrosting. |
| Defrost System | Modern refrigerators have automatic defrost systems that periodically melt frost off the evaporator coils using a heating element. |
| Airflow | Relies on a fan to circulate cold air from the evaporator throughout the refrigerator and freezer compartments. |
| Maintenance | Requires regular cleaning to ensure efficient operation and prevent airflow blockage. |
| Refrigerant Flow | Refrigerant passes through the evaporator coils in a low-pressure, low-temperature state, absorbing heat and evaporating. |
| Temperature | Operates at temperatures below freezing (0°C or 32°F) to effectively cool the refrigerator and freezer compartments. |
| Accessibility | May require removing interior panels or shelves to access the evaporator for maintenance or repairs. |
Explore related products
What You'll Learn
Evaporator Location in Top-Freezer Fridges
The evaporator in a top-freezer refrigerator is typically located in the freezer compartment, often behind a removable panel or cover. This placement is strategic, as the freezer requires colder temperatures than the refrigerator section, and the evaporator is responsible for absorbing heat to facilitate cooling. Understanding this location is crucial for troubleshooting issues like frost buildup or inadequate cooling, as it allows for targeted inspection and maintenance.
From an analytical perspective, the evaporator’s freezer placement in top-freezer models maximizes efficiency by prioritizing cooling where it’s most needed. Since cold air naturally sinks, the freezer’s chilled air can flow downward into the refrigerator compartment via a vent system. This design reduces the workload on the evaporator compared to other configurations, such as bottom-freezer models, where the evaporator might be located in the refrigerator section. However, this setup can lead to faster frost accumulation in the freezer, requiring periodic defrosting or the use of auto-defrost systems.
For practical maintenance, accessing the evaporator in a top-freezer fridge involves removing the freezer’s back panel or floor cover. Before attempting this, unplug the refrigerator to avoid electrical hazards. Use a screwdriver to remove screws holding the panel in place, and gently pull the cover away to expose the evaporator coils. If cleaning is necessary, use a soft brush or vacuum to remove dust and debris, being careful not to bend the coils. For frost removal, allow the freezer to defrost naturally or use a hairdryer on a low setting, avoiding direct contact with plastic components.
Comparatively, top-freezer models differ from side-by-side or French door refrigerators, where evaporators may be located in the fresh food compartment or within a dedicated cooling system. The top-freezer design’s simplicity makes it cost-effective and reliable, but its evaporator location can limit flexibility in temperature control. For instance, adjusting the freezer temperature may indirectly affect the refrigerator’s cooling performance due to the shared airflow system. This interdependence highlights the importance of balancing settings to maintain optimal conditions in both compartments.
In conclusion, the evaporator’s freezer location in top-freezer refrigerators is a key design feature that ensures efficient cooling but requires awareness of potential maintenance needs. Regular inspection and cleaning can prevent common issues like frost buildup, while understanding the airflow dynamics between compartments helps optimize performance. For homeowners, knowing this location simplifies troubleshooting and extends the appliance’s lifespan, making it a valuable piece of knowledge for anyone managing a top-freezer fridge.
Should You Refrigerate Cooking Oil? Tips for Proper Storage
You may want to see also
Explore related products
Finding the Evaporator in Side-by-Side Models
Side-by-side refrigerators, with their dual-door design, often conceal the evaporator in less obvious locations compared to traditional top-freezer models. Understanding its placement is crucial for maintenance, troubleshooting, or even just satisfying curiosity. Typically, in these models, the evaporator coil is housed within the freezer compartment, specifically behind a removable panel or cover. This design ensures efficient cooling while keeping the component out of sight, maintaining the sleek aesthetic of modern refrigerators.
To locate the evaporator in a side-by-side refrigerator, start by identifying the freezer section. Unlike French door models, where the freezer is often at the bottom, side-by-side units have the freezer on one side, usually the left. Open the freezer door and inspect the interior walls. Look for a panel, often made of plastic or metal, that appears slightly raised or has visible screws. This panel is designed to be removable, providing access to the evaporator coil and fan assembly. Use a screwdriver to carefully remove the screws and set them aside, ensuring you don’t lose them.
Once the panel is removed, you’ll likely see the evaporator coil, a series of tubes and fins, along with the evaporator fan. This fan circulates cold air throughout the freezer and refrigerator compartments. Be cautious not to touch the coils directly, as they can be sharp and may cause injury. If you’re performing maintenance, such as defrosting or cleaning, ensure the refrigerator is unplugged to avoid electrical hazards. Use a soft brush or vacuum to remove dust and debris, improving efficiency and prolonging the appliance’s lifespan.
A key takeaway for side-by-side refrigerator owners is that the evaporator’s location is both strategic and accessible. Its placement within the freezer compartment maximizes cooling efficiency while remaining reachable for routine care. By familiarizing yourself with this layout, you can troubleshoot issues like inadequate cooling or frost buildup more effectively. For instance, if the refrigerator isn’t cooling properly, check the evaporator coil for ice accumulation, which can obstruct airflow. Defrosting manually or adjusting the thermostat may resolve the problem without professional intervention.
In summary, finding the evaporator in a side-by-side refrigerator involves identifying the freezer compartment, locating the removable panel, and accessing the coil and fan assembly. This knowledge empowers homeowners to perform basic maintenance, ensuring their appliance operates optimally. Remember, safety is paramount—always unplug the refrigerator before handling internal components. With this guide, you’re better equipped to navigate the intricacies of your side-by-side model and keep it running smoothly.
Refrigerating Monkey Bread: Tips for Storing and Reheating Perfectly
You may want to see also
Explore related products
Evaporator Placement in Bottom-Freezer Units
In bottom-freezer refrigerators, the evaporator is typically located in the freezer compartment, positioned at the back or along the sides to maximize cooling efficiency. This placement ensures that cold air is evenly distributed throughout the freezer, maintaining consistent temperatures for frozen goods. Unlike top-freezer models, where the evaporator might be shared between the fridge and freezer, bottom-freezer units often feature a dedicated evaporator for the freezer section. This design minimizes temperature fluctuations and reduces the risk of frost buildup, which can compromise food quality.
Analyzing the benefits of this placement reveals a strategic approach to refrigeration. By housing the evaporator in the freezer, bottom-freezer units prioritize freezing efficiency, which is critical for preserving meats, vegetables, and other perishables. The evaporator’s proximity to the freezer’s cooling needs allows for quicker temperature recovery after the door is opened, a common occurrence in busy households. Additionally, this setup often includes a separate evaporator or cooling system for the refrigerator compartment, ensuring that humidity levels and temperatures are independently controlled for optimal freshness.
For homeowners troubleshooting or maintaining their bottom-freezer refrigerator, understanding evaporator placement is key. If the freezer isn’t cooling properly, the evaporator coils—often hidden behind a removable panel—may be iced over or clogged with debris. Defrosting the freezer and cleaning the coils can restore efficiency. However, caution is advised: avoid using sharp tools to remove ice, as this can damage the coils. Instead, use a hairdryer on a low setting or let the ice melt naturally during defrosting. Regular maintenance, such as vacuuming dust from the coils every six months, can prevent airflow blockages and extend the appliance’s lifespan.
Comparing bottom-freezer units to other refrigerator styles highlights the advantages of this evaporator placement. In side-by-side models, the evaporator is often shared between compartments, which can lead to moisture transfer and uneven cooling. French door refrigerators sometimes place the evaporator in the bottom drawer, but this can limit storage flexibility. Bottom-freezer designs, however, keep the evaporator out of the way of fresh food storage while ensuring the freezer operates at peak performance. This makes them ideal for households that prioritize frozen food preservation without sacrificing refrigerator organization.
Finally, when shopping for a bottom-freezer refrigerator, consider models with advanced evaporator technologies, such as frost-free systems or dual evaporators. Frost-free units use heating elements to prevent ice buildup, reducing maintenance needs but slightly increasing energy consumption. Dual evaporator systems, though more expensive, provide independent cooling for the fridge and freezer, enhancing food preservation. For energy-conscious buyers, look for ENERGY STAR-certified models, which balance efficiency with performance. Proper evaporator placement and technology can make a significant difference in both functionality and long-term savings.
Should You Refrigerate Caramel Apples? Storage Tips for Freshness
You may want to see also
Explore related products
French Door Refrigerator Evaporator Position
The evaporator in a French door refrigerator is typically located in the freezer compartment, often positioned at the back or along the sides. This placement is strategic, as it allows for efficient cooling of the freezer section while also facilitating the transfer of cold air to the refrigerator compartment via a shared airflow system. Unlike top-freezer or side-by-side models, French door refrigerators prioritize fresh food storage at eye level, making the evaporator’s freezer location a key design feature to maintain optimal temperatures throughout the unit.
Analyzing this setup reveals a trade-off: while the evaporator’s freezer placement ensures rapid freezing, it can lead to frost buildup over time, requiring periodic defrosting or reliance on auto-defrost systems. Homeowners should be aware that this design may also affect energy efficiency, as the unit works harder to cool the larger refrigerator section. Regular maintenance, such as cleaning vents and ensuring proper airflow, can mitigate these challenges and extend the appliance’s lifespan.
For those troubleshooting cooling issues, understanding the evaporator’s position is crucial. If the freezer is cold but the refrigerator is warm, the problem may lie in the airflow duct between the compartments, often obstructed by food items or ice buildup. A practical tip: check the freezer’s evaporator coils for ice accumulation and use a hairdryer on low heat to thaw them if necessary. Avoid sharp tools, as they can damage the coils and void warranties.
Comparatively, French door refrigerators differ from other styles in how they manage cold air distribution. While bottom-freezer models may place the evaporator beneath the fresh food section, French door designs rely on a top-down cooling approach. This distinction highlights the importance of proper organization within the refrigerator—keeping vents clear and avoiding overpacking to ensure consistent temperatures. For families or frequent entertainers, this layout maximizes storage while maintaining efficiency, provided the evaporator and airflow systems are well-maintained.
In conclusion, the evaporator’s position in a French door refrigerator is a cornerstone of its functionality, balancing freezer performance with refrigerator cooling. By understanding this design and adopting proactive maintenance habits, users can optimize their appliance’s efficiency and longevity. Whether addressing cooling issues or simply aiming to keep the unit running smoothly, awareness of the evaporator’s role is indispensable for any French door refrigerator owner.
Eggs Without Fridge: Safe Storage Tips and Best Practices
You may want to see also
Explore related products
Compact Fridges: Where is the Evaporator?
In compact fridges, the evaporator is typically located at the back or sides of the freezer compartment, often integrated into the walls to maximize space efficiency. Unlike full-sized refrigerators, where evaporators might be more spread out, compact models prioritize a streamlined design to fit into smaller living spaces like dorm rooms, offices, or RVs. This placement ensures the evaporator coils are close to the cooling source while minimizing their footprint, allowing for more usable storage space in the fridge and freezer sections.
Analyzing the design, the evaporator’s position in compact fridges is a trade-off between cooling performance and spatial constraints. Manufacturers often use aluminum or copper coils for faster heat exchange, but these are thinner and more compact than those in larger units. The coils are usually covered by a panel or frost-free lining to prevent frost buildup, which is critical in smaller fridges where even a thin layer of ice can reduce efficiency. Understanding this layout helps users avoid blocking vents or overloading the freezer, ensuring optimal cooling.
From a practical standpoint, knowing the evaporator’s location in a compact fridge can guide maintenance and troubleshooting. For instance, if the fridge isn’t cooling properly, check the area around the evaporator for frost accumulation or blocked airflow. Defrosting the freezer compartment periodically (every 3–6 months, depending on usage) can prevent ice buildup on the coils, which hinders heat absorption. Additionally, avoid placing large items directly against the back or sides of the freezer, as this can restrict airflow and strain the system.
Comparatively, the evaporator placement in compact fridges differs significantly from that in larger models. In full-sized refrigerators, evaporators are often located in a dedicated compartment or spread across the freezer and fridge sections for even cooling. Compact fridges, however, concentrate the evaporator in one area to simplify the design and reduce costs. This difference highlights why compact fridges may cool less uniformly than their larger counterparts, but it also underscores their suitability for specific, space-limited applications.
Finally, for those considering a compact fridge, understanding the evaporator’s role and location can influence purchasing decisions. Look for models with frost-free technology or automatic defrosting features to minimize maintenance. If manual defrosting is required, ensure the design allows easy access to the evaporator area. Opt for units with adjustable shelves or bins to accommodate items without obstructing airflow. By prioritizing these factors, users can maximize the efficiency and longevity of their compact fridge, even in the most confined spaces.
Should Marzetti Dressing Be Refrigerated? Storage Tips Revealed
You may want to see also
Frequently asked questions
The evaporator is typically located in the freezer compartment of a refrigerator, often behind a panel or coil cover.
The evaporator absorbs heat from the refrigerator and freezer compartments, cooling the air and maintaining the desired temperature.
Yes, you can access the evaporator by removing the panel or cover in the freezer compartment, but ensure the refrigerator is turned off and unplugged for safety.
It’s recommended to clean the evaporator at least once or twice a year to ensure efficient operation and prevent frost buildup.
Signs of a malfunctioning evaporator include inadequate cooling, excessive frost buildup, or unusual noises coming from the freezer compartment.
