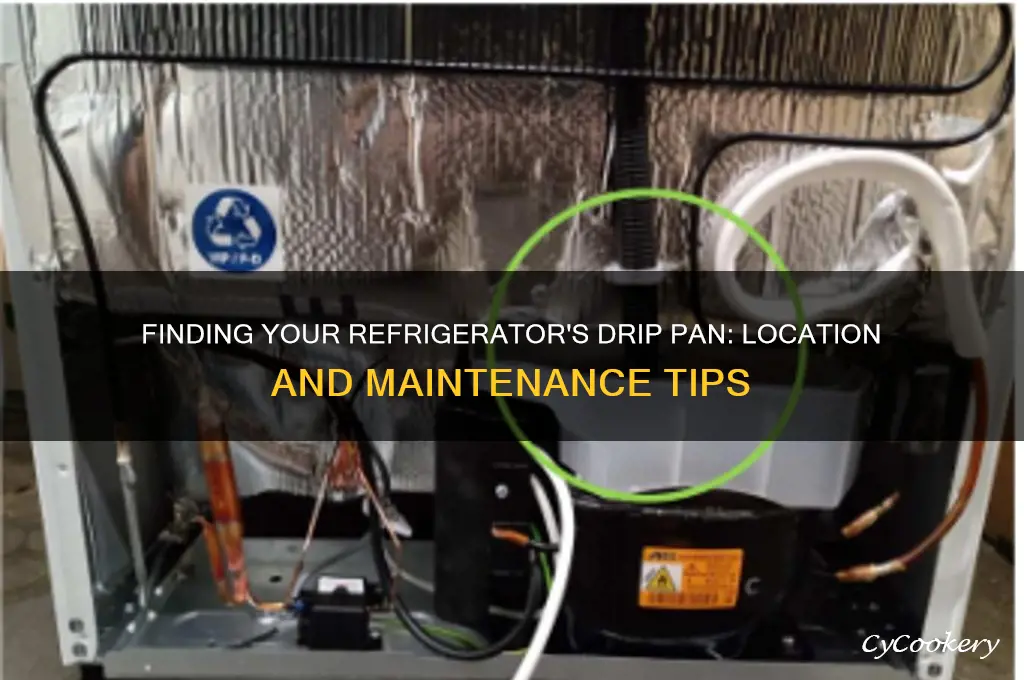

The refrigerator drip pan, also known as a drain pan or evaporator pan, is a crucial component in the appliance's defrost system, designed to collect and evaporate water that accumulates during the automatic defrost cycle. Typically located beneath the refrigerator, either at the bottom rear or front, the drip pan is often hidden behind a removable panel or kick plate, making it accessible for cleaning and maintenance. Its exact position can vary depending on the refrigerator model and manufacturer, so consulting the user manual or inspecting the appliance's underside is recommended to locate it accurately. Regularly checking and cleaning the drip pan is essential to prevent mold, mildew, and unpleasant odors, ensuring the refrigerator operates efficiently and maintains a hygienic environment.
| Characteristics | Values |
|---|---|
| Location | Typically beneath the refrigerator, near the compressor or at the bottom rear |
| Purpose | Collects defrost water from the refrigerator's automatic defrost cycle |
| Shape | Usually rectangular or square, designed to fit the refrigerator's base |
| Material | Often made of plastic or metal, depending on the refrigerator model |
| Accessibility | May require pulling the refrigerator away from the wall or removing a front panel for access |
| Maintenance | Should be checked and cleaned periodically to prevent mold, mildew, or overflow |
| Common Issues | Can become cracked, warped, or clogged, leading to water leakage or damage |
| Replacement | Available as a replacement part from the manufacturer or appliance stores |
| Alternative Names | Defrost drain pan, evaporator pan, or condensate pan |
| Importance | Essential for proper refrigerator function and preventing water damage to floors or surrounding areas |
Explore related products
What You'll Learn
- Top of Refrigerator: Some models have drip pans located on top, near the back or sides
- Bottom Front: Common location under the refrigerator door, accessible by removing the kickplate
- Back Panel: Drip pans may be attached to the rear panel, hidden from view
- Inside Unit: Certain refrigerators have drip pans inside, often near the evaporator coils
- Freezer Compartment: In some designs, the drip pan is located within the freezer section
Top of Refrigerator: Some models have drip pans located on top, near the back or sides
The drip pan's location on top of a refrigerator might seem counterintuitive, as it's not the most accessible spot. However, this design choice is intentional and serves a specific purpose. In models with top-mounted drip pans, the pan is typically situated near the back or sides, often concealed beneath a removable panel or grille. This placement allows the pan to catch defrost water from the freezer compartment, which is usually located above the refrigerator section in these designs. As the freezer undergoes its automatic defrost cycle, the melted ice drips down through a drain tube and into the pan, where it evaporates over time.
To access a top-mounted drip pan, you'll need to remove the panel or grille covering it. This process varies depending on the model, but generally involves unsnapping or unscrewing the cover. Be cautious when removing the panel, as it may be connected to wires or other components. Once you've located the drip pan, inspect it for debris, mold, or standing water. If the pan is dirty, clean it with a mild detergent and warm water, ensuring it's completely dry before reinstalling the cover. Regular maintenance of the drip pan is crucial, as a clogged or overflowing pan can lead to water damage or unpleasant odors.
One advantage of top-mounted drip pans is their reduced susceptibility to damage from heavy items placed on top of the refrigerator. Since the pan is located near the back or sides, it's less likely to be crushed or punctured by objects stored above. However, this design also requires careful consideration when placing items on top of the refrigerator. Avoid storing heavy or sharp objects that could potentially damage the pan or its surrounding components. Instead, opt for lightweight, non-abrasive items that won't pose a risk to the drip pan's integrity.
In some cases, top-mounted drip pans may be more challenging to access than those located at the bottom of the refrigerator. This can make routine maintenance a bit more cumbersome, especially for individuals with limited mobility or reach. If you're considering purchasing a refrigerator with a top-mounted drip pan, take into account your physical abilities and the ease of access to the pan. Additionally, be mindful of the refrigerator's surroundings, ensuring there's adequate clearance to access the drip pan without obstruction. By understanding the nuances of top-mounted drip pans, you can make informed decisions about refrigerator maintenance and care, ultimately prolonging the life of your appliance.
When troubleshooting issues related to a top-mounted drip pan, it's essential to consider the entire defrost system. If you notice water leaking from the refrigerator or standing water in the drip pan, the problem may stem from a clogged drain tube or a malfunctioning defrost heater. In such cases, consult the manufacturer's instructions or seek professional assistance to diagnose and resolve the issue. Remember, proper maintenance of the drip pan and defrost system is vital to preventing costly repairs and ensuring the efficient operation of your refrigerator. By familiarizing yourself with the unique characteristics of top-mounted drip pans, you'll be better equipped to maintain and care for your appliance, ultimately saving time and money in the long run.
Refrigerating Soft Boiled Eggs: Best Practices and Safety Tips
You may want to see also
Explore related products
Bottom Front: Common location under the refrigerator door, accessible by removing the kickplate
The bottom front of a refrigerator, just beneath the door, is a common yet often overlooked location for the drip pan. This area is designed to catch condensation and defrost water, preventing it from pooling on your floor. To access it, you’ll need to remove the kickplate, a task that typically requires only a screwdriver or, in some models, a simple tug to detach it. This accessibility makes routine maintenance straightforward, ensuring the drip pan can be cleaned or replaced without hassle.
From an analytical perspective, the placement of the drip pan at the bottom front is strategic. Refrigerators naturally accumulate moisture during the defrost cycle, and gravity ensures this water flows downward. Positioning the pan here maximizes efficiency, minimizing the risk of leaks or spills. However, this location also means it’s prone to collecting dust, debris, and even small objects that might slip through gaps. Regular inspection is crucial to prevent clogs or mold growth, which can compromise the refrigerator’s performance.
For those looking to maintain their refrigerator, here’s a step-by-step guide to accessing the bottom front drip pan: First, unplug the refrigerator or turn off the power at the circuit breaker for safety. Next, locate the kickplate at the base of the unit. If it’s held by screws, remove them using a screwdriver; otherwise, gently pull it outward to detach it. Slide out the drip pan, clean it with warm, soapy water, and ensure the drain tube is clear of obstructions. Reinsert the pan and reattach the kickplate. This process should be repeated every 3–6 months, depending on usage and humidity levels in your home.
Comparatively, while some refrigerators place the drip pan in the back or under the unit, the bottom front location offers distinct advantages. It’s easier to access than rear-mounted pans, which often require moving the entire appliance. Additionally, front-mounted pans are less likely to accumulate standing water, reducing the risk of mold or mildew. However, this convenience comes with the caveat of visibility—a dirty or overflowing pan can be an eyesore if not maintained.
Finally, a descriptive note: the bottom front drip pan is typically a shallow, rectangular tray made of durable plastic or metal. Its design is utilitarian, prioritizing function over form, with a slight slope to direct water toward the drain tube. When properly maintained, it’s a silent hero, working behind the scenes to keep your kitchen dry and your refrigerator running smoothly. Neglect it, however, and you may face unpleasant odors, water damage, or even pest infestations. Regular care ensures this small component plays its vital role without becoming a problem.
Refrigerating Rotisserie Chicken: Safe Storage Tips and Time Limits
You may want to see also
Explore related products
Back Panel: Drip pans may be attached to the rear panel, hidden from view
In some refrigerator models, the drip pan is discreetly attached to the back panel, often concealed from plain sight. This design choice serves both functional and aesthetic purposes, ensuring that the pan collects defrost water efficiently while maintaining a sleek, uncluttered appearance. If you suspect your refrigerator has a rear-mounted drip pan, accessing it typically requires moving the appliance away from the wall. This placement is common in older or bottom-freezer models, where the pan is integrated into the rear panel to catch water from the defrost cycle.
To locate a back-panel drip pan, start by unplugging the refrigerator for safety. Carefully slide the appliance forward, ensuring you don’t damage flooring or water lines. Inspect the rear panel for a shallow, tray-like structure near the bottom. In some cases, the pan may be removable for cleaning, while in others, it’s permanently affixed. Use a flashlight to illuminate the area, as the pan’s dark color or hidden position can make it difficult to spot. If the pan is clogged or dirty, clean it with warm, soapy water and a soft brush to prevent mold or odors.
One advantage of rear-mounted drip pans is their reduced exposure to dust and debris compared to pans located beneath the refrigerator. However, this placement can make routine maintenance less convenient, as accessing the pan requires more effort. For refrigerators with this design, consider scheduling biannual inspections to ensure the pan is functioning properly. If water begins pooling on the floor or the refrigerator’s efficiency declines, a clogged or damaged drip pan could be the culprit.
When dealing with a back-panel drip pan, it’s essential to avoid using sharp tools or excessive force during cleaning, as this can damage the pan or surrounding components. Instead, opt for gentle cleaning methods and ensure the pan is securely reattached if it’s removable. If you’re unsure about the pan’s location or condition, consult your refrigerator’s manual or contact a professional technician for guidance. Proper maintenance of this hidden component can extend the life of your appliance and prevent water-related issues in your kitchen.
Ripening Avocados in the Fridge: Effective Method or Myth?
You may want to see also
Explore related products
Inside Unit: Certain refrigerators have drip pans inside, often near the evaporator coils
Some refrigerators are designed with drip pans located inside the unit, typically positioned near the evaporator coils. This placement serves a critical function: capturing condensation that forms as warm, moist air meets the cold coils during the cooling cycle. Unlike external drip pans, which are more common in older models or specific designs, internal drip pans are integrated into the refrigerator’s structure, often hidden from plain view. Understanding this location is essential for maintenance, as neglecting to clean or inspect this area can lead to mold, odors, or reduced efficiency.
To locate an internal drip pan, start by unplugging the refrigerator for safety. Remove the back panel inside the freezer or fresh food compartment, depending on the model. Near the evaporator coils, you’ll find a shallow tray or pan, usually made of plastic or metal. In some units, this pan is directly connected to a drain tube that channels water into an evaporation tray atop the compressor. If the pan is clogged or damaged, water may overflow, causing leaks or ice buildup. Regularly inspect this area every 3–6 months, especially in humid climates, to ensure proper drainage.
Cleaning an internal drip pan requires precision. Use a soft brush or cloth to remove debris, and avoid harsh chemicals that could damage the coils or surrounding components. If the pan is removable, wash it with mild soap and warm water, then dry thoroughly before reinstalling. For stubborn mold or mildew, a 50/50 solution of water and vinegar can be effective. Always ensure the refrigerator is fully dry before restoring power to prevent electrical hazards.
Comparing internal drip pans to external ones highlights their advantages and challenges. Internal pans are less prone to accidental damage or tampering but are more difficult to access. External pans, often found at the base of the refrigerator, are easier to clean but may pose tripping hazards or aesthetic concerns. Manufacturers like Whirlpool and LG increasingly favor internal designs for their streamlined appearance and reduced maintenance frequency. However, homeowners must remain vigilant to avoid overlooking this hidden yet vital component.
In summary, internal drip pans near the evaporator coils are a practical solution for managing condensation in modern refrigerators. Their concealed location demands proactive maintenance but contributes to a sleeker, more efficient appliance. By familiarizing yourself with this design and incorporating regular inspections into your routine, you can extend the life of your refrigerator and prevent costly repairs. Treat this hidden pan as a small but significant guardian of your appliance’s performance.
Can Metal Pots Go in the Fridge? Safety Tips Revealed
You may want to see also
Explore related products
Freezer Compartment: In some designs, the drip pan is located within the freezer section
In certain refrigerator models, the drip pan is strategically placed within the freezer compartment, a design choice that leverages the freezer's low temperatures to prevent water from evaporating too quickly. This location is particularly common in bottom-freezer and side-by-side units, where the freezer’s position aligns with the natural drainage path of defrost water. Unlike drip pans in warmer areas, this placement minimizes the risk of mold or mildew growth, as the cold environment inhibits bacterial activity. However, accessing the pan for cleaning or maintenance requires navigating around freezer contents, which can be less convenient than designs with externally accessible pans.
To locate the drip pan in a freezer compartment, start by removing all freezer drawers or shelves to gain clear access to the bottom. In some models, the pan is directly beneath the evaporator coils, often hidden behind a removable panel or grille. Use a flashlight to inspect the area, as the pan is typically shallow and may blend into the freezer’s interior. If the pan is not immediately visible, consult the refrigerator’s manual for specific instructions, as manufacturers often include diagrams to aid in identification. Regularly checking this area is crucial, as ice buildup or blockages can disrupt proper drainage and lead to water leakage.
One advantage of a freezer-located drip pan is its role in managing defrost cycles. During automatic defrosting, the heat generated melts frost on the evaporator coils, and the resulting water drains into the pan. The freezer’s cold temperature then slows evaporation, allowing the water to remain in the pan until it can be manually emptied or evaporated gradually. This design reduces the frequency of maintenance compared to drip pans in warmer areas, which may require more frequent emptying. However, it’s essential to ensure the drain tube leading to the pan is clear of debris to prevent backups.
For homeowners, understanding this design can streamline troubleshooting. If water pools at the bottom of the freezer or leaks onto the floor, a clogged drain tube or overflowing drip pan is often the culprit. To address this, use a turkey baster or pipe cleaner to clear the drain tube, and remove the pan to empty any accumulated water. In models with a heating element near the pan, ensure it functions properly to aid evaporation. While this design is efficient, it requires occasional attention to maintain optimal performance and prevent issues related to water accumulation.
In summary, placing the drip pan in the freezer compartment is a practical solution for managing defrost water in certain refrigerator designs. While it offers benefits like reduced mold risk and efficient water containment, it demands specific maintenance steps to ensure functionality. Homeowners should familiarize themselves with their model’s layout and perform routine checks to avoid common problems. By doing so, they can maximize the longevity and efficiency of their refrigerator while minimizing the inconvenience of water-related issues.
Troubleshooting Your Kenmore Fridge: A Guide to Checking the Compressor
You may want to see also
Frequently asked questions
The refrigerator drip pan is usually located at the bottom of the unit, near the compressor or behind the kickplate, depending on the model.
To access the drip pan, pull the refrigerator away from the wall, locate the kickplate or bottom panel, and remove it to expose the pan.
The drip pan is typically located outside the refrigerator, near the bottom, often behind a removable panel or kickplate.
In some models, the drip pan may be located under the freezer compartment, but it is more commonly found near the compressor at the bottom of the unit.
