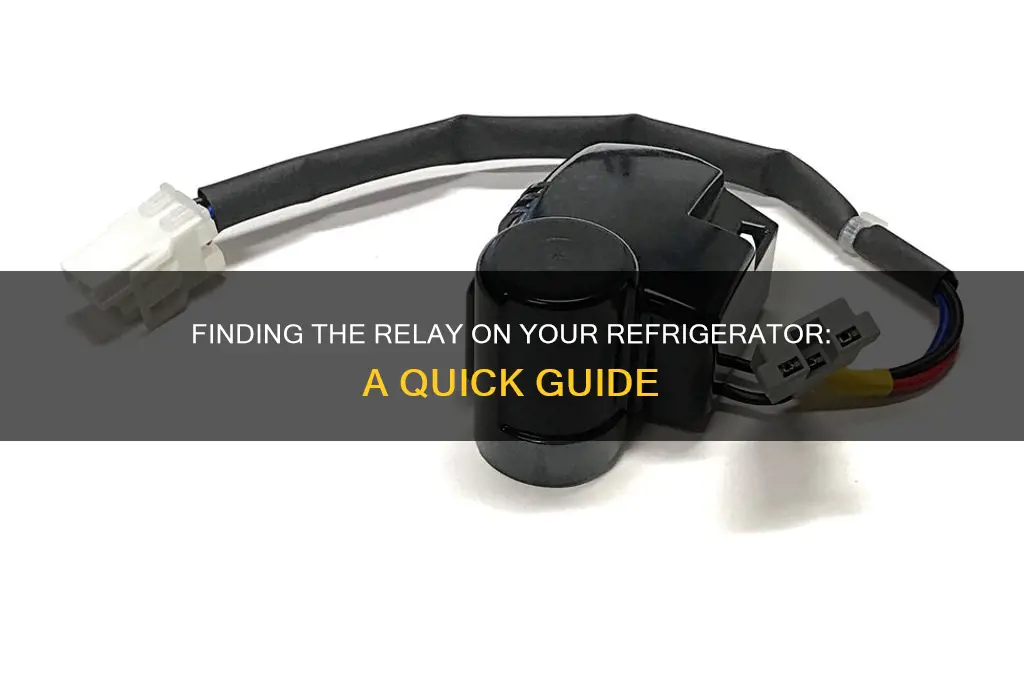

When troubleshooting a refrigerator that’s not cooling properly, one common component to inspect is the relay, which controls the compressor’s operation. The relay, often referred to as the start relay or overload relay, is typically located near the compressor, usually at the bottom rear of the refrigerator. It is housed in a small, rectangular or cylindrical casing and is connected to the compressor by wires. Accessing the relay may require moving the refrigerator away from the wall and removing a protective panel or cover. Identifying and testing the relay can help determine if it’s the source of the issue, as a faulty relay can prevent the compressor from starting, leading to cooling problems.
| Characteristics | Values |
|---|---|
| Location | Typically found near the compressor, often on the side or back of the refrigerator. |
| Appearance | Small, rectangular or cube-shaped component with wires connected to it. |
| Function | Controls the flow of electricity to the compressor, acting as a switch to start and stop the cooling cycle. |
| Types | - Start Relay: Helps start the compressor. - Overload Relay: Protects the compressor from overheating. (Sometimes combined into a single unit called a "start capacitor and relay assembly") |
| Signs of Failure | Refrigerator not cooling, compressor not starting, clicking noises from the relay. |
| Replacement | Requires basic electrical knowledge and tools. Consult a professional if unsure. |
Explore related products
What You'll Learn
Relay location in different refrigerator models
The relay in a refrigerator, often referred to as the start relay or overload relay, is a critical component that controls the compressor’s operation. Its location varies significantly across models, making it essential to consult the user manual or manufacturer’s specifications before attempting repairs. For instance, in top-mount refrigerators like the Whirlpool WRT518SZFM, the relay is typically housed near the compressor at the bottom rear of the unit. Accessing it requires unplugging the refrigerator, removing the lower back panel, and locating the relay attached to the compressor’s side. This design is common in traditional models where the compressor is easily accessible.
Side-by-side and French door refrigerators, such as the Samsung RF28R7351SR, often conceal the relay within a more complex compartment. In these models, the relay is usually integrated into a control module located behind the refrigerator’s kickplate or inside the machine compartment at the bottom front. To access it, slide the refrigerator away from the wall, remove the kickplate, and locate the relay module. These designs prioritize aesthetics and space efficiency, making the relay less exposed but more challenging to reach without proper guidance.
Compact and under-counter refrigerators, like the Marvel 6FFR-SS, frequently place the relay in a compact, hard-to-reach area due to their smaller size. The relay is often mounted directly on the compressor or tucked into a tight space near the back of the unit. Repairing these models requires precision and patience, as the limited space can make component access difficult. Always use a flashlight and magnetic tool to retrieve dropped screws or parts in such confined areas.
For built-in or integrated refrigerators, such as the Sub-Zero BI-30U, the relay is typically located within the unit’s internal framework, often behind removable panels inside the refrigerator compartment. This design ensures the relay remains hidden from view, aligning with the appliance’s seamless aesthetic. Accessing it involves removing specific interior panels, which may require specialized tools or manufacturer-specific instructions. Always disconnect power before attempting repairs in these high-end models to avoid electrical hazards.
Understanding the relay’s location in different refrigerator models is crucial for troubleshooting and maintenance. While some designs prioritize accessibility, others emphasize integration and aesthetics, complicating repairs. Always prioritize safety by unplugging the refrigerator and using appropriate tools. When in doubt, consult a professional technician to avoid damaging the appliance or voiding warranties. Knowing your refrigerator’s specific model and design can save time and prevent frustration during repairs.
