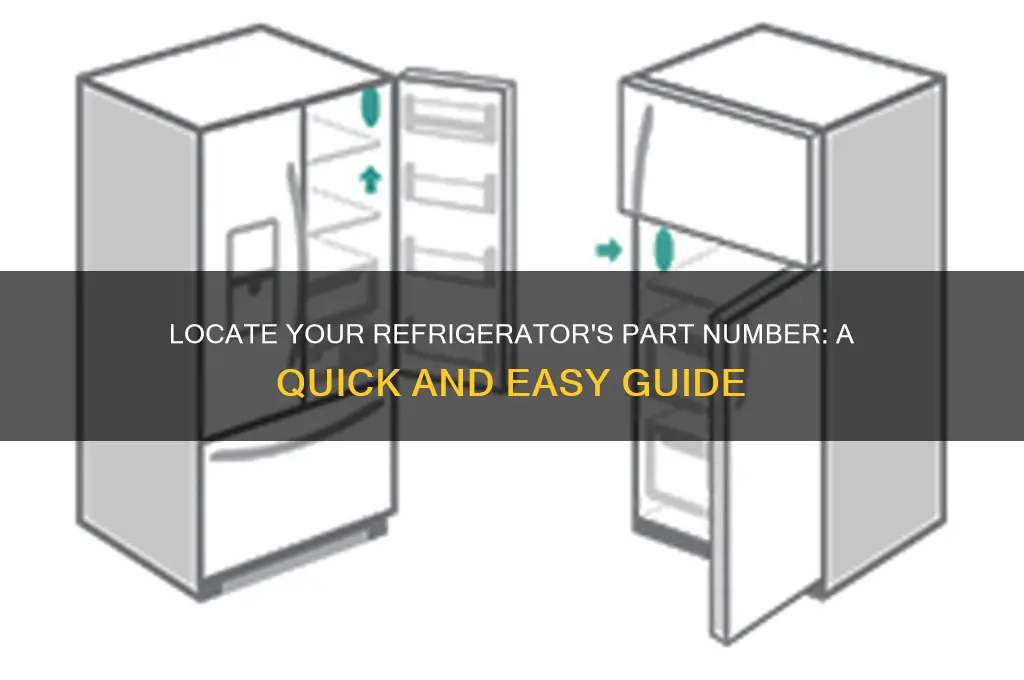

Finding the part number on a refrigerator is essential for ordering replacement parts or troubleshooting issues. Typically, the part number can be located on a label or sticker found inside the refrigerator, often on the side wall, ceiling, or back panel. Additionally, it may be printed on the user manual or included in the documentation that came with the appliance. For older models, the part number might be etched directly onto the component itself, such as the compressor or evaporator fan. If the label is missing or difficult to locate, checking the manufacturer’s website or contacting customer service with the refrigerator’s model and serial numbers can help identify the correct part number.
| Characteristics | Values |
|---|---|
| Common Locations | Inside the refrigerator (e.g., on the ceiling, walls, or back panel) |
| Behind the kickplate or grille at the bottom front | |
| Inside the door (near hinges, gasket, or interior lining) | |
| On the back panel (exterior) | |
| Label Types | Model and serial number sticker |
| Barcode or QR code | |
| Stamped metal plate | |
| Additional Details | May include brand logo, manufacturing date, and other identifiers |
| Alternative Names | Model number, serial number, or appliance ID |
| Purpose | Used for ordering replacement parts, warranty claims, or troubleshooting |
| Accessibility | May require removing shelves, drawers, or panels for visibility |
| Online Resources | Manufacturer’s website or user manual for specific location guidance |
| Variations by Brand | Location may differ (e.g., Whirlpool, Samsung, LG, GE, etc.) |
Explore related products
![[Upgraded] W10326469 Refrigerator Center Drawer Slide Rail fit for Whirlpool/Maytag/Kenmore/Amana/Kitchenaid Refrigerators, Replace 8208326, 12796401, 67004514, AP6019603, 14.4 Inch Long](https://m.media-amazon.com/images/I/41EhHT9C+EL._AC_UY218_.jpg)
What You'll Learn
- Check the refrigerator's exterior (doors, sides, or back panel for a label or sticker)
- Inspect the interior walls (near the top or bottom for a part number tag)
- Look behind the kickplate (bottom front panel may hide a part number label)
- Examine the compressor area (back or bottom for a model/part number sticker)
- Refer to the user manual (part number is often listed in the specifications section)
Check the refrigerator's exterior (doors, sides, or back panel for a label or sticker)
The refrigerator's exterior is often the first place to look for a part number, and for good reason. Manufacturers typically place labels or stickers on the doors, sides, or back panel, making them easily accessible for quick reference. These labels usually contain essential information, including the model number, serial number, and sometimes even the part numbers for specific components. Start by inspecting the front doors, as some models have labels discreetly placed near the bottom edge or along the side. If you don’t find it there, move to the sides or back panel, where labels are often affixed for less visibility but easy access during maintenance.
When searching for the label, pay attention to texture and color contrasts. Labels are usually made of durable materials like vinyl or plastic and may blend into the refrigerator’s finish. Run your fingers along the edges and corners of the doors or panels to locate any raised edges or stickers. If the refrigerator has a water dispenser or ice maker, check around these areas, as labels are sometimes placed nearby for convenience. For stainless steel or dark-colored models, use a flashlight to spot reflective surfaces that might indicate a label.
One practical tip is to check the back panel if the refrigerator is freestanding. Many manufacturers place comprehensive labels here, including part numbers, electrical specifications, and even QR codes linking to online manuals. If the refrigerator is built-in or against a wall, gently pull it away to access the back. Be cautious not to damage flooring or walls, and ensure the power is off before moving the appliance. For side-by-side or French door models, labels are often found on the left or right side panels, hidden from immediate view but still accessible.
A comparative analysis reveals that newer models tend to have more detailed labels, often including QR codes or barcodes for digital access to part information. Older refrigerators may have simpler labels with just the model and serial numbers, requiring additional research to find specific part numbers. Regardless of age, the exterior label is a critical starting point. If you’re still unable to locate it, consult the user manual or contact the manufacturer directly, as they can guide you to the exact location based on your model.
In conclusion, checking the refrigerator’s exterior for a label is a straightforward yet often overlooked step in finding part numbers. By systematically inspecting the doors, sides, and back panel, you can quickly access the information needed for repairs or replacements. Remember to use tactile and visual cues to locate labels, especially on sleek or dark surfaces. This method not only saves time but also ensures you have the correct details to proceed with confidence.
Should Mexican Cornbread Be Refrigerated? Storage Tips for Freshness
You may want to see also
Explore related products
Inspect the interior walls (near the top or bottom for a part number tag)
The interior walls of a refrigerator are often overlooked when searching for part numbers, yet they can be a goldmine of information. Manufacturers frequently place tags or stickers near the top or bottom of the interior walls, where they are less likely to be damaged by spills or cleaning. These tags typically contain essential details such as the model number, serial number, and part numbers for key components. To locate them, start by examining the upper corners or along the bottom edges, where they are often discreetly affixed to avoid obstructing the usable space.
When inspecting the interior walls, use a flashlight to illuminate dark corners or crevices where tags might be hidden. Some refrigerators have tags that blend into the plastic or metal surfaces, making them harder to spot. Gently run your fingers along the walls to feel for any raised edges or textures that could indicate a sticker or label. If the tag is near the top, you may need to stand on a step stool or use a mirror to get a clear view. For bottom-placed tags, remove any drawers or shelves that might block access, ensuring you don’t force anything to avoid damage.
One practical tip is to take a photo of the tag once you find it, as the text can sometimes be small or faded. This ensures you have a clear record of the part numbers for future reference, especially when ordering replacements or seeking repairs. If the tag is missing or illegible, don’t panic—many refrigerators also include this information on the exterior or in the user manual. However, the interior walls remain a primary location, particularly for older models or those designed with a focus on internal labeling.
Comparing this method to others, such as checking the exterior or behind the refrigerator, inspecting the interior walls is often more straightforward and less physically demanding. It eliminates the need to move the appliance or deal with dust and debris that might accumulate in less accessible areas. Additionally, interior tags are less prone to wear and tear, as they are shielded from environmental factors like humidity and temperature fluctuations that can degrade exterior labels.
In conclusion, the interior walls of a refrigerator, especially near the top or bottom, are a critical yet often overlooked location for part number tags. By systematically inspecting these areas with the right tools and techniques, you can efficiently retrieve the information needed for maintenance or repairs. This method not only saves time but also ensures accuracy, making it a valuable skill for any homeowner or appliance user.
External Venting Wine Fridges: Are They Available for Purchase?
You may want to see also
Explore related products
Look behind the kickplate (bottom front panel may hide a part number label)
The kickplate, often overlooked, is a prime location for refrigerator part number labels. This bottom front panel, typically a removable or hinged cover, serves both aesthetic and functional purposes, concealing components like the drip pan, insulation, or condenser coils. Manufacturers frequently utilize this hidden space to affix essential information, including model and serial numbers, production dates, and sometimes even warranty details. Its discreet placement protects the label from accidental damage or wear, ensuring the information remains legible for future reference.
To access the kickplate, start by examining the refrigerator’s base. Most kickplates are secured with clips, screws, or a combination of both. Gently pry or unsnap the edges to release the panel, taking care not to force it, as some models may require specific tools or techniques. For instance, certain brands like Whirlpool or Samsung use a sliding mechanism, while others, such as LG, may have hidden screws behind a small access panel. Once removed, inspect the exposed area thoroughly; the label is often affixed to the back of the kickplate or the refrigerator frame itself.
While this method is straightforward, it’s not without potential pitfalls. For older refrigerators or those exposed to moisture, the label may have deteriorated, making the part number difficult to read. In such cases, consider using a magnifying glass or taking a high-resolution photo to enhance visibility. Additionally, if the kickplate is damaged or missing, the label may be lost entirely, necessitating alternative methods like checking the owner’s manual or contacting the manufacturer directly.
Comparatively, the kickplate is one of the most reliable locations for part numbers, especially when contrasted with less consistent spots like interior compartments or side panels. Its standardized placement across many brands makes it a go-to for technicians and DIY enthusiasts alike. However, it’s not universal; some compact or specialty refrigerators may omit this feature altogether. Always cross-reference findings with other potential label locations, such as behind the refrigerator’s top grille or inside the door, to ensure accuracy.
In conclusion, the kickplate is a hidden gem for refrigerator part number identification, offering a protected and standardized location for essential information. By understanding its design, accessing it carefully, and accounting for potential challenges, you can efficiently retrieve the necessary details for repairs, replacements, or warranty claims. This method, while not foolproof, remains a cornerstone of appliance part identification, blending practicality with manufacturer ingenuity.
Refrigerate Muffin Batter: Bake Later Tips for Freshness
You may want to see also
Explore related products
Examine the compressor area (back or bottom for a model/part number sticker)
The compressor area of a refrigerator is a treasure trove of information for those seeking part numbers. This component, often located at the back or bottom of the appliance, is a hub for essential details. Manufacturers typically affix a sticker or plate here, providing a wealth of data, including model and part numbers, serial numbers, and sometimes even manufacturing dates. This strategic placement ensures that these vital statistics are easily accessible for technicians and owners alike, facilitating repairs and maintenance.
Instructive guidance is key when navigating this area. To locate the part number, start by unplugging the refrigerator for safety. Then, carefully move the appliance away from the wall, exposing the back or bottom panel. The compressor, a large, cylindrical component, is usually accompanied by a sticker or plate with printed information. This label may be weather-resistant, ensuring durability, but it's essential to handle it with care to avoid damage. A gentle wipe with a damp cloth can remove any dust or debris, making the text more legible.
From a comparative perspective, the compressor area's label is akin to a car's VIN (Vehicle Identification Number) plate. Just as a VIN provides a unique identifier for a vehicle, the refrigerator's label offers a distinct set of numbers and letters specific to that model and its components. This similarity highlights the importance of these identifiers in streamlining repairs and ensuring compatibility when sourcing parts. For instance, when ordering a new compressor, providing the exact part number can mean the difference between a perfect fit and a costly mistake.
A descriptive approach reveals the label's typical contents. The sticker or plate often includes a barcode, the model number (e.g., RF28R7201SR), and a serial number, which may indicate the production date and location. Additional information could encompass electrical specifications, such as voltage and amperage, and safety certifications. Some manufacturers also include a QR code, offering quick access to online resources, manuals, or warranty information when scanned with a smartphone.
In practice, this knowledge is invaluable for homeowners and repair technicians. For instance, a technician troubleshooting a refrigerator with cooling issues can quickly identify the compressor's part number, enabling them to source a replacement efficiently. Similarly, a homeowner looking to upgrade their refrigerator's water filter can find the compatible part number, ensuring a seamless fit. This simple yet crucial detail, often overlooked, empowers individuals to take control of their appliance maintenance and repairs, saving time and potentially reducing costs.
Refrigerating Guacamole: Tips to Keep It Fresh and Delicious
You may want to see also
Explore related products
Refer to the user manual (part number is often listed in the specifications section)
The user manual is often the most overlooked yet reliable source for finding your refrigerator’s part number. Manufacturers design these manuals to be comprehensive guides, and the specifications section is a goldmine of technical details. Here, you’ll typically find the part number listed alongside other critical information like model number, serial number, and manufacturing date. This section is usually located near the beginning or end of the manual, making it accessible without sifting through pages of troubleshooting tips or warranty details. If you’ve misplaced the physical copy, most brands offer digital versions on their websites, searchable by model number or appliance type.
Analyzing why the user manual is a trusted resource reveals its role as a direct line to the manufacturer’s intent. Unlike online forums or generic appliance guides, the manual is tailored to your specific refrigerator model. For instance, high-end brands like Sub-Zero or Miele often include detailed diagrams in the specifications section, making it easier to cross-reference the part number with visual aids. Even budget-friendly models from brands like Whirlpool or Frigidaire follow this practice, ensuring consistency across price points. The takeaway? Before resorting to guesswork or disassembling your appliance, consult the manual—it’s designed to save you time and frustration.
A step-by-step approach can streamline the process of locating the part number in the user manual. First, identify the specifications section, often labeled as "Technical Details" or "Product Information." Second, scan for terms like "Part Number," "PN," or "Component ID," which may appear in bold or italics for emphasis. Third, note any accompanying codes or suffixes, as these can differentiate between similar parts (e.g., a door shelf part number might end in "-L" for left-side models). Caution: avoid confusing the part number with the serial number, which identifies the specific unit rather than the component. Finally, cross-reference the part number with online databases or retailer websites to ensure accuracy before ordering replacements.
Persuasively, relying on the user manual for part numbers is not just practical—it’s cost-effective. Misidentifying a part can lead to unnecessary purchases or delayed repairs, especially for critical components like compressors or evaporators. For example, a Samsung refrigerator’s compressor part number might differ slightly between its French door and side-by-side models, despite similar appearances. By using the manual, you eliminate the risk of ordering incompatible parts, saving both money and time. Additionally, many manufacturers offer warranty coverage only when repairs use verified part numbers, making the manual an essential tool for maintaining appliance longevity.
Descriptively, the specifications section of a user manual is a snapshot of your refrigerator’s identity. Imagine it as a birth certificate for your appliance, detailing its origins, composition, and unique identifiers. For instance, a GE refrigerator’s manual might list the part number for its water filter as "WR17X11601," accompanied by compatibility notes for specific model series. This level of detail is invaluable when troubleshooting or upgrading components. Even if your refrigerator is no longer under warranty, the manual remains a relevant resource, as part numbers rarely change unless the design undergoes a significant overhaul. Keep it stored in an accessible location, such as a kitchen drawer or digital folder, to ensure it’s always within reach when needed.
Does Liquid Bactrim Need Refrigeration? Storage Tips and Guidelines
You may want to see also
Frequently asked questions
The part number is often located on a model or serial number label, which can be found inside the refrigerator (e.g., on the wall near the top or bottom), on the back of the unit, or behind the kickplate at the bottom front.
The label usually includes a combination of letters and numbers, often labeled as "Part Number," "Model Number," or "Serial Number." It may also include other details like the manufacturer’s name or logo.
Yes, the user manual often includes the part number along with other specifications. If you’ve misplaced the manual, you can usually find a digital copy on the manufacturer’s website.
If the label is missing or unreadable, you can contact the manufacturer’s customer service with your refrigerator’s model and serial number. They can help identify the correct part number.
No, the part number and model number are different. The model number identifies the refrigerator model, while the part number is specific to individual components or accessories. Always verify which number you need for replacements.
