In the refrigeration cycle, the component responsible for removing moisture from the refrigerant is the filter-drier. Moisture in the refrigerant can lead to issues such as acid formation, corrosion, and ice buildup, which can damage the system. The filter-drier contains desiccant material that absorbs moisture, ensuring the refrigerant remains dry and pure. Additionally, it filters out debris and contaminants, protecting critical components like the compressor and expansion valve. Properly functioning filter-driers are essential for maintaining system efficiency and longevity.
| Characteristics | Values |
|---|---|
| Component Name | Filter Drier or Receiver Drier |
| Primary Function | Removes moisture (water) from the refrigerant |
| Location in System | Typically installed in the liquid line between the condenser and expansion valve |
| Composition | Contains desiccant (e.g., silica gel, molecular sieve) to absorb moisture |
| Secondary Functions | Filters debris and acid from the refrigerant |
| Types | Standard filter drier, bi-flow filter drier, receiver drier |
| Importance | Prevents moisture-related issues like acid formation and ice buildup |
| Maintenance | Replace during system repairs or when desiccant is saturated |
| Compatibility | Must be compatible with the refrigerant type (e.g., R-134a, R-410A) |
| Size and Capacity | Varies based on system size and moisture absorption needs |
| Pressure Drop | Minimal, designed to not significantly restrict refrigerant flow |
| Lifespan | Typically lasts the life of the system if not exposed to excessive moisture |
| Environmental Impact | Desiccant disposal must comply with environmental regulations |
| Cost | Relatively inexpensive compared to other HVAC components |
Explore related products
What You'll Learn
Role of the Condenser
The condenser is a critical component in refrigeration and air conditioning systems, primarily responsible for removing heat from the refrigerant, but its role in moisture management is equally vital. During the condensation process, the refrigerant transitions from a high-pressure vapor to a high-pressure liquid. This phase change inherently separates moisture from the refrigerant, as water vapor present in the system condenses into liquid form. The condenser’s design, typically featuring a series of coils and fins, maximizes surface area to facilitate efficient heat and moisture removal. This process ensures that the refrigerant is dry and pure before it moves to the next stage, preventing issues like ice buildup or corrosion in the system.
Analyzing the condenser’s function reveals its dual purpose: heat rejection and moisture elimination. As the hot, vaporized refrigerant enters the condenser, it comes into contact with cooler air or water flowing over the coils. This temperature differential causes the refrigerant to condense, releasing latent heat in the process. Simultaneously, any moisture present in the refrigerant vapor condenses into water droplets, which are then drained away through a condensate line. This separation is crucial because moisture in the refrigerant can lead to inefficiencies, such as reduced cooling capacity or damage to the expansion valve. Proper condenser operation, therefore, is essential for maintaining system performance and longevity.
From a practical standpoint, maintaining the condenser is key to ensuring its moisture-removing capabilities. Regular cleaning of the coils and fins is necessary to prevent dirt and debris from insulating the surface, which can reduce heat transfer efficiency and impede moisture removal. For air-cooled condensers, this involves removing dust and grime buildup, while water-cooled condensers require monitoring for scale or mineral deposits. Additionally, checking the condensate drain line for clogs is critical to prevent water backup, which can lead to mold growth or system damage. These maintenance steps are particularly important in humid environments, where moisture levels in the air are higher.
Comparatively, the condenser’s role in moisture removal distinguishes it from other components in the refrigeration cycle. While the evaporator absorbs heat and moisture from the surrounding air, the condenser expels both. The compressor, on the other hand, focuses solely on pressurizing the refrigerant, and the expansion valve regulates flow without addressing moisture. This unique function underscores the condenser’s importance in maintaining the integrity of the refrigerant cycle. Without effective moisture removal, the system would face increased wear and tear, reduced efficiency, and potential operational failures.
In conclusion, the condenser’s role in removing moisture from the refrigerant is a critical yet often overlooked aspect of its function. By facilitating the condensation process, it not only rejects heat but also separates and drains moisture, ensuring the refrigerant remains dry and pure. Proper maintenance of the condenser, including regular cleaning and drain line checks, is essential to maximize its efficiency and prevent system issues. Understanding this dual role highlights the condenser’s significance in the overall performance and reliability of refrigeration and air conditioning systems.
Refrigerator Voltage Guide: 110 or 220 for Your Fridge?
You may want to see also
Explore related products

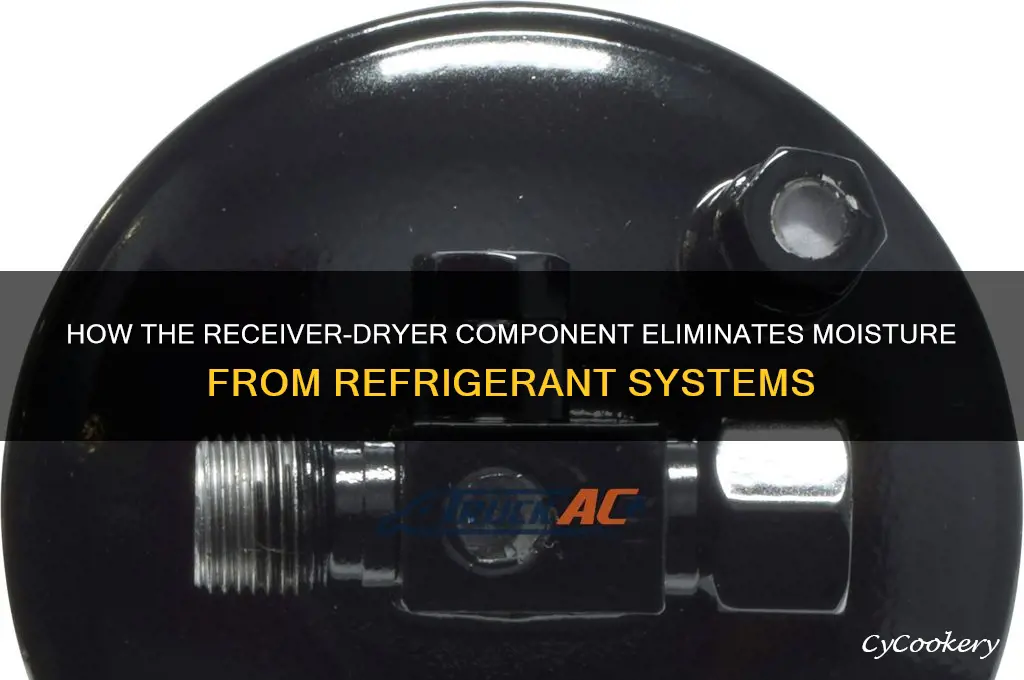

Function of the Receiver-Dryer
The receiver-dryer is a critical component in automotive air conditioning systems, serving as a reservoir for liquid refrigerant and a moisture removal unit. Its primary function is to ensure the refrigerant is dry and free from contaminants before it enters the expansion valve, preventing damage to the system. This dual-purpose design makes it indispensable for maintaining efficient and reliable cooling performance.
Functionality Breakdown:
The receiver-dryer operates in two stages. First, it acts as a storage tank for liquid refrigerant, ensuring a steady supply to the expansion valve. Second, it houses desiccant, a moisture-absorbing material that traps water vapor from the refrigerant. This desiccant, typically silica gel, changes color (from orange to green) when saturated, indicating the need for replacement. Without this component, moisture would mix with refrigerant, leading to corrosive acid formation and system failure.
Practical Considerations:
When replacing a receiver-dryer, always flush the entire A/C system to remove debris and old oil. Use the manufacturer’s recommended refrigerant oil type and quantity, typically 8–12 ounces for most vehicles. Ensure the new receiver-dryer’s desiccant bag is intact and properly sealed. For optimal performance, replace the receiver-dryer every 5–7 years or whenever the system is opened for repairs, even if no issues are apparent.
Comparative Advantage:
Unlike accumulator-based systems (common in older vehicles), receiver-dryers are found in systems using a thermal expansion valve (TXV). The TXV requires a steady flow of subcooled liquid refrigerant, which the receiver-dryer provides by removing vapor and moisture. This precision ensures consistent cooling efficiency, making it superior for modern, high-performance A/C systems.
Troubleshooting Tips:
If your A/C system exhibits symptoms like poor cooling, ice buildup on components, or unusual noises, inspect the receiver-dryer. A clogged or saturated unit restricts refrigerant flow and reduces efficiency. Test for blockages by measuring pressure drop across the component; a difference of more than 5 PSI indicates a problem. Always evacuate the system to a minimum of 250 microns before recharging to ensure complete moisture removal.
Final Takeaway:
The receiver-dryer is not just a passive storage unit but an active safeguard for your vehicle’s A/C system. Regular maintenance and timely replacement ensure longevity and peak performance, saving you from costly repairs down the line. Treat it as the unsung hero of your cooling system—small in size but monumental in function.
Can You Transport a Refrigerator on Its Side? Expert Tips
You may want to see also
Explore related products
Importance of the Filter-Dryer
Moisture in a refrigeration system is a silent saboteur, corroding components, forming acids, and reducing efficiency. The filter-dryer stands as the primary defense against this threat, a critical yet often overlooked component. Its role extends beyond mere filtration; it is a moisture scavenger, safeguarding the system's longevity and performance.
Analytical Perspective:
The filter-dryer's effectiveness lies in its desiccant core, typically composed of silica gel or molecular sieve. These materials possess an insatiable appetite for water molecules, adsorbing them from the refrigerant stream. This process is crucial because even trace amounts of moisture can react with refrigerant and lubricating oils, forming corrosive acids that damage valves, compressors, and other vital parts. Studies show that systems with properly functioning filter-dryers experience significantly lower acid concentrations, leading to extended component lifespans and reduced maintenance costs.
Instructive Approach:
Installing and maintaining a filter-dryer is a straightforward yet essential task. Ensure the dryer is correctly sized for the system's capacity and refrigerant type. During installation, pay close attention to the flow direction indicated on the dryer, as improper installation can render it ineffective. Regularly inspect the sight glass (if equipped) for signs of moisture accumulation, which indicates the dryer's saturation. Replacement intervals vary depending on system usage and environmental conditions, but a general rule of thumb is every 2-3 years for residential systems and more frequently for commercial applications.
Comparative Analysis:
While some may argue that modern refrigerants are less susceptible to moisture damage, the filter-dryer remains indispensable. Even "moisture-tolerant" refrigerants like R-410A can experience performance degradation and increased wear due to moisture-related issues. Compared to the cost of repairing a compressor damaged by acid corrosion, the expense of a filter-dryer is negligible. Furthermore, the environmental impact of refrigerant leaks caused by moisture-induced system failures far outweighs the environmental footprint of manufacturing and disposing of filter-dryers.
Descriptive Narrative:
Imagine a bustling commercial kitchen, its refrigerators and freezers humming with activity. Behind the scenes, the filter-dryers in these systems work silently, protecting the heart of the operation. Without them, moisture would wreak havoc, leading to costly breakdowns, spoiled food, and disrupted service. The filter-dryer, though often hidden from view, is the unsung hero, ensuring the smooth operation of these vital appliances and safeguarding the livelihoods of those who depend on them.
Adjusting Flame Height in Dometic Refrigerators: A Step-by-Step Guide
You may want to see also
Explore related products
Process in the Evaporator
The evaporator is a critical component in refrigeration and air conditioning systems, primarily responsible for absorbing heat from the surrounding environment. However, its role in moisture removal from the refrigerant is often overlooked. As the refrigerant passes through the evaporator coils, it undergoes a phase change from liquid to vapor, a process that inherently involves the absorption of both heat and moisture. This moisture, if not managed properly, can lead to issues such as ice buildup, reduced system efficiency, and potential damage to other components. Understanding the evaporator's role in this process is essential for maintaining optimal system performance.
From an analytical perspective, the process in the evaporator can be broken down into several key stages. First, the refrigerant enters the evaporator in a low-pressure, low-temperature state. As it comes into contact with the warmer air or substance surrounding the coils, it begins to absorb heat, causing the refrigerant to evaporate. Simultaneously, any moisture present in the air or on the evaporator surface is also absorbed by the refrigerant. This moisture absorption is a natural consequence of the refrigerant's affinity for water vapor at low temperatures. The efficiency of this process depends on factors such as the refrigerant type, coil design, and airflow rate. For example, refrigerants like R-410A have different moisture absorption characteristics compared to older refrigerants like R-22, which can influence the overall system design and maintenance requirements.
Instructively, maintaining the evaporator to ensure effective moisture removal involves several practical steps. Regular cleaning of the evaporator coils is crucial, as dirt and debris can insulate the coils, reducing their ability to absorb heat and moisture efficiently. A recommended cleaning frequency is every 3-6 months, depending on the environment. Additionally, ensuring proper airflow across the evaporator is essential. Restricted airflow can lead to uneven cooling and moisture accumulation, potentially causing frost or ice to form on the coils. Technicians should also monitor the refrigerant charge, as an undercharged system may not effectively remove moisture, while an overcharged system can lead to inefficiencies and increased wear on components.
Comparatively, the evaporator's role in moisture removal can be contrasted with that of the condenser, which primarily dissipates heat. While the condenser focuses on releasing heat to the external environment, the evaporator is more about absorbing both heat and moisture from the internal environment. This dual function makes the evaporator a more complex component to manage, particularly in humid climates where moisture levels are higher. For instance, in regions with high humidity, evaporators may require additional features such as drain pans and condensate pumps to handle the increased moisture load effectively.
Descriptively, the evaporator’s operation can be visualized as a dynamic interplay of thermodynamics and fluid mechanics. As the refrigerant flows through the coils, it creates a cold surface that attracts moisture from the surrounding air. This moisture condenses on the coils and is then carried away with the refrigerant vapor. The design of the evaporator, including the fin spacing and coil material, plays a significant role in maximizing surface area for heat and moisture transfer. Modern evaporators often incorporate enhanced fin designs and corrosion-resistant materials to improve durability and efficiency in moisture-rich environments.
In conclusion, the evaporator’s process of removing moisture from the refrigerant is a multifaceted operation that combines heat absorption with moisture management. By understanding the underlying principles and implementing proper maintenance practices, technicians and system owners can ensure that the evaporator functions effectively, contributing to a more efficient and reliable refrigeration or air conditioning system. Attention to detail in design, operation, and maintenance is key to optimizing this critical process.
Does McDonald's Ranch Dressing Need Refrigeration? Facts Revealed
You may want to see also
Explore related products
Moisture Removal by Desiccant Bags
Desiccant bags are a critical yet often overlooked component in refrigerant systems, serving as a silent guardian against moisture-related inefficiencies and damage. These small, porous packets contain hygroscopic materials like silica gel, activated alumina, or molecular sieves, which actively attract and bind water molecules from the surrounding environment. In refrigeration systems, where even trace amounts of moisture can lead to acid formation, corrosion, and reduced efficiency, desiccant bags act as a first line of defense. Installed within the system’s receiver or liquid line, they continuously absorb moisture that may infiltrate the refrigerant during maintenance, repairs, or normal operation. This simple yet effective solution ensures the longevity and reliability of the system by maintaining optimal dryness levels.
The effectiveness of desiccant bags hinges on proper selection and placement. For instance, silica gel, a common desiccant, can absorb up to 40% of its weight in moisture, making it suitable for most refrigeration applications. However, in systems with higher moisture risks, molecular sieves may be preferred due to their superior absorption capacity, especially in the presence of liquid water. Placement is equally crucial; desiccant bags should be positioned in areas where refrigerant flows slowly, allowing maximum contact time for moisture absorption. Regular inspection and replacement are also essential, as saturated desiccants lose their efficacy. A general rule of thumb is to replace desiccant bags every 1–2 years, depending on system conditions and moisture exposure.
While desiccant bags are highly effective, their use requires careful consideration of system dynamics. Over-reliance on desiccants without addressing potential moisture entry points, such as leaks or improper maintenance practices, can lead to premature saturation and system failure. For example, if a technician fails to evacuate moisture during system repairs, even the most robust desiccant bag will quickly become overwhelmed. Additionally, desiccants should be stored in airtight packaging until installation to prevent premature absorption of ambient moisture. Proper training of maintenance personnel on the importance of desiccant bags and their limitations is equally vital to ensure their optimal performance.
Comparatively, desiccant bags offer a cost-effective and low-maintenance solution when juxtaposed with more complex moisture removal systems like mechanical dryers. While mechanical dryers provide continuous moisture removal, they are expensive to install and maintain, making them impractical for smaller or budget-constrained systems. Desiccant bags, on the other hand, are affordable, easy to install, and require minimal upkeep. Their passive nature also eliminates the risk of mechanical failure, a common concern with active drying systems. For these reasons, desiccant bags remain a preferred choice in residential and light commercial refrigeration applications, where simplicity and reliability are paramount.
In practice, integrating desiccant bags into a refrigerant system is a straightforward process that yields significant long-term benefits. Start by selecting the appropriate desiccant type and size based on system volume and moisture risk. Ensure the bags are installed in a location with adequate refrigerant contact, such as the receiver or liquid line, and secure them to prevent dislodgment. Periodically monitor the system for signs of moisture, such as ice buildup or acid corrosion, and replace the desiccant bags as needed. By adhering to these guidelines, technicians can maximize the effectiveness of desiccant bags, safeguarding the refrigerant system against moisture-induced issues and ensuring consistent performance.
Moving a Refrigerator: Understanding the Costs and Budgeting Tips
You may want to see also
Frequently asked questions
The filter-drier is the component that removes moisture from the refrigerant.
The filter-drier contains desiccant material, typically silica gel, which absorbs moisture from the refrigerant as it passes through the component.
Yes, moisture in the refrigerant can lead to acid formation, corrosion, and ice buildup, which can damage components like the compressor and expansion valve.
No, while the filter-drier is the primary component, proper system evacuation during installation and maintenance also helps remove moisture.
The filter-drier should be replaced whenever the system is opened for repairs or if it shows signs of saturation, typically indicated by a sight glass or moisture indicator.
