When working with R1234yf refrigerant, it's crucial to use the correct connector to ensure a safe and efficient transfer from the refrigerant can to your vehicle's air conditioning system. The R1234yf refrigerant requires a specific type of connector, known as the R1234yf quick coupler or R1234yf service port adapter, which is designed to prevent cross-contamination with other refrigerants and to comply with industry standards. This connector typically features a unique, non-interchangeable design to avoid accidental connections with R134a or other refrigerant types. Before connecting the R1234yf refrigerant can, verify that your vehicle's A/C system is compatible with R1234yf and that you have the appropriate tools and safety equipment to handle the refrigerant properly. Always refer to the manufacturer's guidelines and local regulations to ensure a safe and compliant procedure.
| Characteristics | Values |
|---|---|
| Connector Type | R-1234yf Quick Coupler (Male) |
| Compatibility | Specifically designed for R-1234yf refrigerant |
| Material | Typically made of durable metal or alloy |
| Thread Size | Standardized for R-1234yf systems (varies by manufacturer) |
| Color Coding | Often features a unique color (e.g., gray or black) to distinguish from other refrigerants |
| Pressure Rating | Designed to handle R-1234yf system pressures (typically up to 350-400 psi) |
| Seal Type | Includes O-rings or seals to prevent leaks |
| Locking Mechanism | May include a locking feature to secure the connection |
| Certification | Compliant with SAE J2843 and other relevant standards |
| Application | Used in automotive A/C systems that require R-1234yf refrigerant |
| Interchangeability | Not interchangeable with R-134a or other refrigerant connectors |
| Availability | Widely available from automotive parts suppliers and manufacturers |
Explore related products
$11.39 $11.99
What You'll Learn

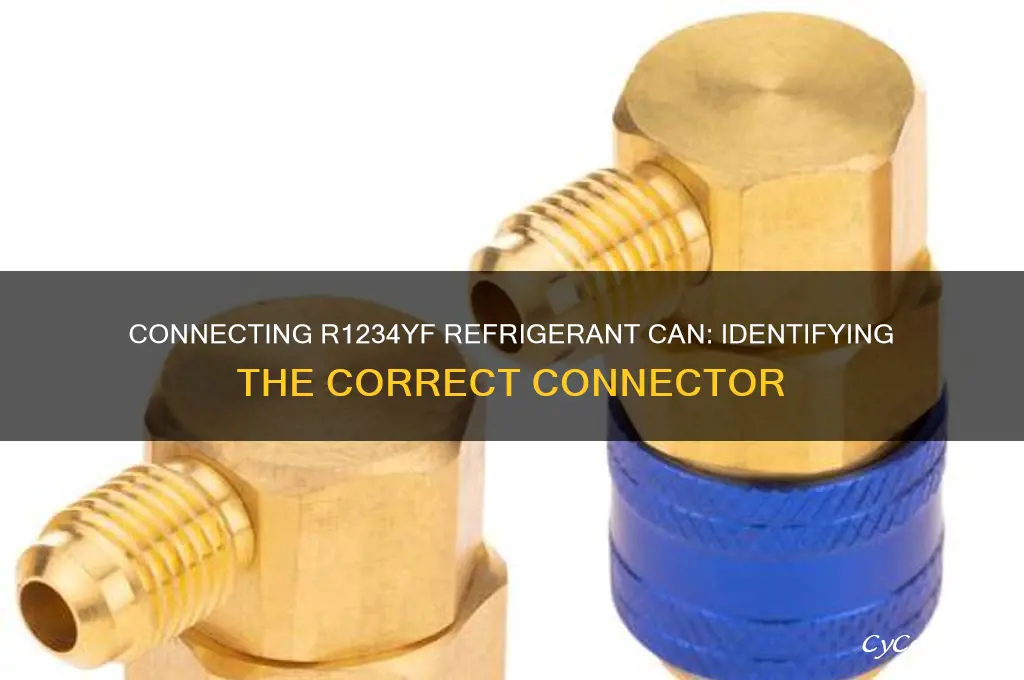

R1234yf Can Connector Types
The R1234yf refrigerant, known for its low global warming potential, requires specific connectors to ensure safe and efficient charging. Understanding the connector types is crucial for both professionals and DIY enthusiasts to avoid mishaps and ensure compatibility with modern vehicle systems.
Connector Types and Compatibility:
R1234yf cans typically come with two primary connector types: the high-side (H) and low-side (L) service ports. The high-side port, usually located near the condenser, is designed for liquid refrigerant, while the low-side port, often near the accumulator or evaporator, handles gaseous refrigerant. Most R1234yf cans are equipped with a self-sealing valve and a 1/2-inch ACME male thread, which connects to the low-pressure side of the system. However, some vehicles may require adapters, such as the 5/16-inch or 1/4-inch fittings, depending on the manufacturer’s specifications. Always verify the vehicle’s service port size before connecting the can to prevent leaks or damage.
Steps for Proper Connection:
- Locate the Service Port: Identify the low-side service port, typically marked with an "L" or labeled as the suction side.
- Prepare the Can: Shake the R1234yf can for 5–10 seconds to ensure the refrigerant is well-mixed.
- Attach the Connector: Screw the can’s connector onto the low-side port securely but avoid over-tightening, as this can damage the threads.
- Engage the System: Start the vehicle’s engine and turn the AC to maximum settings to facilitate proper refrigerant flow.
Cautions and Best Practices:
Always wear protective gloves and goggles when handling refrigerants, as R1234yf is mildly flammable and can cause skin or eye irritation. Never attempt to recharge a system with visible leaks or damage, as this can lead to inefficiency or further harm. Additionally, avoid exposing the can to temperatures above 125°F (52°C), as this may cause the container to rupture. If unsure about the connector type or process, consult the vehicle’s manual or seek professional assistance.
Innovations in Connector Design:
Modern R1234yf cans often feature quick-connect fittings, which simplify the charging process and reduce the risk of cross-contamination. These fittings are designed to be foolproof, ensuring they can only be attached to the correct port. Some manufacturers also include built-in flow control valves, allowing for precise refrigerant dosing, typically between 10–15 ounces per application, depending on the vehicle’s capacity. These advancements not only enhance safety but also make the process more accessible for non-professionals.
Understanding the nuances of R1234yf can connector types is essential for maintaining vehicle performance while adhering to environmental standards. By following proper procedures and staying informed about connector innovations, users can ensure a seamless and safe refrigerant recharge.
Refrigerating Fondant Cakes: Best Practices for Storage and Freshness
You may want to see also
Explore related products
Quick Connect vs. Threaded Fittings
Connecting an R1234yf refrigerant can requires careful consideration of the fitting type, as the choice between quick connect and threaded fittings directly impacts efficiency, safety, and compliance. Quick connect fittings, also known as snap-lock or push-on fittings, are designed for ease of use, allowing technicians to attach the refrigerant can to the system without threading. These fittings rely on a spring-loaded mechanism that securely locks into place with an audible click, ensuring a tight seal. Threaded fittings, on the other hand, require manual rotation to engage the threads, which can be time-consuming and prone to cross-threading if not handled carefully. The decision between the two often hinges on the specific requirements of the vehicle’s air conditioning system and the technician’s preference.
From an analytical perspective, quick connect fittings offer several advantages in R1234yf applications. They minimize the risk of refrigerant leakage during connection, as the seal is formed instantly upon attachment. This is particularly important for R1234yf, a mildly flammable refrigerant, where even small leaks can pose safety risks. Additionally, quick connect fittings reduce the time needed for servicing, making them ideal for high-volume repair shops. However, they are typically more expensive than threaded fittings and may not be compatible with older systems. Threaded fittings, while more traditional, provide a robust and cost-effective solution but demand precision to avoid damage to the threads or o-rings, which can lead to costly repairs.
For technicians, the choice often boils down to practicality. Quick connect fittings are user-friendly, requiring minimal training to operate correctly. They are especially beneficial in scenarios where time is critical, such as in busy automotive workshops. Threaded fittings, however, offer a sense of control and familiarity, particularly for those accustomed to working with older refrigerants like R134a. It’s essential to consult the vehicle’s service manual to determine the manufacturer’s recommended fitting type, as using the wrong connector can void warranties or cause system damage. For instance, some European vehicles exclusively require quick connect fittings for R1234yf systems to comply with strict environmental regulations.
A comparative analysis reveals that quick connect fittings are superior in terms of speed and safety but come with a higher upfront cost. Threaded fittings, while more affordable, require greater skill and attention to detail to ensure a proper seal. For DIY enthusiasts, quick connect fittings are often the better choice due to their simplicity and reduced risk of error. Professionals, however, may opt for threaded fittings in situations where budget constraints are a concern or when working on systems that lack quick connect compatibility. Regardless of the choice, using the correct fitting is non-negotiable, as improper connections can lead to refrigerant loss, system contamination, or even failure.
In conclusion, the decision between quick connect and threaded fittings for R1234yf refrigerant cans should be guided by the specific needs of the vehicle and the technician’s expertise. Quick connect fittings excel in speed, safety, and ease of use, making them ideal for modern systems and high-efficiency workflows. Threaded fittings remain a reliable option for those who prioritize cost-effectiveness and are comfortable with the precision required. Always verify compatibility and follow manufacturer guidelines to ensure a successful and safe refrigerant recharge.
Moving Your Fridge? Here’s When to Safely Restart It
You may want to see also
Explore related products
Hose Adapter Compatibility
R1234yf refrigerant systems require precise hose adapter compatibility to ensure safe and efficient operation. The unique properties of R1234yf, including its mild flammability and specific pressure requirements, demand adapters designed explicitly for this refrigerant. Using incompatible adapters can lead to leaks, system damage, or even safety hazards.
Manufacturers have developed specialized adapters with distinct fittings to prevent cross-contamination with older refrigerants like R134a. These adapters often feature color-coding or unique shapes to avoid confusion during servicing.
Identifying the Correct Adapter:
When connecting an R1234yf refrigerant can, look for adapters labeled specifically for this refrigerant. Common designations include "R1234yf" or "HFO-1234yf." Avoid adapters marked for R134a or other refrigerants, as their fittings are incompatible. Pay close attention to the male and female connector types, ensuring they match the ports on both the refrigerant can and your vehicle's A/C system.
Some adapters come with built-in check valves to prevent refrigerant backflow, adding an extra layer of safety.
Material Considerations:
Adapter materials are crucial for longevity and performance. Brass and aluminum are common choices due to their corrosion resistance and ability to withstand the pressures involved. However, ensure the materials are compatible with R1234yf, as some metals can react with the refrigerant.
Installation and Safety:
Always follow manufacturer instructions for proper adapter installation. Over-tightening can damage threads, while under-tightening can lead to leaks. Use a torque wrench if specified. Wear safety goggles and gloves when handling refrigerants, and ensure proper ventilation during the charging process.
R1234yf is mildly flammable, so avoid open flames or sparks near the service area.
Professional Assistance:
If you're unsure about adapter compatibility or the charging process, consult a qualified technician. They have the expertise and specialized tools to ensure a safe and effective refrigerant recharge. Remember, proper hose adapter compatibility is essential for the safe and efficient operation of your R1234yf A/C system. Don't compromise on quality or compatibility to avoid costly repairs and potential safety risks.
Adding Refrigerant to Frigidaire FFAD7033R1: A Step-by-Step Guide
You may want to see also
Explore related products
Preventing Cross-Contamination Risks
Cross-contamination between R1234yf and other refrigerants can cause irreversible damage to your vehicle’s air conditioning system. R1234yf is chemically incompatible with older refrigerants like R134a, and mixing them results in corrosive byproducts that degrade seals, hoses, and compressor components. Even trace amounts of R134a in an R1234yf system can trigger system failure within months. To prevent this, always verify the refrigerant type required by your vehicle using the underhood label or owner’s manual before proceeding.
The connector type on your R1234yf refrigerant can is a critical safeguard against cross-contamination. R1234yf cans are equipped with a unique, non-interchangeable 7/16-inch male fitting designed to mate exclusively with R1234yf-compatible service equipment. Attempting to force a standard R134a hose onto an R1234yf can will either fail to connect or damage both components. Conversely, R1234yf hoses cannot be attached to R134a cans, preventing accidental mixing during charging. Always inspect the connector for physical compatibility before initiating any service.
To minimize cross-contamination risks, adopt a dedicated tool policy for R1234yf systems. Use separate manifolds, hoses, and gauges exclusively for R1234yf, clearly labeling them to avoid confusion. After servicing an R134a system, thoroughly flush all equipment with nitrogen or R134a refrigerant to eliminate residual contaminants. When charging R1234yf, evacuate the system to a minimum of 250 microns to remove moisture and air, which can accelerate chemical reactions with residual R134a. Failure to follow these steps increases the likelihood of system-damaging reactions.
Training and awareness are your final lines of defense against cross-contamination. Technicians must be certified in handling R1234yf, understanding its unique properties and service requirements. Always double-check vehicle compatibility and connector types before starting work, even on familiar models. Keep a reference chart of common R1234yf-equipped vehicles in your workspace to avoid errors. By combining proper tools, procedures, and knowledge, you can ensure the longevity and efficiency of modern automotive A/C systems.
Maximize Your Undercounter Drawer Fridge: How Many Drinks Fit?
You may want to see also
Explore related products
Manufacturer-Specific Connector Guidelines
Connecting an R1234yf refrigerant can requires precision, especially when adhering to manufacturer-specific guidelines. Each automotive manufacturer designs its air conditioning systems with unique connectors to ensure compatibility and safety. For instance, General Motors vehicles often use a 7/16-inch male connector, while Ford may employ a 1/2-inch ACME thread. Misidentifying these connectors can lead to leaks, system damage, or voided warranties. Always consult the vehicle’s service manual or manufacturer’s specifications to confirm the correct connector type before proceeding.
Analyzing the importance of these guidelines reveals a broader industry trend toward standardization. Despite efforts to unify connector designs, variations persist due to legacy systems and regional regulations. For example, European vehicles frequently feature quick-connect fittings compliant with ISO 13961, whereas Japanese models might use proprietary designs. Technicians must remain vigilant, as using the wrong connector can compromise the integrity of the R1234yf refrigerant’s low global warming potential (GWP) benefits. Cross-referencing manufacturer databases or using dedicated diagnostic tools can streamline this process.
Practical steps for identifying the correct connector include inspecting the service port for markings or labels, such as "R1234yf Only" or "HFO-1234yf." If visual identification is unclear, measure the port diameter and thread pitch using calipers. For vehicles with quick-connect fittings, ensure the can’s hose adapter aligns securely without force. When in doubt, contact the manufacturer’s support line for clarification. Remember, R1234yf operates at higher pressures than R134a, so using the wrong connector can pose safety risks, including refrigerant discharge or component failure.
A comparative analysis highlights the contrast between universal and manufacturer-specific connectors. While universal adapters claim compatibility across systems, they often lack the precision required for R1234yf’s unique properties. Manufacturer-specific connectors, on the other hand, are engineered to withstand the refrigerant’s chemical composition and pressure demands. For example, Mercedes-Benz uses a specialized connector with a built-in filter to prevent contaminants from entering the system. Investing in OEM-approved tools not only ensures compliance but also prolongs the lifespan of the air conditioning system.
In conclusion, adhering to manufacturer-specific connector guidelines is non-negotiable when working with R1234yf refrigerant. By combining visual inspection, measurement, and manufacturer resources, technicians can avoid costly mistakes and maintain system efficiency. As the automotive industry continues to evolve, staying informed about connector standards will remain a critical skill for professionals in the field. Always prioritize accuracy over convenience to safeguard both the vehicle and the environment.
Should You Refrigerate Peanut Butter? Storage Tips and Best Practices
You may want to see also
Frequently asked questions
Use the R1234yf-specific quick-connect fitting, which is designed to match the service port on your vehicle's A/C system. It is typically a male connector with a unique shape to prevent cross-contamination with other refrigerants.
No, R1234yf requires a dedicated connector due to its different chemical properties and system requirements. Using an R134a connector can cause damage or leaks.
Look for a connector labeled "R1234yf" or with a distinct shape that matches the service port on your vehicle. It often has a smaller diameter and a unique locking mechanism.
Yes, you’ll need an R1234yf-compatible charging hose and manifold gauge set. These tools are specifically designed to handle the refrigerant and ensure a proper connection.
Double-check that you’re using the correct R1234yf connector and that the service port is clean and free of debris. If issues persist, consult your vehicle’s manual or a professional technician.
