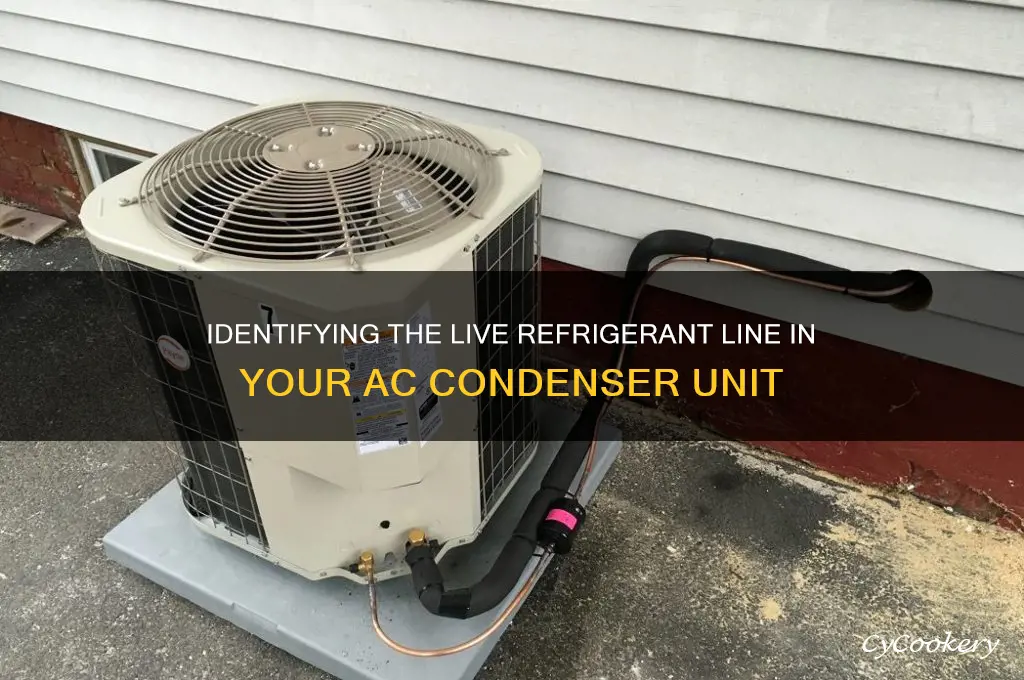

When discussing air conditioning systems, understanding the components and their functions is crucial, especially when identifying which line is the refrigerant live AC condenser line. The refrigerant live line, also known as the discharge or high-pressure line, connects the compressor to the condenser and carries hot, high-pressure refrigerant vapor. This line is typically warmer to the touch compared to the return line, as the refrigerant has absorbed heat from the indoor space and is now being transported to the condenser for heat dissipation. Identifying this line is essential for maintenance, troubleshooting, and ensuring the efficient operation of the AC system.
| Characteristics | Values |
|---|---|
| Line Identification | The smaller diameter line connected to the condenser is typically the refrigerant live line (high-pressure liquid line). |
| Temperature | The live line is warmer compared to the suction line (low-pressure vapor line) because it carries high-pressure liquid refrigerant. |
| Pressure | Carries high-pressure liquid refrigerant from the condenser to the expansion valve or metering device. |
| Function | Transports refrigerant in a liquid state after it has been condensed from a vapor in the condenser. |
| Location | Connected to the outlet of the condenser, leading to the expansion valve or metering device. |
| Insulation | Often insulated to prevent heat gain and maintain the refrigerant in a liquid state. |
| Flow Direction | Refrigerant flows away from the condenser toward the expansion valve. |
| Diameter | Generally smaller than the suction line due to the higher pressure and liquid state of the refrigerant. |
| Frost or Sweat | Less likely to show frost or sweat compared to the suction line, as it carries liquid refrigerant under high pressure. |
| Testing | Can be tested using pressure gauges to confirm high-pressure readings when the system is operational. |
Explore related products
What You'll Learn
- Refrigerant Flow Direction: Understanding how refrigerant moves through the AC condenser coils during operation
- Live vs. Liquid Line: Differentiating between the high-pressure live and low-pressure liquid lines
- Condenser Coil Function: Role of the condenser in releasing heat from the refrigerant
- Pressure and Temperature: Monitoring live line pressure and temperature for optimal AC performance
- Leak Detection Methods: Identifying refrigerant leaks in the live line using tools and techniques
Refrigerant Flow Direction: Understanding how refrigerant moves through the AC condenser coils during operation
The refrigerant in an AC system doesn't just magically cool your home—it follows a precise, engineered path. Understanding the direction of refrigerant flow through the condenser coils is crucial for troubleshooting, maintenance, and even DIY repairs. During operation, the refrigerant enters the condenser as a high-pressure, high-temperature vapor. This vapor flows through the condenser coils, where it releases heat to the surrounding air, facilitated by the condenser fan. As the refrigerant loses heat, it condenses into a high-pressure liquid, ready to move on to the next stage of the cooling cycle.
Imagine the condenser coils as a labyrinth for refrigerant molecules. The design of these coils—whether they’re serpentine or microchannel—dictates the efficiency of heat dissipation. In a typical residential AC system, the refrigerant flows in a specific pattern: it enters at one end of the coil, snakes through multiple passes, and exits at the opposite end. This flow direction is engineered to maximize contact time between the refrigerant and the coil surface, ensuring optimal heat transfer. For example, in a standard split AC system, the refrigerant enters the condenser coil at the top and exits at the bottom, aligning with gravity to aid in liquid drainage.
One practical tip for identifying refrigerant flow direction is to locate the service valves on the condenser unit. The valve connected to the larger line (the liquid line) is where the refrigerant exits the condenser as a high-pressure liquid. Conversely, the smaller line (the suction line) is where the refrigerant enters the condenser as a low-pressure vapor. If you’re unsure, trace the lines from the compressor: the hot, high-pressure vapor line leads to the condenser, while the cooler, liquid line exits it. This simple observation can save you from misdiagnosing issues like low refrigerant or blocked coils.
A common misconception is that refrigerant flow direction is universal across all AC systems. In reality, it varies based on system design and manufacturer specifications. For instance, some commercial units use a reverse flow pattern, where the refrigerant enters at the bottom and exits at the top. Always consult the system’s manual or schematics before making assumptions. Ignoring this detail could lead to inefficiencies, such as improper oil return in the compressor or inadequate heat rejection in the condenser.
Finally, understanding refrigerant flow direction isn’t just academic—it’s actionable. For DIY enthusiasts, knowing this flow helps in tasks like cleaning condenser coils or checking for blockages. For professionals, it’s essential for diagnosing issues like short cycling or high head pressure. For example, if the refrigerant isn’t flowing correctly through the condenser, it could indicate a clogged expansion valve or a malfunctioning condenser fan. By mastering this concept, you’ll be better equipped to keep your AC system running smoothly and efficiently.
Transform Your Kitchen: Easy Steps to Paint Your Double-Door Fridge
You may want to see also
Explore related products
Live vs. Liquid Line: Differentiating between the high-pressure live and low-pressure liquid lines
The refrigerant lines in an AC condenser are often misunderstood, yet their roles are distinct and critical to system efficiency. The live line, also known as the high-pressure line, carries hot, high-pressure refrigerant vapor from the compressor to the condenser. In contrast, the liquid line is the low-pressure line that transports cooled, high-pressure liquid refrigerant from the condenser to the expansion valve. Identifying which is which is essential for troubleshooting, maintenance, or repairs, as mistaking one for the other can lead to inefficiency or damage.
To differentiate between the two, start by observing their locations and temperatures. The live line is typically warmer to the touch because it carries hot refrigerant vapor exiting the compressor. It connects directly from the compressor to the condenser. The liquid line, on the other hand, feels cooler since it carries refrigerant that has been condensed into a liquid state. It runs from the condenser to the expansion valve or metering device. A practical tip: use a thermometer to measure the lines; the live line will register significantly higher temperatures, often exceeding 150°F (65°C), while the liquid line remains around 80–100°F (27–38°C).
Another key distinction lies in their functions within the refrigeration cycle. The live line’s role is to transport refrigerant vapor under high pressure, allowing it to release heat in the condenser. This process is crucial for cooling the refrigerant before it transitions to a liquid state. The liquid line, however, ensures the cooled, high-pressure liquid reaches the expansion valve, where it undergoes a pressure drop, turning into a low-pressure, low-temperature mixture that enters the evaporator. Understanding this flow helps diagnose issues like blockages or leaks, which often manifest as reduced cooling performance or unusual system noises.
For DIY enthusiasts or technicians, knowing which line is which can prevent costly mistakes. For instance, installing a filter-drier on the wrong line can restrict flow or cause system failure. Always verify line identities by tracing their paths from the compressor to the condenser and then to the expansion valve. Additionally, labeling lines during installation can save time and confusion in the future. Remember, the live line is the high-pressure, high-temperature conduit, while the liquid line is the cooler, high-pressure pathway for condensed refrigerant. Master this distinction, and you’ll navigate AC systems with confidence.
Is Expired Refrigerated Pie Crust Safe to Use?
You may want to see also
Explore related products
Condenser Coil Function: Role of the condenser in releasing heat from the refrigerant
The condenser coil is the unsung hero of your air conditioning system, working tirelessly to release heat from the refrigerant and keep your space cool. Located in the outdoor unit, this coil plays a pivotal role in the refrigeration cycle by converting high-pressure, high-temperature refrigerant vapor into a liquid. This phase change is critical because it allows the refrigerant to absorb heat again indoors, repeating the cycle. Without the condenser coil efficiently shedding heat to the outside environment, your AC system would lose its ability to cool effectively.
Consider the condenser coil as the system’s exhaust port for heat. As the compressor pumps hot, pressurized refrigerant vapor into the condenser, the coil’s large surface area and exposure to external air facilitate rapid heat dissipation. This process relies on proper airflow, which is why keeping the coil clean and free of debris is essential. Blocked or dirty coils can reduce heat transfer efficiency by up to 30%, forcing the system to work harder and consume more energy. Regular maintenance, such as rinsing the coil with a garden hose or using a soft brush to remove dirt, can significantly improve performance.
From a comparative standpoint, the condenser coil’s function is the opposite of the evaporator coil’s role indoors. While the evaporator absorbs heat from your home, the condenser expels it outside. This duality highlights the refrigerant’s journey as it alternates between absorbing and releasing heat. Interestingly, the condenser’s efficiency is influenced by ambient temperature—on hotter days, the coil must work harder to dissipate heat, which can strain the system. Installing shade structures or ensuring adequate clearance around the outdoor unit can mitigate this issue, improving both efficiency and longevity.
For those troubleshooting AC issues, understanding the condenser coil’s role can provide valuable insights. If your system is blowing warm air or cycling frequently, a malfunctioning condenser coil might be the culprit. Common problems include refrigerant leaks, coil corrosion, or fan motor failures, all of which disrupt heat release. A practical tip: check the condenser unit for ice buildup, which indicates restricted airflow or low refrigerant levels. Addressing these issues promptly can prevent costly repairs and ensure your AC operates at peak efficiency.
In summary, the condenser coil is a critical component in your AC system’s heat rejection process. Its ability to efficiently release heat from the refrigerant directly impacts your system’s cooling performance and energy consumption. By maintaining the coil and addressing potential issues, you can maximize its functionality and extend the lifespan of your air conditioning unit. Understanding this process not only empowers you to troubleshoot effectively but also underscores the importance of regular maintenance in preserving your system’s health.
Quick Fixes for Repairing Your Refrigerator's Inside Door Shelf
You may want to see also
Explore related products
Pressure and Temperature: Monitoring live line pressure and temperature for optimal AC performance
The refrigerant lines in an AC system are the lifelines of cooling efficiency, but distinguishing the live (high-pressure) line from the suction (low-pressure) line is crucial for accurate diagnostics and maintenance. The live line, connected to the condenser, carries high-pressure, high-temperature refrigerant after it’s been compressed. Monitoring its pressure and temperature isn’t just a technical exercise—it’s the key to ensuring your AC operates at peak performance, avoids damage, and maintains energy efficiency.
To identify the live line, feel the two lines running from the condenser (the outdoor unit). The warmer, higher-pressure line is the live line, while the cooler one is the suction line. Use a refrigerant gauge set to measure pressure; typical values for a properly functioning system range from 250 to 350 psi on the high side (live line) and 60 to 90 psi on the low side, depending on ambient temperature. For example, on a 95°F day, the live line pressure should be around 280–320 psi. Deviations from these ranges signal issues like refrigerant leaks, clogs, or compressor problems.
Temperature monitoring complements pressure readings for a complete diagnostic picture. The live line’s temperature should be 20–30°F warmer than the ambient air temperature. For instance, if it’s 80°F outside, the live line should be around 100–110°F. Use an infrared thermometer for quick, non-invasive measurements. If the temperature is too low, it could indicate undercharging or poor condenser airflow. Conversely, excessive heat suggests overcharging or a failing condenser fan.
Regularly monitoring these parameters isn’t just for technicians—it’s a proactive step homeowners can take to extend AC lifespan and reduce repair costs. Keep a log of pressure and temperature readings during peak summer months to establish a baseline. If you notice sudden changes, such as a 20 psi drop in live line pressure or a 15°F spike in temperature, address the issue promptly. Simple fixes like cleaning the condenser coils or replacing air filters can often restore balance, but persistent anomalies warrant professional inspection.
In summary, the live line’s pressure and temperature are vital indicators of AC health. By understanding their optimal ranges and monitoring them regularly, you can catch inefficiencies early, prevent costly breakdowns, and ensure your system delivers consistent cooling. It’s not just about fixing problems—it’s about optimizing performance for comfort and longevity.
Can FedEx Ship Refrigerated Packages? A Comprehensive Guide
You may want to see also
Explore related products
$89.95
Leak Detection Methods: Identifying refrigerant leaks in the live line using tools and techniques
Identifying refrigerant leaks in the live line of an AC condenser is critical for maintaining system efficiency and preventing environmental harm. The live line, also known as the high-pressure line, carries hot, compressed refrigerant from the compressor to the condenser. Leaks here can lead to reduced cooling capacity, increased energy consumption, and potential system failure. Effective leak detection requires a combination of tools and techniques tailored to the unique challenges of working with live lines under pressure.
Tools for Live Line Leak Detection
Electronic leak detectors are the go-to devices for pinpointing refrigerant leaks in live lines. These handheld tools detect refrigerant gases by sensing changes in conductivity, flame ionization, or ultraviolet fluorescence. For live lines, infrared (IR) or heated diode sensors are preferred, as they are less likely to trigger false alarms from residual oil or moisture. When using these detectors, ensure the probe is positioned close to the line but not touching it, as direct contact can damage the sensor. For larger systems, ultrasonic detectors can identify leaks by amplifying the high-frequency hissing sounds of escaping refrigerant, though they are less precise for pinpointing small leaks.
Techniques for Accurate Detection
A systematic approach is essential for live line leak detection. Start by inspecting visible connections, such as fittings, valves, and joints, where leaks commonly occur. Use a soap bubble solution or halogen leak detector dye injected into the system to highlight escaping refrigerant. For pressurized lines, a thermal imaging camera can identify temperature differentials caused by leaks, though this method is more effective for larger systems. Always wear protective gear, including gloves and safety goggles, when working near live lines to avoid contact with hot refrigerant or oil.
Practical Tips for Success
To maximize detection accuracy, perform inspections when the system is running at full capacity, as leaks are more pronounced under pressure. Avoid using open flames or combustible gas detectors near live lines, as refrigerant leaks can ignite under certain conditions. For hard-to-reach areas, attach a flexible probe to the electronic detector or use a mirror to inspect hidden connections. Document leak locations with photos or notes for repair planning, and always follow manufacturer guidelines for tool calibration and usage.
Cautions and Limitations
While electronic detectors are highly effective, they can be fooled by wind, nearby contaminants, or low refrigerant concentrations. False positives are common near electrical components or areas with high humidity. Soap bubble tests, though reliable, can be messy and time-consuming, especially in windy conditions. Ultrasonic detectors may miss leaks in noisy environments, and thermal imaging requires significant temperature differences to be effective. Always verify findings with multiple methods to ensure accuracy.
Identifying refrigerant leaks in the live line demands a blend of precision tools and systematic techniques. Electronic detectors, soap bubble tests, and thermal imaging each offer unique advantages, but their effectiveness depends on proper application and environmental conditions. By combining these methods and adhering to safety precautions, technicians can swiftly locate leaks, minimize system downtime, and ensure compliance with environmental regulations. Regular maintenance and proactive leak detection are key to preserving the longevity and efficiency of AC condenser systems.
Refrigerants in Vacuum: Unveiling the Science Behind Their Existence
You may want to see also
Frequently asked questions
"Refrigerant live AC condenser" refers to the condenser unit in an air conditioning system where the refrigerant is in a high-pressure, hot gaseous state after being compressed by the compressor.
The refrigerant live line is the smaller of the two copper lines connected to the condenser. It is the line that carries high-pressure, hot refrigerant from the compressor to the condenser.
The refrigerant live line is typically warmer to the touch compared to the return line, as it carries hot, high-pressure gas. It is also usually the smaller diameter line connected to the condenser.
It is not recommended to touch the refrigerant live line, as it can be extremely hot and may cause burns. Additionally, tampering with AC lines without proper knowledge can be dangerous and may damage the system.
