When it comes to adding refrigerant to a system, such as an air conditioning unit or a refrigeration system, it’s crucial to know which side to add it to. Typically, refrigerant is added to the low-pressure side of the system, often referred to as the suction line. This side is characterized by its cooler temperature and lower pressure compared to the high-pressure side, or discharge line. Adding refrigerant to the correct side ensures proper system function, prevents damage, and maintains efficiency. Always consult the manufacturer’s guidelines or a professional technician to confirm the correct procedure for your specific system.
| Characteristics | Values |
|---|---|
| Refrigerant Addition Side | Low-Pressure Side (Suction Line) |
| System Component | Between the evaporator and compressor |
| Pressure Gauge Reading | Lower pressure (typically 0-100 psi, depending on system and ambient temperature) |
| Hose Connection | Connect refrigerant hose to the low-pressure service port |
| Refrigerant Flow Direction | From refrigerant can to the suction line |
| Safety Precautions | Wear protective gear (gloves, goggles); ensure system is off; avoid overcharging |
| Common Systems | Automotive A/C, residential HVAC, refrigeration units |
| Indicator | Low-pressure side port is usually smaller in diameter than the high-pressure port |
| Purpose | To maintain proper refrigerant levels for efficient cooling |
| Warning | Adding refrigerant to the high-pressure side can cause system damage or injury |
Explore related products
What You'll Learn
Low-Pressure Side (Suction Line)
Adding refrigerant to the low-pressure side, also known as the suction line, is a critical step in recharging an air conditioning system. This side of the system operates under lower pressure and temperature, making it the safer and more effective point for refrigerant introduction. The suction line carries refrigerant in its gaseous state, returning it to the compressor for recompression and recirculation. Identifying this line is straightforward: it’s the larger of the two copper lines connecting the outdoor condenser unit, and it’s typically cooler to the touch compared to the high-pressure line. Always verify with a pressure gauge to ensure you’re working on the correct side, as misidentification can lead to system damage or inefficiency.
The process of adding refrigerant here requires precision and adherence to safety protocols. Begin by attaching the refrigerant can or charging hose to the low-pressure service port, which is usually located near the compressor or on the suction line itself. Open the valve slowly to allow refrigerant to flow into the system, monitoring the pressure gauge to avoid overcharging. Most residential systems require between 1.5 to 4 pounds of refrigerant, depending on size and capacity, but always refer to the manufacturer’s specifications. Overcharging can cause high head pressure, leading to compressor failure, while undercharging reduces efficiency and cooling capacity.
A common misconception is that adding refrigerant directly correlates to colder air output. However, the low-pressure side’s role is to maintain proper system pressure and ensure the refrigerant cycle functions optimally. If your system still underperforms after adding refrigerant, the issue may lie elsewhere—such as a clogged filter, malfunctioning compressor, or refrigerant leak. In such cases, adding more refrigerant is not only ineffective but can exacerbate the problem. Always diagnose the root cause before proceeding with a recharge.
For DIY enthusiasts, investing in a manifold gauge set and vacuum pump is advisable for accurate charging and system evacuation. These tools allow you to measure suction and discharge pressures, ensuring the refrigerant is added at the correct rate and under ideal conditions. If you’re unsure about any step, consult a professional technician. Mishandling refrigerant or overcharging the system can void warranties and pose environmental risks, as refrigerants like R-410A are potent greenhouse gases.
In summary, the low-pressure side is the designated point for adding refrigerant, but it’s not a one-size-fits-all solution. Proper identification, precise measurement, and adherence to safety guidelines are essential for a successful recharge. Treat this task as a diagnostic step rather than a quick fix, and always prioritize system health over immediate results. With the right tools and knowledge, maintaining your AC system’s refrigerant levels can be a manageable task, ensuring efficient and reliable cooling for years to come.
Refrigerating Masa: Tips for Storing Fresh Dough Safely
You may want to see also
Explore related products
Identifying Correct Port Location

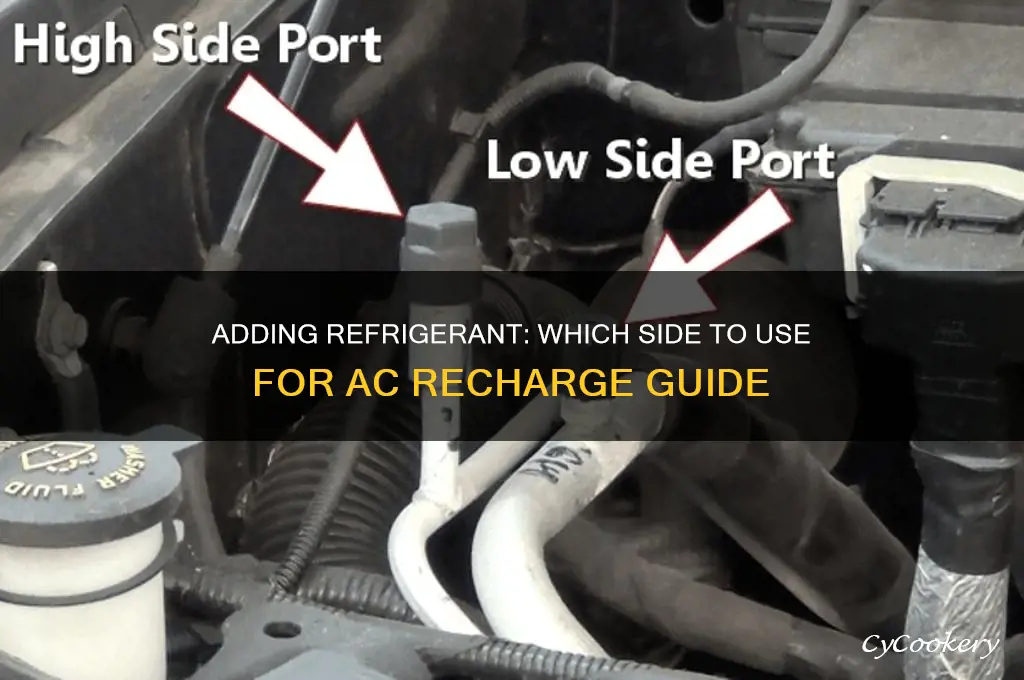

Adding refrigerant to a vehicle's air conditioning system requires precision, and the first critical step is identifying the correct port location. Most modern vehicles use a dual-port service valve setup, with one port for low-pressure (suction) and another for high-pressure (liquid) lines. The low-pressure port, typically larger in diameter, is where refrigerant is added. Mistaking the high-pressure port can lead to overcharging or system damage, as it’s designed for pressure testing, not refrigerant charging. Always consult the vehicle’s manual or under-hood label to confirm port locations, as designs vary by make and model.
Analyzing the ports visually can provide clues. The low-pressure port is usually located on the larger, insulated suction line, which connects to the compressor’s inlet. It often has a blue or black cap to distinguish it from the high-pressure port, which may have a red cap. If caps are missing or colors faded, trace the lines: the suction line is generally thicker and cooler to the touch when the AC is running. Using a manifold gauge set can also help—connect the gauges to both ports, and the one registering lower pressure (typically 20–40 psi during operation) is the low-pressure port for refrigerant charging.
A persuasive argument for caution is the potential for costly mistakes. Adding refrigerant to the high-pressure port can force liquid into the compressor, causing immediate failure. Even if the system accepts the refrigerant, overcharging can lead to erratic cooling, increased fuel consumption, or long-term damage. For DIY enthusiasts, investing in a refrigerant charging kit with a built-in hose and gauge ensures compatibility with the low-pressure port. Professional technicians emphasize that proper identification isn’t just about location—it’s about understanding the system’s flow and pressure dynamics to avoid hazards.
Comparatively, older vehicles with single-port systems or R-12 refrigerant (now obsolete) require different approaches. If working on a pre-1995 vehicle, the port may be a single, larger fitting with an adapter needed for modern R-134a refrigerant. In such cases, adding refrigerant directly without conversion can damage the system. For newer vehicles, the low-pressure port is standardized, but always verify its position relative to the compressor and condenser. A practical tip: take a photo of the ports before removing caps to avoid confusion, especially in cramped engine bays.
In conclusion, identifying the correct port location is a blend of observation, knowledge, and caution. Start by verifying the port’s position via the manual or under-hood diagram. Use visual cues like line size, insulation, and cap colors to differentiate ports. When in doubt, employ a manifold gauge set to confirm pressure levels. Treat this step as non-negotiable—skipping it risks system damage or inefficiency. With the right approach, adding refrigerant becomes a straightforward task, ensuring optimal AC performance without unnecessary complications.
Avoid Disaster: Why You Should Never Store Items in an Unplugged Fridge
You may want to see also
Explore related products
Using Gauges for Accurate Charging
Adding refrigerant to an air conditioning system isn’t a guessing game—it requires precision. Gauges are your compass in this process, ensuring you charge the system accurately. Without them, you risk overcharging or undercharging, both of which can lead to inefficiency, damage, or even system failure. The low-side gauge measures suction pressure, while the high-side gauge monitors discharge pressure. Together, they provide critical data to determine the correct refrigerant level based on ambient temperature and system specifications.
To use gauges effectively, start by connecting the manifold gauge set to the service ports—typically, the low side (suction line) is where you’ll add refrigerant. Ensure the system is running and stabilized at operating conditions. Refer to the manufacturer’s charging chart, which correlates ambient temperature with the required low-side pressure. For example, if the ambient temperature is 85°F, the low-side pressure might need to be around 65–75 PSI for a properly charged R-134a system. Always add refrigerant in small increments, allowing time for the system to stabilize after each addition.
One common mistake is ignoring the high-side gauge while charging. Overlooking this can lead to overcharging, causing high head pressure and potential compressor damage. For instance, if the high-side pressure exceeds 250 PSI on a residential system, stop adding refrigerant immediately. Conversely, undercharging results in low suction pressure, inefficient cooling, and possible evaporator freeze-up. Gauges act as a safeguard, ensuring you stay within safe operating parameters.
For DIY enthusiasts, investing in a quality gauge set is non-negotiable. Digital gauges offer greater accuracy than analog, especially in fluctuating conditions. Always purge the gauge set with refrigerant before connecting to avoid introducing air into the system. If you’re working with newer refrigerants like R-410A, ensure your gauges are compatible—using the wrong equipment can lead to inaccurate readings or equipment failure.
In summary, gauges are the backbone of accurate refrigerant charging. They provide real-time data to guide your decisions, prevent costly mistakes, and ensure optimal system performance. Whether you’re a professional technician or a homeowner tackling a repair, mastering gauge usage is essential for maintaining an efficient and long-lasting air conditioning system.
Why Refrigerate Ketchup? Uncovering the Surprising Storage Secrets
You may want to see also
Explore related products
Avoiding Overcharging Risks
Adding refrigerant to the wrong side of an AC system can lead to overcharging, a critical error that compromises efficiency and safety. The low-pressure side (suction line) is the correct port for refrigerant, but even here, precision is paramount. Overcharging by as little as 10% can reduce cooling capacity by 20% and increase energy consumption by 15%, according to HVAC industry standards. This imbalance stresses the compressor, leading to premature failure, which costs an average of $800 to $2,800 to replace. Understanding the system’s capacity and using a manifold gauge set to monitor pressure are essential steps to prevent this costly mistake.
Overcharging risks extend beyond mechanical failure; they pose safety hazards. Excess refrigerant raises system pressure, potentially causing hoses, seals, or components to rupture. In residential systems, this can lead to refrigerant leaks, which are not only harmful to the environment but also toxic if inhaled. Commercial systems face even greater risks, as larger refrigerant volumes can cause catastrophic failures. For instance, a 2018 study found that 30% of AC-related fires in commercial buildings were linked to overcharging. Always refer to the manufacturer’s specifications for exact refrigerant capacity, typically measured in ounces or pounds, and never exceed this limit.
Preventing overcharging requires a systematic approach. Start by evacuating the system to remove air and moisture, which can skew pressure readings. Use a vacuum pump to achieve a minimum of 500 microns for at least 30 minutes. Next, add refrigerant in small increments, allowing 5–10 minutes between each addition to stabilize pressure and temperature. Monitor the superheat or subcooling values using a digital gauge, aiming for a superheat of 10–15°F for most systems. If using a charging cylinder, weigh the refrigerant to ensure accuracy, as liquid measurements are more reliable than pressure-based estimates.
A common misconception is that "more is better" when it comes to refrigerant. However, overcharging restricts refrigerant flow, causing the evaporator coil to freeze and the compressor to run hotter. This not only reduces cooling efficiency but also shortens the lifespan of the unit. For example, a 3-ton AC system typically requires 6–7 pounds of R-410A refrigerant. Exceeding this by even 1 pound can lead to the issues described. Regularly inspect the system for signs of overcharging, such as high head pressure, low suction pressure, or ice buildup on the evaporator, and address these immediately to avoid long-term damage.
Finally, investing in proper training and tools is non-negotiable for avoiding overcharging risks. DIY enthusiasts often rely on pressure gauges alone, but these can be misleading without understanding the relationship between temperature and pressure. Professional technicians use thermistors, thermocouples, and digital manifolds to measure superheat and subcooling accurately. For those without access to advanced tools, consulting a certified HVAC technician is the safest option. Overcharging is reversible, but the costs—both financial and environmental—are far greater than the expense of doing it right the first time.
Refrigerating Chicken Breast: Safe Storage Duration and Tips
You may want to see also
Explore related products
Tools Needed for Safe Refilling
Adding refrigerant to a vehicle's air conditioning system is a task that demands precision and the right tools. Without them, you risk damaging the system, wasting refrigerant, or even causing injury. The first essential tool is a manifold gauge set, which connects to the high and low-pressure ports of the AC system. This set allows you to monitor pressure levels, ensuring you add refrigerant safely and accurately. Always verify compatibility with your vehicle’s refrigerant type, such as R-134a or R-1234yf, as using the wrong gauge can lead to system failure.
Next, a refrigerant dispenser with a hose is indispensable. This tool ensures controlled dispensing and prevents overcharging, which can cause compressor damage. Look for dispensers with automatic shut-off valves to avoid exceeding the system’s capacity. For R-134a systems, a standard dispenser typically holds 12 oz. cans, while R-1234yf requires specialized kits due to its unique properties. Always wear protective gloves when handling refrigerant, as prolonged exposure can cause skin irritation or frostbite.
A vacuum pump is another critical tool, used to evacuate air and moisture from the AC system before refilling. Moisture in the system can freeze, blocking components and reducing efficiency. Run the pump for at least 30 minutes to achieve a vacuum of 29.9 inHg, ensuring optimal conditions for refrigerant. Skipping this step can lead to acid formation, corroding internal parts over time. Pair the pump with a vacuum gauge to monitor progress and confirm the system is ready for refilling.
Finally, safety goggles and gloves are non-negotiable. Refrigerants are hazardous chemicals, and accidental exposure can cause eye damage or respiratory issues. Gloves protect against frostbite from liquid refrigerant, while goggles shield your eyes from leaks or splashes. Additionally, work in a well-ventilated area to avoid inhaling fumes. These precautions may seem minor, but they are the difference between a safe refill and a dangerous mishap.
In summary, safe refrigerant refilling requires a manifold gauge set, refrigerant dispenser, vacuum pump, and protective gear. Each tool plays a specific role, from monitoring pressure to ensuring system purity. Investing in high-quality equipment and following safety protocols not only protects your vehicle but also safeguards your health. Always consult your vehicle’s manual for specific instructions, as systems vary widely across makes and models.
Refrigerating Sperm: Safe Storage Duration and Preservation Tips
You may want to see also
Frequently asked questions
Add refrigerant to the low-pressure side of the AC system, which is connected to the larger of the two AC lines. This is typically the suction line, identifiable by its larger diameter and cooler temperature when the AC is running.
The low-pressure side is usually the line that feels cool to the touch when the AC is on. It’s also the side connected to the compressor’s larger port or the hose with a larger diameter.
No, adding refrigerant to the high-pressure side is dangerous and can damage the AC system. Always add refrigerant to the low-pressure side to avoid overpressurizing the system.
While gauges can help confirm the low-pressure side, you can often identify it visually by the larger hose diameter or by feeling for the cooler line when the AC is running. However, using a manifold gauge set is recommended for accuracy.
