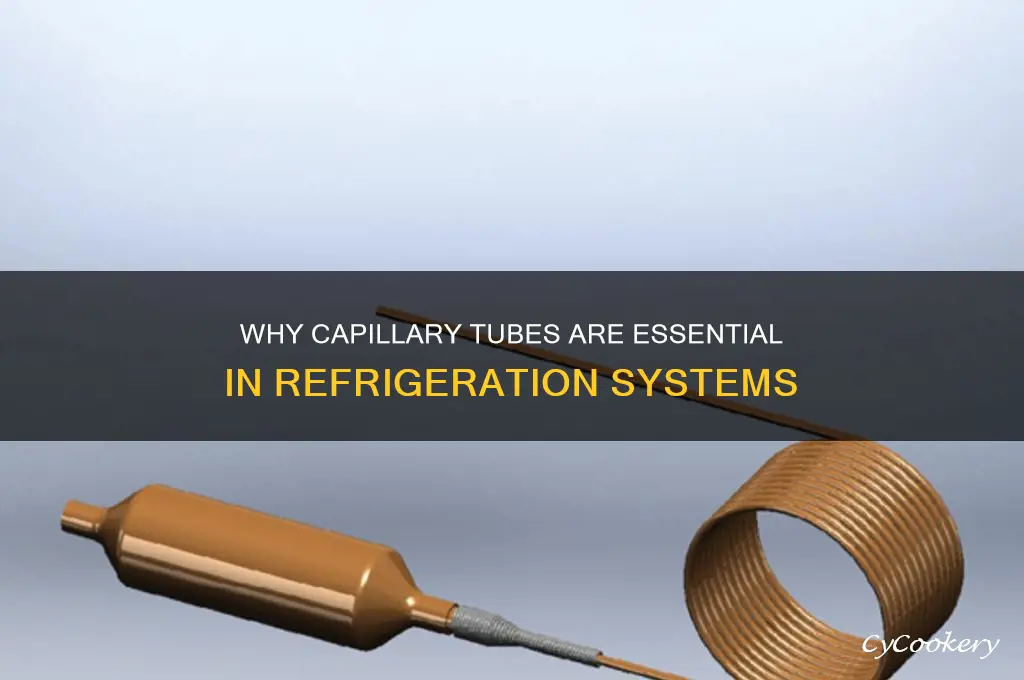

The capillary tube is a crucial component in refrigeration systems, serving as a metering device that regulates the flow of refrigerant between the condenser and the evaporator. Its primary function is to create a pressure drop, which reduces the refrigerant’s pressure and temperature, allowing it to absorb heat from the refrigerator’s interior. The capillary tube’s narrow diameter and precise length ensure a controlled and consistent flow rate, optimizing the cooling process while maintaining energy efficiency. Its simplicity, low cost, and reliability make it a preferred choice in domestic and small-scale refrigeration systems, where it effectively balances performance and affordability.
| Characteristics | Values |
|---|---|
| Function | Controls refrigerant flow rate and creates pressure drop, enabling efficient heat exchange in the evaporator. |
| Diameter | Typically 0.5 to 2.0 mm (0.02 to 0.08 inches), ensuring precise restriction and laminar flow. |
| Length | Varies based on system design, optimized for specific refrigeration capacity and temperature requirements. |
| Material | Commonly copper or aluminum, chosen for corrosion resistance, thermal conductivity, and ease of fabrication. |
| Pressure Drop | Creates a significant pressure drop (up to 10-15 bar) between condenser and evaporator, facilitating phase change. |
| Flow Control | Self-regulating flow based on temperature and pressure, eliminating the need for additional valves. |
| Cost-Effectiveness | Inexpensive and simple to manufacture, making it a preferred choice for domestic and small commercial refrigerators. |
| Reliability | Highly reliable with no moving parts, reducing maintenance and failure risks. |
| Compact Design | Small footprint, ideal for space-constrained refrigeration systems. |
| Energy Efficiency | Optimizes refrigerant distribution, enhancing overall system efficiency and reducing energy consumption. |
| Compatibility | Works effectively with various refrigerants, including newer eco-friendly options like R-32 and R-600a. |
| Noise Level | Operates silently due to the absence of mechanical components. |
| Temperature Control | Ensures consistent evaporator temperature, maintaining desired cooling performance. |
Explore related products
What You'll Learn
- Capillary Tube Restricts Refrigerant Flow: Controls refrigerant flow rate, ensuring proper cooling and system efficiency in refrigerators
- Pressure Drop Mechanism: Creates high-pressure drop, enabling refrigerant to expand and cool effectively
- Compact Design Advantage: Small size fits easily into refrigerator systems, saving space and enhancing design flexibility
- Cost-Effective Solution: Inexpensive compared to other expansion devices, reducing overall refrigerator manufacturing costs
- Reliable Operation: Simple structure ensures minimal maintenance and long-lasting performance in refrigeration cycles
Capillary Tube Restricts Refrigerant Flow: Controls refrigerant flow rate, ensuring proper cooling and system efficiency in refrigerators
The capillary tube in a refrigerator is a critical component that acts as a bottleneck for refrigerant flow. This deliberate restriction is not a flaw but a design feature. By significantly reducing the diameter of the refrigerant pathway, the capillary tube creates a pressure drop, transforming high-pressure liquid refrigerant from the condenser into low-pressure, low-temperature liquid-vapor mixture. This phase change is essential for the subsequent evaporation in the evaporator, where heat absorption from the refrigerator's interior occurs, providing the cooling effect.
Example: Imagine a garden hose: pinching it near the nozzle reduces water flow, increasing pressure at the source and creating a fine, high-velocity spray at the outlet. Similarly, the capillary tube restricts refrigerant flow, creating the necessary conditions for efficient heat exchange.
This controlled restriction is a delicate balance. Too much restriction can starve the evaporator of refrigerant, leading to inadequate cooling and increased energy consumption. Conversely, insufficient restriction allows excessive refrigerant flow, causing the evaporator to become flooded, reducing its heat absorption capacity and potentially leading to compressor damage. Analysis: The capillary tube's diameter and length are meticulously calculated based on factors like refrigerant type, system capacity, and desired cooling performance. This precision engineering ensures the refrigerant flow rate is optimized for maximum efficiency, striking a balance between cooling power and energy consumption.
Takeaway: The capillary tube's role as a flow restrictor is fundamental to a refrigerator's operation. Its precise design ensures the refrigerant undergoes the necessary phase change and flows at the optimal rate, enabling efficient cooling while safeguarding the system from potential damage.
While the capillary tube is a reliable and cost-effective solution, it's not without limitations. Its fixed restriction means it cannot adapt to varying cooling demands. Modern refrigerators often incorporate more sophisticated expansion devices like thermostatic or electronic expansion valves, which offer variable flow control, allowing for finer tuning of refrigerant flow based on real-time conditions. Comparative: Think of it like comparing a manual transmission to an automatic one. The capillary tube is like a fixed gear, providing consistent performance but lacking adaptability, while advanced expansion valves act like an automatic transmission, adjusting seamlessly to changing needs.
Practical Tip: Regular maintenance, including cleaning condenser coils and ensuring proper airflow around the refrigerator, helps maintain optimal system performance and minimizes stress on the capillary tube, prolonging its lifespan.
Understanding the capillary tube's function highlights the intricate engineering behind seemingly simple appliances. This tiny component plays a pivotal role in the complex dance of heat transfer, demonstrating how careful design and material selection contribute to the efficient operation of our everyday appliances. Descriptive: Picture a microscopic highway for refrigerant, where the capillary tube acts as a toll booth, meticulously regulating traffic flow to ensure a smooth and efficient journey towards cooling comfort. This analogy underscores the capillary tube's crucial role in maintaining the delicate balance necessary for effective refrigeration.
Does Bavarian Cream Need Refrigeration? Storage Tips and Safety Guide
You may want to see also
Explore related products
Pressure Drop Mechanism: Creates high-pressure drop, enabling refrigerant to expand and cool effectively
The capillary tube in a refrigerator is a critical component that leverages the pressure drop mechanism to facilitate the cooling process. As the refrigerant flows through this narrow tube, it encounters a significant resistance, leading to a substantial drop in pressure. This pressure reduction is not arbitrary; it is a deliberate design feature that triggers the expansion of the refrigerant. The expansion process is crucial because it allows the refrigerant to absorb heat from the surroundings, thereby cooling the refrigerator's interior. For instance, in a typical household refrigerator, the capillary tube might reduce the pressure from around 100 psi (high-pressure side) to approximately 10 psi (low-pressure side), enabling the refrigerant to expand and cool effectively.
Analyzing the physics behind this mechanism reveals its elegance. The Joule-Thomson effect, which describes the temperature change of a gas or liquid when it is forced through a valve or porous plug, plays a pivotal role here. When the refrigerant passes through the capillary tube, it experiences a rapid decrease in pressure, causing it to expand and cool. This cooling effect is essential for the refrigeration cycle, as it allows the refrigerant to absorb heat from the refrigerator's interior. For optimal performance, the capillary tube's length and diameter must be precisely calculated based on the refrigerant type and the desired cooling capacity. A common refrigerant like R-134a, for example, requires a specific tube diameter and length to achieve the necessary pressure drop and cooling efficiency.
From a practical standpoint, understanding the pressure drop mechanism can help in troubleshooting refrigerator issues. If the capillary tube becomes clogged or restricted, the pressure drop will be insufficient, leading to poor cooling performance. Regular maintenance, such as cleaning or replacing the capillary tube, can prevent such problems. Additionally, when installing a new refrigerator or retrofitting an existing one, it is crucial to select a capillary tube that matches the system's requirements. For commercial refrigerators, which often operate under more demanding conditions, the capillary tube might need to be longer or have a smaller diameter to achieve the required pressure drop and cooling capacity.
A comparative analysis highlights the capillary tube's advantages over other expansion devices, such as thermostatic expansion valves (TXVs). While TXVs offer precise control over the refrigerant flow, they are more complex and expensive. Capillary tubes, on the other hand, are simple, cost-effective, and reliable, making them the preferred choice for most residential refrigerators. However, their fixed orifice design means they cannot adjust to varying loads, which is where TXVs excel. For applications requiring consistent cooling under fluctuating conditions, a hybrid system combining both technologies might be ideal. This approach ensures both efficiency and adaptability, though it comes at a higher cost.
In conclusion, the pressure drop mechanism in a capillary tube is a fundamental aspect of refrigerator functionality, enabling the refrigerant to expand and cool effectively. By creating a high-pressure drop, the capillary tube facilitates the absorption of heat, ensuring the refrigerator maintains its desired temperature. Whether for residential or commercial use, understanding this mechanism is key to optimizing performance, troubleshooting issues, and making informed decisions about system design and maintenance. Practical tips, such as ensuring proper tube dimensions and regular maintenance, can significantly enhance the longevity and efficiency of the refrigeration system.
Can You Safely Refrigerate Formula Milk After Starting a Feeding?
You may want to see also
Explore related products
Compact Design Advantage: Small size fits easily into refrigerator systems, saving space and enhancing design flexibility
The capillary tube's diminutive dimensions are a game-changer for refrigerator design. Measuring mere millimeters in diameter and typically ranging from 0.5 to 2 meters in length, these tubes occupy minimal space within the refrigeration system. This compactness allows manufacturers to shrink overall appliance footprints, catering to the growing demand for space-efficient appliances in modern kitchens.
Imagine a refrigerator without a capillary tube. The alternative, an expansion valve, is bulkier and requires additional components, leading to a larger, less aesthetically pleasing unit. The capillary tube's size advantage directly translates to sleeker designs, enabling refrigerators to seamlessly integrate into various kitchen layouts.
This space-saving benefit extends beyond aesthetics. The compact design facilitates easier installation and maintenance. Technicians can access and replace capillary tubes with greater ease compared to larger components, reducing service time and costs. Furthermore, the reduced size allows for more flexible internal configurations, accommodating features like adjustable shelves and larger storage compartments without compromising cooling performance.
For instance, consider a compact mini-fridge designed for dorm rooms or small apartments. The capillary tube's small size is crucial in maximizing the limited interior space, allowing for efficient cooling while providing ample storage for essentials.
The capillary tube's compactness also contributes to energy efficiency. Its small diameter restricts refrigerant flow, creating a pressure drop that facilitates the phase change from liquid to gas. This process occurs within the confines of the tube, eliminating the need for additional space-consuming components. As a result, refrigerators with capillary tubes often boast lower energy consumption, benefiting both the environment and the consumer's wallet.
In essence, the capillary tube's compact design is a key enabler for modern refrigerator systems. Its small size not only saves valuable space but also enhances design flexibility, simplifies maintenance, and contributes to energy efficiency. This unassuming component plays a pivotal role in shaping the refrigerators we rely on daily, demonstrating that sometimes, the smallest parts have the most significant impact.
Should Marshmallow Fluff Be Refrigerated After Opening? Tips and Advice
You may want to see also
Explore related products
$17.69
Cost-Effective Solution: Inexpensive compared to other expansion devices, reducing overall refrigerator manufacturing costs
Capillary tubes are a cornerstone of cost-effective refrigeration design. Their simplicity is their strength: a thin, coiled copper tube with no moving parts. This minimalism translates to significantly lower production costs compared to other expansion devices like thermostatic or electronic valves. For manufacturers, this price difference isn’t marginal—it’s a substantial reduction in per-unit expenses, especially when scaled across mass production. This cost-efficiency directly impacts the final price tag of refrigerators, making them more accessible to consumers worldwide.
Consider the manufacturing process. Producing a capillary tube requires basic materials and straightforward techniques, whereas thermostatic valves demand precision engineering and additional components. The capillary tube’s design eliminates the need for complex assembly lines or specialized labor, further slashing production costs. For instance, a standard capillary tube might cost less than $1, while a thermostatic valve can run upwards of $10. Multiply this by millions of units, and the savings become astronomical, allowing manufacturers to either boost profit margins or offer more competitive pricing.
The economic advantage extends beyond initial production. Capillary tubes’ durability reduces the likelihood of post-sale repairs, lowering warranty claims and maintenance costs for manufacturers. Their passive operation—relying on pressure differentials rather than mechanical or electronic controls—means fewer points of failure. This reliability is particularly valuable in regions with limited access to repair services, where a malfunctioning expansion device could render a refrigerator unusable. By minimizing long-term expenses, capillary tubes ensure that cost-effectiveness isn’t just a short-term gain but a sustained benefit.
Critics might argue that capillary tubes offer less precise control over refrigerant flow compared to advanced expansion devices. However, for most residential refrigerators, this trade-off is negligible. Modern designs optimize capillary tube length and diameter to achieve efficient cooling performance, often within 5-10% of more sophisticated systems. Given that the average consumer prioritizes affordability and reliability over marginal performance gains, the capillary tube’s cost-effectiveness remains a winning proposition. In the balance between price and functionality, it’s clear why this humble component dominates the market.
Keep Your Fridge Fresh: Benefits of a Clean Refrigerator
You may want to see also
Explore related products
$15.99 $17.99
Reliable Operation: Simple structure ensures minimal maintenance and long-lasting performance in refrigeration cycles
The capillary tube's simplicity is its superpower in refrigeration. Unlike complex valves or mechanisms prone to wear and tear, its single, narrow tube construction leaves little room for malfunction. This minimalism translates to fewer potential failure points, reducing the need for frequent repairs and ensuring your refrigerator hums along reliably for years.
Imagine a bustling highway versus a quiet country lane. A complex valve system is like the highway, with multiple lanes, intersections, and potential bottlenecks. The capillary tube, on the other hand, is the serene country lane – straightforward, predictable, and far less likely to experience congestion or breakdowns.
This simplicity directly impacts maintenance. With no moving parts to lubricate, adjust, or replace, capillary tube systems require minimal attention. Think of it like comparing a bicycle to a car; the bicycle's basic design requires less upkeep, making it a more dependable choice for everyday use. Similarly, the capillary tube's straightforward design minimizes the need for specialized knowledge or tools for maintenance, empowering even non-technically inclined individuals to keep their refrigerators running smoothly.
For instance, a typical capillary tube system in a domestic refrigerator might operate flawlessly for over a decade without requiring any intervention beyond routine cleaning. This longevity is a testament to the inherent reliability of its simple design.
However, simplicity doesn't equate to inferior performance. The capillary tube's design cleverly leverages the principles of fluid dynamics to regulate refrigerant flow. Its narrow diameter creates a pressure drop, controlling the amount of refrigerant entering the evaporator. This precise control ensures optimal cooling efficiency without the need for intricate adjustments or calibrations.
In essence, the capillary tube's reliable operation stems from its elegant simplicity. By minimizing complexity, it maximizes durability, reduces maintenance needs, and delivers consistent performance, making it a cornerstone of dependable refrigeration systems.
Recharging Refrigerator Refrigerant: A DIY Guide or Professional Task?
You may want to see also
Frequently asked questions
A capillary tube is used in a refrigerator to control the flow and pressure of the refrigerant, ensuring it enters the evaporator at the correct pressure and temperature for efficient heat absorption.
The capillary tube acts as a metering device, restricting the refrigerant flow and causing a significant pressure drop. This reduces the refrigerant’s pressure and temperature, allowing it to evaporate and absorb heat from the refrigerator’s interior.
Capillary tubes are simple, inexpensive, and require no moving parts, making them reliable and low-maintenance. They are also compact and suitable for small to medium-sized refrigeration systems, which is why they are commonly used in household refrigerators.
