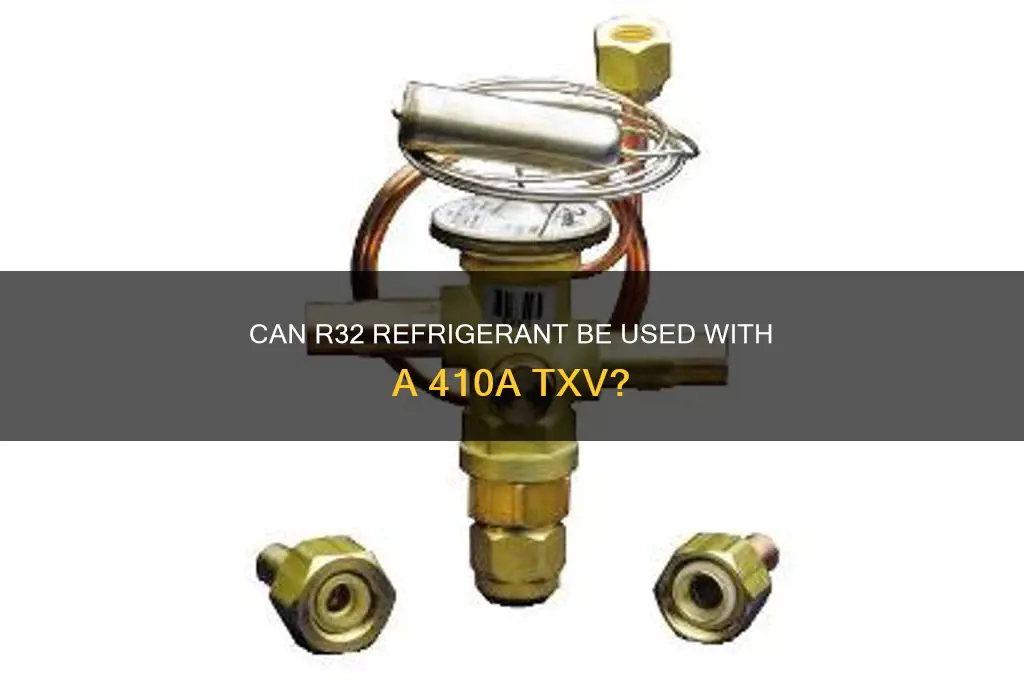

When considering whether a 410A TXV (Thermostatic Expansion Valve) can work with R32 refrigerant, it's essential to understand the compatibility and operational differences between these systems. R32 is a newer, more environmentally friendly refrigerant with distinct properties compared to 410A, including higher pressure and different thermal characteristics. While a 410A TXV may physically fit into an R32 system, it is not designed to handle the specific pressure and temperature requirements of R32, potentially leading to inefficiencies, reduced performance, or even system damage. Manufacturers typically recommend using a TXV specifically designed for R32 to ensure optimal operation, safety, and compliance with industry standards. Always consult the equipment manufacturer or a qualified HVAC technician before attempting such modifications.
| Characteristics | Values |
|---|---|
| Compatibility | Generally not recommended. 410A TXVs are designed for R-410A refrigerant, which has different properties than R-32. |
| Pressure-Temperature Characteristics | R-32 operates at lower pressures than R-410A. A 410A TXV may not accurately control the refrigerant flow for R-32, leading to overfeeding or underfeeding. |
| Material Compatibility | R-32 is more flammable than R-410A. 410A TXVs may not be constructed with materials suitable for R-32's flammability, posing a safety risk. |
| Lubricant Compatibility | R-32 often requires different lubricants than R-410A. A 410A TXV may not be compatible with the lubricant used in an R-32 system, leading to wear and tear or system failure. |
| Manufacturer Recommendations | Always consult the manufacturer's specifications for both the TXV and the refrigerant. Most manufacturers will explicitly state compatibility or incompatibility. |
| Potential Consequences of Using 410A TXV with R-32 | Inefficient cooling, compressor damage, system leaks, safety hazards due to flammability. |
| Recommended Solution | Use a TXV specifically designed for R-32 refrigerant. |
Explore related products
What You'll Learn
Compatibility of TXV Materials
The compatibility of TXV (Thermostatic Expansion Valve) materials with different refrigerants is a critical consideration in HVAC systems. When transitioning from R-410A to R-32 refrigerant, the TXV’s internal components, particularly the diaphragm and seals, must be evaluated for chemical and thermal compatibility. R-32 is a mildly flammable refrigerant with a higher discharge temperature compared to R-410A, which can accelerate material degradation if the TXV is not designed to withstand these conditions. For instance, elastomeric materials like EPDM or neoprene, commonly used in R-410A TXVs, may swell, harden, or crack when exposed to R-32, leading to leaks or improper refrigerant flow.
Analyzing material compatibility requires a focus on the TXV’s diaphragm, which regulates refrigerant flow based on evaporator temperature. Diaphragms made from butyl rubber or similar compounds may not perform reliably with R-32 due to its solubility properties. Manufacturers often recommend TXVs with fluorocarbon-based diaphragms, such as Viton, for R-32 systems, as these materials resist swelling and maintain flexibility under higher temperatures. Additionally, the valve body and internal passages should be constructed from brass, stainless steel, or aluminum alloys to prevent corrosion from R-32’s mild acidity.
A practical tip for technicians is to consult the TXV manufacturer’s specifications before retrofitting an R-410A system to R-32. Some TXVs are labeled as "field-convertible" and include kits to replace diaphragms and seals with R-32-compatible materials. For example, the Sporlan Type OR TXV offers a conversion kit that replaces the standard EPDM diaphragm with a Viton alternative, ensuring compatibility without requiring a full valve replacement. This approach saves time and reduces costs compared to installing a new TXV.
Comparatively, using an R-410A TXV in an R-32 system without proper material upgrades can lead to reduced efficiency, increased energy consumption, and premature failure. Case studies from field installations show that systems retrofitted without compatible TXV materials experienced superheat fluctuations of up to 5°F, resulting in inadequate cooling performance. In contrast, systems with R-32-compatible TXVs maintained stable superheat levels within ±1°F of the target range, demonstrating the importance of material selection.
In conclusion, ensuring TXV material compatibility with R-32 refrigerant involves selecting components that withstand higher temperatures, resist chemical degradation, and maintain mechanical integrity. Technicians should prioritize diaphragms made from fluorocarbon materials and valve bodies constructed from corrosion-resistant alloys. By following manufacturer guidelines and using conversion kits where available, HVAC professionals can safely and effectively transition systems from R-410A to R-32, optimizing performance and longevity.
Fem-Dophilus Storage: How Long Can It Stay Unrefrigerated?
You may want to see also
Explore related products
Pressure-Temperature Differences
R-32 and R-410A refrigerants operate under distinct pressure-temperature characteristics, which directly impact the functionality of a thermostatic expansion valve (TXV). R-32, for instance, exhibits a higher discharge temperature compared to R-410A at the same condensing pressure, primarily due to its lower critical temperature (49.7°C for R-32 vs. 72.2°C for R-410A). This disparity necessitates a TXV calibrated to handle the unique pressure-enthalpy relationship of R-32, as using a 410A TXV could result in improper superheat control, leading to inefficient heat transfer or potential compressor damage.
Analyzing the pressure-enthalpy charts reveals that R-32 operates at a lower pressure ratio than R-410A for the same temperature differentials. For example, at a 40°C condensing temperature and 5°C evaporating temperature, R-32’s suction pressure is approximately 1.2 MPa, while R-410A’s is around 1.6 MPa. A 410A TXV, designed for higher pressure drops, may restrict R-32 flow excessively, causing starvation at the evaporator and reduced system capacity. Conversely, it might allow excessive refrigerant flow, leading to floodback and liquid slugging in the compressor.
Instructively, retrofitting a 410A TXV for R-32 requires recalibrating the valve’s spring and orifice to match R-32’s pressure-temperature curve. This involves replacing the TXV’s power element with one rated for R-32’s lower operating pressures or using an adjustable TXV with a modified superheat setting. For instance, adjusting the superheat target from 10°C (typical for R-410A) to 5-7°C for R-32 can optimize performance, though this is a temporary solution and not recommended long-term.
Persuasively, the risks of using a 410A TXV with R-32 outweigh the perceived cost savings. Improper superheat control can reduce system efficiency by up to 15%, while compressor failure due to liquid slugging or starvation can cost thousands in repairs. Manufacturers like Emerson and Danfoss explicitly advise against cross-use, emphasizing the need for R-32-specific components. For example, the Danfoss TSH TXV series is designed for R-32, featuring a unique power element calibrated for its pressure-temperature profile.
Comparatively, while R-410A systems rely on higher pressures to achieve efficient heat transfer, R-32’s lower GWP (675 vs. 2,088) and milder operating pressures make it a more environmentally friendly alternative. However, this shift demands precision in component selection. For instance, a 410A TXV’s internal components, such as the diaphragm and sensing bulb, are optimized for R-410A’s density and thermal properties, which differ significantly from R-32’s. Using mismatched components can void warranties and compromise system longevity.
Descriptively, imagine a scenario where a 410A TXV is installed in an R-32 system. During peak load, the TXV restricts refrigerant flow excessively, causing the evaporator to ice up while the compressor runs hotter than normal. Conversely, during low load, the valve fails to modulate properly, allowing liquid refrigerant to enter the compressor, leading to a telltale knocking sound and eventual mechanical failure. This illustrates the critical interplay between pressure-temperature differences and TXV functionality, underscoring the need for compatibility in refrigerant-component pairings.
Refrigerating Chicken: Safe Storage Tips for a Week-Long Freshness
You may want to see also
Explore related products
Oil Type Considerations
The compatibility of a 410A TXV with R32 refrigerant hinges critically on oil type considerations. R32 systems typically use polyolester (POE) oil, while 410A systems often rely on POE or polyalkylene glycol (PAG) oils. Mixing these oils without proper flushing can lead to acid buildup, sludge formation, and reduced lubrication, causing compressor failure. Always verify the oil type in your system before attempting a refrigerant change.
Analyzing the chemical properties of POE and PAG oils reveals why compatibility matters. POE oils, commonly used with R32, are hygroscopic and highly soluble in R32, ensuring efficient heat transfer and lubrication. PAG oils, often paired with 410A, are less hygroscopic but more compatible with mineral oil-based systems. Using a 410A TXV with R32 without addressing oil type can disrupt this balance, leading to poor performance or system damage.
To safely use a 410A TXV with R32, follow these steps: First, flush the system with a compatible solvent to remove residual oil. Next, replace the oil with the type recommended for R32 (typically POE). Finally, ensure the TXV is rated for R32 or consult a technician to verify compatibility. Neglecting these steps risks contamination and voids warranties.
A comparative analysis of oil types highlights the importance of this consideration. While POE oils excel in R32 systems due to their solubility and thermal stability, PAG oils are better suited for 410A systems with higher pressures. Attempting to use a 410A TXV with R32 without oil adjustments is akin to running a car on the wrong fuel—it may work temporarily but will cause long-term damage.
Practically, if you’re retrofitting a 410A system to R32, invest in a vacuum pump to remove old oil and moisture. Use a POE oil specifically formulated for R32, such as POE 46 or POE 68, depending on your system’s requirements. Always refer to the manufacturer’s guidelines for oil dosage, typically 10-15% more than the drained amount to ensure proper lubrication. This meticulous approach ensures system longevity and efficiency.
Frying Butterball's New Refrigerator-to-Fryer Turkey: Is It Possible?
You may want to see also
Explore related products
$44.99
System Efficiency Impact
The compatibility of a 410A TXV (Thermostatic Expansion Valve) with R32 refrigerant hinges critically on system efficiency, as the two refrigerants possess distinct thermodynamic properties. R32 has a higher heat transfer coefficient compared to 410A, meaning it absorbs and releases heat more efficiently. However, this efficiency gain is contingent on proper system calibration. A TXV designed for 410A may not accurately modulate the flow of R32 due to differences in pressure-temperature characteristics, potentially leading to overfeeding or underfeeding of refrigerant. This mismatch can result in reduced cooling capacity, increased energy consumption, and even system damage over time.
To mitigate efficiency losses, technicians must consider the superheat settings of the TXV. R32 typically operates with a lower superheat requirement than 410A due to its higher latent heat of vaporization. Adjusting the TXV’s superheat spring or using an adjustable valve can help align the system’s performance with R32’s properties. For instance, reducing the superheat setting by 3–5°F can optimize evaporator efficiency, ensuring that the system leverages R32’s superior heat transfer capabilities without compromising reliability.
Another critical factor is oil circulation. R32 is miscible with POE (Polyol Ester) oil, which is commonly used in R32 systems, whereas 410A systems often use POE or PAG (Polyalkylene Glycol) oils. If the TXV is part of a system originally designed for 410A with PAG oil, switching to R32 without addressing oil compatibility can lead to poor lubrication, increased friction, and reduced compressor efficiency. Ensuring the correct oil type and verifying that the TXV’s internal components are compatible with R32 are essential steps to maintain system efficiency.
Field observations and case studies highlight the importance of system tuning when retrofitting 410A TXVs for R32. In one instance, a commercial HVAC system experienced a 12% drop in COP (Coefficient of Performance) after an R32 retrofit without TXV adjustments. Post-adjustment, the system recovered 8% efficiency by recalibrating the TXV and optimizing airflow. This example underscores the need for meticulous attention to detail during retrofits to avoid negating R32’s inherent efficiency advantages.
Ultimately, while a 410A TXV *can* work with R32 refrigerant, achieving optimal system efficiency requires proactive measures. Technicians should conduct a thorough system assessment, adjust superheat settings, ensure oil compatibility, and monitor performance post-retrofit. By addressing these factors, the system can capitalize on R32’s efficiency benefits while minimizing risks associated with component mismatches.
Should You Refrigerate Dried Fruit? Storage Tips for Longer Freshness
You may want to see also
Explore related products
Safety and Regulatory Compliance
Using a 410A TXV with R32 refrigerant raises critical safety and regulatory compliance concerns that cannot be overlooked. R32 is classified as a mildly flammable refrigerant (A2L rating), whereas 410A is non-flammable. This fundamental difference necessitates a reevaluation of system components, including the TXV, to ensure compatibility and adherence to safety standards. Regulatory bodies such as the EPA and ASHRAE have established stringent guidelines for A2L refrigerants, emphasizing leak prevention, system design, and component certification. Retrofitting a 410A TXV without verifying its compliance with R32’s flammability characteristics could void warranties, violate codes, and pose significant fire risks.
From a regulatory standpoint, the use of R32 in HVAC systems is governed by standards like UL 60335-2-40 and EN 378, which mandate specific safety measures for flammable refrigerants. These include reduced charge sizes, enhanced leak detection, and the use of certified components. A 410A TXV may not meet these requirements, particularly in terms of material compatibility and pressure-temperature control. For instance, R32 operates at higher discharge temperatures than 410A, potentially causing thermal stress on non-compliant components. Manufacturers often provide lists of approved components for R32 systems, and deviating from these recommendations can lead to non-compliance and increased liability.
Safety considerations extend beyond regulatory adherence to practical risk mitigation. R32’s flammability requires careful handling during installation and maintenance. A 410A TXV, if not designed for R32, may not seal properly, increasing the likelihood of refrigerant leaks. Even small leaks in confined spaces can create flammable mixtures, especially near ignition sources like electrical components. Technicians must follow ASHRAE Standard 15 and local codes, which dictate the use of certified tools, personal protective equipment, and ventilation protocols when working with A2L refrigerants. Ignoring these precautions can result in accidents, equipment damage, or legal consequences.
To ensure compliance and safety, a systematic approach is essential. First, consult the equipment manufacturer’s guidelines to confirm compatibility. If a 410A TXV is deemed unsuitable, replace it with an R32-certified component. Second, conduct a thorough system inspection, focusing on seals, connections, and pressure ratings. Third, implement leak detection systems and ensure proper ventilation in installation areas. Finally, train personnel on the unique hazards of R32 and the importance of adhering to updated standards. While retrofitting may seem cost-effective, the potential risks and regulatory penalties far outweigh the initial savings. Prioritizing safety and compliance is not just a legal obligation—it’s a critical safeguard for both property and personnel.
Reviving Your Sourdough Starter: A Simple Guide Post-Refrigeration
You may want to see also
Frequently asked questions
While a 410A TXV may physically fit, it is not recommended to use it with R32 refrigerant. R32 has different thermodynamic properties and requires specific components designed for its higher pressure and flammability. Using a 410A TXV could lead to inefficiency, system damage, or safety risks.
Using a 410A TXV with R32 refrigerant can result in improper refrigerant flow, reduced system efficiency, and potential damage to the compressor or other components. Additionally, R32 is flammable, and using incompatible parts may increase the risk of leaks or hazards.
Yes, R32 systems require a TXV specifically designed for R32 refrigerant. These TXVs are engineered to handle the unique properties of R32, including its higher pressure and flammability. Always consult the manufacturer’s guidelines for the correct TXV.
