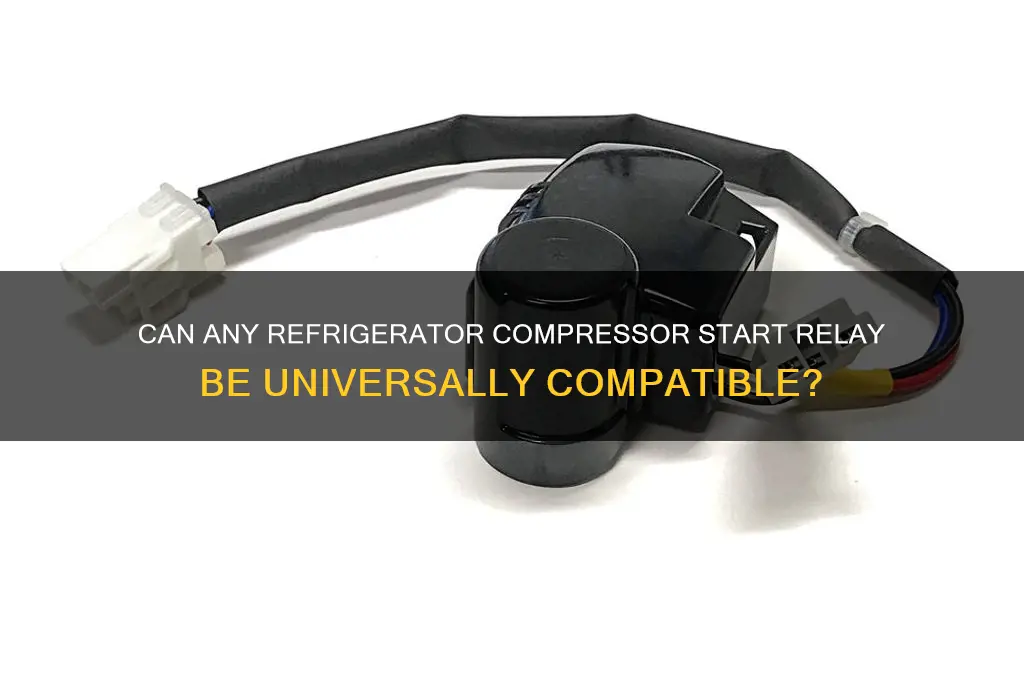

When considering whether any refrigerator compressor start relay will work universally, it’s essential to understand that compatibility depends on several factors, including voltage, current ratings, pin configurations, and the specific requirements of the compressor. While some start relays may appear interchangeable due to similar designs, using an incompatible relay can lead to compressor failure, inefficient operation, or even safety hazards. Refrigerator compressors are engineered to work with specific relays that match their electrical and mechanical specifications. Therefore, it’s crucial to consult the manufacturer’s guidelines or verify the relay’s technical details before attempting a replacement. Using a mismatched relay not only risks damaging the compressor but can also void warranties or cause long-term performance issues. Always prioritize precision and compatibility to ensure the refrigerator operates reliably and safely.
| Characteristics | Values |
|---|---|
| Compatibility | Not universal; depends on voltage, current, pin configuration, and type. |
| Voltage Rating | Must match the refrigerator's electrical system (e.g., 110V, 220V). |
| Current Rating | Must be equal to or higher than the compressor's starting current. |
| Pin Configuration | Must match the compressor's terminal layout (e.g., 3-pin, 4-pin). |
| Type | Must be the correct type (e.g., Potential Relay, Start Relay). |
| Capacitor Integration | Some relays include a start capacitor; ensure compatibility if required. |
| Brand/Model Specificity | Many compressors require brand-specific or model-specific relays. |
| Overload Protection | Must have compatible overload protection for the compressor. |
| Temperature Rating | Should withstand the operating temperature range of the refrigerator. |
| Size and Mounting | Physical dimensions must fit the refrigerator's relay housing. |
| Frequency | Must match the power supply frequency (e.g., 50Hz, 60Hz). |
| Durability | Quality varies; OEM relays are generally more reliable. |
| Cost | Universal relays may be cheaper but risk incompatibility. |
| Installation Complexity | Requires technical knowledge to ensure proper wiring and fit. |
| Safety Standards | Must comply with local electrical safety standards (e.g., UL, CE). |
| Warranty | OEM relays often come with manufacturer warranties; universal relays may not. |
Explore related products
What You'll Learn
Compatibility with different refrigerator models and brands
Refrigerator compressor start relays are not universally interchangeable, despite their similar functions. Each relay is designed to meet specific voltage, current, and pin configurations tailored to the compressor it serves. For instance, a relay from a Whirlpool refrigerator may not fit a Samsung model due to differences in wiring harnesses and electrical specifications. Compatibility hinges on matching these technical parameters, not just the physical appearance of the relay. Always consult the manufacturer’s specifications or a professional technician to ensure the relay aligns with your refrigerator’s requirements.
When considering a replacement, start by identifying the exact model and brand of your refrigerator. Most relays are model-specific, and even within the same brand, variations exist. For example, a relay for a French door LG refrigerator may differ from one designed for a top-freezer model. Cross-referencing part numbers is crucial; a relay labeled as "universal" may still lack compatibility with your specific unit. Online compatibility charts or appliance forums can provide insights, but verifying with the manufacturer remains the safest approach.
Interchanging relays between brands is particularly risky due to differences in compressor designs and electrical systems. For instance, a relay from a GE refrigerator may not handle the higher start-up current of a Frigidaire compressor, leading to premature failure or damage. While some relays may physically fit, the electrical mismatch can cause overheating or insufficient power delivery. If a direct replacement is unavailable, consider sourcing a relay from a reputable supplier that guarantees compatibility with your model, even if it means opting for a more expensive OEM part over a generic alternative.
In rare cases, adapters or modifications can bridge compatibility gaps, but this approach is not recommended for the average user. Altering wiring or forcing a relay to fit can void warranties and pose safety hazards. Instead, focus on finding a relay designed for your refrigerator’s make and model. If your unit is older or discontinued, consult an appliance repair specialist who may have access to compatible parts or suggest a suitable alternative. Prioritize safety and long-term functionality over quick fixes.
Cold Brew in the Fridge: Simple Steps for Smooth Coffee
You may want to see also
Explore related products
Voltage and power requirements for universal start relays
Universal start relays for refrigerator compressors are not truly "universal" when it comes to voltage and power requirements. While they may share common functions, compatibility hinges on matching the electrical specifications of the compressor. Most residential refrigerators operate on 115-120V AC, but commercial units or those in other regions may require 220-240V. Using a relay designed for a different voltage range can lead to immediate failure or long-term damage. Always verify the compressor’s voltage rating before selecting a relay.
Power requirements are equally critical, as relays must handle the inrush current during compressor startup, which can be 6 to 10 times the running current. For example, a compressor drawing 5 amps during operation may require a relay rated for 30-50 amps. Overloading the relay with excessive current will cause overheating and premature failure. Conversely, using an overrated relay may work but is inefficient and unnecessary. Cross-referencing the compressor’s start-up current with the relay’s maximum capacity ensures safe and effective operation.
A common misconception is that relays with similar pin configurations are interchangeable. However, even if the physical connections match, the internal components (such as capacitors or resistors) must align with the compressor’s power demands. For instance, a relay designed for a 1/4 HP compressor won’t reliably start a 1/2 HP unit due to insufficient power handling. Always consult the compressor’s specifications or manufacturer guidelines to confirm compatibility.
Practical tip: When replacing a start relay, note the model number and specifications of the original part. If the exact replacement isn’t available, use a multimeter to measure the compressor’s voltage and running current. This data allows you to select a relay with matching voltage and adequate amperage ratings. Additionally, consider environmental factors—relays in high-humidity or temperature-fluctuating areas may require additional protection, such as sealed housings or higher temperature ratings.
In summary, while the idea of a universal start relay is appealing, voltage and power compatibility are non-negotiable. Mismatched specifications lead to inefficiency, damage, or failure. By focusing on these electrical requirements and verifying compatibility, you can ensure reliable compressor operation and extend the lifespan of your refrigerator. Treat relays as precision components, not interchangeable parts, for optimal performance.
Soy Sauce Storage: Does It Need Refrigeration After Opening?
You may want to see also
Explore related products
Common symptoms of a failing compressor relay
A failing compressor start relay often manifests through subtle yet telling signs that can escalate into major refrigerator issues if ignored. One of the earliest indicators is the compressor’s inability to start, despite the refrigerator being plugged in and the thermostat set correctly. This symptom may appear intermittently at first, with the compressor humming or clicking but failing to engage fully. Over time, the frequency of these startup failures increases, leading to prolonged periods where the refrigerator fails to cool effectively. If you notice the compressor struggling to start or hear unusual noises during the attempt, it’s a strong signal that the relay may be malfunctioning.
Another common symptom is inconsistent cooling or temperature fluctuations within the refrigerator and freezer compartments. A failing relay can cause the compressor to cycle on and off irregularly, preventing the system from maintaining a stable temperature. This inconsistency often results in food spoiling faster than usual or ice buildup in the freezer due to prolonged compressor inactivity. Monitoring the internal temperature with a standalone thermometer can help confirm whether the relay is to blame, especially if the thermostat settings appear normal.
Physical inspection of the relay itself can also reveal signs of failure. Overheating is a frequent issue, often accompanied by a burnt odor or discoloration around the relay’s terminals. In some cases, the relay’s casing may feel excessively hot to the touch, indicating an electrical overload or internal short. If you observe these symptoms, it’s crucial to disconnect power to the refrigerator immediately to prevent further damage. Replacing the relay promptly can save the compressor from permanent harm, as prolonged overheating can lead to irreversible motor damage.
Lastly, unusual electrical behavior, such as frequent tripping of the circuit breaker or sudden power surges when the compressor attempts to start, can point to a failing relay. These issues arise when the relay fails to regulate the electrical current properly, causing spikes that overload the circuit. If your refrigerator is consistently causing electrical disruptions, it’s a clear sign that the relay needs attention. Ignoring this symptom not only risks damaging the compressor but also poses a fire hazard, making immediate diagnosis and repair essential.
Do Potato Rolls Need Refrigeration? Storage Tips for Freshness
You may want to see also
Explore related products
Steps to test and replace a start relay
A refrigerator compressor start relay is a critical component that helps the compressor motor start efficiently. If your fridge isn’t cooling properly, a faulty start relay could be the culprit. Before assuming any start relay will work as a replacement, it’s essential to test the existing one and ensure compatibility. Here’s how to proceed.
Step 1: Safety First and Initial Inspection
Before testing or replacing the start relay, unplug the refrigerator or turn off the circuit breaker to avoid electrical hazards. Locate the start relay, typically found near the compressor. It’s a small, cylindrical or rectangular component with wires connected to it. Visually inspect for signs of damage, such as burnt marks, melting, or loose connections. If the relay appears physically damaged, replacement is likely necessary.
Step 2: Test the Start Relay for Continuity
Using a multimeter set to the ohms (resistance) setting, test the start relay for continuity. Disconnect the wires from the relay and place the multimeter probes on the pins marked “R” (run) and “S” (start). A functioning relay should show low resistance (typically less than 10 ohms). If there’s no continuity or high resistance, the relay is faulty and needs replacement. Repeat the test between the “C” (common) and “S” pins for further confirmation.
Step 3: Verify Compatibility Before Replacing
Not all start relays are interchangeable, even if they look similar. Check the model number and specifications of your current relay against the replacement. Ensure the voltage, amperage, and pin configuration match. Using an incompatible relay can damage the compressor or cause further issues. If in doubt, consult the refrigerator’s manual or contact the manufacturer.
Step 4: Replace the Start Relay
Once you’ve confirmed the replacement relay is compatible, install it by reconnecting the wires to the corresponding pins. Secure the relay firmly in place, ensuring no wires are pinched or exposed. After installation, plug the refrigerator back in and monitor its performance. If the compressor starts smoothly and the fridge cools properly, the replacement was successful. If not, further diagnostics may be needed.
Cautions and Practical Tips
Avoid forcing connections during replacement, as this can damage the relay or compressor terminals. Keep track of wire positions during disassembly to ensure correct reassembly. If you’re unsure about any step, consult a professional technician. Additionally, consider testing the overload protector (often located near the relay) if the relay appears functional but the compressor still fails to start.
By following these steps, you can accurately diagnose and replace a faulty start relay, ensuring your refrigerator operates efficiently without risking further damage.
Hauling a Refrigerator on Its Back: Safe or Risky Move?
You may want to see also
Explore related products
Differences between OEM and aftermarket start relays
Refrigerator compressor start relays are critical components that ensure your appliance runs efficiently, but not all relays are created equal. When considering whether any start relay will work, the distinction between Original Equipment Manufacturer (OEM) and aftermarket parts becomes crucial. OEM relays are designed and produced by the refrigerator’s original manufacturer, ensuring a precise fit and compatibility with your specific model. Aftermarket relays, on the other hand, are produced by third-party companies and may vary in quality, design, and performance. Understanding these differences can help you make an informed decision when replacing a faulty relay.
One key difference lies in the precision of engineering. OEM relays are built to the exact specifications of the refrigerator model, ensuring optimal performance and longevity. Aftermarket relays, while often more affordable, may lack this precision. For instance, the voltage tolerance or current handling capacity might differ slightly, which could lead to inefficiencies or even premature failure. If your refrigerator operates on a 115V system, an OEM relay will be calibrated to handle this voltage perfectly, whereas an aftermarket relay might not perform as reliably under the same conditions.
Another factor to consider is the warranty and support. OEM parts typically come with manufacturer-backed warranties, providing peace of mind and assurance of quality. Aftermarket relays may offer warranties as well, but they are often limited and may not cover labor costs if installation goes wrong. Additionally, OEM parts are easier to source through authorized dealers or service centers, whereas aftermarket parts might require more research to ensure compatibility. For example, if you own a high-end refrigerator like a Sub-Zero or Miele, using an OEM relay ensures you maintain the appliance’s integrity and warranty status.
Cost is a significant consideration for many homeowners. Aftermarket relays are generally more budget-friendly, making them an attractive option for those looking to save money. However, the adage "you get what you pay for" often applies here. Cheaper relays may use lower-quality materials or lack rigorous testing, increasing the risk of failure. For instance, a $10 aftermarket relay might save you money upfront but could fail within a year, whereas a $30 OEM relay might last the lifetime of your refrigerator.
In practical terms, if you’re replacing a start relay, assess your refrigerator’s age, brand, and usage frequency. For newer, high-end models, investing in an OEM relay is advisable to maintain performance and warranty coverage. For older or budget appliances, an aftermarket relay might suffice, provided you verify its compatibility and read reviews to gauge reliability. Always consult your refrigerator’s manual or a professional technician if you’re unsure, as using the wrong relay can damage the compressor or void warranties. Understanding these differences ensures you choose the right part for your specific needs.
Should Ground Flaxseed Be Refrigerated After Opening?
You may want to see also
Frequently asked questions
No, not all refrigerator compressor start relays are interchangeable. Compatibility depends on the specific compressor model, voltage, and current requirements. Always check the manufacturer’s specifications or consult a professional.
Some universal start relays may work, but they are not guaranteed to be compatible with all compressors. It’s best to use a relay specifically designed for your compressor model to ensure proper functionality and safety.
Using the wrong start relay can cause the compressor to fail to start, overheat, or damage the compressor and other components. Always verify compatibility before installation.
No, start relays are not standardized across brands or even within the same brand. Each compressor model may require a specific relay based on its electrical and mechanical design.
Check the part number, voltage rating, and current capacity of the relay against the specifications of your compressor. If unsure, consult the appliance manual or contact the manufacturer for guidance.
