A shower pan should be flood tested before installation to ensure that it is waterproof and does not leak. This typically involves filling the shower pan with water and observing any leaks for at least 24 hours. In some cases, a stress test may be performed by a home inspector during a routine inspection, which involves filling the shower pan with water and observing for leaks. However, this practice is not required by the American Society of Home Inspectors (ASHI) Standard of Practice. Before performing any tests or inspections, it is important to ensure that the shower pan drain and liner are accepted by the local inspector. Additionally, a rough-in inspection may be required if there are any changes to the plumbing or drain systems.

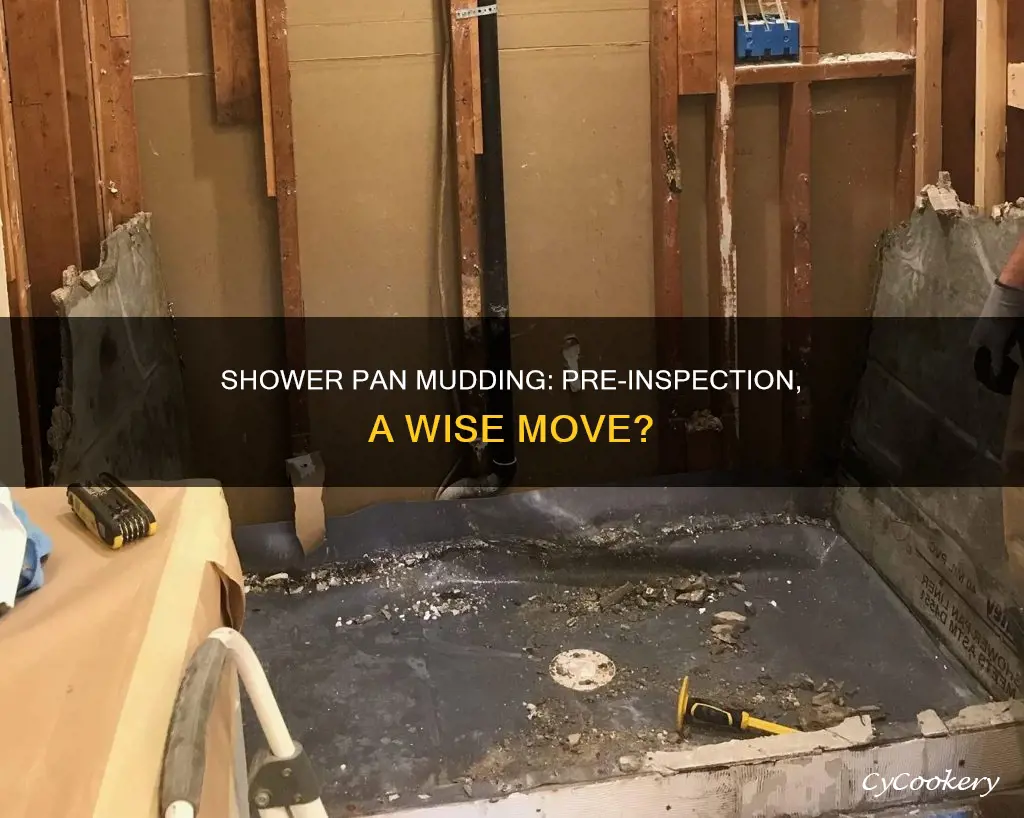

Can a shower pan be mudded before inspection?
| Characteristics | Values |
|---|---|
| Installation process | The installation process includes a "stress test" before the tile, concrete, mortar, or thinset are installed. |
| Stress test | The shower pan is filled with water while the drain is clogged to ensure it holds water for at least 48 hours. |
| Flood test | A flood test is conducted to check for leaks. |
| Waterproofing | Waterproofing is essential before the shower construction. |
| Inspection requirements | Inspections are typically required for new drain systems or plumbing changes. |
| Local regulations | Building codes and inspection requirements vary by county, city, and state. |
| Drain and liner acceptance | The drain and liner must be accepted by the local inspector before installation. |
| Kerdi drain | In Houston, the Kerdi drain was not initially approved by the city, but it is listed in the Universal Code and International Code. |
| Rough-in inspection | A rough-in inspection is conducted when plumbing or drain systems are relocated. |
| Final inspection | A final inspection is conducted once all components are completed and the facility is charged with water. |
Explore related products
What You'll Learn
Shower pan flood tests
A shower pan flood test is a crucial step in ensuring the proper functioning of a shower. It is a simple test that can help identify any leaks before the shower is tiled and finished, potentially saving time and money in the long run.
To perform a shower pan flood test, the drain of the shower is plugged, and the shower is filled with water. The water level should be marked, and the shower is left for a period of time, typically 24 to 72 hours. During this time, the water level should remain consistent. If the water level drops, it indicates a potential leak, and further investigation is needed to determine the cause.
It is important to conduct the flood test before any tiling or finishing work is done on the shower. This allows for easy identification and repair of any leaks, as the shower pan is accessible. Waiting to test until after the shower is completed can result in more significant issues, such as water leakage into other areas of the house, as described in one home inspector's account.
In some cases, a flood test may be required by local building codes or plumbing codes. It is recommended to check with the relevant building authority to determine if a flood test is mandatory. Additionally, some inspectors may choose to perform a stress test on the shower pan during a routine home inspection, although this is not required by the American Society of Home Inspectors (ASHI) Standard of Practice.
Performing a flood test on a shower pan is a worthwhile step to ensure the shower's proper functioning and prevent future leaks. While it may add some time to the installation process, it can help avoid more significant issues and ensure a successful shower installation.
Cooling a Hot Pot: A Quick Guide to Safe and Effective Methods
You may want to see also
Explore related products
Stress tests
A shower pan stress test is a type of test that involves filling the shower pan with water to check for leaks. This is done by filling the shower pan with water and clogging the drain to ensure that it holds the water for a minimum of 48 hours, though this duration may vary across different regions. The shower pan liner, which serves as the waterproof membrane for the entire system, is the critical component under inspection.
While some home inspectors may opt to conduct this test during routine visual inspections, it is not a mandatory practice. The American Society of Home Inspectors (ASHI) Standard of Practice specifically states that inspectors are not required to fill shower pans to test for leaks.
One scenario illustrates the potential consequences of performing a shower pan stress test during a home inspection. In this case, the inspector decided to conduct the test on a 15-year-old shower that had been in daily use. A few minutes into the test, an old nail hole began to leak, resulting in approximately 90 gallons of water leaking onto the ceiling below and causing damage. This scenario highlights the potential for stress testing to cause unintended damage and impact the sale of a home.
Another example of a stress test is flood testing, which is a more time-consuming process. Before performing flood testing, the shower waterproofing must be installed and allowed to dry for a certain period, typically until the following day. Then, the shower is filled with water, and if an inspection is required, it is scheduled at this point. The water is allowed to remain in the shower pan overnight or for an extended period to ensure that it finds a way out.
While flood testing may be a standard practice in some industries, such as airplanes, automobiles, plumbing, and gas piping, it is not universally embraced in the context of shower pan inspections. Some argue that it is an exhaustive and challenging action, akin to equating load testing a 200-amp main breaker.
In conclusion, while shower pan stress tests aim to identify leaks and ensure waterproofing, they can also have unintended consequences, such as causing damage during inspections and prolonging construction schedules. The decision to conduct these tests may vary depending on regional practices and the discretion of the inspector.
Prevent Food Burning: Tips for Perfect Pan Cooking
You may want to see also
Explore related products
Pre-slope requirements
The pre-slope is an essential part of a shower pan's construction, and its primary function is to direct any water towards the drain, preventing pooling and mould. The pre-slope sits on top of the subfloor and is the first step in managing moisture.
The pre-slope requirements include the following:
- The pre-slope must be constructed with a mixture of cement and sand, also known as deck mud. This mixture should be dry enough to form a ball in your hand.
- The rule of thumb for the slope is to measure the distance from the drain to the surrounding walls and corners, including the curb's high point. For every foot, a 1/4-inch negative slope is required.
- The pre-slope should be packed and smoothed to the desired height and slope using tools like a trowel, a 2x4 wood piece, or a level.
- Ensure the bolts on the drain flange are clear of any mortar mixture. Screw and unscrew them to test their functionality.
- The drain flange must be level. If adjustments are needed, consider chipping out concrete or moving/replacing the riser.
- It is vital to protect the weep holes. While premade weep hole protectors are an option, they may block water from seeping down around the drain.
- The pre-slope should be levelled out at the drain so that the top piece sits flush once attached.
It is important to note that the pre-slope requirements may vary based on local and state building codes, so it is essential to check and comply with the specific regulations in your area.
Nonstick Cookware: Affordable or Costly Investment?
You may want to see also
Explore related products
Drain inspection
A shower pan should be inspected before mudding to ensure that it is properly installed and functioning. While some home inspectors may stress test shower pans during a routine visual inspection, it is not a standard practice and is not required by the American Society of Home Inspectors (ASHI). Instead, the shower should be tested using its normal operation.
A proper shower pan test is typically done when the waterproofing membrane is installed but before shower construction progresses further. This usually involves plugging the drain and filling the shower pan with water to check for leaks. The IPC requires the pan to hold at least 2 inches of water for 15 minutes. However, the amount of water and duration may vary depending on regional requirements.
In the case of a mud pan shower, there should be a pre-slope underneath the liner to ensure proper drainage. The liner should be installed correctly, with no holes, and the drain should be level. If there are issues with the drain, it may be necessary to loosen the bolts and pull out the drain piece for inspection and repair.
After the initial waterproofing installation and inspection, the shower is filled with water for flood testing. This process can take a significant amount of time, especially if a municipal inspection is required. The water is left in the shower pan for an extended period, usually overnight or longer, to allow for any potential leaks to become apparent.
Overall, the drain inspection and testing process is crucial to ensure the proper installation and functionality of a shower pan before mudding or tiling. It helps identify any issues with drainage, waterproofing, or leaks, allowing for necessary corrections to be made.
Toilet Pan Installation: A Step-by-Step Guide
You may want to see also
Explore related products
Waterproofing
Sheet membranes are often preferred over liquid membranes, which require a certain thickness to be effective. Liquid membranes, such as Redgard or Hydroban, need to be applied in multiple coats and can take a long time to dry. Additionally, liquid membranes are not approved for use in steam showers. However, some people choose to combine the two methods, using a sheet membrane as the primary waterproofing layer and then coating the seams with a liquid membrane for added protection.
It is important to note that proper installation is key to ensuring the effectiveness of the waterproofing system. This includes preparing the shower pan by creating a preslope to ensure proper drainage and levelling the drain flange. Following the manufacturer's instructions and taking the time to do it right will help ensure a successful waterproofing installation.
When it comes to shower pan inspections, it is common for inspectors to perform a stress test to check for leaks. This involves filling the shower pan with water and observing if it can hold the water for a specified amount of time, which can vary by region. However, some inspectors may choose not to perform this test, as it is not explicitly required by organisations like the American Society of Home Inspectors (ASHI). Instead, they may opt for a visual inspection, which can sometimes miss underlying issues.
Ceramic Pan: What's the Deal?
You may want to see also
Frequently asked questions
A shower pan stress test is a test to check for leaks in a shower pan. This is done by filling the shower pan with water while clogging the drain to make sure it holds that amount of water for a certain period, usually 24 to 48 hours.
A shower pan should be tested before any tile installation. It should be done after the shower pan waterproofing has been installed.
No, the shower pan should be tested before any mud bed or mortar is installed. The flood test should be conducted with just the liner in place to accurately monitor any leaks.
The requirements for a shower pan inspection vary depending on the region and local codes. In some cases, specific products like Kerdi drains may not be approved by the city and will not pass inspection. It is important to consult local guidelines and inspectors.
There may be concerns about the accuracy of the test, especially with pre-existing installations. A home inspector may be blamed for causing damage during the test. There is also a chance that the products used for waterproofing are flawed, which may only be revealed during the test.
