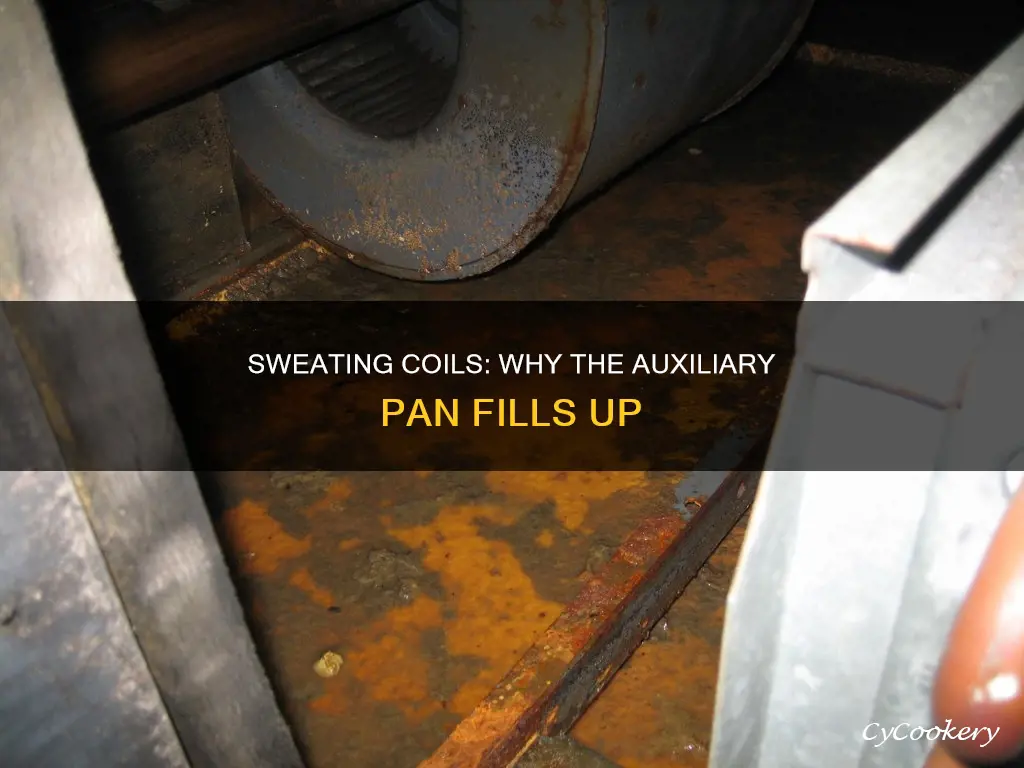

A sweating coil can be caused by a variety of factors, including a massive air leak, a lack of insulation, or improper installation. This can lead to a full auxiliary drain pan, which is a precautionary device to catch condensation that forms on the AC unit's evaporator coils. While this pan is designed to prevent water damage, a full auxiliary pan indicates an issue with the AC unit, such as drainage problems, frozen coils, or low refrigerant levels. To address a full auxiliary pan, it is recommended to consult a professional for proper maintenance and repair.
Explore related products
What You'll Learn
Condensation and overflow
The drain pan, or drip pan, is designed to catch condensation that drips off the AC unit's evaporator coils. As warm air makes contact with the cooling evaporator coils, droplets of water form and drip down. The drain pan is directly connected to the condensation drain line so that water can be safely drained away from the system and out of the building.
However, if the drain pan fills up with water, this means something has gone wrong. A full drain pan can be caused by drainage problems, a frozen coil, improper installation, low refrigerant levels, or a lack of system maintenance. If the evaporator box is sweating, it could be due to a massive air leak or because the handler box isn't insulated.
To prevent these issues, regular preventative maintenance should be carried out on the AC unit. This includes regularly changing out the air filters. If the drain pan does fill up, it is recommended to call a professional to fix it, as they have the proper tools and knowledge to address the issue. However, if you choose to fix it yourself, you can try drying out the unit and checking its drainage system. You should also check the tubing around the unit for any cracks, holes, or leaks in the drain line.
Bed Pan Application: Post-Hip Replacement Surgery
You may want to see also
Explore related products
Installation and maintenance
Sweating coils can be a symptom of a larger problem with the HVAC system, the building construction, or both. It is important to address the issue to avoid costly renovations due to rusting and water damage.
To prevent sweating coils, one can install an insulation blanket on the backside of the diffuser. This will insulate the diffuser face from the warmer air in the attic space and prevent the face from collecting moisture, decreasing the temperature differential. An alternative solution is to always ensure that occupied spaces have a positive pressure with respect to outside areas.
In terms of installation, a secondary drain or auxiliary drain pan is required for each cooling or evaporator coil where damage to any building components will occur due to overflow from the equipment drain pan or stoppage in the condensate drain piping. The auxiliary drain pan should have a separate drain and discharge to a conspicuous point to alert occupants in the event of a stoppage of the primary drain. The pan should have a minimum depth of 1.5 inches (38 mm) and be at least 3 inches (76 mm) larger than the unit or coil dimensions in width and length.
Maintenance of the auxiliary drain pan includes ensuring that the pan is free of debris and clogs. A water-level monitoring device can also be installed inside the primary drain pan to shut off the equipment in case of a restriction in the primary drain. This device cannot be installed in the drain line.
Update Your PAN Card Signature: Quick and Easy Steps
You may want to see also
Explore related products
Water damage and drainage
To prevent water damage, it is important to regularly maintain and tune up your AC unit, including changing the air filters regularly. If water damage does occur, it is recommended to cut the power to the AC unit and check the tubing for any cracks, holes, or leaks in the drain line. Any water in the drain pan should be carefully removed, and the area should be cleaned of any dirt, grime, or debris to ensure the outlet is not blocked.
In some cases, an auxiliary drain pan is used to prevent water damage. This is a secondary pan that sits below the primary drip pan and is designed to catch water if the main drain pan fails or overflows. The auxiliary pan should have a separate drain and discharge to a conspicuous point to alert occupants in the event of a stoppage of the primary drain. Additionally, a water-level detection device can be installed in the primary drain pan to shut off the equipment if the water level becomes too high.
If you are unsure about the source of the water damage or are uncomfortable handling electrical components, it is recommended to consult a professional HVAC technician for assistance. They will have the proper tools and knowledge to address the issue safely and effectively.
Smart Cutting: Maximizing Your Jelly Roll Pan
You may want to see also
Explore related products
Evaporator coil issues
Evaporator coils are an essential component of your air conditioning system. They are responsible for extracting heat from indoor air and cooling it down. However, they are vulnerable to various issues, and if left unattended, these problems can lead to decreased comfort, higher energy costs, and even the need for substantial repairs or replacements.
One of the most common issues with evaporator coils is freezing. This often occurs due to low refrigerant levels, a blocked condensate drain line, or poor air circulation. When the refrigerant levels are too low, the system may struggle to function adequately and freeze up. Similarly, if the condensate drain line is blocked, water can collect, leading to freezing. Poor air circulation can also chill the coils, causing them to freeze. This could be due to a contaminated or ill-fitting air filter, defective ductwork, a dirty heat pump, or a clogged air handler, among other factors.
Another issue with evaporator coils is dirt and dust buildup. Over time, dust, dirt, pollen, and other air contaminants can accumulate on the coils, reducing their efficiency. This buildup can lead to corrosion, leaks, and other issues. Regular cleaning and maintenance of the coils are essential to prevent this problem.
Evaporator coils can also experience cracking and leaks. If the coils are not adequately maintained, the buildup of dirt and moisture can lead to corrosion and leaks. Leaky coils can cause the air conditioning system to work harder, potentially leading to increased strain and higher energy costs.
Additionally, evaporator coils may exhibit strange noises, such as hissing or banging sounds. These unusual sounds could indicate that the coils are leaking refrigerant or hitting other components due to damage or misalignment.
It is important to address any issues with your evaporator coils promptly to prevent further complications and ensure the continued comfort of your living environment. Regular maintenance, cleaning, and inspections by qualified technicians are crucial to keeping your evaporator coils in good working condition.
Pan-Seared Chicken: Healthy or Not?
You may want to see also
Explore related products
Auxiliary pan requirements
An auxiliary drain pan is a precautionary device that is required for each cooling or evaporator coil where damage to any building components will occur as a result of overflow from the equipment drain pan or stoppage in the condensate drain piping. The International Residential Code (IRC) requires a secondary drain or auxiliary drain pan for each cooling or evaporator coil. This is to prevent water damage to appliances, equipment, or insulation.
The auxiliary pan should have a separate drain and be installed under the coils on which condensation will occur. The pan should discharge to a conspicuous point of disposal to alert occupants in the event of a stoppage of the primary drain. The pan should have a minimum depth of 1.5 inches (38 mm) and be at least 3 inches (76 mm) larger than the unit or coil dimensions in width and length. Drain piping should be no less than 3/4 inch (19 mm) in nominal pipe size.
An alternative to a separate drain line is a water-level detection device that will shut off the equipment before overflowing. This device should connect to the drain pan at a higher level than the primary drain connection. The auxiliary drain pan can also be constructed with both a separate drain and a water-level detection device.
It is important to note that the auxiliary drain pan is not meant to serve as the primary condensate drain. It is an emergency catch pan, and if water is consistently getting into the auxiliary pan, there may be an issue with the primary pan or overflow.
Resolving No PAN Errors: A Quick Guide
You may want to see also
Frequently asked questions
If your air conditioner's drain pan is full of water, it could be due to a clogged or broken drain pan, a blocked drain line, a frozen evaporator coil, improper installation, or low refrigerant levels. You should cut the power to your AC unit and check the tubing for cracks, holes, or leaks. If you notice any of these issues, you should call a professional to fix it.
An auxiliary drain pan, also known as an overflow pan, is an emergency catch pan that is used as a backup when the primary pan fails or overflows. It is installed under the coils on which condensation will occur and is piped to a noticeable location outside so that the homeowner can be alerted in case of a stoppage of the primary drain.
Implementing regular maintenance and tune-ups of your AC unit can help prevent the drain pan from filling with water. Regularly changing the air filters and ensuring proper insulation of the evaporator box can also help prevent this issue.
