Tillie Doyle

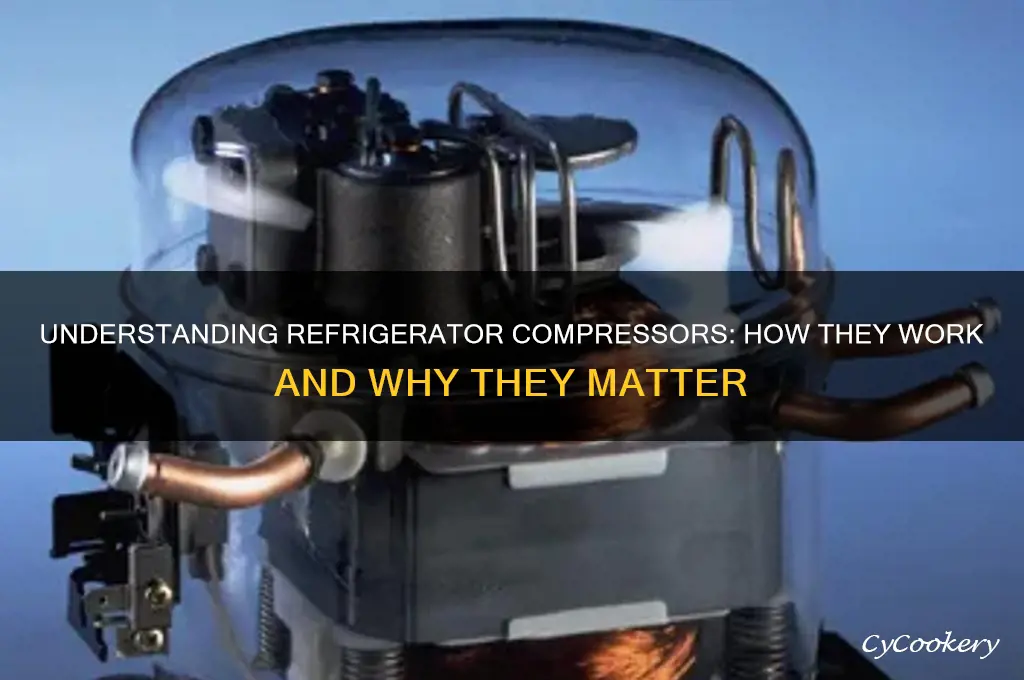

A compressor is the heart of a refrigerator's cooling system, functioning as a mechanical pump that circulates refrigerant through the appliance to remove heat and maintain a cold interior. It operates by drawing in low-pressure, low-temperature refrigerant vapor from the evaporator, compressing it into a high-pressure, high-temperature gas, and then discharging it into the condenser coils. As the hot, compressed refrigerant passes through the condenser, it releases heat to the surrounding environment, cooling and condensing into a high-pressure liquid. This liquid then flows through an expansion valve, where it undergoes a rapid pressure drop, turning into a low-pressure, low-temperature mixture of liquid and vapor that enters the evaporator. Here, the refrigerant absorbs heat from the refrigerator's interior, cooling the air inside, and the cycle repeats. This continuous process ensures efficient heat transfer, keeping the refrigerator at the desired temperature.
| Characteristics | Values |
|---|---|
| Function | Compresses refrigerant gas, increasing its pressure and temperature, to facilitate heat exchange in the refrigeration cycle. |
| Type | Typically a reciprocating, rotary, or scroll compressor, depending on the refrigerator model. |
| Location | Usually located at the bottom rear of the refrigerator, often near the condenser coils. |
| Power Source | Powered by electricity, typically 110-240V AC, depending on the region. |
| Refrigerant Used | Commonly uses eco-friendly refrigerants like R600a (isobutane) or R134a, complying with environmental regulations. |
| Compression Process | Draws in low-pressure, low-temperature refrigerant vapor from the evaporator, compresses it into high-pressure, high-temperature gas. |
| Discharge Pressure | Typically raises the refrigerant pressure to 150-300 psi (10-20 bar), depending on the system design. |
| Discharge Temperature | Increases refrigerant temperature to around 100-150°F (38-65°C) before it moves to the condenser. |
| Efficiency | Modern compressors have efficiency ratings (COP - Coefficient of Performance) ranging from 2.5 to 4.0, depending on the model. |
| Noise Level | Operates at noise levels between 30-50 dB, with advanced models featuring quieter operation. |
| Lifespan | Designed to last 12-15 years under normal usage conditions. |
| Maintenance | Requires minimal maintenance, primarily ensuring proper ventilation and occasional cleaning of condenser coils. |
| Environmental Impact | Uses refrigerants with low Global Warming Potential (GWP) to minimize environmental impact. |
| Energy Consumption | Accounts for approximately 10-15% of a refrigerator's total energy consumption, with energy-efficient models consuming less. |
| Control Mechanism | Operated by a thermostat or electronic control board that cycles the compressor on and off to maintain desired temperatures. |
| Safety Features | Includes overload protection, high-pressure cut-off switches, and thermal protection to prevent damage or hazards. |
Explore related products
What You'll Learn
- Compression Process: Gas refrigerant is compressed, increasing pressure and temperature, initiating the cooling cycle
- Condensation Stage: Hot, high-pressure gas condenses into liquid, releasing heat outside the fridge
- Expansion Valve: Liquid refrigerant expands, dropping pressure and temperature, preparing for evaporation
- Evaporation Cycle: Cold liquid absorbs heat from the fridge, evaporating into gas, cooling the interior
- Refrigerant Flow: Continuous circulation of refrigerant through the compressor and coils sustains cooling
Compression Process: Gas refrigerant is compressed, increasing pressure and temperature, initiating the cooling cycle
The compression process is the heart of a refrigerator's cooling cycle, where the transformation of refrigerant from a low-pressure gas to a high-pressure gas occurs. This stage is critical because it sets the stage for the subsequent phases of condensation, expansion, and evaporation, which together create the cooling effect. When the compressor activates, it draws in the low-pressure, low-temperature gas refrigerant from the evaporator. This gas is then compressed, a process that reduces its volume and increases both its pressure and temperature significantly. For instance, a typical household refrigerator might compress the refrigerant from 2 psig (pounds per square inch gauge) and 0°F (-18°C) to around 150 psig and 150°F (65°C). This dramatic change in state is the first step in transferring heat out of the refrigerator and into the surrounding environment.
Analyzing the mechanics of this process reveals its efficiency and necessity. The compressor, often a reciprocating, rotary, or scroll type, operates by reducing the volume of the refrigerant gas through mechanical force. This reduction in volume is governed by the ideal gas law, which states that pressure and temperature are directly proportional when volume decreases. The energy required for this compression is supplied by the refrigerator’s motor, which consumes electricity. While this step is energy-intensive, it is indispensable for creating the pressure differential needed for the refrigerant to release heat during condensation. Without this initial compression, the refrigerant would lack the energy to transition through the rest of the cycle effectively.
From a practical standpoint, understanding the compression process can help troubleshoot common refrigerator issues. For example, if the compressor fails to increase the refrigerant’s pressure and temperature adequately, the cooling cycle will be compromised. Symptoms of a failing compressor include insufficient cooling, unusual noises, or increased energy consumption. Regular maintenance, such as cleaning condenser coils and ensuring proper ventilation around the refrigerator, can help the compressor operate efficiently. Additionally, modern refrigerators often include sensors and controls to monitor compressor performance, adjusting cycles to optimize energy use and cooling effectiveness.
Comparatively, the compression process in refrigerators is similar to that in air conditioners, as both rely on the vapor-compression cycle. However, refrigerators operate at lower temperatures and pressures, tailored to preserve food rather than cool large spaces. The refrigerant used in refrigerators, such as R-134a or R-600a, is chosen for its thermodynamic properties and environmental impact. Unlike older refrigerants like CFCs, which deplete the ozone layer, modern refrigerants are designed to minimize ecological harm while maintaining efficiency. This evolution in refrigerant technology underscores the importance of the compression process in balancing performance and sustainability.
In conclusion, the compression process is a cornerstone of refrigerator functionality, driving the entire cooling cycle by transforming low-pressure gas refrigerant into high-pressure, high-temperature gas. Its efficiency, reliability, and environmental impact are shaped by both the compressor’s design and the refrigerant’s properties. By understanding this process, users can better maintain their refrigerators, troubleshoot issues, and appreciate the engineering behind this everyday appliance. Whether in a home kitchen or a commercial setting, the compression process remains a vital, often unseen force in keeping our food fresh and safe.
Shipping a Refrigerator on Its Side: Risks and Best Practices
You may want to see also
Explore related products
Condensation Stage: Hot, high-pressure gas condenses into liquid, releasing heat outside the fridge
The condensation stage is a critical phase in the refrigeration cycle, where the hot, high-pressure gas from the compressor begins its transformation back into a liquid. This process is not just a simple change of state; it’s a heat exchange mechanism that ensures the refrigerator operates efficiently. As the gas enters the condenser coils, typically located at the back or bottom of the fridge, it comes into contact with cooler air from the surrounding environment. This temperature differential triggers condensation, turning the gas into a high-pressure liquid while releasing the absorbed heat outside the appliance. Without this stage, the refrigerant couldn’t return to its liquid form, halting the cooling process entirely.
To visualize this, imagine a pot of boiling water cooling on a countertop. As steam rises and hits the cooler lid, it condenses back into water droplets. Similarly, in a refrigerator, the condenser coils act as the "lid," facilitating the transition from gas to liquid. This heat release is why the area around the condenser coils often feels warm to the touch—it’s a sign the system is functioning correctly. For optimal performance, ensure these coils are free from dust and debris, as blockages can reduce heat dissipation and strain the compressor. Regular cleaning with a vacuum or brush can improve efficiency by up to 30%.
From an analytical perspective, the condensation stage is governed by the principles of thermodynamics, specifically the second law, which states that heat naturally flows from hotter to cooler areas. The refrigerant’s high-pressure gas state carries significant thermal energy, which is expelled during condensation. This process is essential for maintaining the pressure differential required for the next stages of the cycle. For instance, if the condenser fails to release heat effectively, the refrigerant won’t cool sufficiently, leading to reduced cooling capacity inside the fridge. Monitoring the condenser’s temperature can provide insights into system health; a consistently high temperature may indicate a malfunction or inefficiency.
For those looking to optimize their refrigerator’s performance, understanding the condensation stage offers practical takeaways. First, ensure proper ventilation around the condenser coils. A minimum clearance of 2–3 inches behind and beneath the fridge allows air to circulate freely, enhancing heat dissipation. Second, consider the ambient temperature—operating a fridge in a hot environment, such as a garage, increases the condenser’s workload. If this is unavoidable, use a fridge with a tropicalized compressor designed to handle higher temperatures. Lastly, avoid overloading the fridge, as this restricts airflow and indirectly affects the condenser’s efficiency. Small adjustments like these can extend the appliance’s lifespan and reduce energy consumption by up to 15%.
In comparison to other household appliances, the condensation stage in a refrigerator is unique in its role as both a heat exchanger and a pressure regulator. While air conditioners also rely on condensation, refrigerators must operate within a narrower temperature range to preserve food safely. This specificity demands precise engineering, such as the use of capillary tubes or expansion valves to control refrigerant flow post-condensation. By contrast, a car’s radiator system expels heat but doesn’t involve a phase change from gas to liquid. Recognizing these distinctions highlights the sophistication of refrigeration technology and underscores the importance of maintaining each component, especially the condenser, for reliable performance.
Refrigerated Cookie Dough: How Long Does It Stay Fresh?
You may want to see also
Explore related products
Expansion Valve: Liquid refrigerant expands, dropping pressure and temperature, preparing for evaporation
The expansion valve is a critical component in the refrigeration cycle, acting as the gateway between the high-pressure liquid refrigerant and the low-pressure evaporator. Its primary function is to meter the flow of refrigerant, ensuring that it expands rapidly, which results in a significant drop in both pressure and temperature. This process is essential for preparing the refrigerant to absorb heat from the refrigerator’s interior, effectively cooling the space. Without the expansion valve, the refrigerant would not undergo the necessary phase change from liquid to vapor, rendering the cooling process inefficient or impossible.
Consider the expansion valve as a precision tool, akin to a pharmacist dispensing medication in exact doses. It regulates the amount of refrigerant entering the evaporator coil, ensuring it expands at the right rate and under the right conditions. This expansion is not merely a physical change but a thermodynamic one, where the refrigerant’s energy state shifts dramatically. For instance, R-134a, a common refrigerant, drops from approximately 100 psi (high-pressure liquid) to around 10 psi (low-pressure vapor) as it passes through the valve. This pressure drop is accompanied by a temperature decrease, often from near room temperature to just above freezing, making the refrigerant ready to absorb heat from the surroundings.
To understand the expansion valve’s role, imagine a scenario where water is sprayed into a hot pan. The water instantly evaporates, cooling the pan as it absorbs heat. Similarly, the refrigerant, after passing through the expansion valve, evaporates in the evaporator coil, drawing heat from the refrigerator’s interior. However, unlike water, the refrigerant’s evaporation is controlled and optimized for efficiency. Proper calibration of the expansion valve is crucial; an overly restrictive valve can starve the evaporator of refrigerant, while an overly open one can lead to liquid refrigerant flooding the compressor, causing damage. Technicians often use tools like a superheat calculator to ensure the valve operates within optimal parameters, typically maintaining a superheat of 5–15°F for most systems.
A practical tip for homeowners is to monitor their refrigerator’s performance for signs of expansion valve issues. If the freezer isn’t cold enough or the refrigerator compartment is too warm, the valve might be malfunctioning. Frost buildup on the evaporator coil or unusual hissing noises near the valve are also red flags. While DIY repairs are not recommended due to the complexity of refrigerant systems, recognizing these symptoms can prompt timely professional intervention, preventing further damage. Regular maintenance, including cleaning the condenser coils and ensuring proper airflow, can also reduce strain on the expansion valve, extending its lifespan and maintaining system efficiency.
In summary, the expansion valve is the unsung hero of the refrigeration cycle, enabling the refrigerant to undergo the critical expansion process that drives heat absorption. Its precise operation ensures the system operates efficiently, keeping your food fresh and your energy bills in check. Whether you’re a technician fine-tuning a system or a homeowner troubleshooting issues, understanding the expansion valve’s role empowers you to maintain a reliable and effective refrigeration system.
Windex on Stainless Steel: Safe Cleaning Tips for Your Fridge
You may want to see also
Explore related products
Evaporation Cycle: Cold liquid absorbs heat from the fridge, evaporating into gas, cooling the interior
The evaporation cycle is the heart of a refrigerator's cooling process, a silent yet powerful mechanism that transforms a simple liquid into a cooling agent. Imagine a cold liquid, typically a refrigerant like R-134a, circulating through the fridge's coils. As it comes into contact with the warmer air inside, it absorbs heat, initiating a phase change from liquid to gas. This absorption of heat is not just a transfer but a fundamental principle of thermodynamics, where the refrigerant's low boiling point allows it to evaporate at a relatively low temperature, drawing heat away from the surroundings.
In this cycle, the refrigerant's journey begins in the evaporator coils, often located at the back or bottom of the fridge. As the cold liquid flows through these coils, it encounters the warmer air, creating a temperature differential. This difference drives the heat transfer, causing the liquid to evaporate rapidly. The process is akin to how sweat cools the human body; as the refrigerant turns into gas, it takes away the heat, leaving the fridge's interior cooler. The efficiency of this heat absorption is crucial, as it directly impacts the fridge's cooling performance. For instance, a well-designed evaporator coil system can maintain a consistent temperature, ensuring your food stays fresh longer.
Now, let's delve into the practical aspects. The refrigerant's choice is critical, as it must have a low boiling point and be environmentally friendly. Modern refrigerators often use hydrofluorocarbons (HFCs) like R-134a, which have a boiling point of around -26°C (-15°F). This means that even at relatively high temperatures, the refrigerant can effectively absorb heat and evaporate. The pressure at which this evaporation occurs is also vital. In a typical household refrigerator, the evaporator operates at a low pressure, allowing the refrigerant to evaporate easily and efficiently.
To optimize this cycle, consider the following: ensure proper airflow around the evaporator coils by keeping the fridge well-ventilated and free from obstructions. Regularly defrosting manual-defrost refrigerators is essential, as ice buildup can insulate the coils, reducing their heat-absorbing capacity. For frost-free models, the automatic defrost system should be functioning correctly. Additionally, maintaining the door seals is crucial to prevent warm air from seeping in, which could overwork the evaporation cycle. By understanding and caring for this process, you can ensure your refrigerator operates efficiently, keeping your food fresh and your energy bills in check.
In summary, the evaporation cycle is a delicate dance of heat absorption and phase change, all occurring within the confines of your refrigerator. It's a process that, when optimized, can provide efficient cooling while minimizing energy consumption. By grasping the intricacies of this cycle, you gain insight into the very essence of refrigeration technology.
Best Places to Buy a Refrigerator: Top Retailers and Deals
You may want to see also
Explore related products
Refrigerant Flow: Continuous circulation of refrigerant through the compressor and coils sustains cooling
The heart of a refrigerator's cooling system is the continuous circulation of refrigerant, a process that relies on the compressor's ability to maintain a steady flow. This refrigerant, typically a chemical compound like R-134a or R-600a, undergoes a cyclical transformation between gas and liquid states, absorbing and releasing heat as it moves through the system. The compressor plays a pivotal role in this cycle by pressurizing the refrigerant, turning it into a high-pressure, high-temperature gas. This pressurized gas then moves to the condenser coils, where it dissipates heat into the surrounding environment, cooling down and condensing back into a liquid. Understanding this phase transition is crucial, as it forms the basis for the refrigerator’s ability to remove heat from the interior compartment.
Consider the refrigerant’s journey as a closed-loop system, where every component depends on the next to function efficiently. After leaving the condenser, the liquid refrigerant passes through an expansion valve, which abruptly reduces its pressure. This sudden drop in pressure causes the refrigerant to evaporate rapidly, absorbing heat from the refrigerator’s interior in the process. The now-cold, gaseous refrigerant then flows into the evaporator coils, where it continues to absorb heat, maintaining the desired temperature inside the fridge. This cooled gas returns to the compressor, completing the cycle and ensuring continuous cooling. Without this uninterrupted flow, the system would fail to sustain the cooling effect, highlighting the importance of each step in the refrigerant’s journey.
To optimize this process, it’s essential to maintain the compressor and coils in peak condition. Regularly clean the condenser coils to prevent dust and debris buildup, which can reduce heat dissipation efficiency. Ensure the refrigerator has adequate ventilation, as poor airflow around the condenser can hinder cooling performance. Additionally, monitor the refrigerant charge; an undercharged system may struggle to maintain low temperatures, while an overcharged one can lead to inefficiency and potential damage. For DIY enthusiasts, checking for leaks using a refrigerant leak detector can be a proactive step, though professional servicing is recommended for repairs. These practical measures ensure the refrigerant circulates effectively, maximizing the refrigerator’s lifespan and energy efficiency.
Comparing the refrigerant flow in a refrigerator to the circulatory system in the human body can provide a useful analogy. Just as blood continuously cycles through the heart and vessels to deliver oxygen and remove waste, refrigerant circulates through the compressor and coils to absorb and release heat. Both systems rely on a pump (the heart or compressor) to drive the flow, and both require clear pathways (blood vessels or coils) to function efficiently. This comparison underscores the importance of maintaining each component in the refrigerant cycle, as a blockage or malfunction in one area can disrupt the entire system. By treating the refrigerator’s cooling mechanism with the same care as one would a biological system, users can ensure its longevity and reliability.
Finally, the continuous circulation of refrigerant is not just a mechanical process but a delicate balance of physics and engineering. The compressor’s role in pressurizing the refrigerant is critical, but it’s the interplay between pressure, temperature, and phase changes that ultimately sustains cooling. For those looking to deepen their understanding, studying the principles of thermodynamics can provide valuable insights into how this system works. Practical tips, such as keeping the refrigerator door closed as much as possible and setting the thermostat to the optimal temperature (typically 37°F or 3°C for the fridge and 0°F or -18°C for the freezer), can further enhance efficiency. By appreciating the intricacies of refrigerant flow, users can better maintain their refrigerators and ensure they operate at peak performance.
Where to Add AC Refrigerant in Your Car: A Quick Guide
You may want to see also
Frequently asked questions
The compressor in a refrigerator works by compressing low-pressure, low-temperature refrigerant gas into high-pressure, high-temperature gas. This process increases the refrigerant's energy, allowing it to release heat to the surrounding environment when it condenses, and then absorb heat from the refrigerator's interior when it evaporates, thus cooling the appliance.
The compressor plays a crucial role in the refrigeration cycle by circulating the refrigerant through the system. It pumps the refrigerant from the evaporator (where it absorbs heat) to the condenser (where it releases heat), maintaining the cycle of cooling and ensuring the refrigerator stays at the desired temperature.
The compressor turns on and off to regulate the temperature inside the refrigerator. When the temperature rises above the set point, the compressor turns on to cool the interior. Once the desired temperature is reached, the compressor turns off to conserve energy and prevent overcooling.
If the compressor fails, the refrigeration cycle stops, and the refrigerator will no longer cool. Symptoms of a failing compressor include insufficient cooling, unusual noises, or the compressor not turning on at all. In such cases, professional repair or replacement of the compressor may be necessary.
