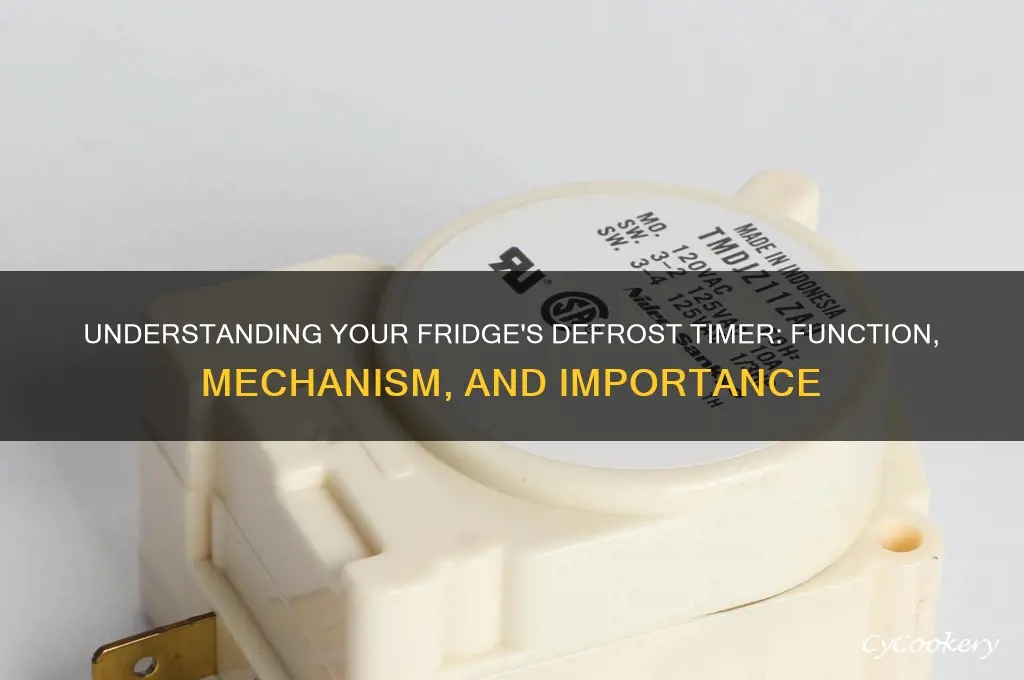

A defrost timer is a critical component in many refrigerators, particularly those with manual defrost systems, designed to prevent ice buildup on the evaporator coils. It operates on a timed cycle, typically every 8 to 12 hours, to initiate the defrost process. When activated, the timer shuts off the compressor and turns on a heating element located near the evaporator coils, melting any accumulated frost. Simultaneously, it disables the evaporator fan to prevent cold air from being circulated during defrosting. After a set period, usually 20 to 30 minutes, the timer switches back to the cooling mode, allowing the refrigerator to resume normal operation. This automated process ensures efficient performance and prevents excessive frost, which can hinder cooling efficiency and increase energy consumption.
| Characteristics | Values |
|---|---|
| Function | Controls the defrost cycle in a refrigerator to prevent ice buildup. |
| Mechanism | Uses a motor-driven cam or electronic circuit to switch between cooling and defrost modes. |
| Components | Motor, cam, timer contacts, heater switch, and control board (in electronic types). |
| Cycle Timing | Typically runs a defrost cycle every 8-12 hours, lasting 15-30 minutes. |
| Defrost Initiation | Turns off the compressor and activates the defrost heater to melt ice. |
| Termination | Ends the defrost cycle when the timer completes its cycle or a temperature sensor detects sufficient thawing. |
| Types | Mechanical (cam-driven) or Electronic (circuit-based). |
| Location | Usually mounted inside the refrigerator or on the control panel. |
| Power Source | Operates on the refrigerator's electrical supply (120V or 240V). |
| Maintenance | Requires periodic inspection for wear, malfunction, or replacement. |
| Failure Symptoms | Excessive ice buildup, failure to cool, or continuous defrosting. |
| Compatibility | Specific to refrigerator models; not universally interchangeable. |
| Energy Efficiency | Optimizes energy use by limiting defrost cycles to necessary intervals. |
| Modern Alternatives | Some refrigerators use adaptive defrost control or heat sensors instead of timers. |
Explore related products
![[2025 Upgrade] 5304526183 Defrost Timer – Compatible with Frigidaire & White‑Westinghouse Refrigerators – Replaces 4960382, AP7014390, PS16227343, EAP16227343, FIX16227343](https://m.media-amazon.com/images/I/71LkgmK9vJL._AC_UY218_.jpg)
What You'll Learn
- Timer Mechanism: Explains the internal clock controlling defrost cycles in refrigerators
- Heating Element Activation: Describes how the timer triggers the defrost heater
- Defrost Termination: Details how the timer ends the defrost cycle to prevent overheating
- Bimetal Safety Switch: Discusses the safety device that stops defrost if the timer fails
- Cycle Frequency: Explains how often the timer initiates defrosting based on refrigerator design
Timer Mechanism: Explains the internal clock controlling defrost cycles in refrigerators
The defrost timer in a refrigerator is a critical component that operates on a precise internal clock to manage the defrost cycle, ensuring the appliance runs efficiently without ice buildup. This mechanism is essentially a time-based switch that alternates between cooling and defrosting modes. Typically, the timer is set to initiate a defrost cycle every 8 to 12 hours, depending on the model and manufacturer specifications. During this cycle, the compressor stops, and the defrost heater activates to melt any accumulated frost on the evaporator coils. This process usually lasts for 15 to 30 minutes, after which the timer reverts the system back to cooling mode. Understanding this timing is key to diagnosing issues, as deviations from this schedule often indicate a malfunctioning timer or related components.
Analyzing the internal workings of the timer reveals a simple yet ingenious design. Most defrost timers are mechanical, relying on a motor-driven cam that rotates at a constant speed. This cam actuates a series of switches that control the compressor, defrost heater, and fan. The motor’s speed is calibrated to ensure the defrost cycle occurs at the programmed intervals. For instance, a 12-hour defrost cycle means the motor completes one full rotation every 12 hours. Modern refrigerators may use electronic timers, which employ a microcontroller to manage the defrost cycle more precisely. These electronic timers can adjust defrost frequency based on usage patterns, offering greater energy efficiency. Regardless of the type, the timer’s reliability is paramount, as consistent defrosting prevents ice buildup that could impair cooling performance.
To troubleshoot a defrost timer, start by observing the refrigerator’s behavior. If the unit fails to cool properly or ice accumulates excessively, the timer may be stuck in defrost mode or not initiating the cycle at all. A practical tip is to manually advance the timer using a flathead screwdriver (if it’s mechanical) to see if the system responds. If the refrigerator immediately begins cooling, the timer is likely faulty and needs replacement. For electronic timers, check for error codes on the display panel, which often provide clues about the issue. Always disconnect power before inspecting or replacing the timer to avoid electrical hazards. Replacement timers should match the original part number to ensure compatibility with your refrigerator model.
Comparing mechanical and electronic timers highlights their respective strengths and weaknesses. Mechanical timers are durable and cost-effective, making them common in older refrigerators. However, they lack flexibility and can wear out over time, leading to inconsistent defrost cycles. Electronic timers, while more expensive, offer advanced features like adaptive defrosting and diagnostic capabilities. They are also less prone to mechanical failure but require precise programming and can be more challenging to repair. When choosing a replacement, consider the age and complexity of your refrigerator. For newer models, an electronic timer may be worth the investment, while a mechanical timer suffices for simpler, older units.
In conclusion, the defrost timer’s internal clock is a cornerstone of refrigerator functionality, balancing cooling and defrosting to maintain optimal performance. Whether mechanical or electronic, its role is indispensable, and understanding its operation empowers homeowners to address issues effectively. Regular maintenance, such as cleaning the evaporator coils and monitoring defrost cycles, can extend the timer’s lifespan and enhance the refrigerator’s efficiency. By recognizing the signs of a failing timer and knowing how to respond, you can avoid costly repairs and ensure your appliance continues to operate smoothly.
Refrigerating Biscuit Dough: Optimal Storage Time for Freshness and Flavor
You may want to see also
Explore related products
Heating Element Activation: Describes how the timer triggers the defrost heater
The defrost timer in a refrigerator is a critical component that ensures the appliance operates efficiently by preventing ice buildup on the evaporator coils. One of its primary functions is to activate the defrost heater at precise intervals, melting any accumulated frost. This process is not random but follows a carefully orchestrated sequence to balance energy use and defrost effectiveness. Typically, the timer operates on a 6 to 12-hour cycle, depending on the refrigerator model and usage patterns. When the timer reaches the designated defrost period, it sends an electrical signal to the defrost heater, initiating the heating process.
Analyzing the mechanism, the defrost timer acts as a switch that redirects power from the compressor to the defrost heater. This redirection is achieved through a series of contacts within the timer that close and open at specific times. For instance, in a mechanical timer, a motor-driven cam rotates to align contacts, while in an electronic timer, a microcontroller manages the switching. The defrost heater, usually located near the evaporator coils, receives power and begins to generate heat. This heat is directed toward the coils, raising their temperature to approximately 50–60°C (122–140°F), sufficient to melt frost without damaging components.
From a practical standpoint, understanding this activation process can help troubleshoot common issues. If the refrigerator fails to defrost, the problem may lie in the timer’s inability to trigger the heater. Testing the timer involves checking for continuity during the defrost cycle; a lack of continuity indicates a faulty timer. Similarly, if the heater activates too frequently or for extended periods, it could suggest a malfunctioning timer or a misconfigured cycle length. Adjusting the timer settings or replacing the component can resolve these issues, ensuring the defrost system operates optimally.
Comparatively, modern refrigerators often use adaptive defrost controls instead of traditional timers. These systems monitor factors like door openings and humidity levels to determine when defrosting is necessary. While more efficient, they still rely on the principle of heater activation triggered by a control mechanism. In contrast, older models with mechanical timers offer simplicity and ease of repair, making them a preferred choice for DIY enthusiasts. Regardless of the type, the core function remains the same: precise heater activation to maintain performance.
In conclusion, the defrost timer’s role in activating the heating element is a blend of timing, electrical control, and thermal management. By understanding how the timer triggers the heater, homeowners can better maintain their refrigerators and address issues before they escalate. Regular inspection of the timer and heater, especially in older units, can prevent costly repairs and extend the appliance’s lifespan. This knowledge not only saves time and money but also ensures the refrigerator operates at peak efficiency, keeping food fresh and energy bills in check.
Refrigerating Taquitos: Tips for Storing Homemade Crispy Rolls Safely
You may want to see also
Explore related products
Defrost Termination: Details how the timer ends the defrost cycle to prevent overheating
A defrost timer's primary role is to prevent the refrigerator's evaporator coils from icing over, but equally critical is its function in terminating the defrost cycle to avoid overheating. This delicate balance ensures the system doesn’t damage itself while maintaining efficiency. The timer achieves this by switching off the defrost heater at precise intervals, typically after 15 to 30 minutes, depending on the model. This duration is calibrated to melt accumulated ice without allowing the coils to reach temperatures that could compromise the surrounding components.
The termination process involves the timer’s internal mechanism, often a bimetallic strip or an electronic circuit, which responds to temperature changes or elapsed time. For instance, in mechanical timers, the strip deforms as it heats up, physically breaking the circuit to the defrost heater. In electronic models, a thermostat or temperature sensor signals the control board to shut off the heater once the coil reaches a predefined threshold, usually around 50°F (10°C). This ensures the defrost cycle ends before the coils or adjacent parts, like the freezer liner, sustain heat-related damage.
One practical tip for homeowners is to monitor the defrost cycle’s duration and termination. If the cycle runs longer than usual or the freezer compartment feels excessively warm afterward, the timer or its sensors may need inspection. Overheating can lead to cracked liners, melted gaskets, or even electrical shorts, so addressing anomalies promptly is crucial. Regularly cleaning the coils and ensuring proper airflow around the refrigerator can also reduce the risk of prolonged defrost cycles.
Comparatively, modern refrigerators with adaptive defrost systems use algorithms to determine when and how long to defrost, based on door openings and humidity levels. These systems often lack traditional timers but still rely on precise termination mechanisms to prevent overheating. While they offer greater efficiency, their complexity means troubleshooting requires specialized knowledge. For older models with mechanical timers, understanding the termination process empowers users to perform basic maintenance and extend the appliance’s lifespan.
In conclusion, defrost termination is a critical yet often overlooked aspect of refrigerator functionality. By ending the cycle at the right moment, the timer safeguards the system from overheating while ensuring ice is effectively removed. Whether mechanical or electronic, the mechanism’s reliability is key to the appliance’s longevity. Awareness of its operation and signs of malfunction can save homeowners from costly repairs and keep their refrigerators running smoothly.
Easy Steps to Clean Your GE Profile Refrigerator Drawers
You may want to see also
Explore related products
Bimetal Safety Switch: Discusses the safety device that stops defrost if the timer fails
A bimetal safety switch is a critical component in the defrost cycle of a refrigerator, designed to prevent overheating and potential damage if the defrost timer malfunctions. This device operates based on the principle of thermal expansion, using two metals with different coefficients of expansion bonded together. When the temperature reaches a predetermined threshold, typically around 140°F (60°C), the bimetal strip bends, breaking the electrical circuit and halting the defrost cycle. This failsafe mechanism ensures that even if the timer fails to shut off the heating element, the refrigerator avoids dangerous temperatures that could melt components or pose a fire hazard.
To understand its importance, consider the defrost cycle’s purpose: to melt frost buildup on the evaporator coils. During this process, a heating element activates, but without proper control, it could run indefinitely. The bimetal safety switch acts as a secondary safeguard, independent of the timer. It is typically located near the evaporator coils, where it can accurately monitor the temperature. Unlike the timer, which relies on mechanical or electronic timing, the bimetal switch responds directly to heat, making it a reliable backup in case of timer failure.
Installing or replacing a bimetal safety switch requires precision. First, ensure the refrigerator is unplugged to avoid electrical shock. Locate the switch near the evaporator coils, usually mounted on a bracket or clipped to the coil assembly. Test the switch’s continuity with a multimeter at room temperature; it should show continuity (closed circuit). Heat the switch with a hairdryer or hot water to the specified temperature (140°F/60°C) and verify that continuity breaks (open circuit). If the switch fails this test, replace it immediately to maintain safety.
While the bimetal safety switch is durable, it is not immune to wear. Over time, repeated heating and cooling cycles can cause the metals to fatigue or the bond to weaken, reducing its effectiveness. Regular maintenance, such as cleaning the coils to ensure efficient heat transfer, can prolong the switch’s lifespan. Additionally, if the refrigerator frequently enters defrost cycles or operates in high-humidity environments, inspect the switch annually for signs of corrosion or damage.
In conclusion, the bimetal safety switch is a small but indispensable part of a refrigerator’s defrost system. Its ability to independently halt the defrost cycle in case of timer failure makes it a vital safety feature. By understanding its function, location, and maintenance requirements, homeowners can ensure their refrigerator operates safely and efficiently, avoiding costly repairs or hazards. Always prioritize professional assistance if unsure about diagnosing or replacing this component.
Safely Thawing Breast Milk in the Fridge: A Step-by-Step Guide
You may want to see also
Explore related products
Cycle Frequency: Explains how often the timer initiates defrosting based on refrigerator design
The defrost timer in a refrigerator is a critical component that dictates how often the appliance shifts into defrost mode, a process essential for preventing ice buildup on the evaporator coils. Cycle frequency, typically ranging from 8 to 24 hours, varies based on the refrigerator’s design and intended use. For instance, residential models often defrost every 12 hours, while commercial units may operate on shorter cycles due to higher usage and humidity levels. Understanding this frequency is key to optimizing energy efficiency and maintaining consistent cooling performance.
Analyzing the factors influencing cycle frequency reveals a balance between necessity and efficiency. Refrigerators in humid environments or those frequently opened may require more frequent defrosting to combat rapid frost accumulation. Conversely, units in cooler, drier settings can operate on longer intervals, reducing energy consumption. Manufacturers program timers based on these variables, ensuring the appliance adapts to its operating conditions without unnecessary cycles that could waste energy or compromise food safety.
From a practical standpoint, homeowners can monitor cycle frequency to troubleshoot issues. If frost builds up excessively between cycles, it may indicate a malfunctioning timer or improper settings. Adjusting the timer (if manual) or consulting a technician can restore optimal performance. For example, some timers allow users to tweak intervals in 2-hour increments, offering flexibility for unique household needs. Regularly checking for frost accumulation and noting defrost cycle timing can help identify problems early.
Comparatively, modern refrigerators with adaptive defrost technology take cycle frequency to the next level. These systems use sensors to detect frost levels and initiate defrosting only when necessary, rather than adhering to a fixed schedule. While traditional timers rely on predetermined intervals, adaptive systems can reduce defrost cycles by up to 30%, significantly cutting energy use. This innovation highlights how advancements in design are reshaping the role of cycle frequency in refrigerator efficiency.
In conclusion, cycle frequency is a tailored aspect of defrost timer functionality, influenced by refrigerator design, environmental conditions, and technological advancements. Whether through fixed intervals or adaptive systems, understanding and managing this frequency ensures the appliance operates efficiently while preserving food quality. For users, awareness of these cycles empowers proactive maintenance, while for manufacturers, it represents a critical area for innovation in energy-saving appliance design.
Refrigerating Lemons: Best Practices for Freshness and Longevity
You may want to see also
Frequently asked questions
A defrost timer is a mechanical or electronic device in a refrigerator that controls the defrost cycle. It periodically turns off the compressor and activates the defrost heater to melt frost buildup on the evaporator coils, ensuring efficient cooling.
Typically, a defrost timer activates the defrost cycle every 8 to 12 hours, depending on the refrigerator model. This frequency ensures frost is removed without causing excessive energy consumption or temperature fluctuations.
Signs of a faulty defrost timer include excessive frost buildup in the freezer, water leakage, or the refrigerator not cooling properly. The timer may also fail to switch between cooling and defrost modes, leading to continuous running or failure to defrost.
In most cases, a defrost timer cannot be repaired and must be replaced if it malfunctions. Replacement involves disconnecting the old timer and installing a new one compatible with the refrigerator model, following the manufacturer’s instructions.
