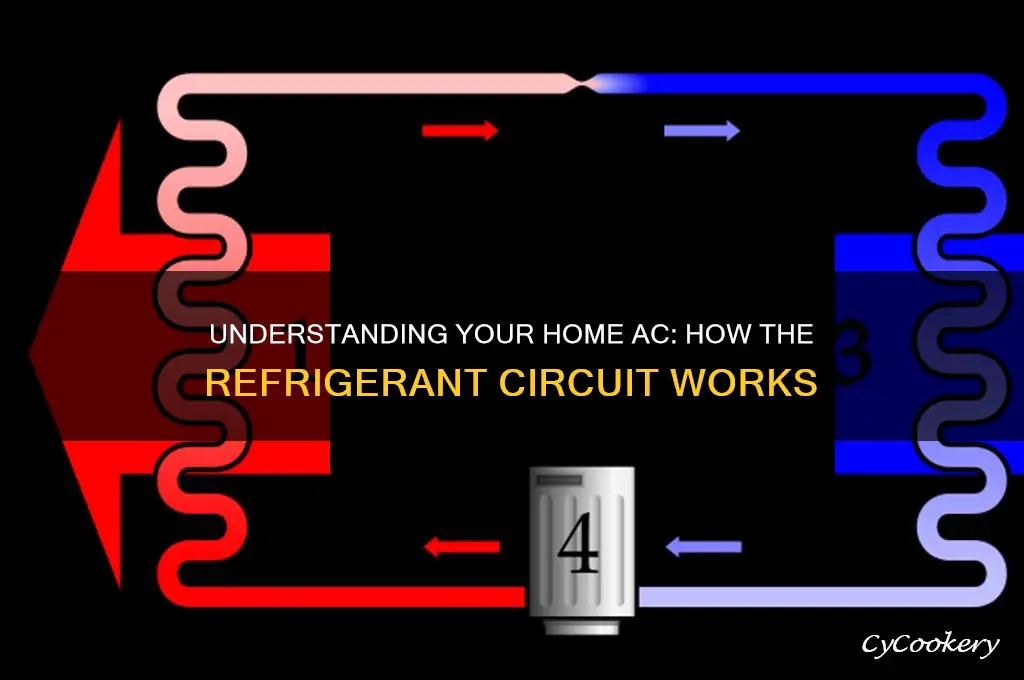

A house air conditioning (AC) refrigerant circuit is the backbone of the cooling process, operating on a closed-loop system that cycles refrigerant to remove heat from indoor air. The circuit consists of four primary components: the compressor, condenser, expansion valve, and evaporator. The process begins when the compressor pressurizes and heats the refrigerant, turning it into a high-pressure gas. This gas then moves to the condenser, typically located outside, where it releases heat to the outdoor air and condenses into a high-pressure liquid. Next, the liquid refrigerant passes through the expansion valve, which reduces its pressure and temperature, causing it to partially evaporate. Finally, the low-pressure, mixed-phase refrigerant enters the evaporator coil inside the home, where it absorbs heat from the indoor air, cooling it, and returns to the compressor as a low-pressure gas to repeat the cycle. This continuous process efficiently transfers heat from inside the home to the outdoors, maintaining a comfortable indoor temperature.
Explore related products
What You'll Learn
- Compressor Function: Compresses refrigerant gas, raising pressure and temperature for heat exchange
- Condenser Process: Releases heat from refrigerant, converting gas to liquid outdoors
- Expansion Valve Role: Reduces refrigerant pressure, cooling it before entering the evaporator
- Evaporator Operation: Absorbs indoor heat, turning liquid refrigerant back into gas
- Refrigerant Cycle: Continuous loop of compression, condensation, expansion, and evaporation for cooling
Compressor Function: Compresses refrigerant gas, raising pressure and temperature for heat exchange
The compressor is the heart of your home AC system, a workhorse that transforms low-pressure, low-temperature refrigerant gas into a high-pressure, high-temperature state. This process is crucial for the heat exchange that ultimately cools your home. Imagine a bicycle pump: as you compress air, it heats up. The compressor does the same to the refrigerant, but with far greater force, increasing its pressure from around 70 psi (pounds per square inch) to roughly 250 psi or more, depending on the system. This dramatic rise in pressure and temperature is the first step in the refrigerant's journey through the AC circuit.
To understand the compressor's role, consider the refrigerant's phase changes. It enters the compressor as a low-pressure gas, often at a temperature close to the indoor air it has absorbed heat from. The compressor's mechanical action, driven by an electric motor, squeezes this gas, raising its temperature to about 150-170°F (65-75°C). This hot, high-pressure gas then moves to the condenser coil, where it releases heat to the outdoor air, a process that would be far less efficient without the compressor's initial boost.
From a practical standpoint, the compressor's efficiency is vital for your AC's performance. A well-maintained compressor ensures optimal pressure and temperature levels, maximizing cooling efficiency. For instance, a compressor operating at 70% efficiency might consume more energy, leading to higher electricity bills. Regular maintenance, such as cleaning the condenser coils and checking refrigerant levels, can prevent issues like short cycling or overheating, which strain the compressor.
Comparing the compressor to other AC components highlights its unique function. While the evaporator absorbs heat from indoor air and the condenser releases it outdoors, the compressor is the only component that actively alters the refrigerant's state. Its role is not just to move the refrigerant but to transform it, making it capable of absorbing and releasing large amounts of heat. This transformation is what allows the AC system to transfer heat from inside your home to the outside environment.
In summary, the compressor's function is a critical, energy-intensive process that sets the stage for effective heat exchange in your AC system. By compressing the refrigerant gas, it ensures the refrigerant can absorb heat indoors and release it outdoors, maintaining a comfortable indoor temperature. Understanding this process underscores the importance of regular maintenance to keep your AC running efficiently and prolong the life of this vital component.
Can Frigidaire and GE Refrigerator Parts Be Swapped? Find Out!
You may want to see also
Explore related products
Condenser Process: Releases heat from refrigerant, converting gas to liquid outdoors
The condenser is the unsung hero of your home AC system, working tirelessly outdoors to expel heat and transform refrigerant from a high-pressure gas into a high-pressure liquid. This phase change is critical because it prepares the refrigerant to absorb more heat from inside your home, ensuring continuous cooling. Without the condenser’s efficiency, your AC would struggle to maintain comfort, especially during peak summer temperatures.
Consider the process step-by-step: Hot, high-pressure refrigerant gas exits the compressor and enters the condenser coil. Here, a fan blows outdoor air over the coil, facilitating heat exchange. For every ton of cooling capacity, the condenser releases approximately 12,000 BTUs of heat per hour. For example, a 3-ton AC unit expels 36,000 BTUs of heat hourly—a testament to its workload. Ambient temperature plays a role; condensers operate less efficiently in extreme heat, which is why AC performance dips on 100°F days.
Efficiency hinges on proper maintenance. Dirty coils reduce heat transfer, forcing the system to work harder and increasing energy consumption by up to 30%. Annually clean the condenser fins with a soft brush and vacuum, and trim vegetation within 2 feet to ensure airflow. For coastal or dusty regions, consider bi-annual cleanings. Pro tip: Use a fin comb (available for $5–$10) to straighten bent fins, restoring airflow without damaging the unit.
Comparing condenser types reveals design trade-offs. Air-cooled condensers are standard in residential ACs due to simplicity and cost, but water-cooled units offer higher efficiency in large-scale applications. However, water-cooled systems require a water source and maintenance to prevent scaling. For homeowners, air-cooled condensers remain the practical choice, balancing performance and upkeep.
In essence, the condenser’s role is to shed heat, a task it accomplishes through physics and engineering. By understanding its function and tending to its needs, you ensure your AC operates at peak efficiency, keeping indoor temperatures comfortable even as outdoor heat soars. Neglect it, and you’ll pay the price in higher bills and reduced system lifespan.
Fully Loaded Refrigerator Weight: Unveiling the Surprising Heaviness Inside
You may want to see also
Explore related products
Expansion Valve Role: Reduces refrigerant pressure, cooling it before entering the evaporator
The expansion valve is a critical component in a home air conditioning system, acting as the gatekeeper between the high-pressure liquid refrigerant and the low-pressure evaporator coil. Its primary function is to rapidly reduce the pressure of the refrigerant, which in turn causes it to cool significantly. This process is essential for the refrigerant to absorb heat from the indoor air effectively. Without this pressure drop, the refrigerant would remain too warm to facilitate the heat exchange necessary for cooling your home.
Consider the expansion valve as a precision tool, akin to a pharmacist measuring a precise dose of medication. It meters the exact amount of refrigerant needed to match the system’s load, ensuring optimal performance. For instance, in a typical residential AC system, the refrigerant enters the expansion valve at around 100–120 psi (pounds per square inch) and exits at approximately 50–70 psi, depending on the outdoor temperature and system design. This drop in pressure causes the refrigerant temperature to plummet from about 100°F to 40°F or lower, preparing it to absorb heat in the evaporator.
From a practical standpoint, the expansion valve’s role is both delicate and demanding. If it fails to reduce pressure adequately, the refrigerant won’t cool enough, leading to poor heat absorption and reduced cooling capacity. Conversely, if it restricts flow too much, it can cause a phenomenon called "flooding," where liquid refrigerant backs up into the evaporator, potentially damaging the compressor. Homeowners should be aware that symptoms like warm air from vents or ice buildup on the evaporator coil may indicate an expansion valve issue, warranting professional inspection.
Comparing the expansion valve to other components in the refrigerant circuit highlights its uniqueness. Unlike the compressor, which increases pressure, or the condenser, which releases heat, the expansion valve’s job is purely transformative—it changes the state of the refrigerant from high-pressure liquid to low-pressure, low-temperature liquid-vapor mixture. This transformation is the linchpin of the cooling process, making the expansion valve a silent hero in your AC system’s efficiency.
In conclusion, the expansion valve’s role in reducing refrigerant pressure and cooling it before it enters the evaporator is indispensable. It ensures the refrigerant is in the ideal state to absorb heat, maintaining your home’s comfort. Regular maintenance, such as checking for proper refrigerant flow and valve operation, can help prolong its lifespan and keep your AC system running smoothly. Understanding this component’s function empowers homeowners to recognize potential issues early and take proactive steps to address them.
Refrigerating Baking Soda: Benefits, Myths, and Proper Storage Tips
You may want to see also
Explore related products
Evaporator Operation: Absorbs indoor heat, turning liquid refrigerant back into gas
The evaporator coil is the unsung hero of your home's air conditioning system, silently working to transform stifling indoor heat into a cool, comfortable environment. Nestled inside your indoor unit, this coil is where the magic begins. As warm air from your home is drawn over the evaporator, the coil absorbs heat, facilitating a critical phase change: liquid refrigerant transitions back into a gas. This process not only cools the air but also removes humidity, leaving your space drier and more pleasant.
Consider the evaporator as a heat sponge, relentlessly pulling thermal energy from the surrounding air. The refrigerant inside the coil enters in a low-pressure, low-temperature liquid state, ideal for absorbing heat. As it warms, it evaporates, becoming a gas. This transformation is governed by the principles of thermodynamics, specifically the latent heat of vaporization, which allows the refrigerant to absorb large amounts of heat without a significant temperature rise. For optimal performance, ensure the evaporator coil is clean and free of dust or debris, as blockages can reduce airflow and efficiency.
A practical tip for homeowners: regularly inspect and clean your evaporator coil at least once a year. Dust and dirt accumulate over time, insulating the coil and hindering its ability to absorb heat effectively. Use a soft brush or vacuum to remove surface debris, and for stubborn buildup, consider a no-rinse coil cleaner. Be cautious not to bend the delicate fins, as this can restrict airflow. If your system includes a filter, replace it monthly to maintain consistent airflow and protect the evaporator from excessive dirt.
Comparing the evaporator’s role to other components highlights its uniqueness. While the condenser coil releases heat outdoors, the evaporator absorbs it indoors, making it the heart of the cooling process. Unlike the compressor, which pressurizes the refrigerant, the evaporator relies on low pressure to facilitate evaporation. This contrast underscores the importance of maintaining both low-pressure and high-pressure sides of the system for balanced operation.
In conclusion, the evaporator’s operation is a delicate dance of physics and engineering, turning liquid refrigerant into gas while absorbing indoor heat. By understanding its function and taking proactive maintenance steps, you can ensure your AC system runs efficiently, keeping your home cool and comfortable year-round. Treat your evaporator with care, and it will reward you with reliable performance, even on the hottest days.
Easy Guide to Reversing Your Dometic RV Refrigerator Doors
You may want to see also
Explore related products
Refrigerant Cycle: Continuous loop of compression, condensation, expansion, and evaporation for cooling
The refrigerant cycle is the lifeblood of your home air conditioning system, a continuous loop that transforms a chemical compound into a cooling powerhouse. This cycle relies on the unique properties of refrigerants, which can easily change from gas to liquid and back again, absorbing and releasing heat in the process. Imagine a relay race where each runner passes the baton, except in this case, the baton is heat, and the runners are the four stages of the cycle: compression, condensation, expansion, and evaporation.
Each stage is crucial, and understanding their interplay reveals the magic behind your AC's ability to transform a sweltering summer day into a comfortable oasis.
Compression: The journey begins with the compressor, the workhorse of the system. It takes in low-pressure, low-temperature refrigerant gas and squeezes it, increasing its pressure and temperature significantly. Think of it like pumping air into a bicycle tire – the more you pump, the hotter the air gets. This compressed, high-pressure gas is now ready to release its heat.
Condensation: The hot, pressurized refrigerant gas then enters the condenser coil, usually located outside your home. Here, it comes into contact with cooler outdoor air, causing the refrigerant to condense from a gas back into a liquid. This phase change releases the heat absorbed during compression, which is why the condenser coil feels warm to the touch.
Expansion: The high-pressure liquid refrigerant then encounters an expansion valve, a narrow opening that acts as a bottleneck. As the refrigerant passes through, its pressure drops dramatically, causing a rapid cooling effect. This is similar to how a can of compressed air feels cold when sprayed – the sudden expansion of gas lowers its temperature.
Evaporation: The cold, low-pressure liquid refrigerant now enters the evaporator coil, typically located inside your home. As warm air from your house blows over the coil, the refrigerant absorbs heat from the air, causing it to evaporate back into a gas. This cooled air is then circulated back into your living space, providing the refreshing relief you crave. The refrigerant gas, now warmed by the absorbed heat, returns to the compressor, completing the cycle and starting the process anew.
Practical Tip: Regularly cleaning or replacing your AC filter ensures optimal airflow over the evaporator coil, maximizing heat absorption and cooling efficiency.
Easy Steps to Remove Handles from Your Whirlpool Refrigerator
You may want to see also
Frequently asked questions
The house AC refrigerant circuit absorbs heat from indoor air, transfers it outdoors, and circulates refrigerant to cool the home. It operates in a continuous cycle using compression, condensation, expansion, and evaporation.
Refrigerant transitions between gas and liquid states. It evaporates indoors, absorbing heat (gas), gets compressed into a hot gas, condenses outdoors into a liquid, and expands back into a low-pressure gas to repeat the cycle.
The key components are the compressor (pressurizes refrigerant), condenser (releases heat outdoors), expansion valve (reduces pressure), and evaporator coil (absorbs heat indoors). These work together to facilitate cooling.
