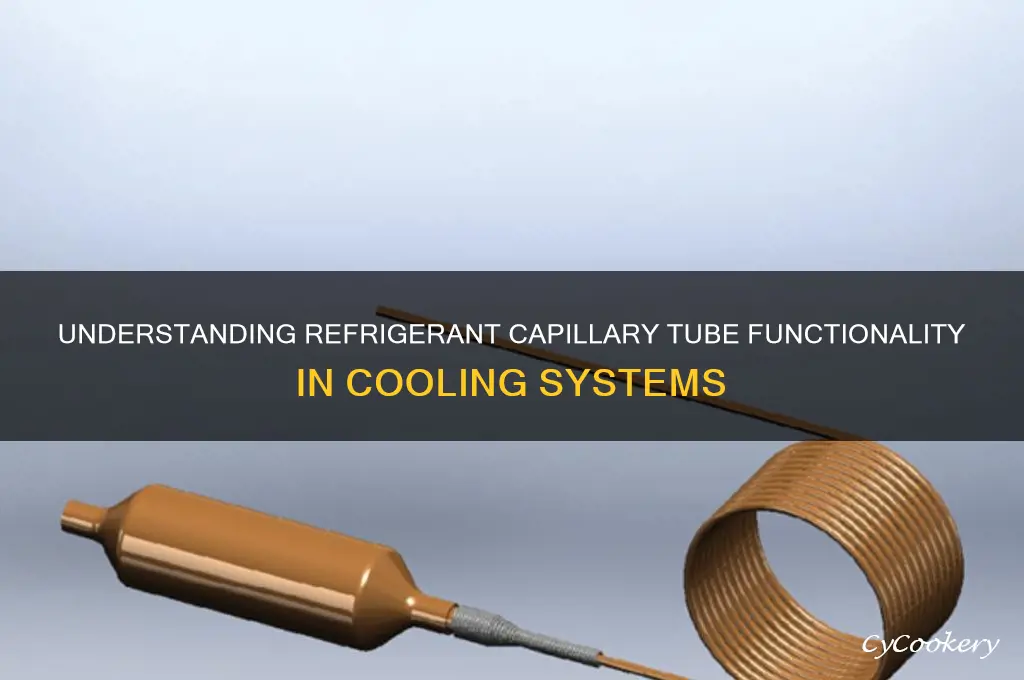

A refrigerant capillary tube is a crucial component in vapor compression refrigeration systems, functioning as a metering device that regulates the flow of refrigerant into the evaporator. This thin, long tube with a precise internal diameter creates a significant pressure drop as the high-pressure liquid refrigerant passes through it, causing the refrigerant to expand and partially vaporize. This process reduces the refrigerant’s temperature, preparing it for efficient heat absorption in the evaporator. The capillary tube’s operation relies on the principles of fluid dynamics and thermodynamics, ensuring a controlled and consistent refrigerant flow without the need for moving parts, making it simple, reliable, and cost-effective for smaller refrigeration systems.
| Characteristics | Values |
|---|---|
| Function | Metering and throttling refrigerant flow |
| Location | Between the condenser outlet and evaporator inlet |
| Primary Purpose | Control refrigerant flow rate and reduce pressure |
| Working Principle | Utilizes the Joule-Thomson effect and fluid dynamics |
| Pressure Drop | High-pressure liquid refrigerant enters, low-pressure two-phase mixture exits |
| Temperature Drop | Adiabatic expansion causes refrigerant temperature to drop |
| Flow Rate Control | Tube length, diameter, and internal surface roughness determine flow rate |
| Refrigerant State at Exit | Two-phase mixture (liquid and vapor) |
| Efficiency | High efficiency in simple refrigeration systems |
| Maintenance | Prone to clogging from contaminants or moisture |
| Application | Commonly used in small to medium-sized refrigeration and air conditioning systems |
| Alternatives | Thermostatic expansion valves (TXVs) or electronic expansion valves (EXVs) in more complex systems |
| Material | Typically made of copper or copper alloys for corrosion resistance |
| Design Considerations | Proper sizing based on system capacity, refrigerant type, and operating conditions |
| Environmental Impact | Efficient operation reduces energy consumption and refrigerant usage |
Explore related products
What You'll Learn
- Capillary Tube Basics: Tiny tube restricts refrigerant flow, controlling pressure and temperature in the system
- Pressure Drop Mechanism: High-pressure liquid refrigerant enters, exits as low-pressure liquid/vapor mix
- Flow Regulation: Tube length and diameter precisely meter refrigerant flow for efficient cooling
- Heat Exchange Role: Absorbs heat from surroundings, aiding refrigerant evaporation in the evaporator
- System Integration: Works with compressor, condenser, and evaporator to complete refrigeration cycle
Capillary Tube Basics: Tiny tube restricts refrigerant flow, controlling pressure and temperature in the system
A capillary tube, often no thicker than a few millimeters, is the unsung hero in many refrigeration systems. Its primary function is deceptively simple: to restrict the flow of refrigerant, thereby controlling the pressure and temperature within the system. This restriction is crucial because it creates a pressure drop between the high-pressure side (condenser) and the low-pressure side (evaporator), allowing the refrigerant to absorb heat efficiently. Without this tiny tube, the system would lack the necessary conditions for effective heat exchange, rendering it ineffective.
Consider the process step-by-step. As the high-pressure liquid refrigerant exits the condenser, it encounters the capillary tube. The tube’s narrow diameter forces the refrigerant to slow down, increasing its residence time and causing a significant drop in pressure. This drop in pressure results in a simultaneous drop in temperature, partially vaporizing the refrigerant before it reaches the evaporator. By the time the refrigerant enters the evaporator, it’s in a state ideal for absorbing heat from the surrounding environment, thus cooling the space effectively.
The design of the capillary tube is critical to its performance. Its length and diameter are precisely calculated based on factors like refrigerant type, system capacity, and operating conditions. For instance, a longer or narrower tube increases resistance, further reducing flow rate and pressure. Conversely, a shorter or wider tube allows more refrigerant to pass, which could lead to inadequate cooling. Technicians often refer to this as "sizing the capillary tube," a process that requires careful consideration to ensure optimal system efficiency.
One practical tip for troubleshooting capillary tube issues is to check for blockages or kinks, which can severely impair performance. Even a small obstruction can disrupt the delicate balance of pressure and temperature, leading to poor cooling or system failure. Regular maintenance, including cleaning and inspecting the tube, is essential to prevent such problems. Additionally, when replacing a capillary tube, always use the exact specifications provided by the manufacturer to avoid inefficiencies or damage to the system.
In summary, the capillary tube’s role in a refrigeration system is both precise and indispensable. By restricting refrigerant flow, it orchestrates the pressure and temperature changes necessary for effective heat absorption and cooling. Understanding its function and maintaining its integrity ensures the longevity and efficiency of the entire system. Whether you’re a technician or a curious homeowner, appreciating the capillary tube’s simplicity and significance can deepen your understanding of how refrigeration works.
Can Ginger Tea Be Refrigerated? Storage Tips for Freshness
You may want to see also
Explore related products
Pressure Drop Mechanism: High-pressure liquid refrigerant enters, exits as low-pressure liquid/vapor mix
The refrigerant capillary tube operates on a simple yet ingenious principle: it leverages a significant pressure drop to transform high-pressure liquid refrigerant into a low-pressure liquid/vapor mix. This process is critical for efficient heat exchange in refrigeration systems. As the refrigerant enters the capillary tube under high pressure, it encounters a narrow, precisely sized passage that restricts flow. This restriction forces the refrigerant to expand, reducing its pressure and temperature. The result is a mixture of liquid and vapor that exits the tube, ready to absorb heat in the evaporator.
To understand the mechanism, consider the thermodynamics at play. The capillary tube acts as a throttling device, creating a sudden drop in pressure without any moving parts. This drop occurs due to the tube’s small diameter and length, which increase resistance to flow. For example, a typical capillary tube might have an internal diameter of 0.02 to 0.06 inches, depending on the system’s requirements. The refrigerant, initially at a high-pressure state (e.g., 150–250 psi), exits at a much lower pressure (e.g., 20–40 psi), depending on the evaporating temperature needed. This transformation is essential for the refrigerant to effectively absorb heat from the surrounding environment.
A key takeaway is the importance of precise sizing. The capillary tube’s length and diameter must be carefully calculated to match the system’s load and refrigerant type. Oversized tubes can lead to insufficient pressure drop, resulting in poor cooling performance, while undersized tubes can cause excessive pressure drop, leading to inefficient operation or even system damage. For instance, a tube that’s too long or too narrow can cause the refrigerant to exit as mostly vapor, reducing its heat absorption capacity. Conversely, a tube that’s too short or too wide may not reduce the pressure enough, leaving the refrigerant in a primarily liquid state, which can flood the compressor.
Practical tips for maintaining this mechanism include regular system checks to ensure the capillary tube is free from blockages, such as oil or debris, which can disrupt the pressure drop. Additionally, when replacing a capillary tube, always refer to the manufacturer’s specifications to ensure the correct size is used. For DIY enthusiasts, it’s crucial to understand that capillary tubes are not universal—each system requires a specific tube tailored to its design and refrigerant type. For example, R-134a systems typically require different tube dimensions compared to R-22 systems due to differences in refrigerant properties.
In summary, the pressure drop mechanism in a capillary tube is a delicate balance of physics and engineering. By restricting flow and causing a sudden pressure reduction, the tube transforms high-pressure liquid refrigerant into a low-pressure liquid/vapor mix, enabling efficient heat absorption. Proper sizing and maintenance are critical to ensure this mechanism functions optimally, making it a cornerstone of effective refrigeration systems.
How to Easily Adjust Your Refrigerator Hinges for Perfect Alignment
You may want to see also
Explore related products
Flow Regulation: Tube length and diameter precisely meter refrigerant flow for efficient cooling
The capillary tube's role in a refrigeration system is akin to a precision engineer meticulously calibrating a machine. Its length and diameter are not arbitrary; they are carefully calculated to control the refrigerant flow rate, ensuring optimal cooling performance. This delicate balance is achieved through the tube's ability to create a pressure drop, which, in turn, regulates the refrigerant's flow.
Imagine a scenario where a 10-foot capillary tube with a 0.040-inch diameter is used in a small refrigeration unit. The tube's length and diameter are specifically chosen to create a pressure drop of approximately 10-15 psi, allowing the refrigerant to flow at a rate of 0.5-1.0 pounds per hour. This precise metering ensures that the refrigerant enters the evaporator at the correct pressure and temperature, facilitating efficient heat absorption and cooling. A shorter tube or a larger diameter would result in an excessive flow rate, leading to inadequate cooling and potential system inefficiency.
In contrast, a longer tube or a smaller diameter would restrict the flow, causing a significant pressure drop and reducing the refrigerant's flow rate. For instance, a 15-foot capillary tube with a 0.030-inch diameter might create a pressure drop of 20-25 psi, limiting the flow rate to 0.2-0.4 pounds per hour. This reduced flow rate can be beneficial in systems requiring precise temperature control, such as in medical refrigeration or air conditioning units. However, it's essential to strike a balance, as an overly restrictive tube can lead to inadequate cooling capacity and increased energy consumption.
To optimize capillary tube performance, consider the following practical tips: when designing or modifying a refrigeration system, calculate the required tube length and diameter based on the specific refrigerant, evaporator load, and desired cooling capacity. As a general guideline, a tube length of 8-12 feet with a diameter of 0.030-0.050 inches is suitable for most residential refrigeration systems. For commercial applications, consult manufacturer guidelines or industry standards, such as ASHRAE (American Society of Heating, Refrigerating and Air-Conditioning Engineers), to determine the appropriate tube specifications.
The art of capillary tube design lies in understanding the intricate relationship between tube length, diameter, and refrigerant flow. By precisely metering the refrigerant, the capillary tube ensures efficient cooling, minimizes energy consumption, and contributes to the overall reliability of the refrigeration system. As a technician or engineer, mastering this concept is crucial for optimizing system performance and troubleshooting potential issues related to refrigerant flow and cooling capacity.
Using Heavy-Duty Extension Cords for Refrigerators: Safe or Risky?
You may want to see also
Explore related products
Heat Exchange Role: Absorbs heat from surroundings, aiding refrigerant evaporation in the evaporator
The refrigerant capillary tube, a slender conduit often overlooked, plays a pivotal role in the heat exchange process within refrigeration systems. Its primary function is to regulate the flow of refrigerant, ensuring it enters the evaporator at the optimal pressure and temperature for efficient heat absorption. This process is crucial because the evaporator relies on the refrigerant’s ability to absorb heat from the surroundings, which in turn facilitates the evaporation of the refrigerant itself. Without this precise control, the system’s efficiency would plummet, leading to inadequate cooling and increased energy consumption.
Consider the mechanics of this heat exchange: as the refrigerant passes through the capillary tube, its pressure drops significantly, causing it to cool. This cooled refrigerant then enters the evaporator, where it comes into contact with the warmer surroundings—typically air or liquid in need of cooling. The temperature differential drives heat transfer from the surroundings to the refrigerant, raising its temperature and causing it to evaporate. This phase change from liquid to vapor is energy-intensive, effectively absorbing heat from the environment. For example, in a household refrigerator, the evaporator coil absorbs heat from the fridge interior, maintaining the desired temperature while the refrigerant transitions from liquid to vapor.
To optimize this process, the capillary tube’s length and diameter are meticulously designed to match the system’s requirements. A longer or narrower tube increases resistance, further reducing refrigerant pressure and temperature, while a shorter or wider tube has the opposite effect. This precision ensures the refrigerant enters the evaporator at a temperature slightly below the surrounding environment, maximizing its heat absorption capacity. For instance, in a small refrigeration unit, a capillary tube might be 12 feet long with a diameter of 0.06 inches, tailored to handle a specific refrigerant flow rate and cooling load.
Practical considerations underscore the importance of this heat exchange role. If the capillary tube becomes clogged or damaged, the refrigerant flow is restricted, reducing the evaporator’s ability to absorb heat. This results in poor cooling performance and potential system failure. Regular maintenance, such as cleaning or replacing the capillary tube, is essential to prevent such issues. Additionally, when designing or retrofitting refrigeration systems, engineers must account for factors like ambient temperature, refrigerant type, and desired cooling capacity to ensure the capillary tube and evaporator work in harmony.
In summary, the capillary tube’s role in heat exchange is both subtle and indispensable. By controlling refrigerant flow and pressure, it sets the stage for efficient heat absorption in the evaporator, driving the evaporation process that cools our homes, vehicles, and appliances. Understanding this dynamic not only highlights the ingenuity of refrigeration technology but also emphasizes the need for precision and care in system design and maintenance.
Refrigerating Urine Samples: How Long Can They Stay Fresh?
You may want to see also
Explore related products
System Integration: Works with compressor, condenser, and evaporator to complete refrigeration cycle
The refrigerant capillary tube is a critical component in the refrigeration cycle, but it doesn’t operate in isolation. Its function is deeply intertwined with the compressor, condenser, and evaporator, forming a seamless system that ensures efficient cooling. Here’s how this integration works: the compressor pressurizes and heats the refrigerant, turning it into a high-pressure gas. This gas then moves to the condenser, where it releases heat to the surroundings, condensing into a high-pressure liquid. The capillary tube steps in next, acting as a metering device to throttle the liquid refrigerant, reducing its pressure and temperature before it enters the evaporator. This precise control is essential for the refrigerant to absorb heat effectively in the evaporator, completing the cycle. Without this integration, the system would fail to maintain the delicate balance required for consistent cooling.
Consider the analogy of a relay race, where each runner depends on the next to carry the baton forward. In the refrigeration system, the capillary tube is the handoff between the condenser and evaporator. Its role is to ensure the refrigerant is in the right state—low-pressure, low-temperature liquid—for the evaporator to perform its job. For instance, in a household refrigerator, the capillary tube might reduce the refrigerant pressure from 150 psi at the condenser outlet to around 20 psi at the evaporator inlet. This drop is crucial because it allows the refrigerant to evaporate at the desired temperature, typically between -10°C and 0°C, depending on the appliance. If the capillary tube were absent or malfunctioning, the refrigerant would enter the evaporator at too high a pressure, leading to inefficient heat absorption and inadequate cooling.
Practical integration tips highlight the importance of sizing the capillary tube correctly. A tube that’s too long or too short can disrupt the entire cycle. For example, an oversized tube may not throttle the refrigerant enough, causing the evaporator to operate at higher temperatures than intended. Conversely, an undersized tube can lead to excessive pressure drop, starving the evaporator of refrigerant and reducing cooling capacity. Engineers often use software tools like REFPROP or manufacturer guidelines to calculate the ideal tube length based on factors like refrigerant type, system capacity, and desired evaporator temperature. For a typical R-134a system with a 200W cooling load, a capillary tube length of 3–4 meters might be appropriate, but this varies widely based on specific design parameters.
One often overlooked aspect of system integration is the impact of ambient conditions. For instance, in hot climates, the condenser may struggle to dissipate heat, causing the refrigerant to enter the capillary tube at a higher temperature than expected. This can alter the pressure drop across the tube, affecting evaporator performance. To mitigate this, designers might incorporate additional condenser surface area or use thermostatic expansion valves (TXVs) instead of capillary tubes in systems requiring precise control under varying conditions. However, for simpler, cost-effective applications like small refrigerators or air conditioners, the capillary tube remains the go-to choice due to its reliability and low maintenance requirements.
In conclusion, the capillary tube’s role in system integration is both precise and pivotal. It bridges the gap between the condenser and evaporator, ensuring the refrigerant is in the optimal state for heat absorption. By working in harmony with the compressor and condenser, it enables the refrigeration cycle to operate efficiently, delivering consistent cooling performance. Whether in a home refrigerator or a commercial freezer, understanding this integration is key to diagnosing issues and optimizing system design. Proper sizing, consideration of ambient conditions, and awareness of alternative technologies like TXVs are essential for anyone working with refrigeration systems.
Refrigerating Carrot Cake: Best Practices for Freshness and Flavor
You may want to see also
Frequently asked questions
A refrigerant capillary tube is a narrow, long tube used in refrigeration and air conditioning systems. Its primary function is to meter and control the flow of refrigerant, reducing its pressure and temperature as it moves from the condenser to the evaporator.
The capillary tube reduces pressure by creating a significant pressure drop due to its small diameter and long length. This restriction forces the refrigerant to slow down and expand, which lowers its pressure and temperature, preparing it for evaporation in the evaporator.
The size and length of a capillary tube are determined by factors such as the refrigerant type, system capacity, operating conditions (temperature and pressure), and the desired flow rate. Proper sizing is critical to ensure efficient system performance.
Yes, a capillary tube can become clogged due to debris, moisture, or refrigerant oil buildup. Contaminants in the system, improper filtration, or moisture reacting with the refrigerant can lead to blockages, reducing system efficiency or causing complete failure.
Unlike an expansion valve, which can adjust refrigerant flow based on system conditions, a capillary tube is a fixed orifice with no moving parts. It is simpler and less expensive but lacks the ability to regulate flow dynamically, making it less suitable for systems requiring precise control.
